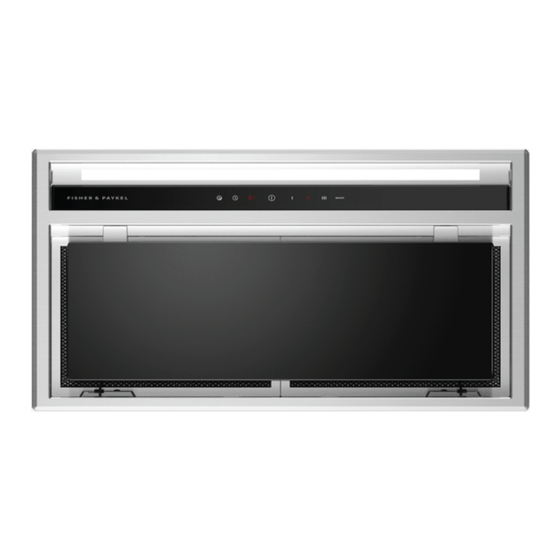

- Page 1 INTEGRATED INSERT RANGEHOOD WITH EXTERNAL BLOWER CONTEMPORARY HP60IDCHEX3 & HP90IDCHEX3 INSTALLATION GUIDE NZ AU...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Parts supplied Prior to installation Product dimensions Cutout dimensions Installation height Venting requirements Prepare rangehood Connect rangehood Parts and accessories Final checklist... -
Page 4: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advice may result in electric shock or death. • Always disconnect the appliance the appliance from the mains power supply before carrying out any maintenance or repairs. Failure to do so can result in death, electric shock, fire or injury to persons. - Page 5 SAFETY AND WARNINGS WARNING! When using this appliance always exercise basic safety precautions including the following: Please read the entire set of instructions before installing or using this appliance. Please make this information available to the person installing the appliance Always switch the power off prior to installation, servicing or cleaning of the appliance. This appliance must be installed and connected to the mains power supply only by a suitably qualified person according to these installation instructions and in compliance with any applicable local building and electricity regulations.
-
Page 6: Parts Supplied
PARTS SUPPLIED INTEGRATED INSERT RANGEHOOD WITH EXTERNAL BLOWER HP60IDCHEX3 & HP90IDCHEX3 models INSTALLATION GUIDE NZ AU Rangehood (1) Installation guide (1) 200 mm ducting 8 mm screw (4) adapter (1) -
Page 7: Prior To Installation
PRIOR TO INSTALLATION Fisher & Paykel is not liable for any damage caused by not following these instructions. Please read the instructions carefully. Unpack the rangehood. Ensure the voltage (V) and the frequency (Hz) indicated on the rating plate match the voltage and frequency of the installation site. -
Page 8: Product Dimensions
PRODUCT DIMENSIONS PLAN Ducting adapter PROFILE FRONT BOTTOM VIEW... - Page 9 PRODUCT DIMENSIONS HP60 HP90 PRODUCT DIMENSIONS A Overall height of product without ducting adapter B Overall height of product with ducting adapter C Overall width of product D Overall depth of product E Thickness of flange F Width of the chassis G Depth of the chassis H Height of the chassis I Width of top surface of chassis...
-
Page 10: Cutout Dimensions
CUTOUT DIMENSIONS 60cm model HP60 CUTOUT DIMENSIONS A Overall width of the cutout B Overall depth of the cutout... - Page 11 CUTOUT DIMENSIONS 90cm model HP90 CUTOUT DIMENSIONS A Overall width of the cutout B Overall depth of the cutout...
-
Page 12: Installation Height
INSTALLATION HEIGHT HEIGHT DIMENSIONS A Height top of cooktop to base of product Electric cooktop min 600 – max 750 Gas cooktop min 650 – max 750 This rangehood must be installed no lower than the minimum height indicated in the table above. - Page 13 INSTALLATION HEIGHT Induction cooktop considerations Induction cooktops use energy efficient technology that only heats the contents of a cooking pot. Unlike gas or traditional electric cooktops, the surrounding air does not get heated when using an induction cooktop. As a result, rangehood filters, splashbacks and surrounding cabinetry do not get warmed up, increasing the likelihood of condensation on these cooler surfaces.
-
Page 14: Venting Requirements
VENTING REQUIREMENTS Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled. This rangehood is designed to operate with a Fisher & Paykel external blower with the exhaust air ducted externally from the kitchen. External blower rangehood installation is different from internal blower rangehood installation, please refer to the external blower installation guide for details. - Page 15 ELECTRICIAL REQUIREMENTS Rating plate location Before connecting the rangehood to the power supply, ensure the voltage and frequency indicated on the rating plate match that of the installation location: MODEL FREQUENCY VOLTAGE HP60 50 Hz 230 V HP90 50 Hz 230 V...
-
Page 16: Prepare Rangehood
PREPARE RANGEHOOD Warning: Failure to install the screws or fixing device in accordance with these instructions may result in an electrical hazards. Place the ducting adapter onto the hood and screw it in place using the screws supplied. Ensure the arrows on the hood and ducting adaptor align. - Page 17 FIT RANGEHOOD Lift the rangehood and fit into the cabinetry until the spring loaded brackets/clips hold the product in place. Secure the rangehood by tightening the 4 brackets/clips.
-
Page 18: Connect Rangehood
CONNECT RANGEHOOD Connect the supplied flexible ducting to the duct adapter with aluminium tape. External blower Roof Ducting Ceiling Install the external blower (if not already installed), refer to rangehood external blower installation guide. Power cords Reinstall the filters. Place the filter into the support at the rear of the rangehood. - Page 19 CONNECT RANGEHOOD Reattach the perimeter plate. Slide the the perimeter plate onto the bracket and tighten the screws. External blower Roof Ducting Ceiling Connect to the external blower and plug the rangehood in. Power cords...
-
Page 20: Parts And Accessories
PARTS AND ACCESSORIES ITEM REFERENCE NUMBER Flexible ducting 200mm (6m) 792961... -
Page 21: Final Checklist
FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER … Rangehood is correctly installed … All connections are secure … Ducting has not been crushed or bent in any area’s … Flexible ducting has been pulled taut and any excess removed (if required) …... - Page 24 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2020. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
