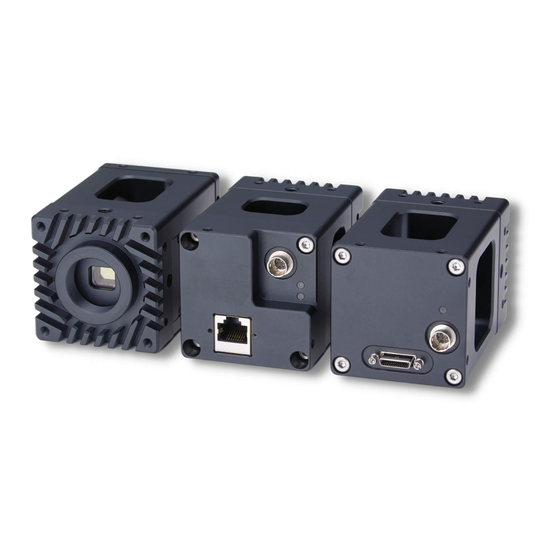

- Page 1 No. 22S036-00 USB3 Vision SWIR CMOS Camera STC-LBS34U3V-SWIR (0.3M / SWIR) Product Specifications and User’s Guide STC-LBS34U3V-SWIR 1/54 Product Specifications and User’s Guide...
-
Page 2: Table Of Contents
Trigger Mode ..........................23 7.2.1 Frame Start Trigger (Edge Preset) ...................... 24 7.2.2 Frame Start Trigger (Pulse Width Trigger) ..................25 7.2.3 Exposure Start Trigger, Exposure End Trigger .................. 26 7.2.4 Trigger Software ..........................26 STC-LBS34U3V-SWIR 2/54 Product Specifications and User’s Guide... - Page 3 9.10.1 ALC Control Method ..........................37 9.10.2 AGC (Auto Gain Control) ........................38 9.10.3 Auto Exposure ............................. 38 9.10.4 The setting procedure of ALC ......................38 9.11 Black Level Correction ......................39 9.12 Gamma Table ..........................40 STC-LBS34U3V-SWIR 3/54 Product Specifications and User’s Guide...
- Page 4 9.19.6 DigitalIOControl ........................... 50 9.19.7 CounterAndTimerControl ........................50 9.19.8 EventControl ............................51 9.19.9 UserSetControl ............................ 51 9.19.10 ChunkDataControl .......................... 51 9.19.11 TestControl ............................51 9.19.12 TransportLayerControl ........................52 10 Revision History ....................53 STC-LBS34U3V-SWIR 4/54 Product Specifications and User’s Guide...
- Page 5 Do not use with out of power voltage range Do not wrong wiring. that is specified in the specifications for this This will cause of fire or malfunction. camera. This will cause of fire, electrification or malfunction. STC-LBS34U3V-SWIR 5/54 Product Specifications and User’s Guide...
- Page 6 Caution Do not disassemble or repair the camera. It is turn off the camera when maintaining or This will cause of fire, electrification or inspecting the camera. malfunction. This will cause of electrification. STC-LBS34U3V-SWIR 6/54 Product Specifications and User’s Guide...
- Page 7 In EU, it is necessary to dispose of accordance with WEEE directive. [Security Measures, Anti-virus protection] Warning Install the latest commercial-quality antivirus software on the computer connected to the control system and maintain to keep the software up-to-date. STC-LBS34U3V-SWIR 7/54 Product Specifications and User’s Guide...
-
Page 8: Product Precautions
Japanese government. When this product is to be taken outside of countries after imported from Japan, please confirm export and trade control laws of country and adopt the required procedures. STC-LBS34U3V-SWIR 8/54 Product Specifications and User’s Guide... -
Page 9: Warranty
Exchange or repair the malfunction camera if the malfunction is occurred by our responsibility. “Warranty” mean is warranty for the delivered camera itself. Please accept the induction damage by the camera malfunction is not included. STC-LBS34U3V-SWIR 9/54 Product Specifications and User’s Guide... -
Page 10: Specifications
No. 22S036-00 Specifications Electronic Specifications Model Number STC-LBS34U3V-SWIR Image Sensor 1/4” 0.3M Progressive SWIR CMOS (SONY: IMX991) Shutter Type Global Active Picture Elements 640 (H) x 512 (V) Cell Size 5.0 (H) x 5.0 (V) µm Scanning Mode Full scanning (Full resolution) / ROI... - Page 11 No. 22S036-00 Model Number STC-LBS34U3V-SWIR Image Flip Horizontal / Vertical / Horizontal and Vertical / Off Defective Pixel Correction Up to 8,192 points Blooming Reduction Mode Support Auto Image Auto Exposure Support Control Auto Gain Support Auto White Balance Operational Mode...
-
Page 12: Spectral Sensitivity Characteristics
Spectral Sensitivity Characteristics Acquisition Image Samples Wafer White pin Blue pin Red pin With visible light with 1450nm light with visible light with 1450nm light Salt Sugar Baking soda with visible light with 1450nm light STC-LBS34U3V-SWIR 12/54 Product Specifications and User’s Guide... -
Page 13: Mechanical Specifications / Dimensions
No. 22S036-00 Mechanical Specifications / Dimensions Model Number STC-LBS34U3V-SWIR Dimensions 58 (W) x 58 (H) x 85 (D) mm (*1) Optical Filter No IR Cut Filter Optical Center Accuracy Positional accuracy in Horizontal and Vertical directions: +/- 0.4 mm Rotational accuracy of Horizontal and Vertical: +/- 1.5 deg. -
Page 14: Environmental Specifications
(DeviceTemperatureSelector = Sensor) on the camera shows less than +34 deg. C, the camera housing temperature (top plate) will be less than +70 deg. C. Taking these steps will maintain heat rating of electronic components of camera. Upper side of camera Measuring point STC-LBS34U3V-SWIR 14/54 Product Specifications and User’s Guide... -
Page 15: External Connector Specifications
USB 2.0 differential pair (D+) USB OTG USB OTG ID SSTX− SuperSpeed transmitter differential pair (−) SSTX+ SuperSpeed transmitter differential pair (+) SSRX− SuperSpeed receiver differential pair (−) SSRX+ SuperSpeed receiver differential pair (+) 12345 678910 STC-LBS34U3V-SWIR 15/54 Product Specifications and User’s Guide... -
Page 16: Power/Io Connector
(*3): When the external IO port is connected, control current less than 15 mA on IO port. (*4): This value is the typical current value of Input Port when High Voltage is input. STC-LBS34U3V-SWIR 16/54 Product Specifications and User’s Guide... -
Page 17: Reference Input Circuit
The camera resets while “CAM_REST pin” connecting to GND 5 seconds in this circuit. The default camera setting is disable for this reset function. It is necessary to turn ON. General Purpose Input (Reference 2) STC-LBS34U3V-SWIR 17/54 Product Specifications and User’s Guide... - Page 18 Internal Voltage 入力電圧 High USER INPUT USER_INPUT Internal Voltage Camera internal 内部電圧 カメラ内部 IO_GND IO_GND Capable input trigger’s pulse width is Positive Trigger: More than tIPDLH Negative Trigger: More than tIPDHL STC-LBS34U3V-SWIR 18/54 Product Specifications and User’s Guide...
-
Page 19: Reference Output Circuit
No. 22S036-00 Output circuit General Purpose Output (Reference 3) General Purpose Output (Reference 4) STC-LBS34U3V-SWIR 19/54 Product Specifications and User’s Guide... -
Page 20: Indicator Lamp
LED indicator lamp is located on above of Power/IO connector. This LED indicates condition of temperature of CMOS image sensor. Power/IO USB3.0 micro B connector connector Condition LED pattern Camera power is OFF Camera power is ON STC-LBS34U3V-SWIR 20/54 Product Specifications and User’s Guide... -
Page 21: Sensor Information
No. 22S036-00 Sensor Information Pixel Transferring Image Pixel0 Pixel1 Data Data Pixel (n) of Data: nth pixel being transferred STC-LBS34U3V-SWIR 21/54 Product Specifications and User’s Guide... -
Page 22: Image Acquisition And Camera Operational Modes (Genicam)
Exposure time determines ExposureMode. When ExposureMode is turned off, frame exposure will complete. When ExposureMode is set to Timed, ExposureTime value will be set as exposure time. ExposureTime 露光 Exposure Image Out 映像出力 (*) The camera is set to Free run mode as default mode. STC-LBS34U3V-SWIR 22/54 Product Specifications and User’s Guide... -
Page 23: Trigger Mode
TrigerControlled, camera exposure and image acquisition do not work. (*) Please do not apply the Trigger through maximum frame rate on TriggerMode. When Trigger applies within sensor Readout as exposure end, camera interrupted Readout. STC-LBS34U3V-SWIR 23/54 Product Specifications and User’s Guide... -
Page 24: Frame Start Trigger (Edge Preset)
露光 Exposure Image Out 映像出力 Delay time on exposure start timing in sensor Jitter (unit: seconds μ Image Output Format STC-LBS34U3V-SWIR 8bits 0 to 6.95 10bits / 10bits Packed 0 to 7.47 12bits / 12bits Packed 0 to 13.09 STC-LBS34U3V-SWIR 24/54 Product Specifications and User’s Guide... -
Page 25: Frame Start Trigger (Pulse Width Trigger)
露光 Exposure Image Out 映像出力 Delay time on exposure start timing in sensor Jitter (unit: seconds μ Image Output Format STC-LBS34U3V-SWIR 8bits 0 to 6.95 10bits / 10bits Packed 0 to 7.47 12bits / 12bits Packed 0 to 13.09 STC-LBS34U3V-SWIR 25/54 Product Specifications and User’s Guide... -
Page 26: Exposure Start Trigger, Exposure End Trigger
This function works through Frame Start trigger for remainder of ExposureMode. Delay time on exposure start timing in sensor Jitter (unit: seconds μ Image Output Format STC-LBS34U3V-SWIR 8bits 0 to 6.95 10bits / 10bits Packed 0 to 7.47 12bits / 12bits Packed 0 to 13.09... -
Page 27: Io Function
(*) When the Line polarity changing by LineInverter, active polarity of input trigger signal is changed. This function monitors signal status on input Line. The High level (LineStatus: true) or Low level (LineStatus false) status can be seen through software. STC-LBS34U3V-SWIR 27/54 Product Specifications and User’s Guide... -
Page 28: Line Debouncer
As mentioned in the previous chapter, “Image acquisition and Camera Mode”, each trigger can add to duration of input signal This TriggerDelay can add to duration per μsecond GenICam Parameters TriggerDelay Integer Type Trigger Delay Range: 0 to 262,143 μseconds, Default: 0 μsecond STC-LBS34U3V-SWIR 28/54 Product Specifications and User’s Guide... -
Page 29: Output Port Function
7) Strobe Out (Strobe Output) “StrobeOutOnTime (Output pulse width)” activation time signal with set “StrobeOutDelay (Strobe output delay time)” is output when trigger signal is received. STC-LBS34U3V-SWIR 29/54 Product Specifications and User’s Guide... - Page 30 (*) The trigger port in this chart describes Frame Start trigger as an example (*) Trigger Out and Strobe Out do not output from camera for Exposure Start trigger and Exposure End trigger STC-LBS34U3V-SWIR 30/54 Product Specifications and User’s Guide...
-
Page 31: User Output
Range: 4 to 262,143 μseconds, Default: 32 μseconds Hardware Reset The hardware reset can be done by CAM_RESET port. Sets On (Default: Off) at LineDeviceResetMode, and apply Low voltage in 5 seconds on CAM_RESET port then camera rest. STC-LBS34U3V-SWIR 31/54 Product Specifications and User’s Guide... -
Page 32: Camera Functions
IInteger Type Vertical (Line) offset Default: 0 Setting steps: 8 lines The parameters define as following chart. OffsetY Height ROI Region OffsetX Width (*) Width, Height, OffsetX, OffestY setting steps is same in Binning. STC-LBS34U3V-SWIR 32/54 Product Specifications and User’s Guide... -
Page 33: Pixel Format
Integer Type Sets Binning on Vertical direction 1: Disable Binning 2: Binning 2 Pixel (*) Applies averaging for horizontal direction and summing for vertical direction. (*) Binning and Decimation function cannot be use simultaneously. STC-LBS34U3V-SWIR 33/54 Product Specifications and User’s Guide... -
Page 34: Decimation
1: Disable Decimation, 2: Decimate one of two pixels DecimationVertical Integer Type Sets decimation on vertical direction 1: Disable Decimation, 2: Decimate one of two pixels (*) Binning and Decimation function cannot be use simultaneously. STC-LBS34U3V-SWIR 34/54 Product Specifications and User’s Guide... -
Page 35: Image Flip
False: Horizontal Flip Off, True: Horizontal Flip On. Default: False ReverseY IBoolean Type Switch ON / OFF at Vertical False: Vertical Flip Off, True: Vertical Flip On. Default: False Reverse X(Off), Y(Off) Reverse X(Off), Y(On) Reverse X(On), Y(Off) Reverse X(On), Y(On) STC-LBS34U3V-SWIR 35/54 Product Specifications and User’s Guide... -
Page 36: Gain
Selects “DigitalAll” at “GainSelector”, sets gain at “Gain [GainSelector]”. GenICam Parameters Gain [DigitalAll] IFloat Type Digital Gain Range: 0 to 64, Default: 0 Digital Gain Formula Gain (x times) = 1 + (Gain [DigitalAll] / 64) STC-LBS34U3V-SWIR 36/54 Product Specifications and User’s Guide... -
Page 37: Black Level
The brightness of image adjusts to achieve “AutoLightTarget” brightness with AGC and auto exposure function. When AGC and auto exposure are enabled, at first, brightness adjusts with auto exposure function. If the brightness does not achieve “AutoLightTarget” brightness with auto exposure function, brightness adjusts with AGC function. STC-LBS34U3V-SWIR 37/54 Product Specifications and User’s Guide... -
Page 38: Agc (Auto Gain Control)
Sets “Exposure AutoLimitMax” (When using Auto Exposure) Sets “Exposure AutoLimitMin” (When using Auto Exposure) Sets “Continuous” at “GainAuto” (When using AGC) Sets “Gain AutoLimitMax” (When using AGC) Sets “Gain AutoLimitMin” (When using AGC) STC-LBS34U3V-SWIR 38/54 Product Specifications and User’s Guide... -
Page 39: Blacklevelcorrection
* Note1: The image may not saturate due to adjust Black level automatically when enabling Black Level Correction function. In this case, please adjust digital gain to saturate image. Please adjust digital gain while checking image quality. STC-LBS34U3V-SWIR 39/54 Product Specifications and User’s Guide... -
Page 40: Gamma Table
For 12bits image (Gamma = 2.0) B point 4096 A point 3584 3072 Gamma Table 2560 2048 Generate by linear interpolation with A point and B point. 1536 1024 1024 1536 2048 2560 3072 3584 4096 Input data STC-LBS34U3V-SWIR 40/54 Product Specifications and User’s Guide... -
Page 41: Save And Load The Camera Settings
ROM that is selected at Setting UserSetSelector. Caution: Default Selector UserSetSave cannot execute when “Default” was selected at “UserSetSelector” UserSetSelector Setting Procedure 1. Selects “UserSetX” at “UserSetSelector” 2. Execute “UserSetSave” STC-LBS34U3V-SWIR 41/54 Product Specifications and User’s Guide... -
Page 42: Loading Camera Settings
Default Selector UserSetDefault Setting Procedure Set “UserSetX” or “Default” at “UserSetDefault” Please follow the below procedure for camera settings put back to factory default settings. Setting Procedure Selects “Default” at “UserSetSelector”. Executes “UserSetLoad”. STC-LBS34U3V-SWIR 42/54 Product Specifications and User’s Guide... -
Page 43: Defective Pixel Correction
The description of trigger type and characteristic, please refer to chapter “Image acquisition and Camera Mode”. When the external hardware or software signal is input to camera, following process are proceeding. Line0 Line Line1 Debouncer Trigger Trigger トリガー Trigger Selector Delay Line2 Software Trigger Trigger Source STC-LBS34U3V-SWIR 43/54 Product Specifications and User’s Guide... -
Page 44: Device User Id
Send notification as event when expose finishes in camera. EventID is 0x9001. (*) The event occurrence frequently, stream data transferring rate could be reduced because Event and Stream (image data) share USB bus. STC-LBS34U3V-SWIR 44/54 Product Specifications and User’s Guide... -
Page 45: Chunk Control
ChunkBlackLevel contains AnalogAll and DigitalAll. ChunkID is 0x00000003. ChunkExposureTime Transfer the exposure time when image was acquiring, as Chunk data. ChunkID is 0x00000004. ChunkGamma Transfer the Gamma when image was acquiring, as Chunk data. ChunkID is 0x00000005. STC-LBS34U3V-SWIR 45/54 Product Specifications and User’s Guide... -
Page 46: Genicam Command List
Limits the maximum bandwidth of the data that will be streamed out by the device on [DeviceLinkSelector] the selected Link. If necessary, delays will be uniformly inserted between transport layer packets in order to control the peak bandwidth. STC-LBS34U3V-SWIR 46/54 Product Specifications and User’s Guide... -
Page 47: Imageformatcontrol
Horizontal sub-sampling of the image. This reduces the horizontal resolution (width) of the image by the specified horizontal decimation factor. DecimationVertical Vertical sub-sampling of the image. This reduces the vertical resolution (height) of the image by the specified vertical decimation factor. STC-LBS34U3V-SWIR 47/54 Product Specifications and User’s Guide... -
Page 48: Acquisitioncontrol
Specifies the delay in microseconds (us) to apply after the trigger reception before activating it. ExposureMode Sets the operation mode of the Exposure (or shutter). ExposureTimeSelector Selects which exposure time is controlled by the ExposureTime feature. This allows for independent control over the exposure components. STC-LBS34U3V-SWIR 48/54 Product Specifications and User’s Guide... -
Page 49: Analogcontrol
Determine index of targeted pixel for pixel correction. PixelCorrectionEnabled Determine if targeted pixel is enabled for pixel correction. [PixelCorrectionIndex] PixelCorrectionX Determine x-coordinate of targeted pixel for pixel correction. [PixelCorrectionIndex] PixelCorrectionY Determine y-coordinate of targeted pixel for pixel correction. [PixelCorrectionIndex] STC-LBS34U3V-SWIR 49/54 Product Specifications and User’s Guide... -
Page 50: Digitaliocontrol
Sets the duration (or number of events) before the CounterEnd event is generated. CounterStatus [CounterSelector] Returns the current status of the Counter. CounterTriggerSource Selects the source to start the Counter. [CounterSelector] CounterTriggerActivation Selects the activation mode of the trigger to start the Counter. [CounterSelector] STC-LBS34U3V-SWIR 50/54 Product Specifications and User’s Guide... -
Page 51: Eventcontrol
TestPendingAck Tests the device's pending acknowledge feature. When this feature is written, the device waits a time period corresponding to the value of TestPendingAck before acknowledging the write. TestEventGenerate Generates a Test Event. STC-LBS34U3V-SWIR 51/54 Product Specifications and User’s Guide... -
Page 52: Transportlayercontrol
Provides the number of bytes transferred for each image or chunk on the stream channel. This includes any end-of-line, end-of-frame statistics or other stamp data. This is the total size of data payload for a data block. STC-LBS34U3V-SWIR 52/54 Product Specifications and User’s Guide... -
Page 53: 10 Revision History
Note: Product specifications would be changed without notification. USB3 Vision is trademark of A3 (Association for Advancing Automation). GenICam is trademark of EMVA. Other company names and product names in this document are trademarks of their respective owners. STC-LBS34U3V-SWIR 53/54 Product Specifications and User’s Guide... - Page 54 OMRON AUTOMATION AMERICAS HEADQUARTERS • Chicago, IL USA • 847.843.7900 • 800.556.6766 • automation.omron.com OMRON CANADA, INC. • HEAD OFFICE OMRON ARGENTINA • SALES OFFICE Toronto, ON, Canada • 416.286.6465 • 866.986.6766 • automation.omron.com Buenos Aires, Argentina • +54.11.4521.8630 • +54.11.4523.8483 mela@omron.com...
