- Page 1 Crestron TPS-17G-QM/-L-IMC Power Interface Module Operations Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2009 Crestron Electronics, Inc.
-
Page 3: Table Of Contents
Crestron TPS-17G-QM/-L-IMC Contents Power Interface Module: TPS-17G-QM/-L-IMC Introduction ... 1 Specifications ... 1 Physical Description... 2 Industry Compliance ... 5 Setup ... 6 Network Wiring... 6 Hardware Hookup ... 7 Problem Solving ... 8 Troubleshooting... 8 Check Network Wiring... 9 Further Inquiries ... -
Page 5: Power Interface Module: Tps-17G-Qm/-L-Imc
80 feet (24 meters) from the touchpanel using standard Cresnet The TPS-17G-QM/-L-IMC may also be purchased separately for use with a TPS-15G-QM or TPS-15G-QM-L touchpanel. A PW-2435RU power supply is included. -
Page 6: Physical Description

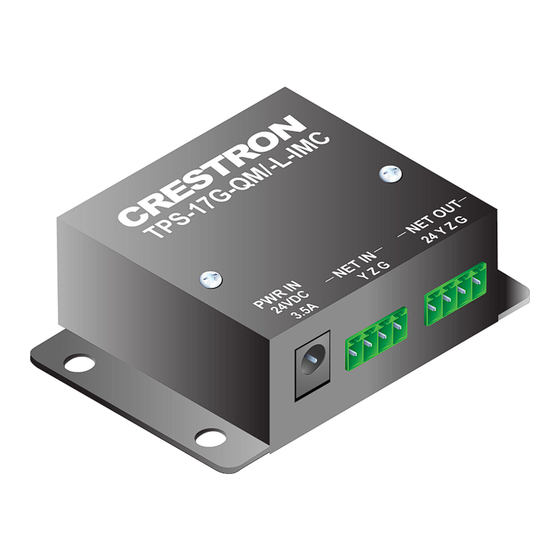

Depth Weight Included Accessories PW-2435RU Physical Description This section provides information on the connections, controls and indicators available on your TPS-17G-QM/-L-IMC. TPS-17G-QM/-L-IMC Physical View 2 • Power Interface Module: TPS-17-QM/-L-IMC Crestron TPS-17G-QM/-L-IMC DETAILS 1.06 in (2.68 cm) 3.43 in (8.70 cm) 2.08 in (5.28 cm) - Page 7 TPS-17G-QM/-L-IMC Overall Dimensions (Front View) Operations Guide – DOC. 6783A Power Interface Module 3.43 in (8.70 cm) 2.98 in (7.57 cm) (2.49 cm) Power Interface Module: TPS-17G-QM/-L-IMC • 3 2.08 in (5.28 cm) 1.25 in (3.18 cm) 0.98 in 1.06 in (2.68 cm)
- Page 8 INDICATORS 24 VDC 3.5A * Two interface connectors for NET ports are provided with the unit. 4 • Power Interface Module: TPS-17-QM/-L-IMC Crestron TPS-17G-QM/-L-IMC PWR IN (1) 2.1 mm barrel DC power jack; Connects to 24 Volt DC output of...
-
Page 9: Industry Compliance
Crestron TPS-17G-QM/-L-IMC Industry Compliance As of the date of manufacture, the TPS-17G-QM/-L-IMC has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. Federal Communications Commission (FCC) Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject... -
Page 10: Setup
• For networks with 20 or more devices, use a Cresnet Hub/Repeater (CNXHUB) to maintain signal quality. For more details, refer to “Check Network Wiring” which starts on page 6 • Power Interface Module: TPS-17-QM/-L-IMC Crestron TPS-17G-QM/-L-IMC Operations Guide – DOC. 6783A... -
Page 11: Hardware Hookup
Refer to “Network Wiring” on page 6 before attaching the 4-position terminal block connector. Apply power after all connections have been made. When making connections to the TPS-17G-QM/-L-IMC, use Crestron power supplies for Crestron equipment. Hardware Connections for the TPS-17G-QM/-L-IMC PWR IN 24 VDC 3.5 A:... -
Page 12: Problem Solving
Power Interface Module Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. TPS-17G-QM/-L-IMC Troubleshooting TROUBLE Touchpanel does not function. 8 • Power Interface Module: TPS-17-QM/-L-IMC... -
Page 13: Check Network Wiring
R = 6 Ohms (Crestron Certified Wire: 18 AWG (0.75 MM )) or 1.6 Ohms (Cresnet HP: 12 AWG (4 MM )) P = Cresnet power usage of entire run (or chain) Power Interface Module: TPS-17G-QM/-L-IMC • 9 Power Interface Module... -
Page 14: Further Inquiries
Future Updates As Crestron improves functions, adds new features and extends the capabilities of the TPS-17G-QM/-L-IMC, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision. -
Page 15: Return And Warranty Policies
All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP/Vista and WindowsNT/2000 are trademarks of Microsoft Corporation. Operations Guide – DOC. 6783A Power Interface Module Power Interface Module: TPS-17G-QM/-L-IMC • 11... - Page 16 Crestron Electronics, Inc. Operations Guide – DOC. 6783A 15 Volvo Drive Rockleigh, NJ 07647 (2023177) Tel: 888.CRESTRON 01.09 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
