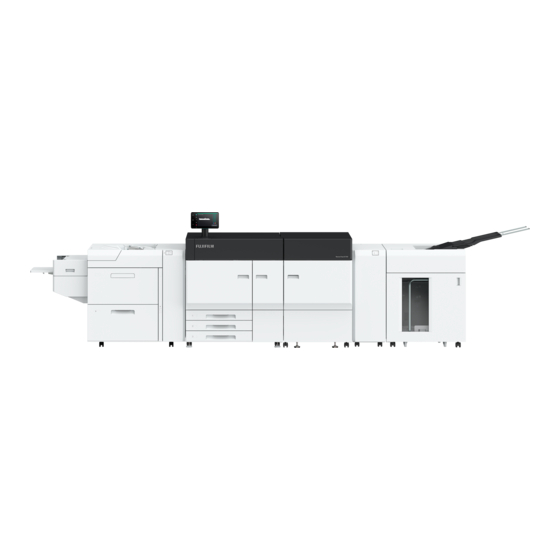

FujiFilm Revoria Press EC1100 Reference Manual

Hide thumbs Also See for Revoria Press EC1100:
Table of Contents

Advertisement

Quick Links

Download this manual
Reference Guide
Appendix
Revoria Press EC1100
April 2023 GM1768E2-1 Edition1
FUJIFILM Business Innovation Corp.

Advertisement

Table of Contents
loading

Related Manuals for FujiFilm Revoria Press EC1100

Summary of Contents for FujiFilm Revoria Press EC1100

  • Page 1 Reference Guide Appendix Revoria Press EC1100 April 2023 GM1768E2-1 Edition1 FUJIFILM Business Innovation Corp.
  • Page 2 Preface This guide describes the information such as troubleshooting. This manual may not be edited, modified or copied in whole or part without the written consent  of the publisher. Parts of this manual is subject to change without prior notice. ...
  • Page 3 Appendix Encryption and Signature Function Certificate A certificate is required to use the encryption and signature functions. To create/delete, import/export, or enable a certificate, use Internet Services. Refer  For details, refer to Internet Services help. 2.1 Encryption and Signature Function...

  • Page 4: Folding Position Adjustment

    Folding Position Adjustment Confirm the printed sample, measure the misalignment between the folding and staple. Enter the misalignment value by referring to the image on the screen and the folding position is adjusted. How to Enter the Misalignment Fo ld P o s i ti o n •...
  • Page 5 How to Fold the Paper Fold the paper along each crease. Pinch the center of the crease and fold it, then apply force evenly to the left and right to fold it. Fold on the center of the crease Ejected paper Center of the crease Note Fold the paper so that the creases are even.
  • Page 6 Enter the misalignment value of “+” and “-” (depending on the misalignment direction) by referring to the image on the screen and the mountain folding position is adjusted. Enter a "+" measurement value. Enter a "-" measurement value. + value - value Front edge Front edge...
  • Page 7 How to Adjust the Folding Position Here is the description using Z fold as an example. If you follow the procedure, the folding position is adjusted to the finish shown following. (for A3) Standard Z fold ("A" Length: 210 mm, "B" Length: 0 mm) 210 mm (A) 105 mm 105 mm...
  • Page 8 When Adjusting the Fold to the Any Length You need to enter the value calculated based on measured value and the target value. The calculating method is the following. Value to enter (A) = 210 + (“measured value” - “target value”) Value to enter (B) = “measured value”...

  • Page 9: Troubleshooting

    Troubleshooting When using the production remote service, the notification is send automatically to the support center when the printer detects a problem. We will contact you in response to the notification to confirm the details, then a service representative visits as required. Machine Trouble Symptom Cause/Remedy...

  • Page 10: Image Quality Trouble

    Image Quality Trouble Symptom Cause/Remedy Desired density is not The output characteristics of this machine have changed due to obtained changes in the surrounding environment and conditions. Log in to Poor gradation such as Administrator Mode and execute adjustment in >...
  • Page 11 Symptom Cause/Remedy Black spots, black lines or The paper path may not be clean. Print a couple of sheets or so. color lines appear on The fusing unit may not be clean. output. Clean the dirt on the fusing unit in >...
  • Page 12 Symptom Cause/Remedy Output is blank. Multiple sheets were fed at once. Fan the paper well and reload it in the tray. A drum cartridge is damaged or has deteriorated. Depending on its condition, the drum cartridge may need replacement. Contact your local representative.
  • Page 13 Symptom Cause/Remedy Text is smeared. The paper is not appropriate for the machine. Load appropriate paper. The paper is damp. Replace the paper. Images are skewed. The paper guides are not adjusted to the correct positions. Adjust the paper guides to the correct positions. The area around the paper Dirt adheres to the chute.
  • Page 14 Tray and Paper Feed Problems Symptom Cause/Remedy Paper does not feed The paper loaded is different from the Media Library settings. Match properly. the Media Library setting with the loaded paper. Paper jams occur. Refer Multiple sheets feed at Refer to Media Library Manager Manual. ...

  • Page 15: Setting Restore Tool

    This function is used to backup setting data, etc. in computers connected through networks in case data is lost due to the machine's storage malfunction. Download the setting restore tool from our official website. https://fujifilm.com/fbglobal/eng/support License This product contains open source software, for which third parties own the rights (hereinafter referred to as “OSS”).

  • Page 16: Job History

    Job History  The page count obtained in the job history and the meters and counters on the machine may not match. Use the acquired data as a guide.  The job history may be lost due to troubles of the machine or due to storage replacement or initialization.
