HEATUNG & COOUNG
38BYC, 38BYG
12 SEER SpMit System
Heat Pump
%isit x__ _.¢arrier.com
Installation and Start-Up
Instructions
NOTE:
Read
the entire
instruction
manual
before
starting
the
installation.
This symhoi
--> indicates
a change
since the last issue.
SAFETY
CONSIDERATIONS
Improper
installation,
adjustment,
alteratiom
service,
maintenance,
or use
can
cause
explosion,
fire,
electrical
shock,
or
other
conditions
which
may cause
death,
personal
injury,
or property
damage.
Consult
a qualified
installer_
service
agency,
or your
distributor
or branch
for infornmdon
or assistance.
The qualified
installer
or agency
must use _hctory=authorized
kits or accessories
when
modi_}-ing
this product.
Refer
to the individual
instructions
packaged
with
the kits or accessories
when
installing.
Follow
all safety codes. Wear
safety
glasses,
protective
clothing,
and work
gloves.
Use
quenching
cloth
t:br brazing
operations.
Have
fire
extinguisher
available.
Read
these
instructions
thor-
oughly
and _\_llow all warnings
or cautions
included
in literature
and attached
to the unit. Consnh
local building
codes and National
Electrical
(?ode (NEC)
[br special
requirements.
Recognize
safety informatiom
This is the safety-alert
symbolz_
.
When
you
see this symhol
on the unit
and
in instructions
or
manuals,
be alert to the potential
for personal
injury.
Understand
the signal words
DANGER,
WARNING,
and CAU=
TION.
These words
are used with the saf_b_-alert
symbol.
DAN-
GER identifies
the most serious hazards
which will result in severe
personal
injury
or death.
WARNING
signifies
hazards
which
could
result
in personal
injury
or death.
(AUTION
is used
to
identify
unsafe
practices
which
would
result
in minor
personal
injuw
or product
and property
damage.
NOTE
is used to highlight
suggestions
which
will result
in enhanced
installation,
reliability,
or operation.
Be%re installing, modif}'ing, or servicing system, main elec-
trical disconnect switch must be in the OFF position. There
may be more than 1 disconnect switch. Lock out and tag
switch with a suitable warning tahet. Electrical shock can
cause personal injury or death.
iNSTALLATiON
RECOMMENDATBONS
NOTE:
In some cases noise in the living area has been traced to
gas pulsations
fiom
improper
installation
of equipment
h Locate
unit away
fiom window<
patios,
decks,
and so forth
where
unit operation
sounds
may disturb
customer
2. Ensure
that vapor- and liquid-robe
diameters
are appropriate
to
capacity
of unit
3. Rm_ refrigerant
tubes
as directly
as possible
by
avoiding
unnecessary
rams
and bends.
A98525

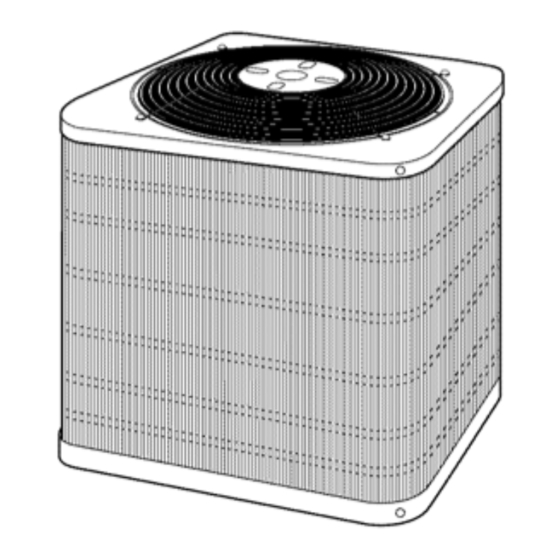

Fig. 1--Mode{
38BYG
4
Leave
some
slack
between
structure
and
unit
to absorb
vibration
5
When passing
refi'igerant
robes through
the wall, seal opening
with RTV or other pliable
silicon
based caulk.
(See Fig. 2.)
6. Avoid
direct robing
contact
with water
pipes, duct work, floor
joists,
wall studs, floors,
and walls.
7. Do not suspend
refiigerant
tubing
fi'om joists and studs with a
rigid wire
or strap
that comes
in direct
contact
with robing.
(See Fig. 20
8. Ensure
that
robing
insulation
is pliable
and completely
sur-
rounds
vapor
tube.
9. When necessary,
use hanger
straps
which
are 1 in. wide
and
con_bm_ to shape
of robing insulation.
(See Fig. 20
10. Isolate
hanger
straps
from insulation
by using
metal
sleeves
bent to confbrm
to shape of insulation.
When
outdoor
unit is connected
to ihctory-approved
indoor
unit,
outdoor
unit contains
system
refrigerant
charge fbr operation
with
indoor
unit
of the
same
size
when
connected
by
15 fi of
field-supplied
or factoo'-accesso<v
robing.
For proper
unit opera-
tion, check
refi'igerant
charge
using
charging
information
located
on control
box cover.
IMPORTANT:
Maximun_
liquid
line size is 3/8-im O.D.
fc_r all
residential
applications
including
long line.
INPORTANT:
Always
install
a liquid
line
filter
drier
on any
system
using
existing
field service
line sets and or existing
indoor
coil or fan coil units.
Always
use
a filter
direr
on burnout
unit
replacements.
Manufacturer
reserves
the
right
to dissontinue,
or change
at any
time,
specifications
or designs
without
notise
and
without
insurring
obligations,
PC 101
Catalog
No.
533-80078
Printed
in USA
Form
38BYC-3SI
Pg 1
11-02
Replaces:
38BYC-2SI
