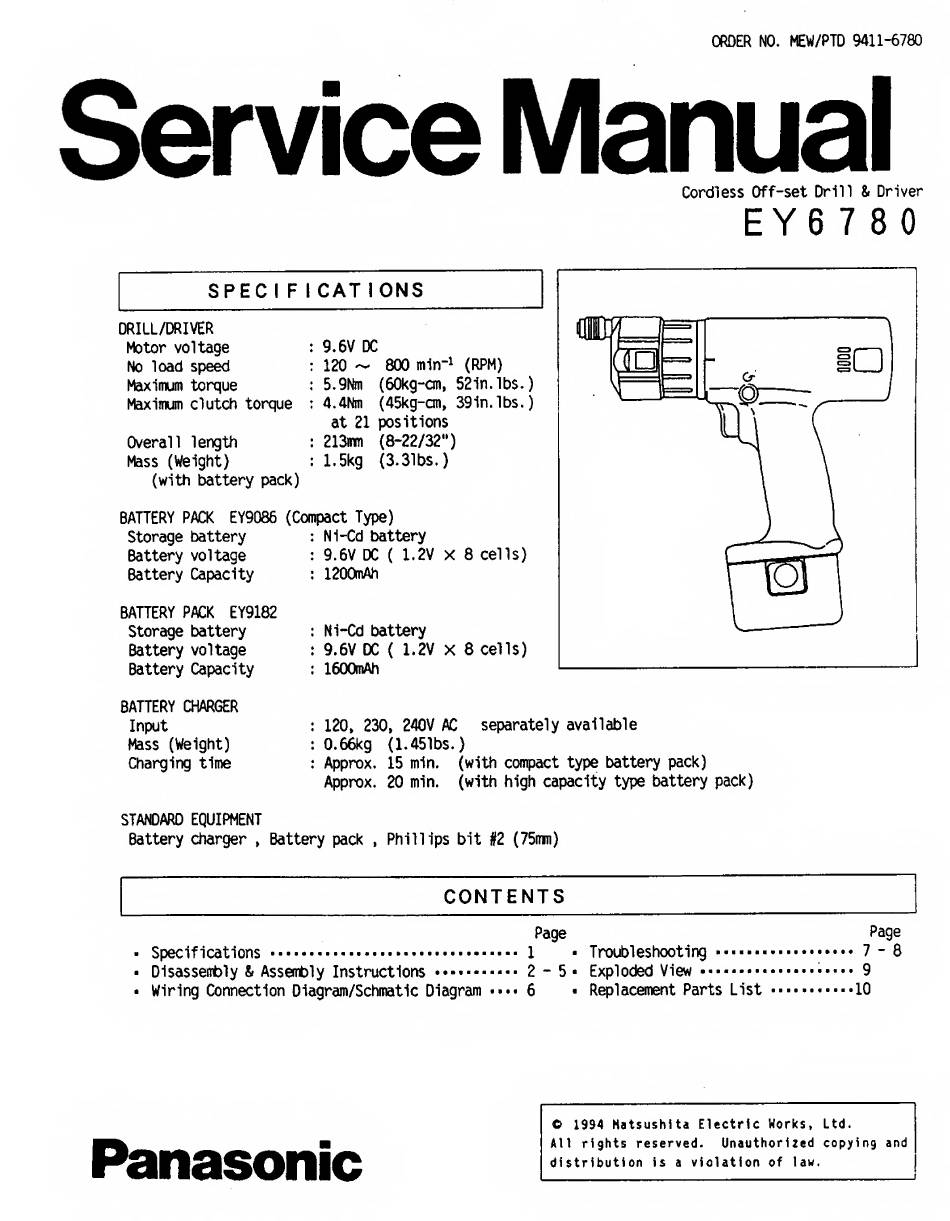

Panasonic EY6780 Service Manual

ORDER NO. MEW/PTD 9411-6780
Service Manual
Cordless Off-set Drill & Driver
EY 6 7 8 0
SPEC I FI CAT 1ONS
DRILL/DRIVER
Motor voltage : 9.6V DC
No load speed : 120 ~ 800 min-1 (RPM)
Maximum torque : 5.9Nm (60kg-cm, 521n.lbs.)
Maximum clutch torque : 4.4Nm (45kg-cm, 391n.lbs.)
at 21 positions
Overall length : 213mm (8-22/32°)
Mass (Weight) : 1.5kg (3.31bs.)
(with battery pack)
BATTERY PACK EY9086 (Compact Type)
Storage battery : Nl-Cd battery
Battery voltage : 9.6V DC ( 1.2V x 8 cells)
Battery Capacity : 120OnAh
BATTERY PACK EY9182
Storage battery : Ni-Cd battery
Battery voltage : 9.6V DC ( 1.2V x 8 cells)
Battery Capacity : 1600mAh
BATTERY CHARGER
Input : 120, 230, 240V AC separately available
Mass (Weight) : 0.66kg (1.451bs.)
Charging time : Approx. 15 min. (with compact type battery pack)
Approx. 20 min. (with high capacity type battery pack)
STANDARD EQUIPMENT
Battery charger , Battery pack , Phillips bit #2 (75irm)
CONTENTS
Page Page
• Specifications . 1 - Troubleshooting .. 7-8
- Disassembly & Assembly Instructions. 2-5* Exploded View.. 9
• Wiring Connection Diagram/Schmatlc Diagram •••• 6
■
Replacement Parts List .10
© 1994 Matsushita Electric Works, Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.
