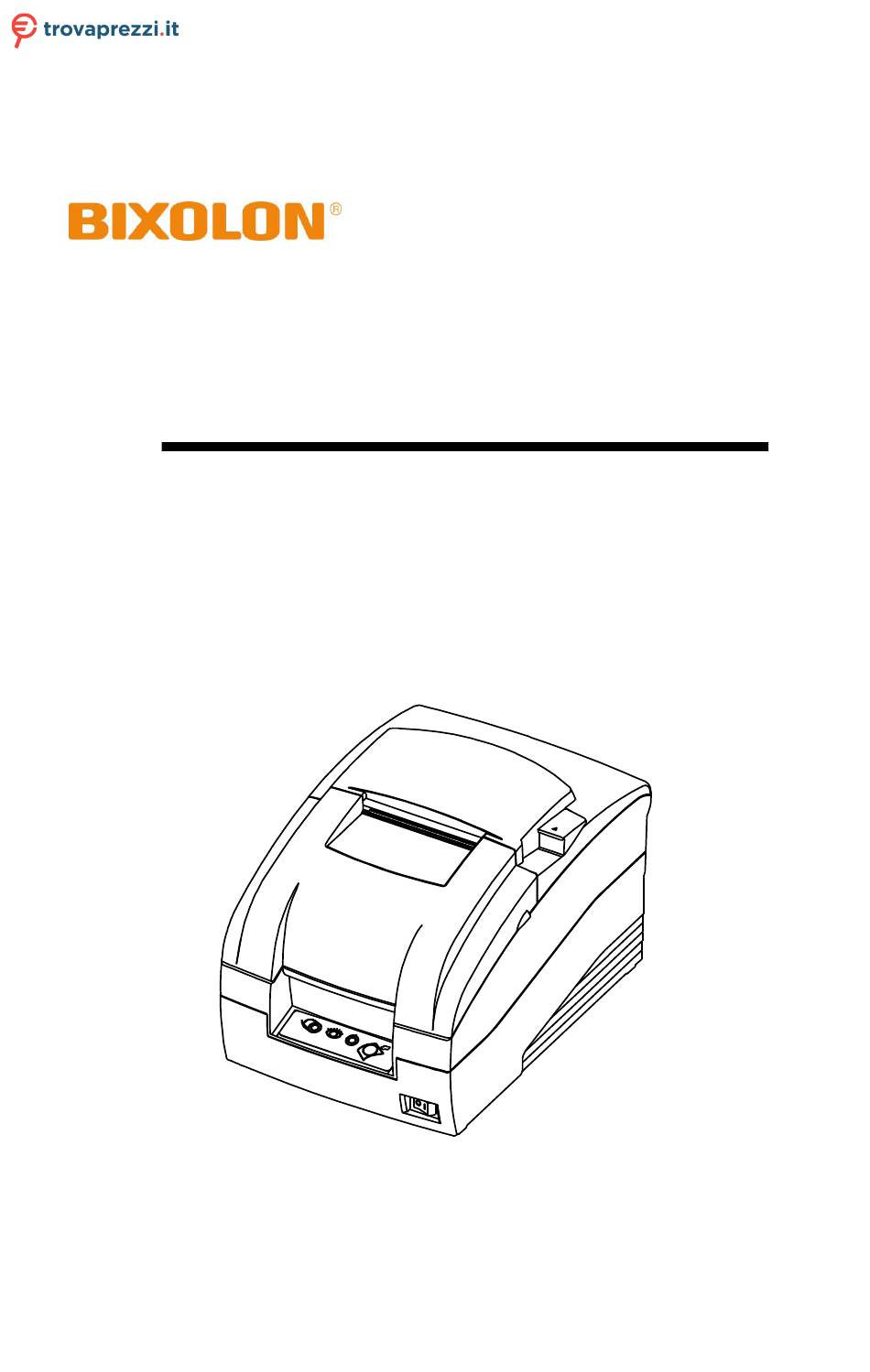

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Bixolon SRP-275IIIAOSG o cerca il tuo prodotto tra le migliori offerte di Macchine per Ufficio User's Manual SRP-275III Impact Printer Rev. 1.02 http://www.bixolon.com...
- Page 2 SRP-275III ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet. You must use only the supplied adapter.
- Page 3 SRP-275III CAUTION Violating following instructions can cause slight wound or damage the appliance. Keep the desiccant out of children’s reach. If you observe a strange smoke, odor or noise from the printer, unplug it before taking following • If not, they may eat it. measures.
- Page 4 Neither BIXOLON nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a...
- Page 5 SRP-275III ■ WARNING The connection of a non-shielded printer interface cable to this printer will invalidate the EMC standards of this device. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

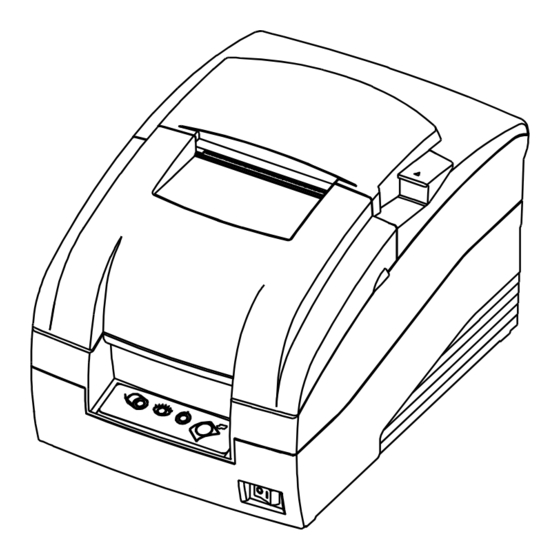

- Page 6 SRP-275III ■ Introduction The SRP-275III is a high-quality impact printer. This one-station printer has the following features. • Compact design and light-weight. • High-speed printing using logic-seeking (5.1LPS). • Easy to use : Easy paper loading. • High reliability and long life due to the use of stepping motors for head carriage return and paper feeding.
-
Page 7: Table Of Contents
SRP-275III ■ Table of Contents 1. Setting Up the Printer ····················································································· 8 1-1 Unpacking ···························································································· 8 1-2 Choosing a place for the printer ································································ 8 1-3 Using the operation panel ········································································ 9 2. Connecting the cables·················································································· 10 2-1 Connecting the AC Adaptor···································································· 10 2-2 Connecting the Interface cable and Drawer kick-out cable ···························... -
Page 8: Setting Up The Printer
SRP-275III 1. Setting Up the Printer 1-1 Unpacking Your printer box should include the items shown in the illustration below. If any items are damaged or missing, please contact your dealer. SRP-275IIIA, C AC adaptor Power cord Ribbon cassette Paper roll Manual 1-2 Choosing a place for the printer •... -
Page 9: Using The Operation Panel
SRP-275III 1-3 Using the operation panel Most of the functions of this printer are governed by software, but you can monitor the printer s status by looking at the lights on the control panel and for some procedures you will use the buttons. •... -
Page 10: Connecting The Cables
SRP-275III 2. Connecting the cables 2-1 Connecting the AC Adaptor • Connect the AC adapter according to AC adaptor the following procedure. Power connector 1) Make sure the printer is turned off. 2) Before inserting the AC adaptor, connect the power cord. Power cord 3) Insert the AC adaptor as shown. -
Page 11: Serial Interface (Rs-232C) + Ethernet + Usb : Oes Model
SRP-275III 2-2-1 Serial Interface (RS-232C) + Ethernet + USB : OES Model Drawer kick- Ethernet Interface connector Connector (F.G) 1 1 (F.G) (TXD) 2 2 (RXD) (RXD) 3 3 (TXD) (RTS) 4 4 (DTR) PRINTER HOST SIDE SIDE (CTS) 5 5 (S.G) (25Pin) (9Pin) -
Page 12: Parallel Interface (Ieee1284) + Usb : Op Model
SRP-275III 2-2-2 Parallel Interface (IEEE1284) + USB : OP Model Drawer kick- Interface connector Connector • Parallel Pin no. Source Compatibility mode Nibble mode Byte mode Host nStrobe HostClk HostClk Host / Printer Data 0 (LSB) Data 0 (LSB) Host / Printer Data 1 Data 1 Host / Printer... -
Page 13: Serial Interface (Rs-232C) + Usb : Os Model
SRP-275III 2-2-3 Serial Interface (RS-232C) + USB : OS Model Drawer kick- Interface connector Connector (F.G) 1 1 (F.G) (TXD) 2 2 (RXD) (RXD) 3 3 (TXD) (RTS) 4 4 (DTR) PRINTER HOST SIDE SIDE (CTS) 5 5 (S.G) (25Pin) (9Pin) (DSR) 6 6 (DSR) -
Page 14: Drawer Kick-Out
SRP-275III 2-2-4 Drawer kick-out Pin No. Description Direction Signal GND Drawer kick-out driver signal #1 Output Drawer Open / Close signal Input +24V Drawer kick-out driver signal #2 Output Signal GND - 14 - Rev. 1.02... -
Page 15: Setting The Switches
SRP-275III 3. Setting the Switches 3-1 Setting the DIP Switch Although the factory settings are best for almost all users, if you have special requirements, you can change the DIP Switch. Your printer has two sets of DIP Switches. The functions of the switches are shown in the following table. -
Page 16: Dip Switch Setting For Citizen(Idp 3550) Mode
SRP-275III 3-1-1 DIP Switch setting for Citizen(iDP 3550) mode • DIP Switch 1 Switch Function Default Emulation Selection (*1) Refer to the following table Auto cutter Enable Disable CBM2 mode CBM1 mode CBM command (iDP3530 system) (iDP3540 system) International characters (*2) Refer to the following table CR mode CR+LF... -
Page 17: Dip Switch Setting For Star(Sp500) Mode
SRP-275III 3-1-2 DIP Switch setting for Star(SP500) mode • DIP Switch 1 Switch Function Default Emulation Selection (*1) Refer to the following table Auto cutter Enable Disable Black/Red Printing Enable Disable Reserved • DIP Switch 2 (RS232C serial interface model) Switch Function Default... -
Page 18: Changing The Dip Switch Setting
SRP-275III 3-1-3 Changing the DIP Switch setting If you need to change settings, follow the steps below to make your changes. CAUTION Turn off the printer before removing the DIP Switch cover to prevent an electric short, which can damage the printer. 1) Make sure the printer is turned off. -
Page 19: Setting The Memory Switches
SRP-275III 3-2 Setting the Memory Switches This printer has “Memory Switch” set which is software switches. Memory Switch set has “MSW 2”, “MSW 8”, “Customize value”, “Serial communication condition”. “Memory Switch setting utility” can change the Memory Switch set to ON or OFF as shown in the table below (default: all OFF): NOTES The Memory Switch is available to be changed by two methods:... - Page 20 SRP-275III • Memory Switch 8 Switch Function Upside down Font Selection Font B Font A Selection Paper End Buzzer Reserved Fixed to Off • Serial communication Function Selectable value Modulation 2400 bps, 4800 bps, 9600 bps, 19200 bps rate Parity None, Odd, Even, - Handshake DSR/DTR, XON/XOFF...
-
Page 21: Memory Switch Setting For Star Mode
SRP-275III 3-2-1 Memory Switch setting for Star mode • Settings Memory Switches are from MSW 0 to MSW 8. They are stored in non-volatile memory (flash memory). To change the settings, send the following commands from the host. [Name] Set Memory Switch [Code] ASCII m {n1 n2 n3 0n4}... - Page 22 SRP-275III • Default Settings The default settings for Memory Switch 0 to Memory Switch 8 are shown below. Settings vary for single byte character countries (standard specifications (SBCS)) and for double-byte character countries (Chinese character specifications (DBCS)). - Standard Specifications (SBCS) Memory Switch Number Ex-factory Settings (n1, n2, n3, n4) MSW 0...
- Page 23 SRP-275III • Function - Memory Switch 0 Function Reserved Fixed to Off Red and Black Refer to the following table (inverted black and white) Commands (*3) Reserved SBCS DBCS Country Specifications (*1) (Single Byte countries) (Double Byte countries) <FF> Command (*2) Refer to the following table Reserved Fixed to Off...
- Page 24 SRP-275III - Memory Switch 1 Function Reserved Fixed to Off Zero style Normal Slash zero International Characters (*1) Refer to the following table NOTES (*1) International Characters Default Value Settings MSW1-3 MSW1-2 MSW1-1 MSW1-0 International Characters U.S.A France Germany U.K. Denmark1 Sweden Italy...
- Page 25 SRP-275III - Memory Switch 3 Function Reserved Fixed to Off Character Table (*2) Refer to the following table Reserved Fixed to Off <CR> Command Functions (*1) Refer to the following table NOTES (*1) <CR> Command Functions MSW3-1 MSW3-0 <CR> Functions 0 Ignored 1 Ignored Prints and performs a line feed (same as <LF>.)
- Page 26 SRP-275III - Memory Switch 4 Function Reserved Fixed to Off Prints “?” Data reception error (serial) Ignored - Memory Switch 5 Function Reserved Fixed to Off - Memory Switch 6 Function Reserved Fixed to Off - Memory Switch 7 Function Reserved Fixed to Off - 26 -...
-
Page 27: Ribbon Cassette Installation
SRP-275III 4. Ribbon Cassette Installation 1) Before inserting the ribbon cassette, turn the knob clockwise to prevent twisting the ribbon. 2) Open the front cover of printer. 3) Take out the old ribbon cassette if there is one. 4) Insert the new ribbon cassette as shown and pay particular attention to the placement of the ribbon behind the Printer Head. -
Page 28: Roll Paper Installation
SRP-275III 5. Roll Paper Installation 1) Open the rear cover by pushing the open button. 2) Remove the used paper roll core if there is one. 3) Insert the paper roll as shown. 4) Be sure to note the correct direction that the paper should come off the paper roll. -
Page 29: Installing The Wall Mount (Option)
SRP-275III 6. Installing the wall mount (Option) Bracket hanger 1) Turn the Set over and attach the Bracket hanger to the Frame base then tighten four screws. Screw(3x5) (4pieces) 2) Attach the Bracket mount to the wall Bracket mount firmly with the eight screws. Be sure that the Bracket attached properly to match the direction of arrow as shown. -
Page 30: Self Test
SRP-275III 7. Self Test The self test let you know if your printer is operating properly. It checks the printing quality, ROM version, DIP Switch settings, memory switch settings and statistic data. The test is independent of any other equipment or software, so it is a good idea to run it when you first set up the printer or if you have any trouble. -
Page 31: Hexadecimal Dumping
SRP-275III 8. Hexadecimal Dumping • Hexadecimal dump This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hexadecimal dump function, the printer prints all commands and other data in hexadecimal format along with a guide section to help you find specific commands. -
Page 32: Specification
SRP-275III 9. Specification 9-1 Printing specification Item Description Remark Printing method Serial impact method Head wire 9 pin serial type 0.352mm (1/72”) Dot pitch 0.28mm (0.01”) Dot wire diameter Printing direction Bidirectional (logic seeking) with friction feed Characters per line Max. -
Page 33: Electrical Characteristics
SRP-275III 9-4 Electrical characteristics Item Description Remark SMPS Supply voltage 24VDC Mean : Approximately 0.5A Current consumption Operating Peak : Approximately 1.5A (at 24V, except for drawer kick-out driving) Standby Mean: Approximately 0.3A NOTES Maximum 1A for drawer kick-out driving. 9-5 Reliability Item Description... -
Page 34: Dimensions & Weight
SRP-275III 9-7 Dimensions & weight • Dimensions Item Dimension (mm) • Weight Approx. Wt. : 2.5 kg Shipping Wt. : 4.0 kg - 34 - Rev. 1.02... -
Page 35: Optional Features
SRP-275III 9-8 Optional features The optional features either replace a standard feature or enhance the operation of the printer. All optional features are installed at the factory and must be selected when the printer is ordered. ------------------------------------------------------------------------------------------------------------------------ • Auto cutter (SRP-275IIIA : Exclude auto cutter, SRP-275IIIC : Including auto cutter) ------------------------------------------------------------------------------------------------------------------------ •... -
Page 36: Appendix - Troubleshooting
SRP-275III 10. Appendix - Troubleshooting This chapter gives solutions to some printer problems you may have. 10-1 ERROR LED blinking pattern The printer stops all printer operations for the selected paper section, goes off line, and the ERROR LED blinks when an error is detected. •... -
Page 37: The Printer Does Not Start Printing
SRP-275III • Errors that are impossible to recover Error Description ERROR LED blinking pattern Recovery After R/W checking, the printer does work correctly. Recovers automatically R/W error in memory Writing to, reading out, or when the rear cover is or gate array erasing the NV memory for closed. -
Page 38: The Printer Stops Printing
SRP-275III 10-3 The printer stops printing • If the ERROR LED is on (but not blinking), the printer is off line. Check to see that the covers are closed and check the paper state. See Chapter 5 for instructions on installing or replacing the paper roll.
