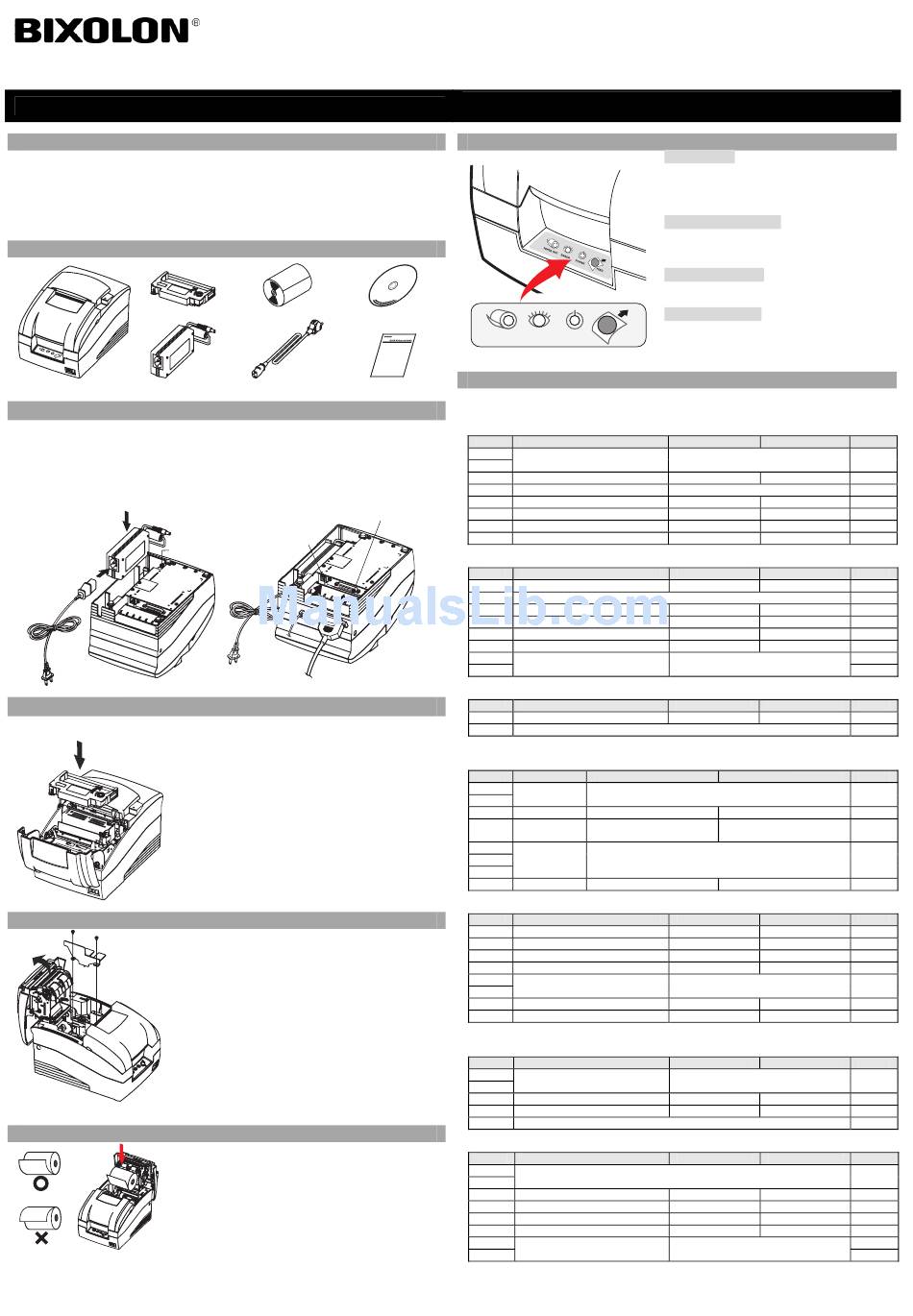

BIXOLON SRP-275 Installation Manual

KN02-00008A (Rev.2.0)
◈ Information
This Installation Guide includes a brief outline of information necessary for product
installation. For more detailed installation information, please refer to the user manual in the
enclosed CD. The contents of the CD include the following.
1. Manual: User Manual, Code Chart, Control Commands
2. Drivers: Windows Drivers, OPOS Drivers
3. Utilities: a logo download tool and a virtual memory switch control tool
◈ Components
Ribbon Cartridge
SRP-275 AC/DC Adaptor

◈ Connecting the cables

1. Turn off the printer and the host ECR (host computer).
2. Plug the power cord into the Adaptor, and then plug the Adaptor into the power connector
of the printer.
3. Check the interface cable (Serial, Parallel, USB, or Ethernet), and connect the interface
connector cable accordingly.
4. Plug the drawer kick-out cable into the drawer kick-out connector on the printer.
Adaptor
Power connector
Power cord

◈ Installing the Ribbon Cartridge

1. Before inserting the ribbon cartridge, turn the knob clockwise to prevent twisting of the ribbon.
2. Open the front cover of the printer and remove the old ribbon cartridge, if any.
5. Close the front cover of the printer.
※ Note
Malfunctions and other problems may arise if other than
specified ribbon cartridges are used in the printer. The
Warranty may be void if other than specified ribbon
cartridges are used. For detailed information regarding the
ribbon cartridge, refer to the product specifications.

◈ Changing the Paper Width

1. Open the rear cover.
Screw (3x6) 2
2. Remove the frame paper control by loosening the two
pieces
Frame Paper
3. Place the frame paper control in the desired position and
control
4. Close the rear cover.
5. Change the Memory Switch Setting to complete changing

◈ Installing the Paper Roll

1. Open the rear cover.
2. Insert a new paper roll, making sure to align it
3. Pull out a small amount of paper, and close the cover.
Paper Roll
Power Code Installation Guide
Interface connector
Drawer kick-out
connector
Drawer
kick-out
cable Interface cable
(Serial/Parallel/USB/Ethernet)
3. Insert the ribbon cartridge as shown in the figure so that
the ribbon is aligned to the rear of the printer head.
4. To allow the ribbon to move freely within the cartridge
when inserting the ribbon cartridge, turn the knob
clockwise once more.
screws (3x6).
tighten the two screws once again.
(The default paper width is set at 76mm.)
the paper width. Refer to the memory switch setting
information in the user's manual.
properly.
Printer Installation Guide
IMPACT PRINTER SRP-275

◈ Using the Operation Panel

Procuct Installation CD Procuct Installation CD Procuct Installation CD
CD
PAPER ERROR

◈ Setting the DIP Switches

Changing Dip Switch settings must be done when the printer is off. Any changes done while
the printer is on will not be processed.
• DIP Switch 1
SW
1-1
Emulation
1-2
1-3 Auto Cutter
1-4 Reserved
1-5 Serial Interface
1-6 Printing NV bit image after cutting
1-7 Near-End Sensor Status
1-8 Printing Lines
• DIP Switch 2 (RS232C Serial Interface Model)
SW
2-1 Data Receive Error
2-2
2-3 Handshaking
2-4 Data Length
2-5 Parity Check
2-6 Parity Selection
2-7
Baud Rate Selection
2-8
• DIP Switch 2 (Parallel Interface Model)
SW
2-1
2-2~8
(1) DIP Switch setting for Citizen (iDP 3550) Mode
• DIP Switch 1
SW Function
1-1
Emulation
1-2
1-3 Auto Cutter
CBM
1-4
command
1-5
International
1-6
Character
1-7
1-8 CR Mode
• DIP Switch 2 (RS232C Serial Interface Mode)
SW
2-1 Data Length
2-2 Parity Check
2-3 Parity Selection
2-4 Handshaking
2-5
Baud Rate Selection
2-6
2-7 Near-End Sensor Status
2-8 Mechanism Type
(2) DIP Switch setting for Star (SP500) Mode
• DIP Switch 1
SW
1-1
Emulation
1-2
1-3 Auto Cutter
1-4 Printing in Black/Red
1-5~8
• DIP Switch 2 (RS232C serial interface model)
SW
2-1
2-2
2-3 Handshaking
2-4 Data Length
2-5 Parity Check
2-6 Parity Selection
2-7
Baud Rate Selection
2-8
• FEED (Button)
Press the FEED button once to discharge extra
paper. Holding down the FEED button will
discharge paper continuously until the button is
released.
• POWER (LED, GREEN)
When turning on the power, a green LED will be
lit. Do not use the printer or turn it off when this
LED blinks)
• ERROR (LED, RED)
When an error occurs, a red LED will be lit. (e.g.
no paper, cover ajar, etc.)
• PAPER (LED, RED)
The paper LED will be red when the paper roll is
POWER FEED
running low. If there is no paper left, the paper
LED will be on together with 'Error' LED.
Function ON
Refer to the following table 1
Enable
Memory Switch
Enable
Enable
42/35
Function ON
Ignore
Reserved
XON/XOFF
7 bits
Enable
EVEN
Refer to the following table 2
Function ON
Auto Line Feed Enable
Undefined
ON
Refer to the following table 1
Enable
CBM2 Mode
(iDP3530 System)
Refer to the following table 3
CR
Function ON
8bits
Disable
ODD
DTR/DSR
Refer to the following table 2
Enable
Graphic
Function ON
Refer to the following table 1
Enable
Enable
Reserved
Function ON
Reserved
XON/XOFF
7bits
Enable
EVEN
Refer to the following table 2
Ver.2
OFF Default
OFF
Disable OFF
- OFF
DIP Switch OFF
Disable OFF
Disable OFF
40/33 OFF
OFF Default
Print "?" OFF
OFF
DTR/DSR OFF
8 bits OFF
Disable OFF
ODD OFF
OFF
OFF
OFF Default
Disable OFF
OFF
OFF Default
OFF
Disable OFF
CBM1 Mode
OFF
(iDP3540 System)
ON
CR+LF OFF
OFF Default
7bits ON
Enable ON
EVEN ON
XON/XOFF ON
OFF
Disable OFF
Text OFF
OFF Default
OFF
Disable OFF
Disable OFF
OFF
OFF Default
OFF
DTR/DSR OFF
8bits OFF
Disable OFF
ODD OFF
OFF
OFF
