Page 1: Nv Image Tool

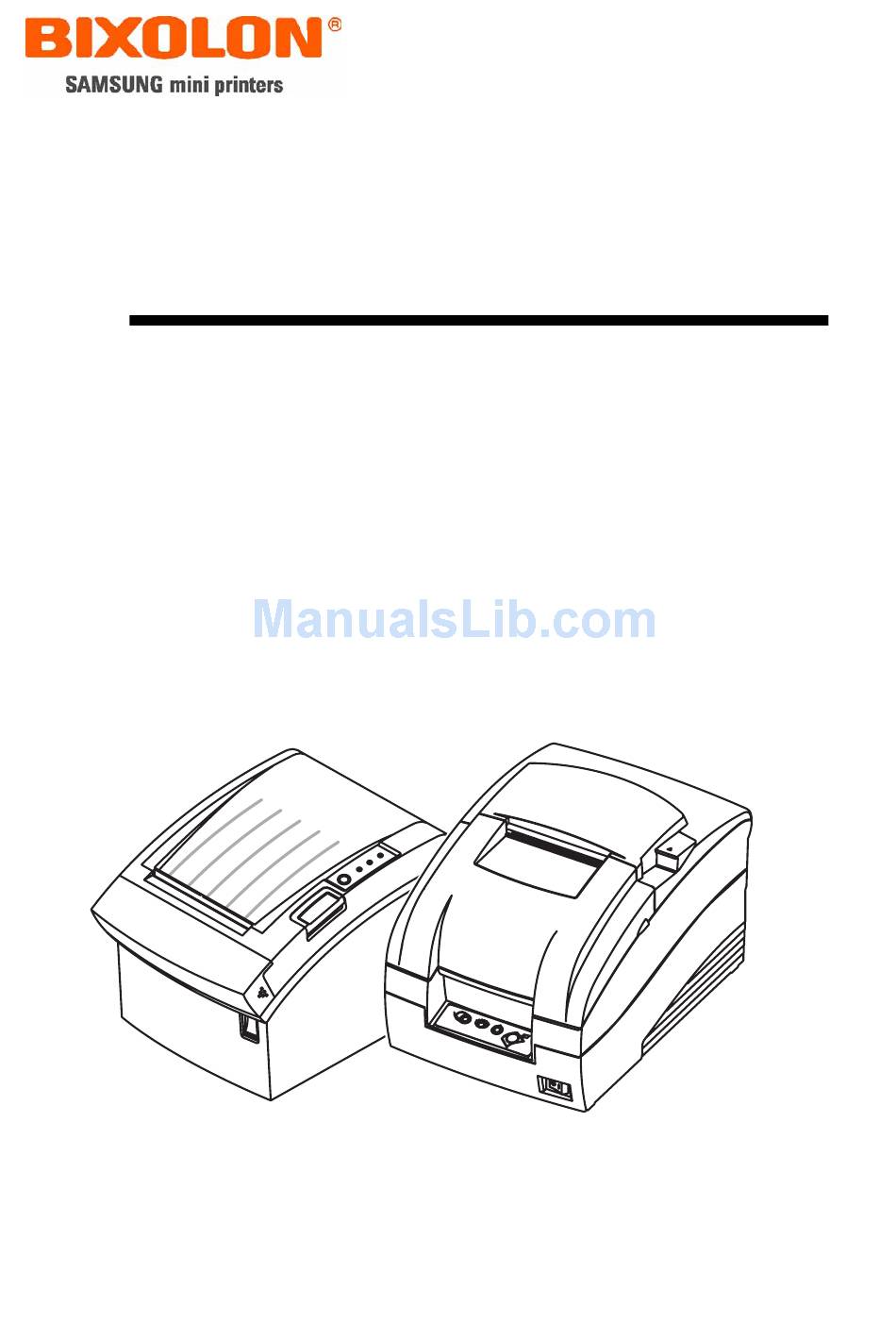

Software Manual NV Image Tool STP-103 / STP-131 Rev. 2.03 SRP-275 / SRP-350 SRP-350N /SRP-350plus SRP-350plusF SRP-352plus SRP-370 / SRP-372 SRP-500 / SRP-770 http://www.samsungminiprinters.com... -
Page 2: Table Of Contents
NV Image Too ■ Table of Contents 1. Manual Information......................3 2. Usage Environment .......................3 2-1 Operating System .......................3 2-2 Device Property ......................3 3. Ready to NV Image Tool ....................4 4. Usage of NV Image Tool ....................4 4-1 The beginning of NV Image Tool.................4 4-2 Communication Configuration ..................5 4-3 Image List Management .....................6 4-4 Change the Color......................7... -
Page 3: Manual Information
1. Manual Information The purpose of this manual is to provide information on the operation and usage instructions of the NV Image Tool for the BIXOLON Printers. This program helps you to download user-defined images to the flash memory in the printer and to recall and print those images with fast speed. -
Page 4: Ready To Nv Image Tool
NV Image Too 3. Ready to NV Image Tool NV Image Tool is included in the enclosed CD, and can also be downloaded from the BIXOLON website. (www.samsungminiprinters.com) The Name of Execute File is “NV Image Tool(Ver3.x.x).exe”. 4. Usage of NV Image Tool 4-1 The beginning of NV Image Tool 1) Run the “NV Image Tool(Ver3.x.x) file. -
Page 5: Communication Configuration
NV Image Too 4-2 Communication Configuration 1) Click “Port Setting” button to set communication configuration. 2) Select the Printer model. If the Printer is supported two-color mode, mono or two-color mode can be selected. * The choice of Mono / two-color mode is applied in SRP-350plus, SRP-350plusF, SRP- 352plus, SRP-370 and SRP-372 printer model. -
Page 6: Image List Management
NV Image Too 3) Each printer model has different communication interface. Set the port and the communication configuration that corresponds to the printer. * In the Serial Interface, match the communication setting (COM port number and Baudrate) to those of the printer. 4) After selecting the configuration press “OK”... -
Page 7: Change The Color
NV Image Too 4-4 Change the Color The color of image can be modified, when you use two color printers. Just try to move the horizontal scroll bar as you can see in the picture. 4-5 Download the image When the “Download..” button is clicked, pop-up window and the steps are different based on printer model. -
Page 8: Download The Mono Image In Thermal Printer
4-5-1 Download the mono image in thermal printer * In the printer selection section of paragraph 4.2, when selecting between the STP-103, STP-131, SRP-350, SRP-350N, SRP-350plus Mono, SRP-350plusF Mono, SRP- 352plus Mono, SRP-370 Mono, SRP-372 Mono, the Mono image download mode is entered. -
Page 9: Download The Color Image In Thermal Printer
NV Image Too 4-5-3 Download the color image in thermal printer * In the printer selection section of paragraph 4.2, when selecting between the SRP- 350plus, SRP-350plusF, SRP-352plus, SRP-370, SRP-372, the color image download mode is entered. * The Color image download command uses the macro command “GS 8 L”. For further details, please refer to the commands manual of the corresponding model. -
Page 10: Print The Image
4-7-1 Print the mono image in thermal printer * In the printer selection section of paragraph 4.2, when selecting between the STP-103, STP-131, SRP-350, SRP-350N, SRP-350plus Mono, SRP-350plusF Mono, SRP- 352plus Mono, SRP-370 Mono, SRP-372 Mono, the Mono image download mode is entered. -
Page 11: Print The Image In Dot Printer
NV Image Too 4-7-2 Print the image in dot printer * In the printer selection section of paragraph 4.2, when selecting between the SRP-275 and SRP-500, the Dot Printer image download mode is entered. * The Dot Printer image download command uses the macro command “ESC g”. For further details, please refer to the commands manual of the corresponding model. -
Page 12: Appendix A. Release History
NV Image Too Appendix A. Release History Version Description Release Date Etc. Release Version Dec. 1. 2003 UI Updated(Easy control) 2bit Bitmap Image antagonistic color Bug Dec 27. 2003 Image Conversion Values Updated File Size Limit Updated Feb 27. 2004 File Open Bug Add “Save Print File”...
