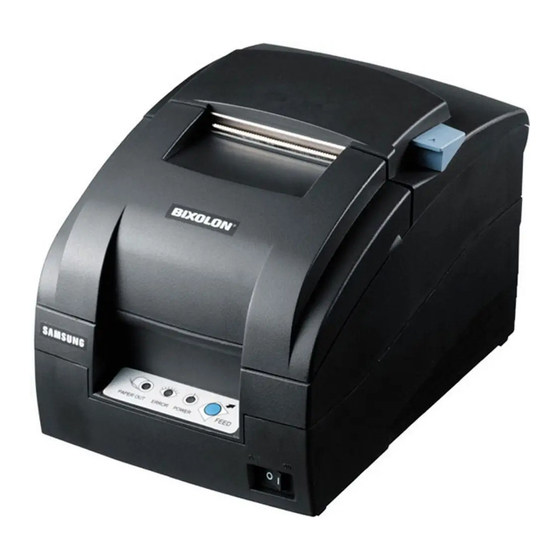

BIXOLON SRP-275 Driver Manual

Windows x64 driver manual
Hide thumbs Also See for SRP-275:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, User Manual
Windows x64 Driver Manual
SRP-275
Impact Printer
Rev. 1.00
http://www.samsungminiprinters.com

Advertisement

Table of Contents
loading

Related Manuals for BIXOLON SRP-275

Summary of Contents for BIXOLON SRP-275

  • Page 1 Windows x64 Driver Manual SRP-275 Impact Printer Rev. 1.00 http://www.samsungminiprinters.com...

  • Page 2: Table Of Contents

    SRP-275 ■ Table of Contents 1. Manual Information......................3 2. Operating System (Windows x64 OS) Environment ...........3 3. Windows Driver Preparation ..................3 4. Windows Driver Installation ..................4 4-1 Installing on Windows XP/2003 Server...............4 4-1-1 Via Serial Port or Parallel..................4 4-1-2 Via USB Port ......................8 4-2 Installing on Windows VISTA ..................15...

  • Page 3: Manual Information

    The Windows Driver is included in the enclosed CD, and can also be downloaded from the BIXOLON website. (www.samsungminiprinters.com) If downloading from the BIXOLON website, first download the SRP-275_Vx.x.xx_Windowsx64.zip file, then unzip the file, and run the SRP- 275_Vx.x.xx_x64.exe file.

  • Page 4: Windows Driver Installation

    SRP-275 4. Windows Driver Installation 4-1 Installing on Windows XP/2003 Server 4-1-1 Via Serial Port or Parallel 1) Double-click the Windows Driver installation file (SRP-275_Vx.x.xx.exe). 2) Click the “Next” button. - 4 - Rev. 1.00...
  • Page 5 SRP-275 3) Select the COM or Parallel port to be used and click the “Next” button. 4) When the following message box appears, click the “Continue Anyway” button. - 5 - Rev. 1.00...
  • Page 6 SRP-275 5) Clicking the ”Yes” button will reboot the PC. 6) Open the printer properties window in the Windows OS. 7) Click the “Port Settings” button in the ”Ports” tab. - 6 - Rev. 1.00...
  • Page 7 SRP-275 8) Match the communication settings to those of the printer. (The communication settings of the printer can be performed by conducting a self-test.) 9) Click the “Print Test Page” button and check printing status. - 7 - Rev. 1.00...

  • Page 8: Via Usb Port

    SRP-275 4-1-2 Via USB Port 1) Double-click the Windows Driver installation file (SRP-275_Vx.x.xx.exe). 2) Click the “Next” button. - 8 - Rev. 1.00...
  • Page 9 SRP-275 3) Select USB and click the ”Next” button. 4) Click the ”OK” button. 5) Turn on the printer. - 9 - Rev. 1.00...
  • Page 10 SRP-275 6) When the New Hardware Wizard appears for the installation of the Windows Driver, select the option as shown below and click the “Next” button. 7) Click the “Next” button. - 10 - Rev. 1.00...
  • Page 11 SRP-275 8) Click the “Next” button. 9) Click the “Next” button. - 11 - Rev. 1.00...
  • Page 12 SRP-275 10) Click the “Continue Anyway” button. - 12 - Rev. 1.00...
  • Page 13 SRP-275 11) Click the “Finish” button. 12) The USB Port setting can be confirmed in the Windows Driver properties. - 13 - Rev. 1.00...
  • Page 14 SRP-275 13) Click the “Print Test Page” button and check printing status. - 14 - Rev. 1.00...

  • Page 15: Installing On Windows Vista

    SRP-275 4-2 Installing on Windows VISTA 4-2-1 Via Serial Port or Parallel 1) Double-click the Windows Driver installation file (SRP-275_Vx.x.xx.exe). 2) Click the “Next” button. - 15 - Rev. 1.00...
  • Page 16 SRP-275 3) Select the COM or Parallel port to be used and click the “Next” button. 4) When the following message box appears, click the “Continue Anyway” button. - 16 - Rev. 1.00...
  • Page 17 SRP-275 5) Clicking the ”Yes” button will reboot the PC. 6) Open the printer properties window in the Windows OS. 7) Click the “Port Settings” button in the ”Ports” tab. - 17 - Rev. 1.00...
  • Page 18 SRP-275 8) Match the communication settings to those of the printer. (The communication settings of the printer can be performed by conducting a self-test.) 9) Click the “Print Test Page” button and check printing status. - 18 - Rev. 1.00...

  • Page 19: Via Usb Port

    SRP-275 4-2-2 Via USB Port 1) Double-click the Windows Driver installation file (SRP-275_Vx.x.xx.exe). 2) Click the “Next” button. - 19 - Rev. 1.00...
  • Page 20 SRP-275 3) Select USB and click the ”Next” button. 4) Click the ”OK” button. 5) Turn on the printer. - 20 - Rev. 1.00...
  • Page 21 SRP-275 6) Click the “Continue Anyway” button. - 21 - Rev. 1.00...
  • Page 22 SRP-275 7) The USB Port setting can be confirmed in the Windows Driver properties. 8) Click the “Print Test Page” button and check printing status. - 22 - Rev. 1.00...

  • Page 23: Detailed Windows Driver Settings

    SRP-275 5. Detailed Windows Driver Settings The following functions can be set in detail after the Windows Driver installation is complete. 5-1 Paper Supply Method The printer structure is such that the print head, which carries out printing, and the cutter, which cuts the printing paper, are separated.
  • Page 24 SRP-275 2) Click the “Printing Preferences” button in the ”General” tab. The button name varies by Windows OS. Refer to the following. - Windows XP/2003 Server: “Printing Preferences” - Windows VISTA: “Printing Preferences” 3) Select the desired setting in the ”Paper/Quality” tab.

  • Page 25: Paper Size

    SRP-275 5-2 Paper Size The paper sizes available in the Windows Driver are as follows. - 76 × 3276 mm[275] - 70 × 3276 mm[275] - 58 × 3276 mm[275] - 76 × 297 mm[275] - 70 × 297 mm[275] - 58 ×...

  • Page 26: Additional Commands

    SRP-275 5-3 Additional Commands The Windows Driver serves to receive the content for print from an application and send it to the printer. The Additional Commands function allows for the addition of desired commands at the beginning or end of the print content sent to the printer.
  • Page 27 6) When downloading an image to the printer using the NV Image Tool, the image print command is different. - SRP-275 Command: FS p n m (Hex: 1C 70 m n) For more information on the hexadecimals that can be entered in ”BeginDoc” and ”...

  • Page 28: Windows Driver Specifications

    SRP-275 6. Windows Driver Specifications 6-1 Fonts The Windows Driver of the printer supports the fonts listed below. Printing is done at faster speed when using the fonts below as opposed to the Windows fonts of the OS. Sizes Printer Fonts...

  • Page 29: Special Functions

    SRP-275 6-2 Special Functions The Windows Driver supports the special functions indicated below. These special functions are available when using the characters after the “FontControl” font is selected. This function is not an ordinary character printing function. Take special care.

  • Page 30: Use Of Windows Driver

    (SRP-275). Sample programs are saved together if the Windows Driver is installed. Take note. 7-1-1 Windows Driver Selection The following code is an example of the selection of the “BIXOLON SRP-275” Windows Driver. For Each prnPrinter In Printers If prnPrinter.DeviceName = “BIXOLON SRP-275” Then...

  • Page 31: Use Of Wordpad

    After running Wordpad and setting the following conditions, conduct a test. - Select Printer After selecting “Print” from the “File” tab, select the printer (BIXOLON SRP-275). - Select Paper Size, Orientation, and Margins After selecting “Page Settings” from the “File” tab, select the paper size, orientation, and margins.
