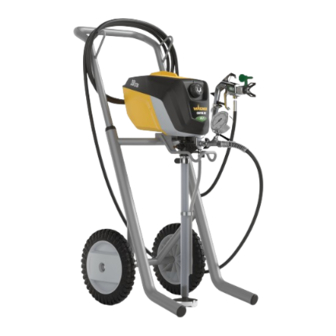

- Page 1 UNIVERSAL SPRAYER CONTROL PRO 350 EXTRA CART ORIGINAL- BETRIEBSANLEITUNG wagner-group.com...
- Page 2 Control Pro 350 Extra Cart HIGH EFFICIENCY AIRLESS CONTROL PRO 200 BETRIEBSANLEITUNG wagner-group.com ...
- Page 3 Control Pro 350 Extra Cart SPRAY PRIME 0 = OFF PRIME SPRAY ...
- Page 4 Control Pro 350 Extra Cart 25 - 30 cm 20 - 25 cm 20 - 25 cm 20 - 25cm ...
- Page 5 Control Pro 350 Extra Cart HOUSEHOLD...
- Page 6 Control Pro 350 Extra Cart Translation of the original operating instructions Warning! Attention: Danger of injury by injection! Airless units develop extremely high spraying pressures. Danger Never put your ngers, hands or any other parts of the body into the spray jet! Never point the spray gun at yourself, other persons or animals.
-
Page 7: Explanation Of Symbols Used
Control Pro 350 Extra Cart Congratulations on your purchase of a WAGNER colour application device. You have purchased a proprietary device that requires careful cleaning and care to ensure trouble-free functioning. Read the operating instructions carefully before using the tool and observe the safety instructions. Keep the operating instructions in a safe place. -
Page 8: Flammable Materials
Control Pro 350 Extra Cart 3. Safety of Persons a) Be attentive. Pay attention to what you are doing and work sensibly with a power tool. Do not use the tool if you are tired or under the influence of drugs, alcohol or medication. Just a moment of inattentiveness while using the tool can lead to serious injuries. -
Page 9: Explosion Protection
Control Pro 350 Extra Cart Explosion protection Do not use the unit in work places which are covered to the explosion protection regulations. Danger Danger of explosion and fire through sources of flame during spraying work There may be no sources of flame such as, for example, open fires, smoking of cigarettes, cigars or tobacco pipes, sparks, glowing wires, hot surfaces, etc. - Page 10 197 kΩ/m (60 kΩ/ft.). For reasons of function, safety and durability, only use genuine WAGNER high-pressure hoses and spray nozzles. For overview see „Spare parts lists“.
-
Page 11: Coating Materials Not Suitable For Use
Flammable materials, materials containing acetone or cellulose thinner In order to ensure compatibility of the coating substance with the materials used to manufacture the device, please contact Wagner Service in cases of doubt. Field of application Coating interior walls and outside objects (e.g. garden fences, garage doors, etc.). -
Page 12: Preparation Of The Coating Material
Control Pro 350 Extra Cart Pay attention to the quality of the adhesive tape used. Do not use excessively strong adhesive tape on wallpaper and painted surfaces, in order to avoid damaging these surfaces when removing the tape. Remove adhesive tape slowly and evenly;... -
Page 13: Pressure Relief Procedure
Control Pro 350 Extra Cart • Fold the trigger lock upwards to unlock the trigger (Fig. 9, B). Another nozzle size and gun filter must be used, depending on the material to be processed. Thin materials: Nozzle 311 Filter red ... -
Page 14: Spray Technique
Control Pro 350 Extra Cart Spray Technique Be sure to follow the Pressure Relief Procedure when shutting the unit off for any purpose. This procedure relieves the pressure from the spray hose and the gun. Watch the pressure gauge ––> 0 bar Danger Be sure that the paint hose is free of kinks and clear of objects with sharp cutting edges. -
Page 15: Interruption Of Work
Control Pro 350 Extra Cart Under pressure, the nozzle may be very difficult to turn. Turn the switch to the PRIME position (vertical) and pull the trigger. This will relieve pressure and the tip will turn more easily. 2. Turn the switch to the SPRAY position (horizontal). -
Page 16: Maintenance And Repairs
Control Pro 350 Extra Cart 1. Perform Pressure Relief Procedure. 2. Secure the spray gun. 3. Remove the nozzle holder from the spray gun. (Fig. 19) 4. Put the suction hose and return flow pipe into a container full of water or suitable cleaning solution. - Page 17 Filter, white (nozzle 517/619, 1 pack) 34377 Filter, white (nozzle 517/619, 10 pack) 97024 Gun extension (30 cm) 0517700 Gun extension (60 cm) 0517701 Easy Glide (118 ml) 0508619 Further information about the WAGNER range of products for renovating is available under www.wagner-group.com...
-
Page 18: Environmental Protection
Control Pro 350 Extra Cart Technical Data Pump type Piston pump Power source 230 V 50 Hz/ 240 V 50 Hz Power consumption 600 W Fusing Only connect to sockets protected with an FI fuse (16 A) Protection class Max. spray pressure 11 MPa (110 bar) Max. - Page 19 Control Pro 350 Extra Cart Problem Cause Remedy • The spray device The unit will not prime properly or has lost ➞ Try to prime the unit again. runs but does not prime. • suck up any paint The paint bucket is empty or the suction tube ➞...
