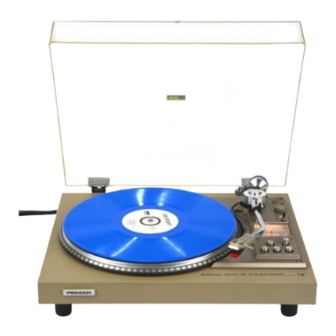

Pioneer PL-560 Service Manual

Service
PALEY INTEN
CIRCUIT & MECHANISM
DESCRIPTIONS
ORDER
NO
L-SG6O(BK)
PL-560
@ PL-560[BK] is Black versions of PL-560
@ Models PL-560 come in four versions distinguished as follows:
Applicable model
Power equivement Destination
AC 120V only U.S.A. model
AC 110V ~ 120V, AC 220V ~ 240V
(Switchable) General export model
AC 220V ~ 240V European continent model
AC 220V ~ 240V United Kingdom model
@ This service manual is applicable to the PL-560/KU, R, WEM, WB types.
© Both models PL-560 [BK] and PL-560 have the same basic mechanism and performance. The only
difference is in appearance.
@ For servicing the PL-560/R, WEM, WB types. Please see page 25 ~ 28.
@ Ce manuel d'instruction se refére au mode de réglage, en francais.
@ Este manual de servicio trata del método de ajuste escrito en espajfiol.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS [USA] INC. P.O. Box 1760, Long Beach, California S0801 U.S.A.
TEL: (BOO) 421-1404, (B00) 237-0424
PIONEER ELECTRONIC [EUROPE] N.V. Keetberglaen 1, 2740 Beveren, Belgium TEL: 03/775-28:08
PIONEER ELECTRONICS AUSTRALIA PTY.LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia
TEL: (O03) 580-9911
FA © FEB. 1985 Printed in Japan
