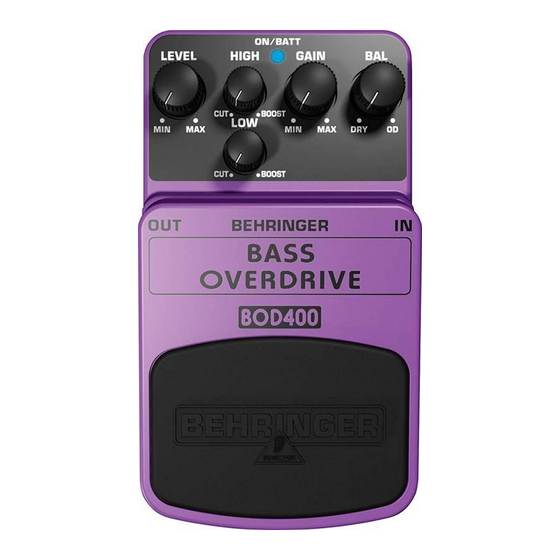

Behringer BASS OVERDRIVE BOD400 Quick Start Manual

BASS OVERDRIVE BOD400
Authentic Tube-Sound Overdrive Eff ects Pedal
Thank you for showing your confi dence in us by purchasing the BEHRINGER BASS OVERDRIVE
BOD400. This high-quality eff ects pedal is specifi cally designed for bass applications. Thanks to its
high-performance features you will achieve tube-like distortion, smooth sustain and super fat tone with
maximum punch.

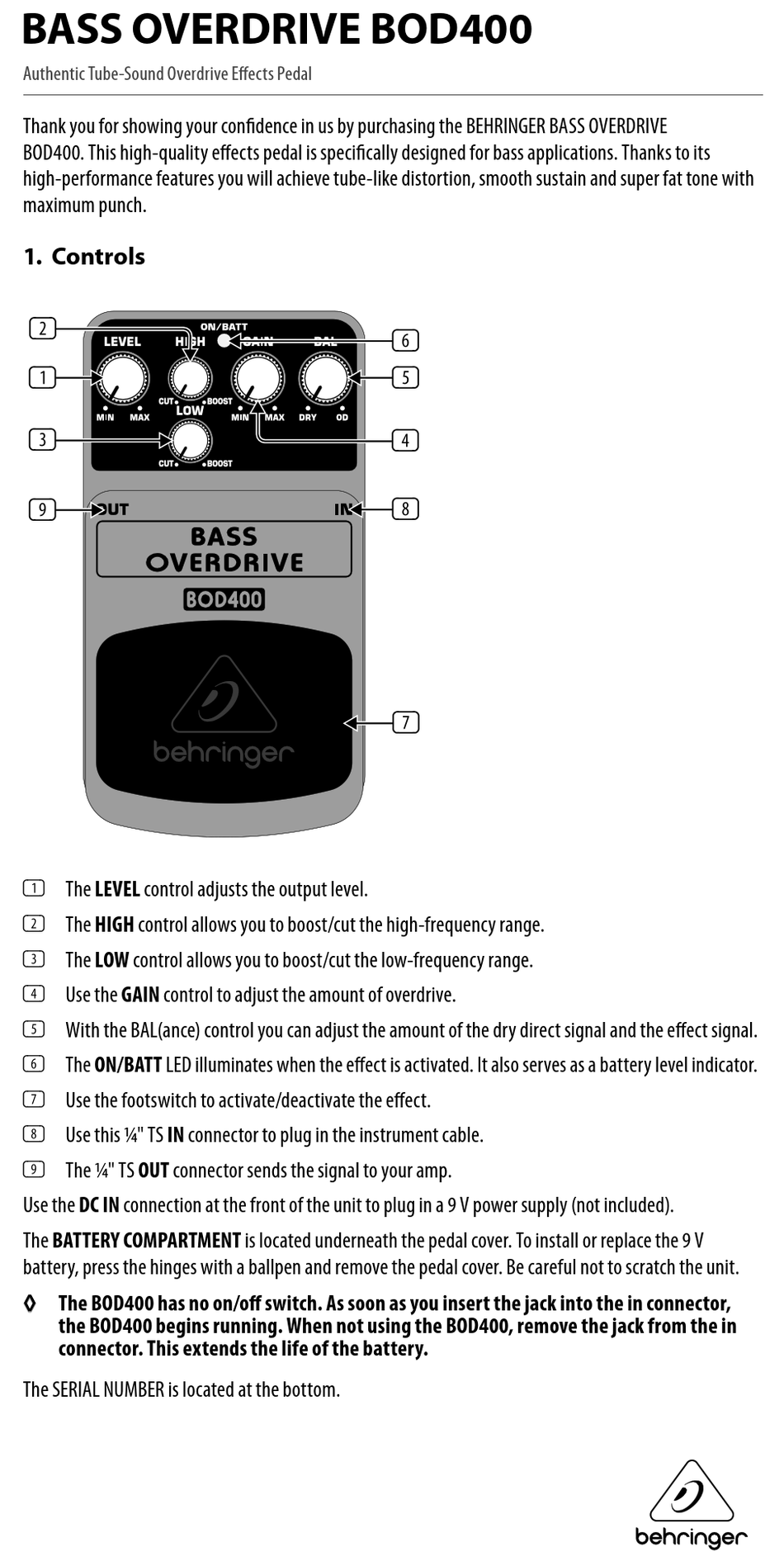

1. Controls
(2)
(1)
(3)
(9)
(1) The LEVEL control adjusts the output level.
(2) The HIGH control allows you to boost/cut the high-frequency range.
(3) The LOW control allows you to boost/cut the low-frequency range.
(4) Use the GAIN control to adjust the amount of overdrive.
(5) With the BAL(ance) control you can adjust the amount of the dry direct signal and the eff ect signal.
(6) The ON/BATT LED illuminates when the eff ect is activated. It also serves as a battery level indicator.
(7) Use the footswitch to activate/deactivate the eff ect.
(8) Use this ¼ " TS IN connector to plug in the instrument cable.
(9) The ¼ " TS OUT connector sends the signal to your amp.
Use the DC IN connection at the front of the unit to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V
battery, press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.
◊ ◊
The BOD400 has no on/off switch. As soon as you insert the jack into the in connector,
the BOD400 begins running. When not using the BOD400, remove the jack from the in
connector. This extends the life of the battery.
The SERIAL NUMBER is located at the bottom.
(6)
(5)
(4)
(8)
(7)
