BASS OVERDRIVE BOD100
All manuals and user guides at all-guides.com

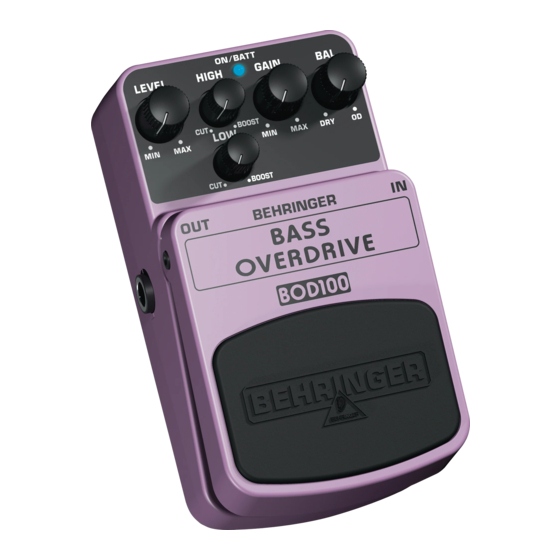

Thank you for showing your confidence in us by purchasing the BEHRINGER BASS
OVERDRIVE BOD100. This high-quality effects pedal is specifically designed for bass
applications. Thanks to its high-performance features you will achieve tube-like distortion,
smooth sustain and super fat tone with maximum punch.
The LEVEL control adjusts the output level.
The HIGH control allows you to boost/cut the high-frequency range.
The LOW control allows you to boost/cut the low-frequency range.
Use the GAIN control to adjust the amount of overdrive.
With the BAL(ance) control you can adjust the amount of the dry direct signal and
the effect signal.
The ON/BATT LED illuminates when the effect is activated. It also serves as a
battery level indicator.
Use the footswitch to activate/deactivate the effect.
Use this 1/4" TS IN connector to plug in the instrument cable.
The 1/4" TS OUT connector sends the signal to your amp.
Use the DC IN connection to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or
replace the 9 V battery, press the hinges with a ballpen and remove the pedal cover. Be
careful not to scratch the unit.
+
The BOD100 has no on/off switch. As soon as you insert the jack into the
IN connector, the BOD100 begins running. When not using the BOD100,
remove the jack from the IN connector. This extends the life of the
battery.

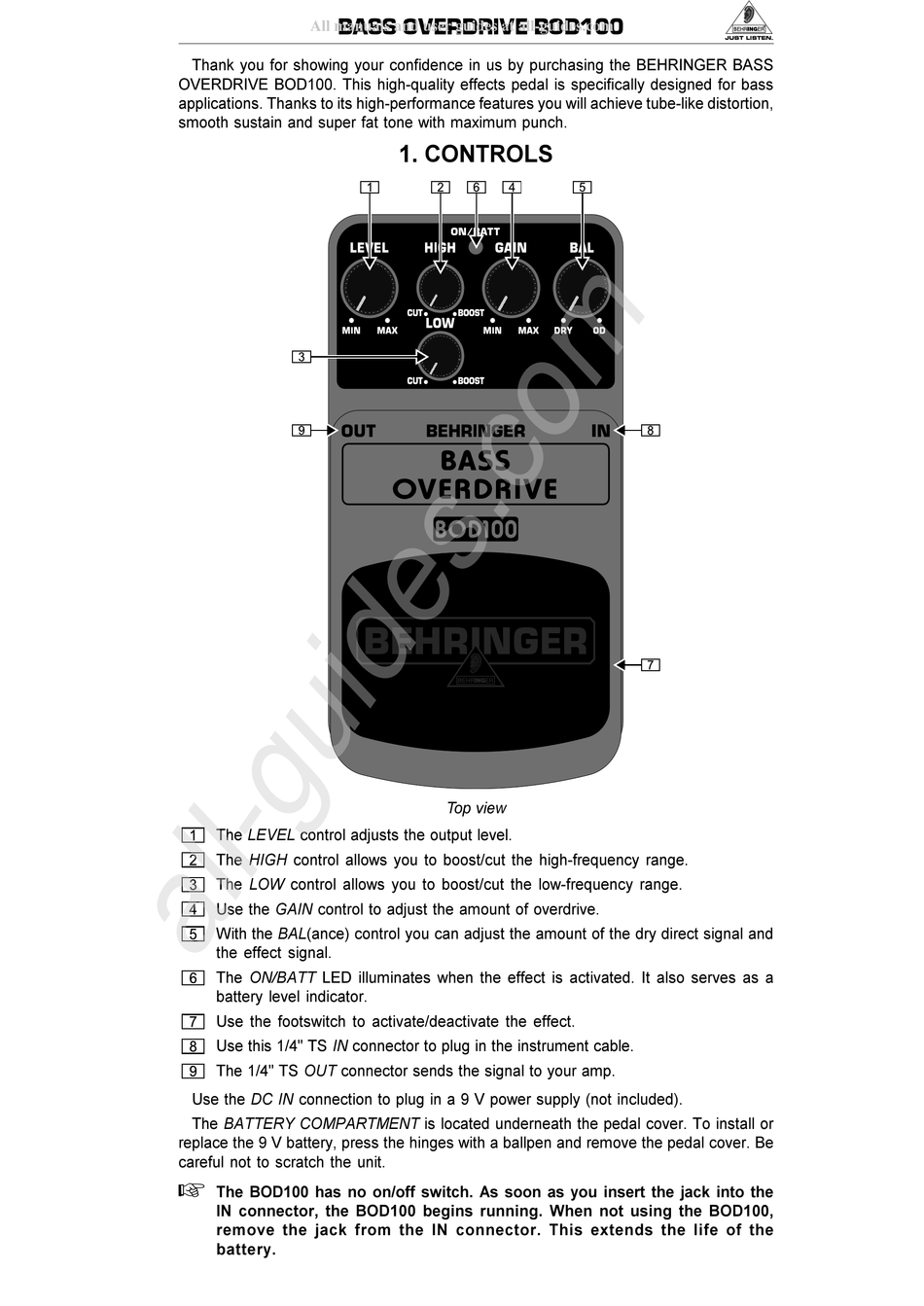

1. CONTROLS
Top view
