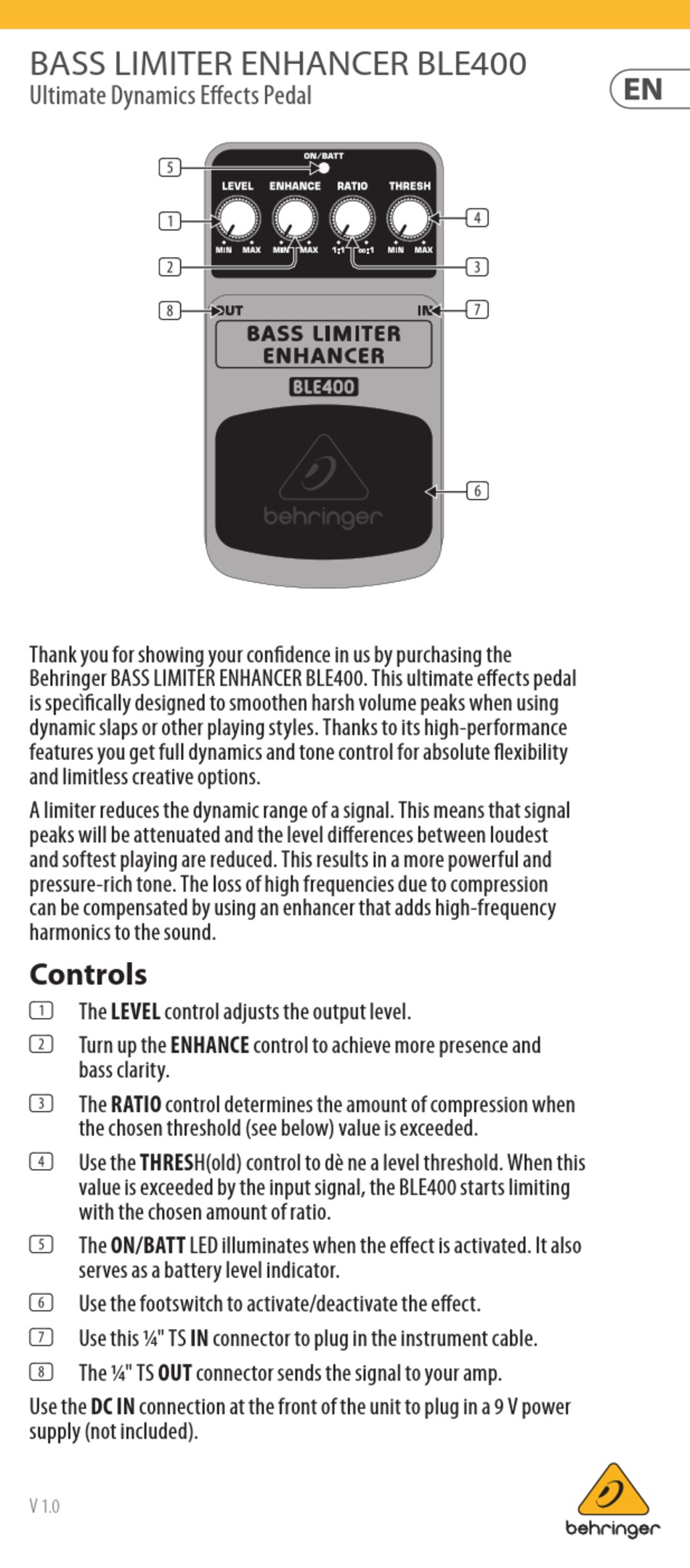

Behringer BASS LIMITER ENHANCER BLE400 Manual

BASS LIMITER ENHANCER BLE400
Ultimate Dynamics Effects Pedal
(5)
(1)
(2)
(8)
Thank you for showing your confidence in us by purchasing the
Behringer BASS LIMITER ENHANCER BLE400. This ultimate effects pedal
is specìfically designed to smoothen harsh volume peaks when using
dynamic slaps or other playing styles. Thanks to its high-performance
features you get full dynamics and tone control for absolute flexibility
and limitless creative options.
A limiter reduces the dynamic range of a signal. This means that signal
peaks will be attenuated and the level differences between loudest
and softest playing are reduced. This results in a more powerful and
pressure-rich tone. The loss of high frequencies due to compression
can be compensated by using an enhancer that adds high-frequency
harmonics to the sound.

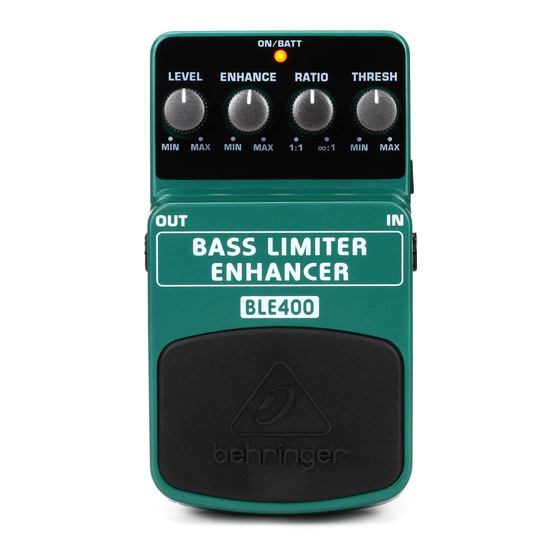

Controls
The LEVEL control adjusts the output level.
(1)
Turn up the ENHANCE control to achieve more presence and
(2)
bass clarity.
The RATIO control determines the amount of compression when
(3)
the chosen threshold (see below) value is exceeded.
Use the THRESH(old) control to dè ne a level threshold. When this
(4)
value is exceeded by the input signal, the BLE400 starts limiting
with the chosen amount of ratio.
The ON/BATT LED illuminates when the effect is activated. It also
(5)
serves as a battery level indicator.
Use the footswitch to activate/deactivate the effect.
(6)
Use this 1/4" TS IN connector to plug in the instrument cable.
(7)
The 1/4" TS OUT connector sends the signal to your amp.
(8)
Use the DC IN connection at the front of the unit to plug in a 9 V power
supply (not included).
V 1.0
(4)
(3)
(7)
(6)
