- Page 1 User Guide TECTO CI6 PI 45 72 CI6 PI 45 72 GL 05/2022 Please keep these instructions for future reference!
- Page 2 Tecto CI6 PI 45 72 Tecto CI6 PI 45 72 GL CONDENSER CONTROLLER. DANFOSS ERC111 COMPRESSOR DC 12 V – EMBRACO POWER EVAPORATOR - Tecto CI6 PI 45 72 - Tecto CI6 PI 45 72 GL Load limit 345 mm Version 05/2022...
-
Page 3: Table Of Contents
ENGLISH ENGLISH Before you start ..........................4 1.1. Warranty..........................4 Tecto CI6 PI ........................... 4 2.1. Warnings ..........................4 2.2. Restrictions .......................... 5 2.3. Package ..........................6 2.4. Transport damage ........................ 6 2.5. Installing ..........................6 Identifying the equipment ......................7 3.1. -
Page 4: Before You Start

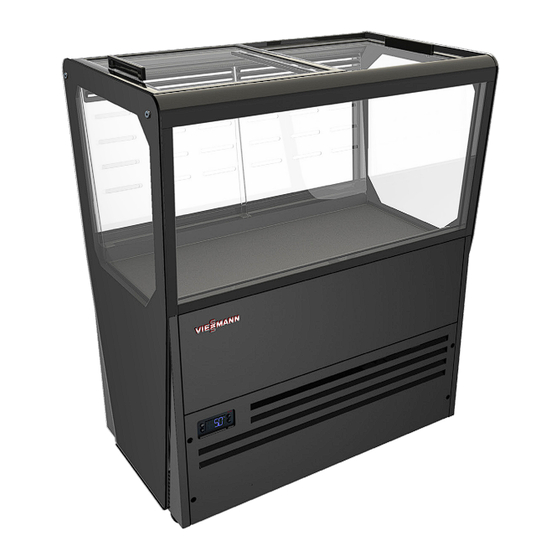

Tecto CI6 PI is a cooled display cabinet for drinks and dairy products, aimed at impulse buyers. The cabinet maintains the storage temperature required by the products. NOTE Tecto CI6 PI 45 72 GL comes equipped with covering glass ligs. Mounting or demounting lids requires changing the operating thermostat settings. 2.1. Warnings WARNING If the machinery contains isobutane R600a, there is a fire hazard. -
Page 5: Restrictions
ENGLISH WARNING Do not damage the refrigeration circuit. WARNING Due to fire hazard, only a qualified technician is allowed to install the system. WARNING No electrical equipment should be placed inside the cabinet unless specifically approved by the manufacturer. WARNING Do not use the product without protective lighting covers / reflectors under the handrails. -
Page 6: Package
ENGLISH NOTE Storing flammable or hazardous liquids in the cabinet is strictly prohibited. 2.3. Package Transport or move the cabinet to its destination site in the original factory packing, whenever possible. The packaging materials are recyclable. NOTE (This applies to cabinets using R600a as refrigerant): do not turn on the power to the cabinet if you suspect that a refrigerant leakage has occurred during transportation. -
Page 7: Identifying The Equipment
ENGLISH 3. Identifying the equipment Find the label affixed on the machine under the ventilation grating as shown in the beginning of these instructions (Figure 1) to read the technical data. Check the machine model and the power supply voltage before you perform any operation. If discrepancies are found, contact the manufacturer or the company that offer the supply immediately. -
Page 8: Cleaning Before Use
ENGLISH 3.1. Cleaning before use 1. Clean the cabinet surfaces and the storage compartment for foodstuffs with a mild liquid detergent (pH 6-8) before using the cabinet. Follow the instructions provided with the detergent. NOTE Make sure that all cleaning fluids are classed as non-toxic. 2. -
Page 9: Loading Cabinet
ENGLISH 5.2. Loading cabinet • Position the products carefully. • Do not fill the cabinet above the load limits marked in the cabinet. See figure 2 on the inside cover. • Do not exceed the load limit. Exceeding the load limit will disrupt the designed airflow pattern and cause the temperature of products to rise. -
Page 10: Cleaning
ENGLISH 6. Cleaning The following cleaning procedure must be carried out at least twice a year. NOTE The cabinet must not be cleaned while the fans are running. To disable the fans, disconnect the cabinet from the electricity supply. WARNING Evaporators, condensers and parts made of stainless steel may have sharp edges. -
Page 11: Troubleshooting
The evaporator should be cleaned by authorised service personnel. It is recommended to use Viessmann spare parts. The minimum period during which spare parts, necessary for the repair of the appliance is 8 years after placing the last unit of the model on the market 10. -
Page 12: Product Information
Access EPREL via https://eprel.ec.europa.eu/ and use the model ID provided in the rating plate to find the product information. NOTE Detailed product information, recommendations for optimal temperature for food and beverage preservation, and more documentation can be found at www.cooling.viessmann.com 12. Wiring diagram CONDENSER CONTROLLER. DANFOSS... - Page 13 Ireland cooling.viessmann.co.uk Latvia dzesesana.viessmann.lv Lithuania saldymas.viessmann.lt Netherlands koelen.viessmann.nl Norway kjol.viessmann.no Poland chlodnicze.viessmann.pl Russia holod.viessmann.ru Spain refrigeracion.viessmann.es Sweden kyla.viessmann.se Switzerland kuehlen.viessmann.ch EN 05/2022 United Kingdom cooling.viessmann.co.uk Copyright Viessmann Duplication and alternative use only with prior written consent. Subject to technical modifications.
