Setup Procedure
3
Setup Procedure
Analog Input
Low Noise
Signal Generator
Bandpass
Filter
Low Noise
Power Supply
(+4V, 2A)
Clock Input
Low-Noise
Signal Generator
NOTE: The HSDP software must be installed before connecting the TSW14J56EVM to the PC for
the first time.
3.1
Install the High Speed Data Converter Pro (HSDP) Software
Download the most recent version of the HSDP software from www.ti.com/tool/dataconverterpro-sw.
Follow the installation instructions to install the software.
3.2
Install the Configuration GUI Software
1. Download the Configuration GUI software from the EVM product page at www.ti.com.
2. Extract files from the zip file.
3. Run "setup.exe" and follow the instructions.
3.3
Connect the EVM and TSW14J56EVM
With the power off, connect the EVM to the TSW14J56EVM via the FMC connector as shown in
Check that the standoffs provide the proper height for robust connector connections.
6
List of Tables
6dB, 50Ÿ
Attenuator
ADC EVM
Channel A
Channel B
+
-
+4V
Bandpass
Filter

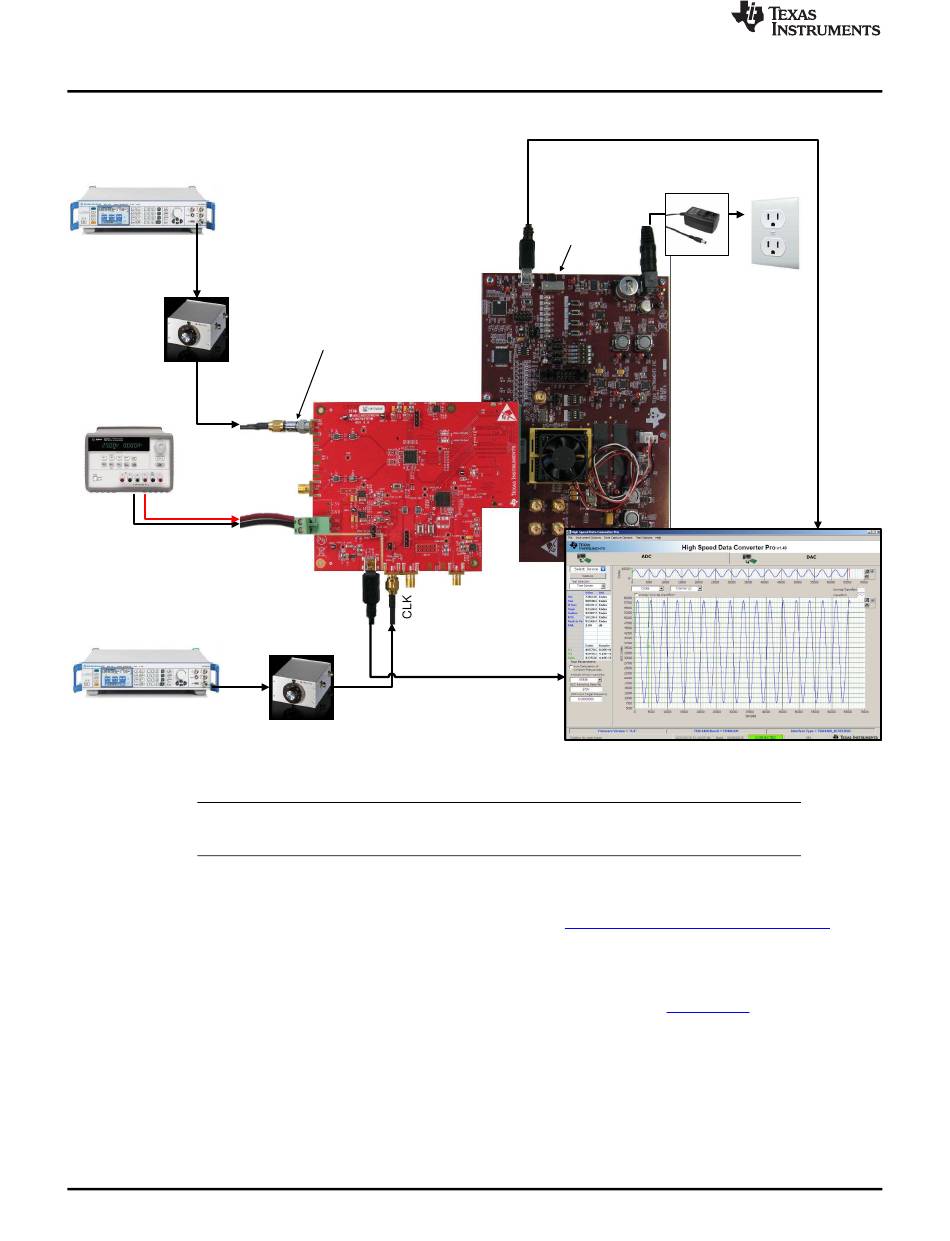

Figure 2. EVM Test Setup
Copyright © 2013, Texas Instruments Incorporated
Mini-USB Cable
Power
Switch
OFF ON
Mini-USB Cable
www.ti.com
+5V Power Supply
TSW14J56EVM
PC Computer
Running HSDC Pro
Figure
SLAU542 – December 2013
Submit Documentation Feedback
2.
