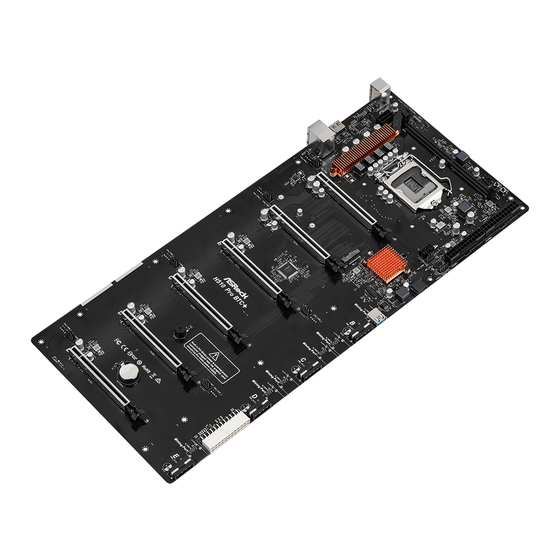

Summary of Contents for ASROCK H510 Pro BTC+

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per AsRock H510 Pro BTC+ o cerca il tuo prodotto tra le migliori offerte di Schede Madri...
  • Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) The terms HDMI®...
  • Page 4 If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) The terms HDMI®...

  • Page 5: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Motherboard Layout I/O Panel Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Module (DIMM) Expansion Slots (PCI Express Slots and Mining Ports) Jumpers Setup Onboard Headers and Connectors Smart Switches M.2_SSD (NGFF) Module Installation Guide Installing the 4-pin PCIe Power Connectors...
  • Page 6 Main Screen OC Tweaker Screen Advanced Screen 4.4.1 CPU Configuration 4.4.2 Chipset Configuration 4.4.3 Storage Configuration 4.4.4 Super IO Configuration 4.4.5 ACPI Configuration 4.4.6 USB Configuration 4.4.7 Trusted Computing Tools Hardware Health Event Monitoring Screen Security Screen Boot Screen Exit Screen...

  • Page 7: Chapter 1 Introduction

    ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 8: Specifications

    (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium® and Celeron® support DDR4 up to 2666. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) • Supports ECC UDIMM memory modules (operate in non- ECC mode) • Max.
  • Page 9 H510 Pro BTC+ • Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) • Supports HDCP 2.3 with and HDMI 1.4 Port • Gigabit LAN 10/100/1000 Mb/s • Giga PHY Intel®...
  • Page 10 • ErP/EuP Ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.

  • Page 11: Motherboard Layout

    H510 Pro BTC+ 1.3 Motherboard Layout PWRBTN1 RSTBTN1 CLRMOS1 CPU_FAN1 CHA_FAN1 DDR4 (64 bit, 288-pin module) ATX12V1 USB_3_4 USB 3.1 Gen1 PANEL1 T: USB1 SPK_ PLED1 B: USB2 CHA_FAN3 CHA_FAN2 PCIE1 Intel H510 CHA_FAN4 SPI_TPM_J1 PCIE2 M_PORT1 Mining Port CHA_FAN5 Mining Port PCIE3 Mining Port...
  • Page 12 No. Description CPU Fan Connector (CPU_FAN1) 288-pin DDR4 DIMM Slot (DDR4) Clear CMOS Jumper (CLRMOS1) Chassis Fan Connector (CHA_FAN1) Power Button (PWRBTN1) Reset Button (RSTBTN1) ATX Power Connector (ATXPWR2) ATX Power Connector (ATXPWR1) USB 2.0 Header (USB_3_4) System Panel Header (PANEL1) Power LED and Speaker Header (SPK_PLED1) Chassis Fan Connector (CHA_FAN2) SATA3 Connector (SATA3_1)

  • Page 13: I/O Panel

    H510 Pro BTC+ 1.4 I/O Panel No. Description No. Description USB 2.0 Ports (USB_1_2) HDMI Port LAN RJ-45 Port* PS/2 Mouse/Keyboard Port USB 3.2 Gen1 Ports (USB3_1_2) * There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port...

  • Page 14: Chapter 2 Installation

    Chapter 2 Installation Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings. • Make sure to unplug the power cord before installing or removing the motherboard.

  • Page 15: Installing The Cpu

    H510 Pro BTC+ 2.1 Installing the CPU 1. Before you insert the 1200-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 17 H510 Pro BTC+ Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

  • Page 18: Installing The Cpu Fan And Heatsink

    2.2 Installing the CPU Fan and Heatsink...

  • Page 19: Installing Memory Module (Dimm)

    H510 Pro BTC+ 2.3 Installing Memory Module (DIMM) This motherboard provides one 288-pin DDR4 (Double Data Rate 4) DIMM slot. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged. The DIMM only fits in one correct orientation.

  • Page 21: Expansion Slots (Pci Express Slots And Mining Ports)

    H510 Pro BTC+ 2.4 Expansion Slots (PCI Express Slots and Mining Ports) There are 6 PCI Express slots and 1 Mining port on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 22: Jumpers Setup

    2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper (CLRMOS1) 2-pin Jumper (see p.5, No.

  • Page 23: Onboard Headers And Connectors

    H510 Pro BTC+ 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header Connect the power (9-pin PANEL1)
  • Page 24 Power LED and Speaker Please connect the PLED- SPEAKER Header chassis power LED and DUMMY PLED+ PLED+ DUMMY (7-pin SPK_PLED1) the chassis speaker to this (see p.5, No. 11) header. Serial ATA3 Connector This SATA3 connector Right Angle: supports SATA data (SATA_1: cables for internal storage see p.5, No.
  • Page 25 H510 Pro BTC+ (4-pin CHA_FAN3) (see p.5, No. 26) (4-pin CHA_FAN4) FAN_SPEED_CONTROL CHA_FAN_SPEED (see p.5, No. 25) +12V (4-pin CHA_FAN5) (see p.5, No. 17) (4-pin CHA_FAN6) (see p.5, No. 24) (4-pin CHA_FAN7) (see p.5, No. 20) (4-pin CHA_FAN8) (see p.5, No. 23) CPU Fan Connector This motherboard pro- FAN_SPEED_CONTROL...
  • Page 26 PCIe Power Connectors Please connect these (4-pin PCIE_PWR3) connectors to the power (see p.5, No. 16) supplies. (4-pin PCIE_PWR4) Important: Make sure (see p.5, No. 18) the 4-pin PCIe power (4-pin PCIE_PWR5) connector and the (see p.5, No. 19) external power connector (4-pin PCIE_PWR6) on the graphics card are (see p.5, No.

  • Page 27: Smart Switches

    H510 Pro BTC+ 2.7 Smart Switches The motherboard has two smart switches: Power Button and Reset Button. Power Button Power Button allows users (PWRBTN1) to quickly turn on/off the (see p.5, No. 5) system. Reset Button Reset Button allows (RSTBTN1) users to quickly reset the (see p.5, No.

  • Page 28: M.2_Ssd (Ngff) Module Installation Guide

    2.8 M.2_SSD (NGFF) Module Installation Guide The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket supports type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module. Installing the M.2_SSD (NGFF) Module Step 1 Prepare a M.2_SSD (NGFF) module...
  • Page 29 H510 Pro BTC+ Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location C by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
  • Page 30 SATA Transcend TS256GMTS800-256GB Transcend SATA Transcend TS64GMTS400-64GB V-Color SATA V-Color 120G V-Color SATA V-Color 240G SATA WD BLUE WDS100T1B0B-00AS40 SATA WD GREEN WDS240G1G0B-00RC30 For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com...

  • Page 31: Installing The 4-Pin Pcie Power Connectors

    H510 Pro BTC+ 2.9 Installing the 4-pin PCIe Power Connectors The extra 4-pin PCIe power connectors on this motherboard offer more power for your graphics cards. They provide stable voltages and greatly reduce the risks of burning your motherboard or graphics cards. When the graphics cards are installed, be sure to install the PSU’s 4-pin power cables to the corresponding 4-pin PCIe power connectors (PCIE_ PWR) on your motherboard;...

  • Page 32: Special Features

    2.10 Special Features 2.10.1 Smart PCIe State Detection This motherboard has included a smart way to show the status of every graphics card. While the system is booting, the Power-On, Self-Test (POST) screen will show the status of the graphics cards that were installed on the motherboard.

  • Page 33: Graphics Card Indicator Led

    H510 Pro BTC+ 2.10.2 Graphics Card Indicator LED ASRock also placed a faulty graphics card indicator LED behind every mining ports and PCIe slots so you may monitor the status even without a screen. RSTBTN1 PWRBTN1 CLRMOS1 CPU_FAN1 CHA_FAN1 DDR4 (64 bit, 288-pin module)

  • Page 34: Chapter 3 Software And Utilities Operation

    Chapter 3 Software and Utilities Operation 3.1 Installing Drivers The Support CD that comes with the motherboard contains necessary drivers and useful utilities that enhance the motherboard’s features. Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN”...

  • Page 35: Chapter 4 Uefi Setup Utility

    H510 Pro BTC+ Chapter 4 UEFI SETUP UTILITY 4.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right after you power on the computer, otherwise, the Power-On-Self-Test (POST) will continue with its test routines.
  • Page 36 4.1.2 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>...

  • Page 37: Main Screen

    H510 Pro BTC+ 4.2 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. The availability and location of BIOS settings can be different for different models and BIOS versions. System Date Use this item to specify the system date.

  • Page 38: Oc Tweaker Screen

    4.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.
  • Page 39 H510 Pro BTC+ CPU Cache Ratio The CPU Internal Bus Speed Ratio. The maximum should be the same as the CPU Ratio. BCLK Spread Spectrum Mode Enable Spread Spectrum to reduce electromagnetic interference for passing EMI tests. Disable to achieve higher clock speeds when overclocking. BCLK Aware Adaptive Voltage BCLK Aware Adaptive Voltage enable/disable.
  • Page 40 Dual Tau Boost Enable Dual Tau Boost feature. This is only applicable for CMLS 35W/65W/125W skus. This item is only supported with processors with Config TDP support. Long Duration Power Limit Configure Package Power Limit 1 in watts. When the limit is exceeded, the CPU ratio will be lowered after a period of time.
  • Page 41 H510 Pro BTC+ DRAM Timing Configuration DRAM Frequency If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assign the appropriate frequency automatically. DRAM Gear Mode Gear2 mode doubled the ratio in memory controller, and it is good for high frequency.
  • Page 42 RAS to RAS Delay (tRRD_L) The number of clocks between two rows activated in different banks of the same rank. RAS to RAS Delay (tRRD_S) The number of clocks between two rows activated in different banks of the same rank. Write to Read Delay (tWTR_L) The number of clocks between the last valid write operation and the next read command to the same internal bank.
  • Page 43 H510 Pro BTC+ tRDRD_sg Configure between module read to read delay. tRDRD_dg Configure between module read to read delay. tRDRD_dr Configure between module read to read delay. tRDRD_dd Configure between module read to read delay. tRDWR_sg Configure between module read to write delay. tRDWR_dg Configure between module read to write delay.
  • Page 44 tWRWR_dg Configure between module write to write delay. tWRWR_dr Configure between module write to write delay. tWRWR_dd Configure between module write to write delay. Round Trip Timing Round Trip Timing Optimization Auto is enabled in general case. Rx FiF0 Delay Offset Configure Rx FIF0 Delay Offset.
  • Page 45 Configure the memory on die termination resistors' PARK for channel B1. Advanced Setting ASRock Timing Optimization Configure the fast path through the MRC. ASRock Second Timing Optimization Configure the second fast path through the MRC. Memory Training Mode Configure the Training Memory Mode.
  • Page 46 Voltage Configuration Voltage Mode [OC]: Larger range voltage for overclocking. [STABLE]: Smaller range voltage for stable system. CPU Core/Cache Voltage Input voltage for the processor by the external voltage regulator. CPU Core/Cache Load-Line Calibration CPU Core/Cache Load-Line Calibration helps prevent CPU Core/Cache voltage droop when the system is under heavy loading.
  • Page 47 H510 Pro BTC+ AVX Configuration AVX2 Voltage Guardband Scale Factor AVX2 Voltage Guardband Scale Factor controls the voltage guardband applied to AVX2 workloads. A value > 1.00 will increase the voltage guardband, and < 1.00 will decrease the voltage guardband. AVX-512 Voltage Guardband Scale Factor AVX-512 Voltage Guardband Scale Factor controls the voltage guardband applied to AVX-512 workloads.

  • Page 48: Advanced Screen

    4.4 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, Chipset Configuration, Storage Configuration, Super IO Configura- tion, ACPI Configuration, USB Configuration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction. UEFI Configuration Active Page on Entry Select the default page when entering the UEFI setup utility.

  • Page 49: Cpu Configuration

    H510 Pro BTC+ 4.4.1 CPU Configuration Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved. Active Processor Cores Select the number of cores to enable in each processor package. CPU C States Support Enable CPU C States Support for power saving.
  • Page 50 CFG Lock This item allows you to disable or enable the CFG Lock. C6DRAM Enable/Disable moving of DRAM contents to PRM memory when CPU is in C6 state. CPU Thermal Throttling Enable CPU internal thermal control mechanisms to keep the CPU from overheat- ing.

  • Page 51: Chipset Configuration

    H510 Pro BTC+ 4.4.2 Chipset Configuration Primary Graphics Adapter Select a primary VGA. Above 4G Decoding Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if the system supports 64 bit PCI decoding). C.A.M. (Clever Access Memory) Conventional PC systems processor can only access a fraction of graphics memory and limits system performance.
  • Page 52 DMI Link Speed Configure DMI Slot Link Speed. Auto mode is optimizing for overclocking. PCIE1 Link Speed Select the link speed for PCIE1. PCIE2 Link Speed Select the link speed for PCIE2. PCIE3 Link Speed Select the link speed for PCIE3. PCIE4 Link Speed Select the link speed for PCIE4.
  • Page 53 H510 Pro BTC+ Share Memory Configure the size of memory that is allocated to the integrated graphics processor when the system boots up. IGPU Multi-Monitor Select disable to disable the integrated graphics when an external graphics card is installed. Select enable to keep the integrated graphics enabled at all times. Inte(R) Ethernet Connection I219-V Enable or disable the onboard network interface controller (Intel®...

  • Page 54: Storage Configuration

    4.4.3 Storage Configuration SATA Controller(s) Enable/disable the SATA controllers. SATA Aggressive Link Power Management SATA Aggressive Link Power Management allows SATA devices to enter a low power state during periods of inactivity to save power. It is only supported by AHCI mode.

  • Page 55: Super Io Configuration

    H510 Pro BTC+ 4.4.4 Super IO Configuration PS2 Y-Cable Enable the PS2 Y-Cable or set this option to Auto.

  • Page 56: Acpi Configuration

    4.4.5 ACPI Configuration Suspend to RAM Select disable for ACPI suspend type S1. It is recommended to select auto for ACPI S3 power saving. PS/2 Keyboard S4/S5 Wakeup Support Allow the system to be waked up by a PS/2 Keyboard in S4/S5. PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN.

  • Page 57: Usb Configuration

    H510 Pro BTC+ 4.4.6 USB Configuration Legacy USB Support Enable or disable Legacy OS Support for USB 2.0 devices. If you encounter USB compatibility issues it is recommended to disable legacy USB support. Select UEFI Setup Only to support USB devices under the UEFI setup and Windows/Linux operating systems only.

  • Page 58: Trusted Computing

    4.4.7 Trusted Computing Security Device Support Enable or disable BIOS support for security device.

  • Page 59: Tools

    Save UEFI files in your USB storage device and run Instant Flash to update your UEFI. Internet Flash - DHCP (Auto IP), Auto ASRock Internet Flash downloads and updates the latest UEFI firmware version from our servers for you. Please setup network configuration before using Internet Flash.
  • Page 60 Network Configuration Use this to configure internet connection settings for Internet Flash. Internet Setting Enable or disable sound effects in the setup utility. UEFI Download Server Select a server to download the UEFI firmware.

  • Page 61: Hardware Health Event Monitoring Screen

    H510 Pro BTC+ 4.6 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed and voltage. Fan Tuning Measure Fan Min Duty Cycle. CPU Fan 1 Setting Select a fan mode for CPU Fan 1, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature.
  • Page 62 Chassis Fan 1 Step Up Set the value of Chassis Fan 1 Step Up. Chassis Fan 1 Step Down Set the value of Chassis Fan 1 Step Down. Chassis Fan 2 Setting Select a fan mode for Chassis Fan 2, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature.

  • Page 63: Security Screen

    H510 Pro BTC+ 4.7 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility.

  • Page 64: Boot Screen

    4.8 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer's boot time. In fast mode you may not boot from an USB storage device. The VBIOS must support UEFI GOP if you are using an external graphics card.
  • Page 65 H510 Pro BTC+ Full Screen Logo Enable to display the boot logo or disable to show normal POST messages. AddOn ROM Display Enable AddOn ROM Display to see the AddOn ROM messages or configure the AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed. Boot Failure Guard Message If the computer fails to boot for a number of times the system automatically restores the default settings.
  • Page 66 Launch Storage OpROM Policy Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to run those that support legacy option ROM only. Select Do not launch to not execute both legacy and UEFI option ROM. Other PCI Device ROM Priority For PCI devices other than Network.

  • Page 67: Exit Screen

    H510 Pro BTC+ 4.9 Exit Screen Save Changes and Exit When you select this option the following message, “Save configuration changes and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option the following message, “Discard changes and exit setup?”...
  • Page 68 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp...
