Hardware
2.2 Power Requirements
Simple nature of LP-MSPM0C1104 only requires 5 V USB power to operate. The onboard LDO generates a
3.3V supply up to 500 mA. The LaunchPad can also be power directly from the BoosterPack or power headers
using a bench supply or battery. Do not exceed 3.3V on the 3.3V rail. Do not exceed 5 V on the 5 V rail.
2-2
shows the power connections on LP-MSPM0C1104.
2.3 XDS110 Debug Probe
LP-MSPM0C1104 features a onboard debug probe to streamline prototyping. The debugger used on this
LaunchPad is the XDS110 variant, which supports all MSPM0 device derivatives. The integrated XDS110 debug
probe is physically separated from the rest of the MSPM0C1104 circuitry as shown in figure 2.x. The XDS110
is also electrically separated from the MSPM0C1104. The XDS110 is only connected through signals that pass
through J101, in addition to a common ground.
4
LP-MSPM0C1104 Evaluation Module

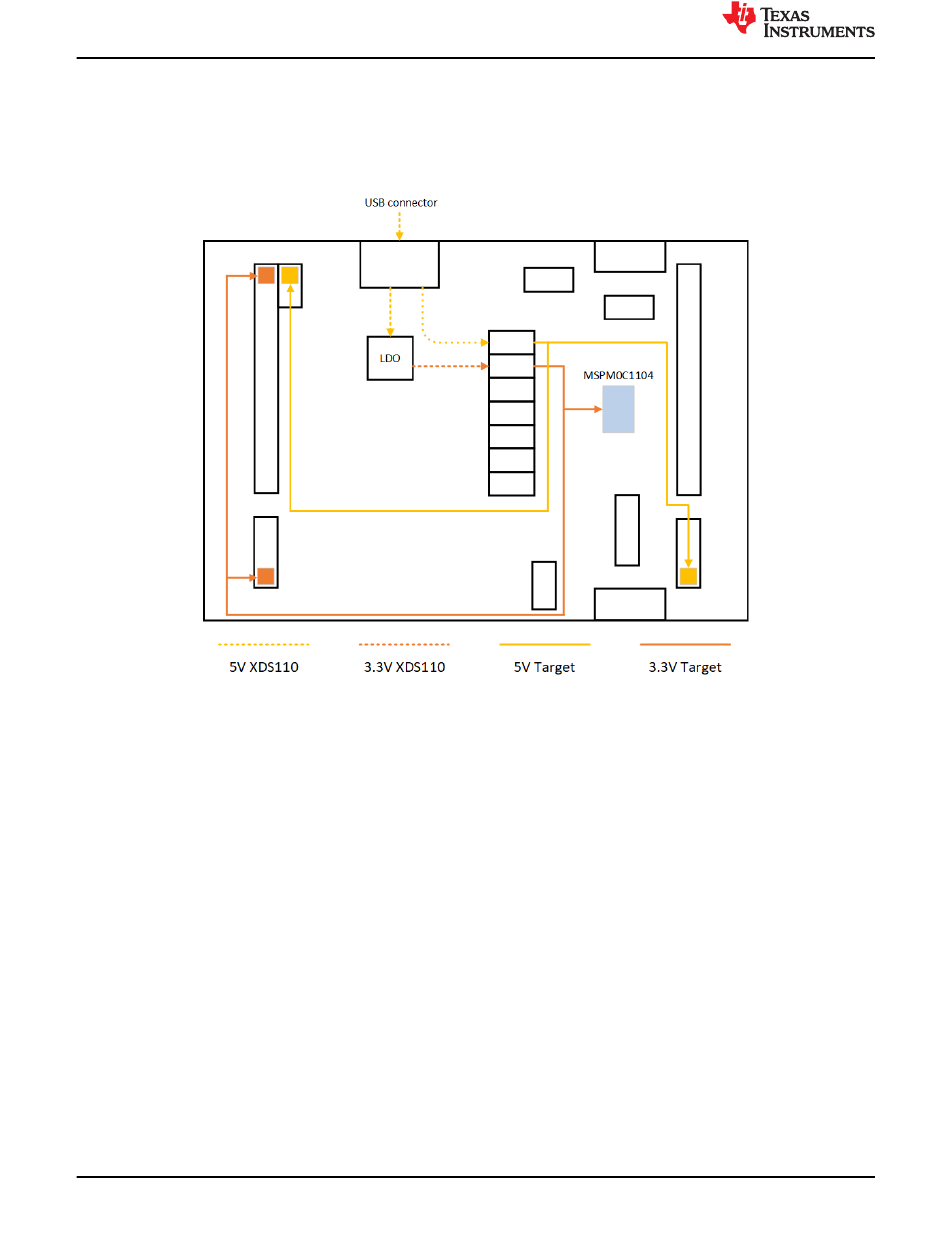

Figure 2-2. LP-MSPM0C1104 Power Connections
Copyright © 2023 Texas Instruments Incorporated
www.ti.com
Figure
SLAU908 – OCTOBER 2023
