1 Features
®
•
Complete Bluetooth
2.0 Stack Including
1
– Baseband and Link Manager
– Protocols: L2CAP, RFCOMM, SDP
– Profiles: GAP, SDAP, SPP
•
High Integration: Includes Processor, Antenna,
Crystal, EEPROM, LDO
•
Supporting up to 7 Active Bluetooth Data Links
and 1 Active SCO Link
•
Class 2 Operation
•
UART Command/Data Port Speed 921.6kbits/s
•
AAI for External PCM Codec
•
Better than -80dBm Input Sensitivity
•
FCC, IC, CE, and Japan MIC Certified
•
Bluetooth SIG QD ID: B012394
•
Compact Size: 10 mm x 17 mm x 2.0 mm
2 Applications
•
Factory Automation and Control
•
Test and Measurement
•
Telematics
•
POS Terminals
•
Medical/Telemedicine
•
Data Logging Systems
•
Audio Gateways

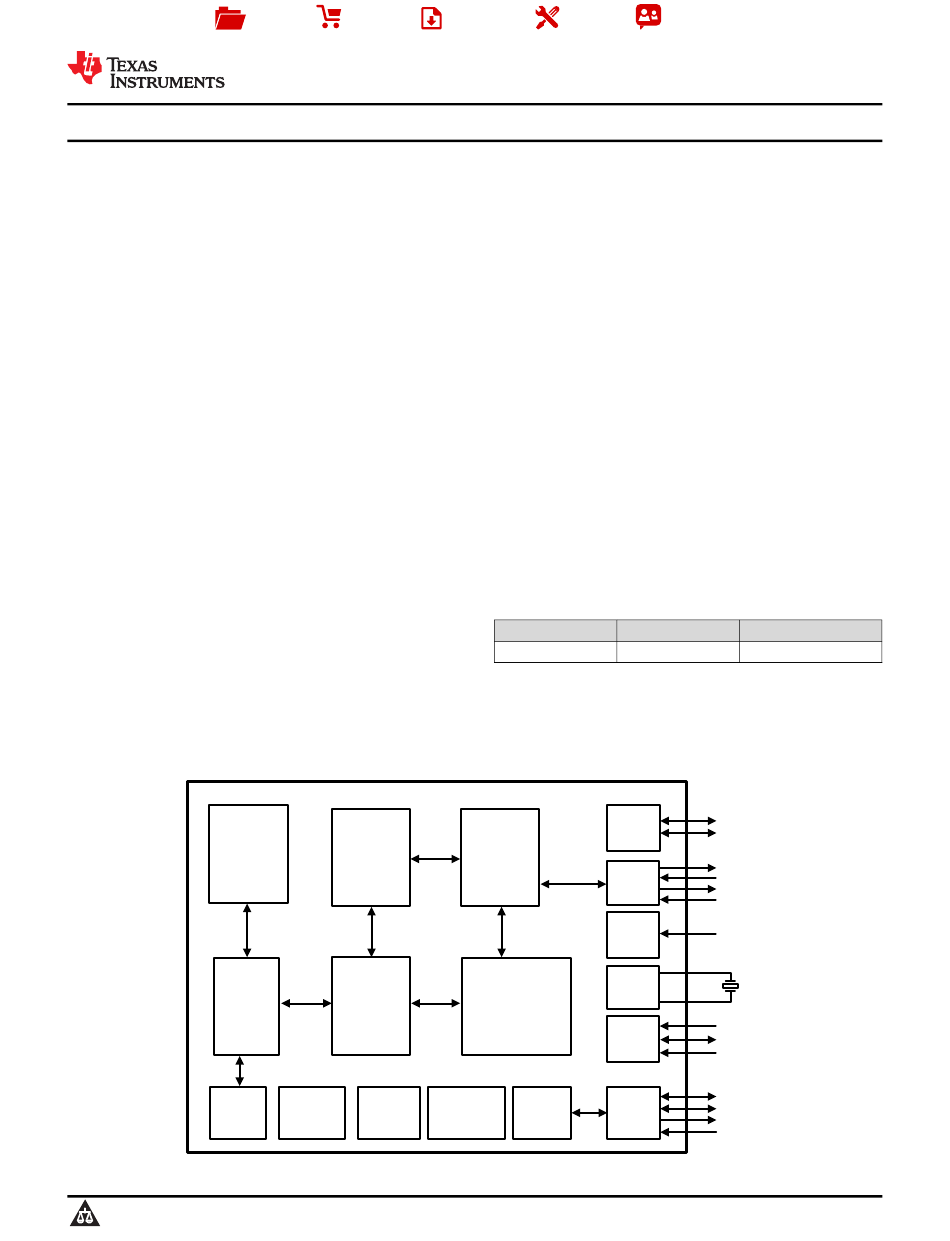

4 Block Diagram
Antenna
2.4 GHz
Radio
XTAL
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Sample &
Product
Buy
Folder
LMX9838 Bluetooth Serial Port Module
Link
Manager
TM
BLUEtooth
Core
ROM
Voltage
EPROM
Regulator
Tools &
Technical
Software
Documents
SNOSAZ9F – JULY 2007 – REVISED DECEMBER 2014
3 Description
The Texas Instruments LMX9838 Bluetooth Serial
Port module is a fully integrated Bluetooth 2.0
baseband controller, 2.4 GHz radio, crystal, antenna,
LDO and discreets; combined to form a complete
small form factor (10 mm x 17 mm x 2.0 mm)
Bluetooth node.
All hardware and firmware is included to provide a
complete solution from antenna through the complete
lower and upper layers of the Bluetooth stack, up to
the application including the Generic Access Profile
(GAP), the Service Discovery Application Profile
(SDAP), and the Serial Port Profile (SPP). The
module includes a configurable service database to
fulfil service requests for additional profiles on the
host. Moreover, the LMX9838 is qualified as a
Bluetooth endproduct, ready to be used in the end
application without additional testing and license cost.
Based on TI's CompactRISC 16-bit processor
architecture and Digital Smart Radio technology, the
LMX9838 is optimized to handle the data and link
management processing requirements of a Bluetooth
node.
Device Information
PART NUMBER
LMX9838
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
UART
Transport
32 kHz
Compact RISC
Processor
Config
Options
Combined
CVSD
System and
Codecs
Patch RAM
Support &
Community
(1)
PACKAGE
BODY SIZE (NOM)
PLGA (70)
17.00 mm × 10.00 mm
PG6
GPIO
PG7
TXD
RXD
UART
RTS#
CTS#
POR
RESET#
32k+
LFO
32k-
OP3
OP4/PG4
OP5
SCLK
Audio
SF
Port
STD
SRD
LMX9838
