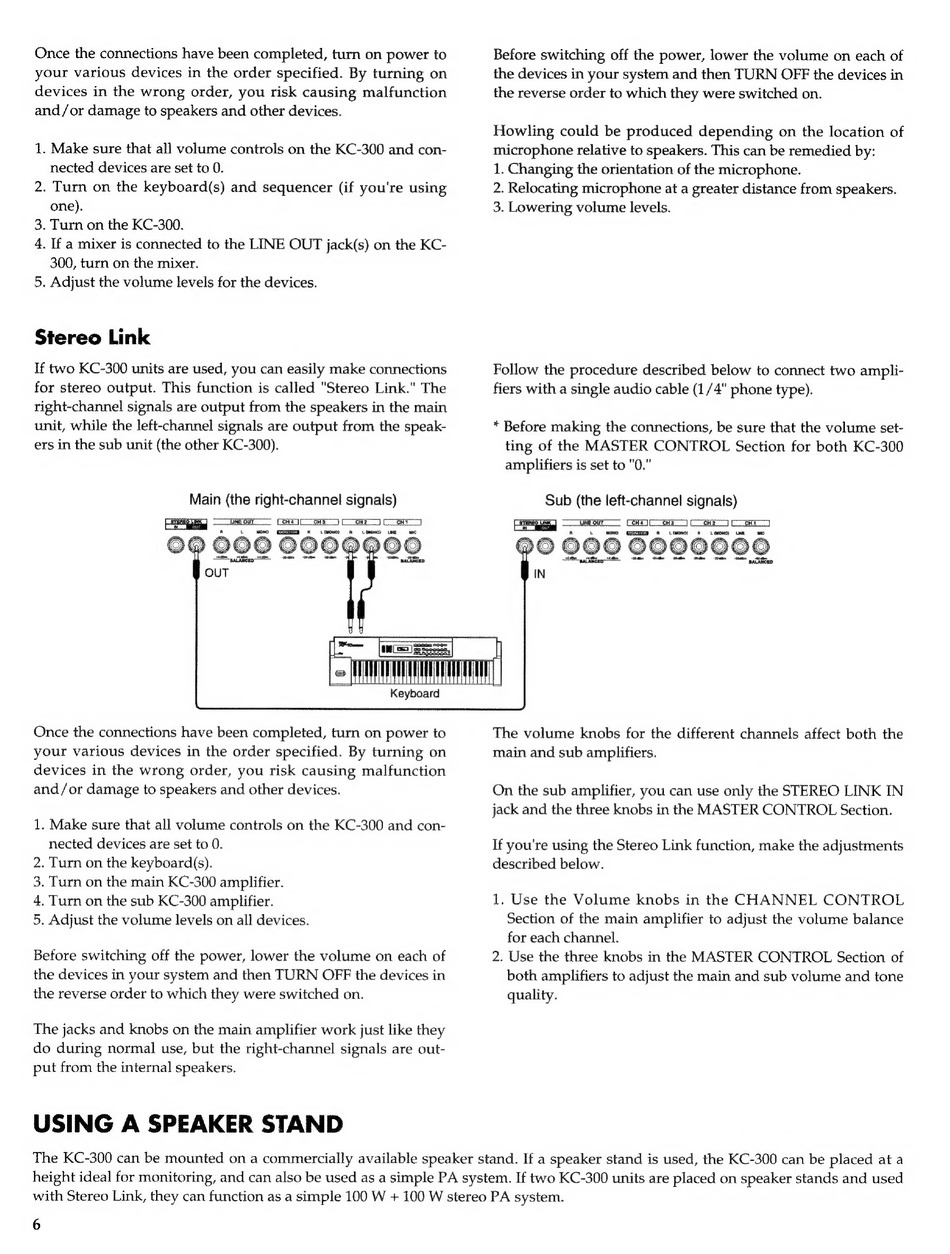

Using A Speaker Stand - Roland KC-300 Owner's Manual

Once the connections have been completed, turn on power to
your various devices in the order specified. By turning on
devices in the wrong order, you risk causing malfunction
and/or damage to speakers and other devices.
1. Make sure that all volume controls on the KC-300 and con-
nected devices are set to 0.
2. Turn on the keyboard(s) and sequencer (if you're using
one).
. Turn on the KC-300.
4. If a mixer is connected to the LINE OUT jack(s) on the KC-
300, turn on the mixer.
5. Adjust the volume levels for the devices.
jee)
Stereo Link
If two KC-300 units are used, you can easily make connections
for stereo output. This function is called "Stereo Link." The
right-channel signals are output from the speakers in the main
unit, while the left-channel signals are output from the speak-
ers in the sub unit (the other KC-300).
Main (the right-channel signals)
Before switching off the power, lower the volume on each of
the devices in your system and then TURN OFF the devices in
the reverse order to which they were switched on.
Howling could be produced depending on the location of
microphone relative to speakers. This can be remedied by:
1. Changing the orientation of the microphone.
2. Relocating microphone at a greater distance from speakers.
3. Lowering volume levels.
Follow the procedure described below to connect two ampli-
fiers with a single audio cable (1/4" phone type).
* Before making the connections, be sure that the volume set-
ting of the MASTER CONTROL Section for both KC-300
amplifiers is set to "0."
Sub (the left-channel signals)
Keyboard
Once the connections have been completed, turn on power to
your various devices in the order specified. By turning on
devices in the wrong order, you risk causing malfunction
and/or damage to speakers and other devices.
1. Make sure that all volume controls on the KC-300 and con-
nected devices are set to 0.
2. Turn on the keyboard(s).
3. Turn on the main KC-300 amplifier.
4. Turn on the sub KC-300 amplifier.
5. Adjust the volume levels on all devices.
Before switching off the power, lower the volume on each of
the devices in your system and then TURN OFF the devices in
the reverse order to which they were switched on.
The jacks and knobs on the main amplifier work just like they
do during normal use, but the right-channel signals are out-
put from the internal speakers.
USING A SPEAKER STAND
The volume knobs for the different channels affect both the
main and sub amplifiers.
On the sub amplifier, you can use only the STEREO LINK IN
jack and the three knobs in the MASTER CONTROL Section.
If you're using the Stereo Link function, make the adjustments
described below.
1. Use the Volume knobs in the CHANNEL CONTROL
Section of the main amplifier to adjust the volume balance
for each channel.
2. Use the three knobs in the MASTER CONTROL Section of
both amplifiers to adjust the main and sub volume and tone
quality.
The KC-300 can be mounted on a commercially available speaker stand. If a speaker stand is used, the KC-300 can be placed at a
height ideal for monitoring, and can also be used as a simple PA system. If two KC-300 units are placed on speaker stands and used
with Stereo Link, they can function as a simple 100 W + 100 W stereo PA system.
6
