Main features

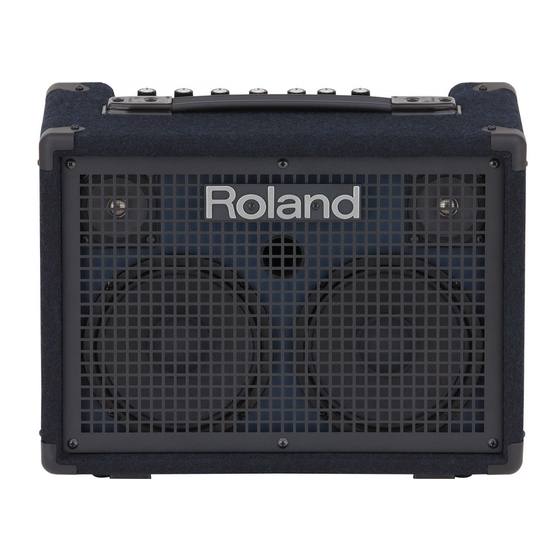

KC-220 is a stereo keyboard amp designed for high sound quality, and is suitable for a variety of sources such as
keyboards and sound modules.
5 Dual power design allows operation using eight AA batteries or the AC adaptor.
5 The KC-220 features a two-way stereo design with a speaker and a tweeter.
Speaker
16 cm x 2 + horn tweeter x 2
5 The input section is equipped with a mixer. CH1 additionally provides an XLR connector that supports mic input.
5 Two types of AUX IN jack (RCA phono and stereo mini-jack) are provided for easily connecting an audio player or
other source.
5 The two-band equalizer is convenient for adjusting the character of the sound.
5 A speaker stand can be attached to allow convenient use as a monitor or small-scale PA.
5 The headphone jack is convenient for monitoring at night, etc.
Before using this unit, carefully read "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (the leaflet "USING THE UNIT SAFELY" and the
Owner's Manual (p. 7)). After reading, keep the document(s) where it will be available for immediate reference.
Copyright © 2017 ROLAND CORPORATION
Output
30 W (15 W + 15 W)
* When using the AC adaptor.
Owner's Manual
Keyboard Amplifier

Advertisement

Table of Contents
loading

Related Manuals for Roland KC-220

Summary of Contents for Roland KC-220

  • Page 1 Keyboard Amplifier Main features KC-220 is a stereo keyboard amp designed for high sound quality, and is suitable for a variety of sources such as keyboards and sound modules. 5 Dual power design allows operation using eight AA batteries or the AC adaptor.

  • Page 2: Panel Descriptions

    Panel Descriptions Top Panel Rear Panel Top Panel EQUALIZER [LOW] knob [CH1]–[CH3] knobs Adjusts the sound level of the low-frequency range. Adjust the volume of the devices connected to CH1–CH3. [HIGH] knob [EFFECT] knob Adjusts the sound level of the high-frequency range. The internal effect can be applied to the devices that are [MASTER] knob connected to CH1–CH3.

  • Page 3: Rear Panel

    They accept line level input (-20 dBu). * To prevent malfunction and speaker damage, make sure to switch off the KC-220’s power before you insert or replace its AUX IN (STEREO, R/L) jacks batteries, and before connecting it to other devices.

  • Page 4: Turning The Power On/Off

    Panel Descriptions Example connections Audio player Keyboard, Sound module etc. Footswitches Mixer * To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections. Turning the Power On/Off Setting the Volume of Each Device * Once everything is properly connected, be sure to follow In order to get optimum sound from this unit when performing, the procedure below to turn on their power.

  • Page 5: Using A Speaker Stand

    Leg spread: 98 cm or more (38-5/8”) NOTE Loosen the height adjustment knob, and extend 5 If you use the arm stand, you must place the KC-220 on a the upper pipe. horizontal surface. 5 Fold the arm stand if you’re not using it.

  • Page 6: Block Diagram

    FOOT SW LEVEL ON/OFF (STEREO) Main Specifications Roland KC-220: BATTERY POWERED STEREO KEYBOARD AMPLIFIER 420 (W) x 244 (D) x 320 (H) mm 30 W (15 W + 15 W) (when using the AC Dimensions adaptor) 16-9/16 (W) x 9-5/8 (D) x 12-5/8 (H) inches...

  • Page 7: Using The Unit Safely

    • Do not use connection cables that contain a built-in resistor. Intellectual Property Right • Roland and BOSS are either registered trademarks or trademarks of Roland Corporation in the United States and/or other countries. • Company names and product names appearing in this document are registered...
