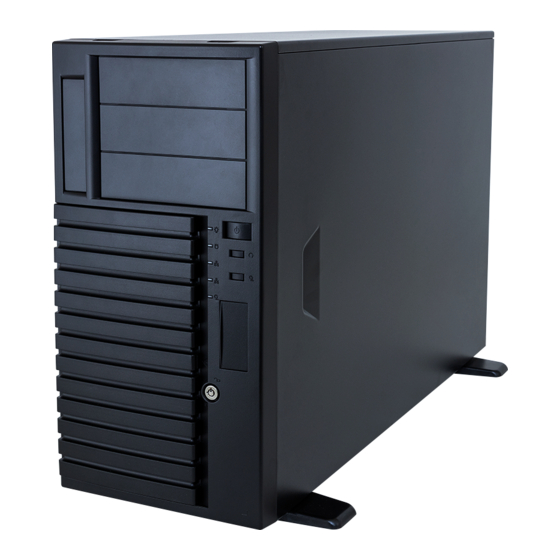

W533-W30
Intel® Core™ W5 Mainstream Workstation
User Manual
Rev. 1.0

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte W533-W30

Summary of Contents for Gigabyte W533-W30

  • Page 1 W533-W30 Intel® Core™ W5 Mainstream Workstation User Manual Rev. 1.0...
  • Page 2 GIGABYTE's prior written permission. Documentation Classifications In order to assist in the use of this product, GIGABYTE provides the following types of documentation:  User Manual: detailed information & steps about the installation, configuration and use of this product (e.g.
  • Page 3 Conventions The following conventions are used in this user's guide: NOTE! Gives bits and pieces of additional information related to the current topic. CAUTION! Gives precautionary measures to avoid possible hardware or software problems. WARNING! Alerts you to any damage that might result from doing or not doing specific actions.
  • Page 4 Warnings and Cautions Before installing, be sure that you understand the following warnings and cautions. WARNING! To reduce the risk of electric shock or damage to the equipment: • Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
  • Page 5 Electrostatic Discharge (ESD) CAUTION! ESD CAN DAMAGE DRIVES, BOARDS, AND OTHER PARTS. WE RECOMMEND THAT YOU PERFORM ALL PROCEDURES AT AN ESD WORKSTATION. IF ONE IS NOT AVAILABLE, PROVIDE SOME ESD PROTECTION BY WEARING AN ANTI-STATIC WRIST STRAP AT- TACHED TO CHASSIS GROUND -- ANY UNPAINTED METAL SURFACE -- ON YOUR SERVER WHEN HANDLING PARTS.
  • Page 6 CAUTION! Risk of explosion if battery is replaced incorrectly or with an incorrect type. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used bat- teries according to the manufacturer’s instructions.
  • Page 7 GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE and PBB). The parts and components have been carefully selected to meet RoHS requirement. More- over, we at GIGABYTE are continuing our efforts to develop products that do not use internationally banned toxic chemicals.
  • Page 8 Ra ng 100-240V~, 12-6A, 50-60Hz Opera ng Temperature 10°C to 35°C Non-opera ng temperature -40°C to 60°C Opera ng humidity 8%-80% (non-condensing) Non-opera ng humidity 20%-95% (non-condensing) 伺服器相關警告與注意事項 警告 為了避免電擊危險或損壞設備請注意: • 不要切斷電源線的接地端子，接地端子是一個很重要的安全防護。 • 將電源線接到有接地功能的插座，此插座需位於使用者容易使用的範圍。 • 電源線的配線要避免被踩到，被絆到或被過度彎折，重壓。 警告 • 本設備關機後內部仍存在電源，須拔掉電源線才能完全切掉設備內部的電源。 • 更換零件前請確定電源已經完全切斷。 •...
  • Page 9 警告 • 如果更換錯誤電池會產生爆炸，請以相同或同型號電池更換使用。 • 廢電池請回收。 注意 • 伺服器開機時不要長時間移除蓋子，長時間移除蓋子會造成散熱功能失效造成損壞。 注意 • 靜電會損害電子產品，建議您在符合靜電防護的工作環境操作伺服器，如果無法確定 環境的靜電防護。請穿上靜電手環並且將手環接到有接地的金屬表面如機櫃或機殼。 • 拿取電路板時僅觸碰板子的邊緣，不要觸碰連接器。板子從防靜電包裝取出後只能放 置在無靜電的桌面，零件面朝上。如果可以, 請使用防靜電泡棉. 避免使用靜電袋. 避免 電路板與任何表面摩擦產生靜電。...
  • Page 10 報驗義務人: 技鋼科技股份有限公司 新北市新店區寶強路6號7樓...

  • Page 11: Table Of Contents

    Table of Contents Chapter 1 Hardware Installation ...................13 Installation Precautions .................. 13 Product Specifications ..................14 System Block Diagram ................... 17 Chapter 2 System Appearance ..................18 Front View ...................... 18 Rear View ....................... 19 Rear Panel System LAN LEDs ..............20 Chapter 3 System Hardware Installation ..............21 Removing and Installing the Chassis Cover ..........
  • Page 12 2-2-9 Network Stack Configuration ..................50 2-2-10 CSM Configuration ....................51 2-2-11 Offboard SATA Controller Configuration ..............52 2-2-12 WHEA Configuration ....................53 2-2-13 Chipset Configuration .....................54 2-2-14 Tls Auth Configuration ....................55 2-2-15 iSCSI Configuration ....................56 2-2-16 Intel(R) Ethernet Controller I225-V ................57 2-2-17 Driver Health ......................58 Chipset Menu ....................

  • Page 13: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard/system contain numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user manual and follow these procedures: • Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer.

  • Page 14: Product Specifications

    Product Specifications NOTE: We reserve the right to make any changes to the product specifications and product-related information without prior notice. System Pedestal Š 652.5 x 220 x 441.4 mm Dimension Š Motherboard MW34-SP0 Š 13th Intel® Core™ Desktop Processor Š...
  • Page 15 Peripheral 5.25" space reserved for ODD device Š Drives Expansion Slot Slot_6: 1 x PCIe x16 (Gen5 x16 or Gen5 x8) slot Š Slot_3: 1 x PCIe x16 (Gen5 x0 or Gen5 x8) slot Š Slot_1: 1 x PCIe x4 (Gen3 x4) slot Š...
  • Page 16 +12V / 70.8A +5V / 20A +5Vsb / 3A +3.3V / 20A System ASPEED® AST2600 Management Controller Š Management GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Š Š Dashboard Š HTML5 KVM Š Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Š...

  • Page 17: System Block Diagram

    System Block Diagram Hardware Installation - 17 -...

  • Page 18: Chapter 2 System Appearance

    Chapter 2 System Appearance Front View No. Description Description 2.5” HDD USB 3.2 Gen1 (duo port 5G) DVD-ROM Power LED Power Button HDD LED Reset Button LAN LED (I225) Nmi Button System Appearance - 18 -...

  • Page 19: Rear View

    Rear View No. Description Description PSU (AC 220V) USB 3.0 Type A Port VGA/COM Port Sever Management LAN Port HDMI 2.1 Port ID Button with LED Display Port MIC-IN (Pink) USB 3.2 Type C Port LINE-OUT (Green) USB 3.2 Type A Port LINE-IN (Blue) 2.5GbE LAN Port PCIe Card Bay...

  • Page 20: Rear Panel System Lan Leds

    Rear Panel System LAN LEDs Name Color Status Description Yellow 1 Gbps data rate 2.5GbE Green 2.5 Gbps data rate Speed LED 100 Mbps data rate Link between system and network or no access Green 1GbE Link / Blink Data transmission or reception is occurring. Activity LED No data transmission or reception is occurring.

  • Page 21: Chapter 3 System Hardware Installation

    Chapter 3 System Hardware Installation Pre-installation Instructions Computer components and electronic circuit boards can be damaged by electrostatic discharge. Working on computers that are still connected to a power supply can be extremely dangerous. Follow the simple guidelines below to avoid damage to your computer or injury to yourself.

  • Page 22: Removing And Installing The Chassis Cover

    Removing and Installing the Chassis Cover Before you remove or install the chassis cover • Make sure the system is not turned on or connected to AC power. Follow these instructions to remove/install the chassis side cover and front bezel: Remove the screw securing the chassis side cover.

  • Page 23: Installing The Cpu

    Installing the CPU Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.

  • Page 24: Installing The Memory

    Installing the Memory Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 25: Installing The Memory

    3-3-2 Installing the Memory Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. Be sure to install DDR4 DIMMs on this motherboard. Follow these instructions to install the Memory: Insert the DIMM memory module vertically into the DIMM slot, and push it down.

  • Page 26: Installing The Pci Expansion Card

    Installing the PCI Expansion Card • Voltages can be present within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position. Ensure that the system is powered-down and all power sources have been disconnected from the server prior to installing a PCIe card.

  • Page 27: Installing The Hard Disk Drive

    Slide the first hard disk drive into the slot. Mount it with two screws on each side. Slide the second hard disk drive into the dedicated HDD tray. (Note: Connect your GIGABYTE sales representative with any order requests.) Screw the hard disk drive with four screws.

  • Page 28: Installing And Removing The M.2 Ssd Module

    Installing and Removing the M.2 SSD Module Follow the steps below to install an optional M.2 SSD module on your motherboard. Step1. Insert the M.2 SSD module into the slot. Step2. Secure it with the screw, tightening as necessary to fasten the M.2 SSD module in place. Installing and Removing the M.2 WiFi Module Follow the steps below to install a M.2 WiFi module on your motherboard.

  • Page 29: Peripheral Devices Connection

    Peripheral Devices Connection System Hardware Installation - 29 -...

  • Page 30: Chapter 4 Motherboard Components

    Chapter 4 Motherboard Components Motherboard Components CPU� Motherboard Components - 30 -...
  • Page 31 Item Description ID Button with LED Sever Management LAN Port (Top)/USB 3.0 Ports (Bottom) 2.5GbE LAN Port (Top)/USB 3.2 Type A Port (Middle)/ USB 3.2 Type C Port (Bottom) Display Port (Top)/HDMI 2.1 Port (Bottom) Serial Port (Top)/VGA Port (Bottom) PMBus Connector 2x4 Pin 12V Power Connector CPU Fan Connector...

  • Page 32: Jumper Setting

    Jumper Setting Default Force Update Enable Enable Power On ME_UPDATE Select Default S3_MASK Default Enable Password Default Clear CMOS Clear 1 2 3 Enable CLR_CMOS PASS_CLEAR BIOS Enable Recovery Default BIOS_RCVR Motherboard Components - 32 -...

  • Page 33: Chapter 2 Bios Setup

    Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters, loading the operating system etc. The BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.
  • Page 34  Main This setup page includes all the items of the standard compatible BIOS.  Advanced This setup page includes all the items of AMI BIOS special enhanced features. (ex: Auto detect fan and temperature status, automatically configure hard disk parameters.) ...

  • Page 35: The Main Menu

    The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter other sub-menu. Main Menu Help The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.
  • Page 36 Parameter Description BIOS Information Project Name Displays the project name information. Project Version Displays version number of the BIOS setup utility. Build Date and Time Displays the date and time when the BIOS setup utility was created. BMC Information (Note1) BMC Firmware Version Displays BMC firmware version information.
  • Page 37 Parameter Description Onboard LAN Information LAN# MAC Address (Note) Displays LAN MAC address information. ME FW Version Displays ME Firmware version. System Language Option: English. System Date Sets the date following the weekday-month-day-year format. System Time Sets the system time following the hour-minute-second format. (Note) The number of LAN ports listed will depend on the motherboard / system model.

  • Page 38: Advanced Menu

    Advanced Menu The Advanced Menu displays submenu options for configuring the function of various hardware components. Select a submenu item, then press <Enter> to access the related submenu screen. BIOS Setup - 38 -...

  • Page 39: Cpu Configuration

    2-2-1 CPU Configuration Parameter Description CPU Configuration Core Information Displays the core information. ID/Brand String/VMX/SMX/TXT/ Displays the technical information for the installed processor(s). CPU Flex Ratio Settings Enable/Disable this item to turn on/off the MLC streamer prefetcher. Hardware Prefetcher Options available: Disabled, Enabled. Default setting is Enabled. When enabled, cache lines are fetched in pairs.

  • Page 40: Me Configuration

    2-2-2 ME Configuration Parameter Description ME Firmware Version/ME Firmware Mode/ME Firmware Displays the ME firmware information. SKU/ME State Press [Enter] to configure advanced items. Me FW Image Re-Flash Š – Enable/Disable Me FW Image Re-Flash function. Firmware Update Configuration – Options available: Disabled, Enabled. Default setting is Disabled.

  • Page 41: Trusted Computing

    2-2-3 Trusted Computing Parameter Description Configuration Enable/Disable BIOS support for security device. OS will not show security device. TCG EFI protocol and INT1A interface will not be Security Device Support available. Options available: Enable, Disable. Default setting is Enable. BIOS Setup - 41 -...

  • Page 42: Runtime Error Logging Settings

    2-2-4 Runtime Error Logging Settings Parameter Description Runtime Error Logging Settings Runtime Error Logging System Enable/Disable runtime error logging system. Enabling Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable memory error enabling. Memory Error Enabling Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable PCI/PCI error enabling.

  • Page 43: S5 Rtc Wake Settings

    2-2-5 S5 RTC Wake Settings Parameter Description Enable/Disable system wake on alarm event. Options available: Disabled, Fixed Time. When Fixed Time is selected, Wake System from S5 system will wake on the hr::min::sec specified. Default setting is Disabled. BIOS Setup - 43 -...

  • Page 44: Serial Port Console Redirection

    2-2-6 Serial Port Console Redirection Parameter Description Console redirection enables the users to manage the system from a COM Console remote location. Redirection (Note) Options available: Enabled, Disabled. Default setting is Disabled. Press [Enter] to configure advanced items. Please note that this item is configurable when COM Console Redirection is set to Enabled.
  • Page 45 Parameter Description Parity Š – A parity bit can be sent with the data bits to detect some transmission errors. – Even: parity bit is 0 if the num of 1's in the data bits is even. – Odd: parity bit is 0 if num of 1's in the data bits is odd. –...
  • Page 46 Parameter Description Legacy Console Redirection Press [Enter] to configure advanced items. Redirection COM Port Š – Selects a COM port for Legacy serial redirection. – Default setting is COM1. Resolution Š – Selects the number of rows and columns used in Console Redirection for legacy OS support.
  • Page 47 Parameter Description Flow Control EMS Š – Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a 'stop' signal can Serial Port for Out-of-Band be sent to stop the data flow. Once the buffers are empty, a 'start' EMS Console Redirection signal can be sent to re-start the flow.

  • Page 48: Sio Configuration

    2-2-7 SIO Configuration Description Parameter Displays the AMI SIO driver version information. AMI SIO Driver Version Super IO Chip Logical Device(s) Configuration Press [Enter] to configure advanced items. Use This Device Š – When set to Enabled allows you to configure the serial port settings. When set to Disabled, displays no configuration for the serial port.

  • Page 49: Usb Configuration

    2-2-8 USB Configuration Parameter Description USB Configuration USB Devices: Displays the USB devices connected to the system. Enable/Disable the XHCI (USB 3.0) Hand-off support. XHCI Hand-off Options available: Disabled, Enabled. Default setting is Enabled. USB hardware delays and time-outs Select the time-out value for USB Control/Bulk/Interrupt transfers. USB transfer time-out Options available: 1 sec, 5 sec, 10 sec, 20 sec.

  • Page 50: Network Stack Configuration

    2-2-9 Network Stack Configuration Parameter Description Enable/Disable the UEFI network stack. Network Stack Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable the Ipv4 PXE feature. Ipv4 PXE Support Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable the Ipv4 HTTP feature. Ipv4 HTTP Support Options available: Enabled, Disabled.

  • Page 51: Csm Configuration

    2-2-10 CSM Configuration Parameter Description Compatibility Support Module Configuration CSM Support (Note) Options available: Enabled, Disabled. Default setting is Disabled. Options available: UEFI and Legacy, Legacy only, UEFI only. Default setting Boot option filter is UEFI and Legacy. Option ROM execution - Network/Storage/Video/ Options available: Do not launch, UEFI, Legacy.

  • Page 52: Offboard Sata Controller Configuration

    2-2-11 Offboard SATA Controller Configuration Parameter Description Offboard SATA Controller Displays the information on your PCIe SATA controllers/ PCIe SSD if Configuration installed. BIOS Setup - 52 -...

  • Page 53: Whea Configuration

    2-2-12 WHEA Configuration Parameter Description Enable/Disable Windows Hardware Error Architecture. WHEA Support Options available: Disabled, Enabled. Default setting is Enabled. BIOS Setup - 53 -...

  • Page 54: Chipset Configuration

    2-2-13 Chipset Configuration Parameter Description Defines the power state to resume to after a system shutdown that is due to an interruption in AC power. When set to Last State, the system will return to the active power state prior to shutdown. When set to Restore on AC Power Loss (Note) Power Off, the system remains off after power shutdown.

  • Page 55: Tls Auth Configuration

    2-2-14 Tls Auth Configuration Parameter Description Press [Enter] for configuration of advanced items. Enroll Cert Š – Press [Enter] to enroll a certificate • Enroll Cert Using File • Cert GUID Server CA Configuration Input digit character in 1111111-2222-3333-4444-1234567890ab format. –...

  • Page 56: Iscsi Configuration

    2-2-15 iSCSI Configuration Parameter Description Press [Enter] configure advanced items. Attempt Priority Š Attempt Priority – Options available: Host Attempt, Redfish Attempt. Default setting is Host Attempt. Commit Changes and Exit Š Press [Enter] to configure advanced items. iSCSI Initiator Name Š...

  • Page 57: Intel(R) Ethernet Controller I225-V

    2-2-16 Intel(R) Ethernet Controller I225-V Description Parameter Displays the technical specifications for the Network Interface Controller. UEFI Driver Displays the technical specifications for the Network Interface Controller. Device Name Displays the technical specifications for the Network Interface Controller. PCI Device ID Displays the technical specifications for the Network Interface Controller.

  • Page 58: Driver Health

    2-2-17 Driver Health Parameter Description Driver Health Displays driver health status of the devices/controllers if installed. BIOS Setup - 58 -...

  • Page 59: Chipset Menu

    Chipset Menu Chipset Setup menu displays submenu options for configuring the function of Platform Controller Hub(PCH). Select a submenu item, then press <Enter> to access the related submenu screen. BIOS Setup - 59 -...

  • Page 60: System Agent (Sa) Configuration

    2-3-1 System Agent (SA) Configuration Parameter Description Press [Enter] to configure advanced items. Memory Š – Press [Enter] to view/configure memory overclocking menu. Memory Configuration Š Memory Frequency Š – Displays the frequency information of installed memory. Controller#Channel#slot# information of memory DIMMs. Š...
  • Page 61 Parameter Description Internal Graphics Š – Options available: Auto, Disabled, Enabled. Default setting is Enabled. GTT Size Š Options available: 2MB, 4MB, 8MB. Default setting is 8MB. – Aperture Size Š – Options available: 128MB, 256MB, 512MB, 1024MB. Default setting is 256MB. Graphics Configuration PSMI SUPPORT Š...
  • Page 62 Parameter Description Enable/Disable VT-d capability. VT-d Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable IOMMU in Pre-boot environment. Control Iommu Pre-boot Behavior Options available: Disable IOMMU, Enable IOMMU during boot. Default setting is Enable IOMMU during boot. X2APIC Opt Out Options available: Enabled, Disabled.

  • Page 63: Pch-Io Configuration

    2-3-2 PCH-IO Configuration Parameter Description Press [Enter] to configure advanced items. SATA Controller(s) Š – Enable/Disable SATA device. – Options available: Enabled, Disabled. Default setting is Enabled. SATA Mode Selection Š SATA Configuration – Default setting is AHCI. SATA Test Mode Š...

  • Page 64: Server Management Menu

    Server Management Menu Parameter Description Enable/Disable FRB-2 timer (POST timer). FRB-2 Timer Options available: Enabled, Disabled. Default setting is Disabled. Configures the FRB2 Timer timeout. FRB-2 Timer Options available: 3 minutes, 4 minutes, 5 minutes, 6 minutes. Default setting is 6 timeout (Note1) minutes.
  • Page 65 Parameter Description System Event Log Press [Enter] to configure advanced items. View FRU Press [Enter] to view the FRU information. Information BMC network Press [Enter] to configure advanced items. Configuration IPv6 BMC Network Press [Enter] to configure advanced items. Configuration BIOS Setup - 65 -...

  • Page 66: System Event Log

    2-4-1 System Event Log Parameter Description Enabling / Disabling Options Change this item to enable or disable all features of System Event SEL Components Logging during boot. Options available: Enabled, Disabled. Default setting is Enabled. Erasing Settings Choose options for erasing SEL. Options available: No Erase SEL Yes, On next reset...

  • Page 67: View Fru Information

    2-4-2 View FRU Information The FRU page is a simple display page for basic system ID information, as well as System product information. Items on this window are non-configurable. (Note) The model name will vary depends on the product you purchased BIOS Setup - 67 -...

  • Page 68: Bmc Network Configuration

    2-4-3 BMC Network Configuration Parameter Description BMC network configuration Lan Channel 1 Selects to configure LAN channel parameters statically or dynamically (by BIOS or BMC). Configuration Address source Options available: Unspecified, Static, DynamicBmcDhcp, DynamicBmcNonDhcp. Default setting is Unspecified. Current Configuration Address Display the current configuration information.

  • Page 69: Ipv6 Bmc Network Configuration

    2-4-4 IPv6 BMC Network Configuration Parameter Description IPv6 BMC network configuration IPv6 BMC Lan Channel 1 Enable/Disable IPv6 BMC LAN channel function. When this item is disabled, the system will not modify any BMC network during BIOS IPv6 BMC Lan Option phase.

  • Page 70: Security Menu

    Security Menu The Security menu allows you to safeguard and protect the system from unauthorized use by setting up access passwords. There are two types of passwords that you can set: • Administrator Password Entering this password will allow the user to access and change all settings in the Setup Utility. •...

  • Page 71: Secure Boot

    2-5-1 Secure Boot The Secure Boot submenu is applicable when your device is installed the Windows 8 (or above) operating ® system. Parameter Description System Mode Displays if the system is in User mode or Setup mode. Enable/ Disable the Secure Boot function. Secure Boot Options available: Enabled, Disabled.
  • Page 72 Parameter Description Press [Enter] to configure advanced items. Please note that this item is configurable when Secure Boot Mode is set to Custom. Factory Key Provision Š – Allows to provision factory default Secure Boot keys when system is in Setup Mode.
  • Page 73 Parameter Description Export Secure Boot variables Š – Copy NVRAM content of Secure Boot variables to files in a root folder Key Management on a file system device. (continued) Enroll Efi Image Š – Press [Enter] to enroll SHA256 hash of the binary into Authorized Signature Database (db).

  • Page 74: Boot Menu

    Boot Menu The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable. Parameter Description Boot Configuration Number of seconds to wait for setup activation key. 65535 (0xFFFF) Setup Prompt Timeout means indefinite waiting.
  • Page 75 Parameter Description FIXED BOOT ORDER Priorities Press [Enter] to configure the boot priority. By default, the server searches for boot devices in the following sequence: Hard drive. Boot Option #1 / #2 / #3 / #4 / #5 CD-COM/DVD drive. USB device.

  • Page 76: Save & Exit Menu

    Save & Exit Menu The Save & Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then press <Enter>. Parameter Description Save Options Restarts the system after saving the changes made. Save Changes and Reset Options available: Yes, No.

  • Page 77: Bios Recovery

    BIOS Recovery The system has an embedded recovery technique. In the event that the BIOS becomes corrupt the boot block can be used to restore the BIOS to a working state. To restore your BIOS, please follow the instructions listed below: Recovery Instruction: 1.

  • Page 78: Bios Post Beep Code (Ami Standard)

    BIOS POST Beep code (AMI standard) 2-9-1 PEI Beep Codes # of Beeps Description Memory not Installed. Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available...
