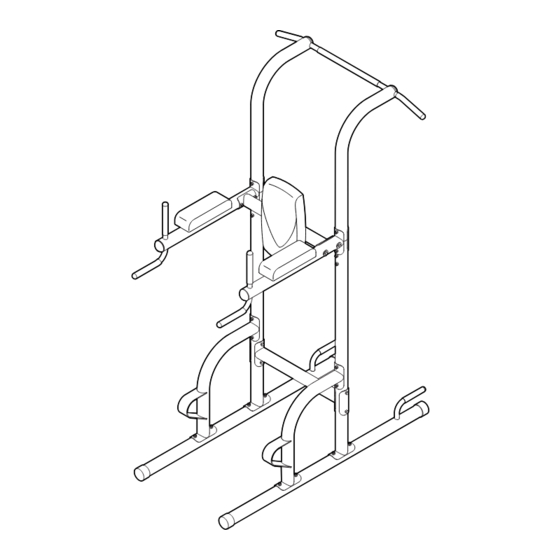

USER’S MANUAL Model No. WEBE99712.2 Serial No. Write the serial number in the space above for reference. Serial Number Decal ACTIVATE YOUR WARRANTY To register your product and activate your warranty today, go to www.weiderservice.com/ registration. CUSTOMER CARE For service at any time, go to www.weiderservice.com.
Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. WEIDER is a registered trademark of ICON Health & Fitness, Inc.
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your exercise rack before using your exercise rack. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
BEFORE YOU BEGIN Thank you for selecting the versatile WEIDER reading this manual, please see the front cover of this ® POWER TOWER exercise rack. The POWER TOWER manual. To help us assist you, note the product model exercise rack is designed to help you develop the number and serial number before contacting us.
PART IDENTIFICATION CHART Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in the hardware kit, check to see if it has been preassembled.
ASSEMBLY • To hire an authorized service technician to • The included grease and the following tools (not assemble this product, call 1-800-445-2480. included) may be required for assembly: two adjustable wrenches • Assembly requires two persons. one rubber mallet •...
Page 8
3. Orient one of the Uprights (2) and one of the Bases (1) as shown; make sure that the hex- agonal holes are on the indicated side of the Hexagonal Upright. Holes Attach the Upright (2) to the Base (1) with the two indicated M8 x 68mm Carriage Bolts (20) and two M8 Locknuts (22);...
Page 9
5. Attach a Footrest Frame (4) to one of the Bases (1) with the two indicated M8 x 68mm Carriage Bolts (20) and two M8 Locknuts (22); do not tighten the Locknuts yet. Next, attach the Footrest Frame (4) to the Upright (2) with two M8 x 75mm Bolts (17), two M8 Curved Washers (23), and two M8 Locknuts (22);...
Page 10
7. Attach a Dip Arm (5) to one of the Pull-up Frames (3) and one of the Uprights (2) with two M8 x 77mm Bolts (28), a Support Plate (13), and two M8 Locknuts (22); do not tighten the Locknuts yet. Repeat this step with the other Dip Arm (5).
Page 11
10. Orient the Backrest (8) as shown. Attach the Backrest to the Top Crossbar (7) with four M6 x 16mm Screws (27) and four M6 Washers (21); start all the Screws, and then tighten them. 11. Attach an Arm Pad (6) to one of the Dip Arms (5) with two M6 x 73mm Screws (18).
EXERCISE GUIDELINES WORKOUT GUIDELINES EXERCISE FORM Familiarize yourself with the equipment and learn the Move through the full range of motion for each exer- proper form for each exercise. Use your own judgment cise, and move only the appropriate parts of the body. to determine the appropriate length of time for each Perform the repetitions in each set smoothly and workout, and the numbers of repetitions and sets to...
Page 13
EXERCISE LOG Make copies of this page, and use the copies to schedule and record your strength and aerobic workouts. Scheduling and recording your workouts will help you to make exercise a regular and enjoyable part of your life. Strength Exercise Lbs.
PART LIST Model No. WEBE99712.2 R0516A Key No. Qty. Description Key No. Qty. Description Base 60mm Outer Cap Upright M8 x 75mm Bolt Pull-up Frame M6 x 73mm Screw Footrest Frame M10 x 50mm Screw Dip Arm M8 x 68mm Carriage Bolt...
ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
