FujiFilm X-T20 - Digital Camera Manual

Customizing the Standard Display

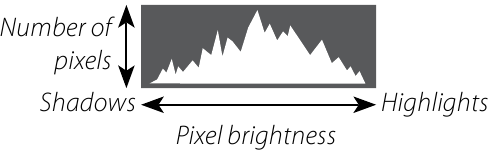

Histograms

Histograms show the distribution of tones in the image. Brightness is shown by the horizontal axis, the number of pixels by the vertical axis.
Customizing the Standard Display - Histograms

Optimal exposure: Pixels are distributed in an even curve throughout the tone range.
Overexposed: Pixels are clustered on the right side of the graph.
Underexposed: Pixels are clustered on the left side of the graph.

To view separate RGB histograms and a display showing areas of the frame that will be overexposed at current settings superimposed on the view through the lens, press the function button to which HISTOGRAM is assigned.

Overexposed areas blink
RGB histograms

Touch Screen Mode

The following touch controls have been added.

No.	Description
1	Flick gestures can now be used to choose the focus area during focus zoom.
2	Pinch-in and pinch-out gestures can now be used to choose the number of pictures (one, nine, or a hundred) displayed during multi-frame playback.
3	Pictures in the nine- and hundred-frame displays can now be selected using touch or drag gestures; double-tap a picture to view it full frame.
4	Touch controls can now be used in the Q (quick) menu.
5	The touch screen can now be used for text entry.

Recording Movies

information The indicator lamp lights while recording is in progress. During recording, you can change exposure compensation by up to ±2 EV and adjust zoom using the zoom ring on the lens (if available).
If the lens is equipped with an aperture mode switch, select the aperture mode before beginning recording. If an option other than A is selected, shutter speed and aperture can be adjusted while recording is in progress.
To refocus using autofocus while recording is in progress, tap the touch screen or press the button to which AF-ON has been assigned.
Recording may be unavailable at some settings, while in other cases settings may not apply during recording.

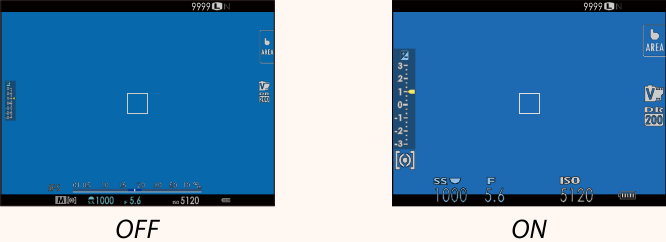

LARGE INDICATORS MODE(EVF)

Select ON to display large indicators in the electronic viewfinder. The indicators displayed can be selected using SCREEN SETTING > LARGE INDICATORS DISP. SETTING.
Large indicators mode - EVF

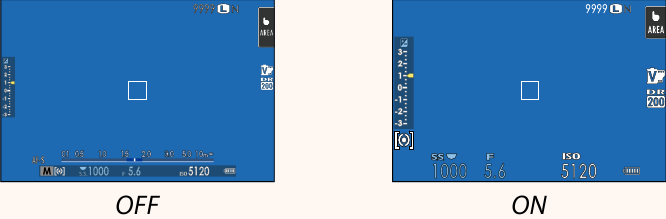

LARGE INDICATORS MODE(LCD)

Select ON to display large indicators in the LCD monitor. The indicators displayed can be selected using SETTING > LARGE INDICATORS DISP. SETTING.
Large indicators mode - LCD

information If LARGE INDICATORS MODE is assigned to a function button, the button can be used to toggle LARGE INDICATORS MODE on (ON) and off (OFF).

LARGE INDICATORS DISP. SETTING

Choose the indicators displayed when ON is selected for SCREEN SETTING > LARGE INDICATORS MODE(EVF) or LARGE INDICATORS MODE(LCD).

Option	Description
Expo. DISP.	Choose the items listed at the bottom of the display. Selected items are indicated by check marks (); to deselect, highlight the check marks and press MENU/OK.
Scale	Select ON to display the exposure indicator.
L1, L2, L3, L4	Choose up to four large icons for display on the left side of the screen.
R1, R2, R3, R4	Choose up to four large icons for display on the right side of the screen.

TOUCH SCREEN SETTING

Enable or disable touch-screen controls.

Option	Description
TOUCH SCREEN ON/OFF	ON: Touch controls enabled; the LCD monitor functions as a touch screen. OFF: Touch controls disabled; the LCD monitor cannot be used as a touch screen.
EVF TOUCH SCREEN AREA SETTINGS	Select the area of the LCD monitor (ALL, RIGHT, or LEFT) used for touch controls while the viewfinder is active, or choose OFF to disable touch controls while the viewfinder is in use.

PC CONNECTION MODE

Adjust settings for connection to a computer.

Option	Description
USB CARD READER	Connecting the camera to a computer via USB automatically enables data transfer mode, allowing data to be copied to the computer. The camera functions normally when not connected.
USB RAW CONV./ BACKUP RESTORE	Connecting the camera to a computer via USB automatically enables USB RAW conversion/ backup restore mode. The camera functions normally when not connected. USB RAW CONV. (requires FUJIFILM X RAW STUDIO): Use the camera's image processing engine to rapidly convert RAW files to high-quality JPEG images. BACKUP RESTORE (requires FUJIFILM X Acquire): Save and load camera settings. Reconfigure the camera in an instant or share settings with other cameras of the same type.

Flash Settings

Third-party studio flash commanders compatible with the FUJIFILM flash system can now be used. For more information, see the documentation provided your studio flash unit.

Power Zoom

The camera now supports XC15-45mmF3.5-5.6 OIS PZ power zoom lenses. The following features are available:

The zoom ring can be used to adjust zoom.
The focus ring can be used to make fine adjustments to zoom in focus modes S (AF-S) and C (AF-C).
The zoom position remains fixed during interval-timer photography.
The lens remains extended during playback so that shooting can quickly be resumed.

Accessories from FUJIFILM

instax SHARE printers
SP-1/SP-2/SP-3: Connect via wireless LAN to print pictures on instax film.

Features added or changed as a result of firmware updates may no longer match the descriptions in the documentation supplied with this product. Visit our website for information on the updates available for different products:
http://www.fujifilm.com/support/digital_cameras/software/fw_table.html
