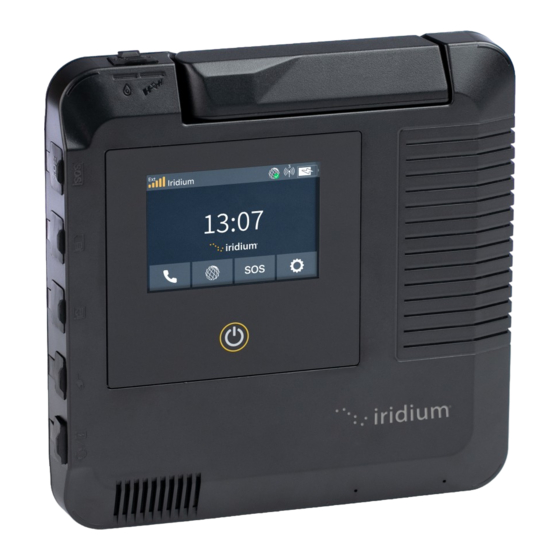

Iridium GO!exec Installation Manual

Single mode antenna lite kit (no gnss)
Hide thumbs Also See for GO!exec:
Table of Contents

Advertisement

Quick Links

Download this manual
Single Mode Antenna LITE Kit (No GNSS)
(GELITKT2301)
I n s t a l l a t i o n G u i d e V 1 . 2
Prior to installing or using Iridium GO! exec, read and understand this Installation Guide, and
the Iridium GO! exec User Manual including the safety warnings and information. Failure to
do so could result in serious injury or death.
* Please note this is a single mode Iridium only antenna (NOT including a Global Navigation Satellite
System ("GNSS") Antenna) and so will not assist with providing location coordinates for SOS. To use the
Iridium GO! exec as a GNSS device requires: moving the device outdoors with a view of the sky, installing
firmware 1.0.6 or higher, and setting GNSS antenna to internal in device settings. Refer inside page 8, Note
3 for details.

Advertisement

Table of Contents
loading

Related Manuals for Iridium GO!exec

Summary of Contents for Iridium GO!exec

  • Page 1 System (“GNSS”) Antenna) and so will not assist with providing location coordinates for SOS. To use the Iridium GO! exec as a GNSS device requires: moving the device outdoors with a view of the sky, installing firmware 1.0.6 or higher, and setting GNSS antenna to internal in device settings. Refer inside page 8, Note...
  • Page 3 Limited Warranty, and Iridium reserves the right to terminate your right to use the Iridium GO! exec on the Iridium system. If you do not accept the terms of the Limited Warranty and Conditions of Use, do not use the Iridium GO! exec Single Mode Antenna LITE Kit (No GNSS).

  • Page 4: Table Of Contents

    2 Antenna and Cable Installation ................6 3 Using the LITE Kit ....................9 4 Specifications ......................10 Iridium Passive Omnidirectional Antenna ................... 10 Mast/Rail Mount ......................... 11 5m/17ft Passive SAT Antenna Cable ..................11 Iridium GO! exec Cable Adapter ....................12...

  • Page 5: Kit Contents

    Iridium GO! exec Single Mode Antenna LITE Kit (No GNSS) 1 Kit contents Items included in the kit: (A) 1 x Iridium Single Mode (B) 1 x 5m/16.404ft LMR 400 Passive (C) 1 x Iridium GO! exec Cable Passive Omnidirectional Antenna Cable Adapter 0.15m/5.90 inches...

  • Page 6: Antenna And Cable Installation

    Make sure the external antenna is located outside and the Iridium GO! exec receives good signal reception for at least 5 minutes during this test before you proceed with the installation.
  • Page 7 Note: Use of an external antenna will provide connectivity for the Iridium network and GPS reception. To ensure maximum performance of the antenna and to maximize availability and reliability of service, the position of the antenna must:...
  • Page 8 Iridium GO! exec. Step 10) Connect the TNC end of the cable to Iridium GO! exec cable adapter, and then plug the Iridium GO! exec cable adapter plug to the Iridium GO! exec Satellite connector.

  • Page 9: Using The Lite Kit

    SOS functionality. Location services will not be accurate and may show no location found. Calls – including SOS calls – will still go through, but the app or the Iridium GO! exec device will be unable to accurately display the location coordinates.

  • Page 10: Specifications

    This option overrides the Auto/default setting and forces the device to only use the external GNSS antenna, regardless of whether one is equipped. This option can be used with Iridium’s Premium Dual Mode Antenna, but it is not recommended as the •...

  • Page 11: Mast/Rail Mount

    Iridium GO! exec Single Mode Antenna LITE Kit (No GNSS) Color White (non-glossy) Height 150 mm (191.5 mm mounting base included) Diameter Ø 95 mm Supplied Mounting or any US-style Mounting Bracket with 1"-14NF thread. Mounting Mounting place On marine vessel or remote homes...

  • Page 12: Iridium Go! Exec Cable Adapter

    Environmental Specifications: Operating Temperature -40°C to +85°C Iridium GO! exec Cable Adapter Electrical Specifications: Impedance 50 Ω Capacitance 96.45 pF/M (29.399 pF/ft) Velocity of Propagation 69.5 % Voltage Withstand 12000 Vrms Max Operating Frequency 3 GHz Physical Specifications: Bending Radius Static 13mm (0.512”)
  • Page 13 Iridium GO! exec Single Mode Antenna LITE Kit (No GNSS) For Customer Support, please contact: Web: www.iridium.com Email: info@iridium.com Toll free: +1.866.947.4348 Phone: +1.480.752.5155 Address: Iridium Satellite LLC 1800 S.Price Road Chandler, AZ 85286, USA...
  • Page 14 ©Copyright 2023 Iridium Satellite LLC and its affiliates. All rights reserved. Iridium® and the Iridium Logo are registered trademarks and Iridium GO! exec is a trademark of Iridium Satellite LLC and its affiliates (“Iridium”). All other trademarks, service marks and logos are the property of their respective holders, which have not been endorsed, sponsored or otherwise affiliated with Iridium or Iridium GO! exec.
