1. DESCRIPTION

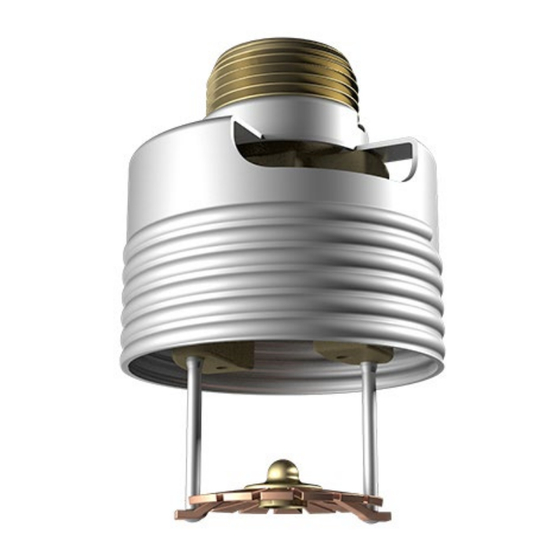

Viking Mirage
Quick Response Extended Coverage Concealed Pendent Sprinkler
®
VK632 and VK634 are thermosensitive glass-bulb spray sprinkler designed for
installation on concealed pipe systems where the appearance of a smooth ceiling is
desired. The glass bulb operating element and special deflector characteristics meet
the challenges of quick response extended coverage standards.
The sprinkler is pre-assembled with a threaded adapter for installation with a low-
profile cover assembly that provides up to ½" (12.7 mm) of vertical adjustment. The
two-piece design allows installation and testing of the sprinkler prior to installation of
the cover plate. The The "push-on" and "thread-on" designs of the concealed cover
plate assemblies allow easy installation of the cover plate after the system has been
tested and the ceiling finish has been applied. The cover assembly can be removed
and reinstalled, allowing temporary removal of ceiling panels without taking the
sprinkler system out of service or removing the sprinkler.
The Electroless Nickel PTFE (ENT) coating has been investigated for installation
in corrosive environments and is listed and approved as indicated in the Approval
Charts. The ENT finish is only available for the sprinkler assembly, the cover plate is
not plated.
2. LISTINGS AND APPROVALS
cULus Listed: Category VNIV
Refer to the Approval Chart and Design Criteria for cULus Listing requirements that
must be followed.
3. TECHNICAL DATA
Specifications:
Available since 2007.
Minimum Operating Pressure: 7 psi (0.5 bar)
Maximum Working Pressure: 175 psi (12 Bar).
Factory tested hydrostatically to 500 psi (34.5 bar)
Thread sizes: VK632: 1/2" (15 mm) NPT; VK634: 3/4" (20 mm) NPT
Nominal K-Factors: VK632: 5.6 U.S. (80.6 metric*); VK634: 8.0 U.S. (115.2 metric*)
* Metric K-factor measurement shown is in Bar. When pressure is measured in kPa, divide the metric
K-factor shown by 10.0.
Glass-bulb fluid temperature rated to -65 °F (-55 °C)
Patents Pending
Material Standards:
Sprinkler Body: Brass UNS-C84400
Deflector: Copper UNS-C19500
Deflector Pins: Stainless Steel Alloy
Bulb: Glass, nominal 3 mm diameter
Pip Cap: Leaded Bronze UNS-C31400 or UNS-C31600, or Pip Cap and Insert Assembly: Copper UNS-C11000 and Stainless Steel
UNS-S30400
Button: Brass UNS-C36000
Screws: 18-8 Stainless Steel
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with PTFE Tape
Yoke: Phosphor Bronze UNS-C51000
Cover Adapter: Cold Rolled Steel UNS-G10080, Finish: Clear Chromate over Zinc Plating
Cover Assembly Materials:
Cover: Copper UNS-C11000
Base: Brass UNS-C26000 or UNS-C26800
Springs: Nickel Alloy
Solder: Eutectic
Ordering Information: The sprinkler and cover plate must be ordered separately. Refer to Tables 1 and 2.
4. INSTALLATION
Refer to appropriate NFPA Installation Standards.
Form No. F_080107
Rev 01
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
April 2023
MIRAGE
QUICK RESPONSE
®
EXTENDED COVERAGE
CONCEALED PENDENT
SPRINKLERS
(VK632 AND VK634)
For Light Hazard Occupancies Only
Replaces Form No. F_080107 Rev 20.2
(Adding venting statement (s))
Page 1 of 6
