1. DESCRIPTION
Viking Mirage

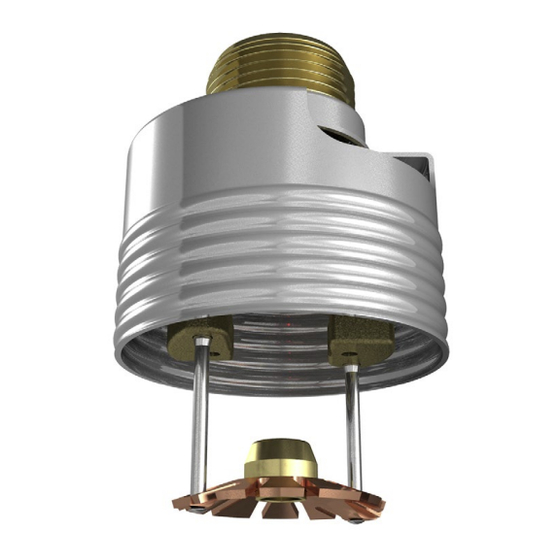

Quick Response Concealed Pendent Sprinkler VK464 is a thermosensitive
®
glass-bulb spray sprinkler designed for installation on concealed pipe systems where
the appearance of a smooth ceiling is desired.
The sprinkler is pre-assembled with a threaded adapter for installation with a low-profile
cover assembly that provides up to ½" (13 mm) of vertical adjustment. The two-piece
design allows installation and testing of the sprinkler prior to installation of the cover plate.
The The "push-on" and "thread-on" designs of the concealed cover plate assemblies
allow easy easy installation of the cover plate after the system has been tested and the
ceiling finish has been applied. The cover assembly can be removed and reinstalled,
allowing temporary removal of ceiling panels without taking the sprinkler system out of
service or removing the sprinkler.
The Electroless Nickel PTFE (ENT) coating has been investigated for installation in
corrosive environments and is listed and approved as indicated in the Approval Charts.
The ENT finish is only available for the sprinkler assembly, the cover plate is not plated.
2. LISTINGS AND APPROVALS
cULus Listed: Category VNIV
NYC Approved: MEA 89-92-E, Volume 32
Refer to the Approval Chart and Design Criteria for cULus Listing requirements that
must be followed.
3. TECHNICAL DATA
Specifications:
Available since 2006.
Minimum Operating Pressure: 7 psi (0.5 bar).
Maximum Working Pressure: 175 psi (12 bar). Factory tested hydrostatically to 500 psi (34.5 bar).
Thread size: 3/4" (20 mm) NPT
Nominal K-Factor: 8.0 U.S. (115.2 metric*)
* Metric K-factor measurement is shown in bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Glass-bulb fluid temperature rated to -65 °F (-55 °C)
Patents Pending
Material Standards:
Sprinkler Body: Brass UNS-C84400
Deflector: Phosphor Bronze UNS-C51000
Deflector Pins: Stainless Steel UNS-S30300
Bulb: Glass, nominal 3 mm diameter
Pip Cap and Insert Assembly: Copper UNS-C11000 and Stainless Steel UNS-S30400
Button: Brass UNS-C36000
Screws: 18-8 Stainless Steel
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with Teflon Tape
Yoke: Phosphor Bronze UNS-C51000
Cover Adapter: Cold Rolled Steel UNS-G10080, Finish: Clear Chromate over Zinc Plating
Cover Assembly Materials:
Cover: Copper UNS-C11000
Base: Brass UNS-C26000 or UNS-C26800
Springs: Nickel Alloy
Solder: Eutectic
Ordering Information: The sprinkler and cover plate must be ordered separately. Refer to Tables 1 and 2.
4. INSTALLATION
Refer to appropriate NFPA Installation Standards.
5. OPERATION
During fire conditions, when the temperature around the sprinkler approaches its operating temperature, the cover plate detaches.
Continued heating of the exposed sprinkler causes the heat-sensitive liquid in the glass bulb to expand and the bulb to shatter,
releasing the yoke, pip-cap and sealing spring assembly. Water flowing through the sprinkler orifice strikes the sprinkler deflector,
forming a uniform spray pattern to extinguish or control the fire.
6. INSPECTIONS, TESTS AND MAINTENANCE
Refer to NFPA 25 for Inspection, Testing and Maintenance requirements.
Form No. F_021606
20.06.26
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Rev 20.2
MIRAGE
QUICK RESPONSE
®
CONCEALED PENDENT
SPRINKLER VK464 (K8.0)
Replaces Form F_021606 Rev 20.1
(Added cover plate options.)
Page 1 of 5
