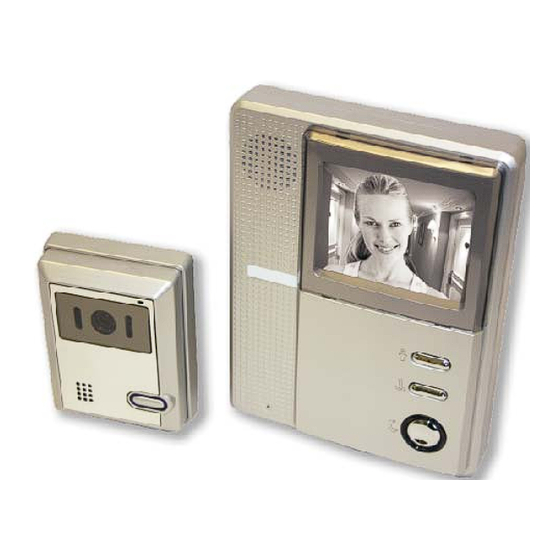

B&W Video Doorphone
High Resolution Intercom
Safely see who's at the door before you answer it
Installation Guide
www.swannsecurity.com
English
Advertisement
Related Manuals for Swann SW244-BVD
Summary of Contents for Swann SW244-BVD
-
Page 1: Installation Guide
Any unit which proves defective during the stated period will be repaired without charge for parts or labour or replaced at the sole discretion of Swann. The repair or replacement will be warranted for either ninety days or the remainder of the original one year warranty period, whichever is longer. - Page 2 2 Real & 2 Imitation Cameras Security Monitoring System CCTV Professional 4 Camera Pack Professional Security Camera Quick User Guide Firstly check if the monitor is getting power, make sure the 16VDC 1A power supply is firmly connected to the power socket. Then make sure you have correctly wired the Doorphone system by referring to the Wiring Diagram illustrations on page 8.
-
Page 3: Table Of Contents
Specifications Indoor-monitor Power supply Power consumption About 10W in operation; about 0.5W in standby Operation temperature Conversation System Bi-directional conversation through the receiver Calling Tone “Ding Dong” chime Conversation Time Automatic cut off after about 2 minutes Scanning Frequency Horizontal:15.625KHz External dimension Camera Power supply... -
Page 4: Functions
The 6 infrared LEDs on the camera allows you to recognize the visitor during times of low light. * Night vision distance will vary with the amount of available light. FCC Notice We, Swann Communications of 10612 Shoemaker Avenue, Bldg A, Santa Fe Springs, CA 90670 USA, declare under our sole responsibility that the product: SW244-BVD This product meets the requirement specified in Part 15 of FCC Regulation. -
Page 5: Package Contents
Non-Polarity cable DC 16V Monitor Open the door with the touch of a button by installing Swann’s Electric Door Strike (SW-D-LOCK). Please disconnect the power supply from the monitor before connecting the monitor to the intercom unit. Package Contents Camera... -
Page 6: Monitor Features
Monitor Features Loud Speaker Screen Mic ophone A/V OUT Contrast Vo l u m e wheel w h e e l Audio/Video wire To view the image on your TV, connect the Audio/Video wire from the AV OUT on the LCD monitor to an AV INPUT on your TV.
