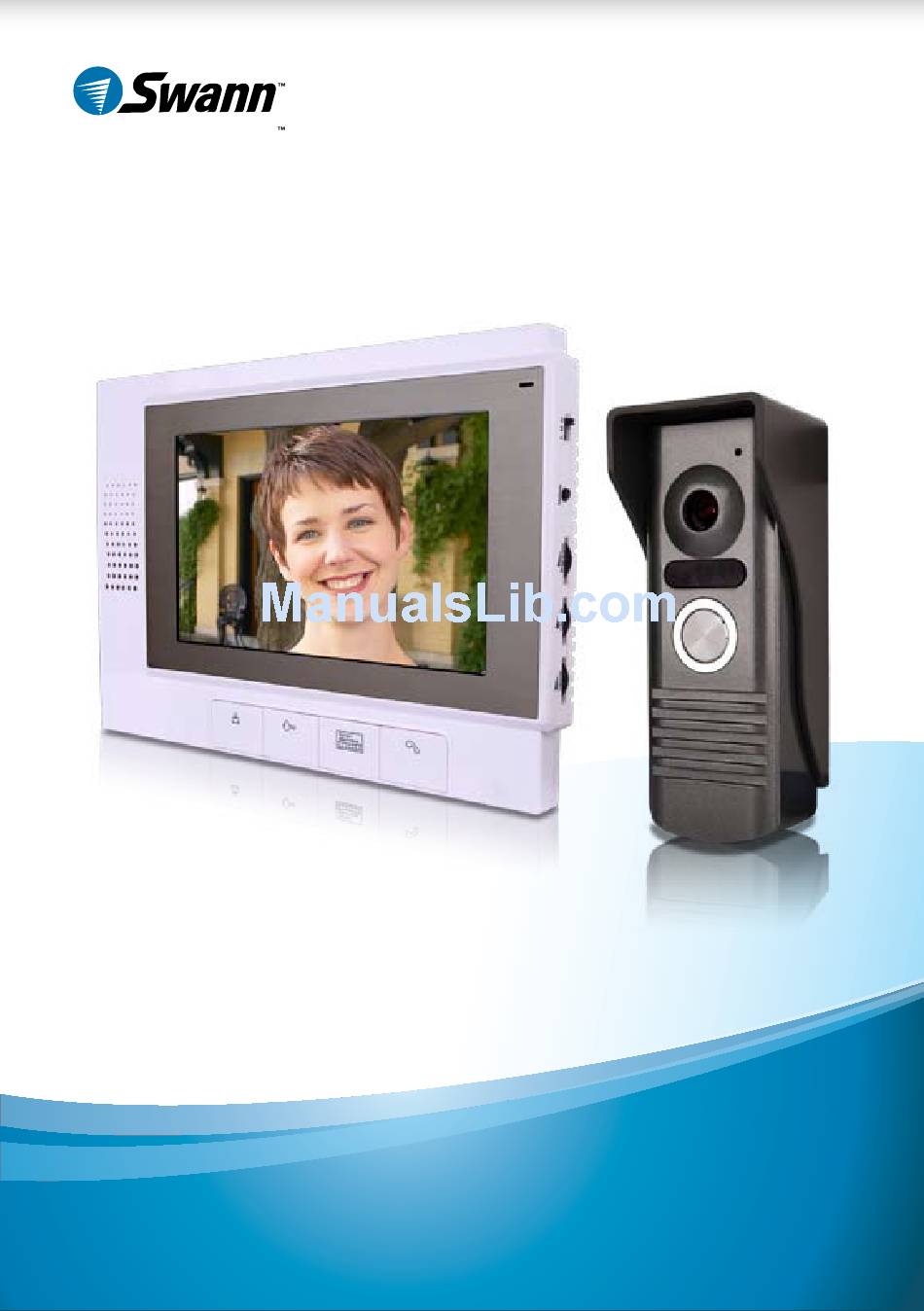

Page 1: Operating Instructions
Advanced security made easy High Resolution Intercom with 7” LCD screen DB-815 Operating Instructions SW347-DV7 www.swannsecurity.com SR347-DV7-60100-231109... - Page 2 Before You Begin FCC Verification: NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de- signed to provide reasonable protection against harmful interference in a residen- tial installation.
-
Page 3: Table Of Contents
Table of Contents Before You Begin Package Contents Overview Layout Installation Guide Connect Wiring Completing Installation Operating the Intercom Troubleshooting Technical Specifications Technical Support / Warranty Information Package Contents Indoor LCD Unit Outdoor Intercom Unit Indoor LCD Bracket Outdoor Intercom Bracket Rear Cover Power Adaptor 50ft (15m) Cable... -
Page 4: Overview

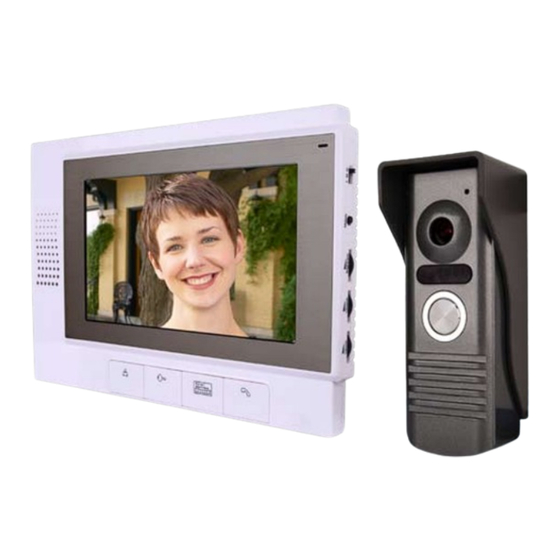

Overview Congratulations on your purchase of Swann’s high-resolution intercom, the DB- 815 which combines a 7” high quality LCD screen with vivid color with a sleek, damage resistant, rust-proof aluminum outdoor intercom unit with a discreet built- in color camera. At night, the camera utilizes its built-in infrared LEDs to provide limited night-vision, so you can see who’s there in the dark! -
Page 5: Layout
Layout Indoor LCD Unit Microphone Speaker Monitor On/Off Electric Lock Control Outdoor Unit Doorbell Volume Doorbell Melody Selection Brightness Control Chroma Control Volume Control Electric Gate Control Answer/Disconnect Mounting Bracket Microphone Camera Lens Doorbell Button... -
Page 6: Installation Guide
Installation Guide Installing the DB-815 can be a tricky process, particularly running the cable from the outdoor Unit the indoor LCD Unit. Running cables through walls and/or the ceiling involves drilling holes and then feeding the cable into them. During this procedure, there is always the risk of accidentally making contact with live electrical wiring - the results of which are often lethal. - Page 7 Connecting Wiring To attach the wiring correctly: • Attach wires to terminals 1-4 on the rear of the indoor Unit by sliding the U-shaped connection under the screw terminals. • Screw into place, being careful not to overtighten. • Attach a control for an electric lock/door-strike to terminals 5 & 6 and controls for an electric gate to terminals 7 &...
-
Page 8: Completing Installation
Completing Installation All that’s left to do is attach power to the system, and to mount the indoor and outdoor units on the brackets which have already been placed. To attach power: • Attach the plug on the end of the supplied 12V power supply to the plug on the rear of the indoor unit. -
Page 9: Operating The Intercom
Operating the Intercom Operating the Video Intercom is quite straightforward - doubly so for a visitor - they need only worry about pressing the one button on the outdoor unit! Here’s a rundown of all the buttons on the interior unit and what they do. Monitor On/Off: Turns the monitor On or Off. -
Page 10: Troubleshooting
Troubleshooting Problem: I hear crackling/hissing or the audio/video is faint or distorted. Solution: There are two possibilities regarding the cause of this problem. • Firstly, it could indicate that there could be a break or loose connection in the cable connecting the outdoor and indoor units. This is easily checked by removing the outdoor Unit from its bracket, moving it to the indoor Unit and connecting them via a much shorter cable that you know is in good working order. -
Page 11: Technical Specifications
Technical Specifications Video Image Sensor Video Quality Viewing Angle Day/Night Mode Night Vision Distance Display Resolution Display Size & Type General Operating Power Operating Temperature Dimensions Monitor Dimensions Camera Weight Monitor Weight Camera Cable Length DB-815 7” Video Intercom 1/4” CMOS 380 TV Lines 67 degrees Color during day / switches to B&W at night... - Page 12 Swann. The end user is responsible for all freight charges incurred to send the product to Swann’s repair centres. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin.
