Contents Introducing your cooktop/hob Temperature control Flame Failure safety feature Titan models only Jet models only Cleaning Safety & warnings Frequently asked questions Trouble shooting Warranty Customer care Recipe Important! It is important that the User Guide should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, always ensure that the User Guide is left with the appliance in order that the new owner can familiarise themselves with the appliance and the relevant warnings.
Introducing your cooktop/hob Now that your new cooktop is installed and ready to use, you will want to know everything about it to ensure excellent results right from the start. This booklet will introduce you to the features and special talents of your cooktop/hob. We recommend you read the whole book before you start using your cooktop, for the sake of safety as well as success.
Temperature control Choose the control knob for the burner you want to use. Press down and turn the knob anti-clockwise all the way to the high symbol. Hold down the knob for 5 seconds until the burner lights. All the igniters will spark until the gas ignites on the selected burner.
Flame failure safety feature Your cooktop has a flame failure safety device fitted. A metal probe behind the burner generates electricity when a flame is present. After 5 seconds the metal probe gets hot enough to hold a valve open and maintain the gas supply.
Titan models only (CG912 series) Using a wok Care should be taken when using a large wok that other pots are not pushed sideways enough to become unstable or deflect heat onto nearby walls. Using the simmermat The Simmermat helps you control the temperature of your cooking surface to ensure the long slow simmering that is needed for successfully cooking delicate foods.
Page 7
Rounded corners Repositioning the pan supports The wok support goes in the centre over the wok burner. The other two pan supports are interchangeable but need to be rotated to match the rounded corners of the base insert. Correct pan support orientation - Titan models Re-assembling your wok burner (CG912TM Iridium models only) Each part of your wok burner has locating pins to help you to assemble it correctly after cleaning.

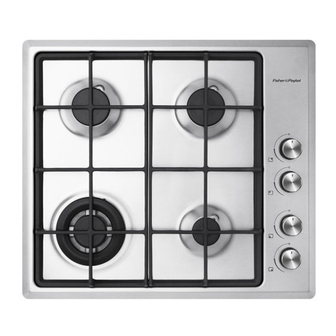

Jet models only (CG602 series and CG902 series) Using a wok Care should be taken when using a large wok Wok on raised that other pots are not pushed sideways enough area of trivets to become unstable or deflect heat onto nearby walls.
Page 9
Cooking tips Skillet cooked steaks are best turned only once about halfway through the cooking time. The skillet needs to have reached a high temperature to prevent the meat stewing in its own juices. Test if steaks are cooked by pressing with tongs, the less movement there is, the more cooked the steak is.
Cleaning Apply soapy water with a soft sponge or cloth only when the cooktop is cool. Soaking stubborn stains under the soapy cloth for a few minutes will help make them easier to remove. Do not use steel soap pads as this may dull the appearance of the appliance over time. Pan supports are dishwasher safe.
Safety & warnings WARNING! Hot Surface Hazard During use this appliance becomes hot. Care should be taken to avoid touching cooktop components, burner, pan supports, stainless steel base. WARNING! Household appliances are not intended to be played with by children. Children, or persons with a disability which limits their ability to use the appliance, should have a responsible person to instruct them in its use.
Page 12
Electrical supply cord If the electrical supply cord is damaged, it must only be replaced by an authorised person. Ensure that the electrical connection plug is accessible after installation. Marine craft & caravan installation Where this appliance is installed in marine craft or in caravans, it shall not be used as a space heater.
Frequently asked questions What is the best way to clean stainless steel? See cleaning instructions on page 9. How do I clean the pan supports and burners? Supports can be washed in the dishwasher or alternatively with a cream cleaner (such as Jif ) and a nylon scourer.
Trouble shooting Problem Possible solutions My cooktop does not Check it is plugged in and there is power to the wall socket. light The gas igniters may be dirty. These can be easily cleaned with a toothbrush and methylated spirits. The burner parts may not be located properly.
Warranty When you purchase any new Fisher & Paykel whiteware Product you automatically receive a 2 year Manufacturer’s Warranty covering parts and labour for servicing. Fisher & Paykel undertakes to Repair or, at its option, replace without cost to the owner either for material or labour any part of the Product, the serial number of which appears on the Product, which is found to be defective within TWO YEARS of the date of purchase.
Customer care Before you call for service or assistance ... Check the things you can do yourself. Refer to your User Guide and check... Your product is correctly installed You are familiar with its normal operation If after checking these points you still need assistance, please refer to the following or contact us through our website: www.fisherpaykel.com In New Zealand if you need assistance ...*...
Recipe Beef bourginon (Serves 2 - 4) The Simmermat is perfect for stews and soups. Long slow cooking at a gentle simmer gives meat dishes that are tender and full of flavour. Try this variation on a French classic. 450g chuck or stewing steak, cubed 4 tbsp oil 200g tiny onions or 2 large onions, chopped 200g carrot, peeled and cut into large slices...
