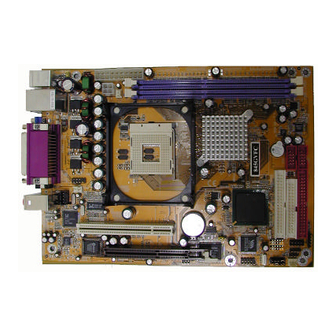

M/B For Socket 478 Pentium 4 Processor
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
845GVFC
USER'S MANUAL
NO. G03-845GVFC1A
Release date: April 2003
Advertisement
Table of Contents
Related Manuals for JETWAY 845GVFC
Summary of Contents for JETWAY 845GVFC
- Page 1 845GVFC USER'S MANUAL M/B For Socket 478 Pentium 4 Processor NO. G03-845GVFC1A Release date: April 2003 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
-
Page 2: Table Of Contents
TABLE OF CONTENT USER’S NOTICE ......................ii MANUAL REVISION INFORMATION ................ii COOLING SOLUTIONS ....................ii CHAPTER 1 INTRODUCTION OF 845GVFC MOTHERBOARD FEATURE OF MOTHERBOARD................1 SPECIFICATION ....................2 PERFORMANCE LIST .................... 3 LAYOUT DIAGRAM & JUMPER SETTING ............... 4 CHAPTER 2 HARDWARE INSTALLATION HARDWARE INSTALLATION STEPS................ -
Page 3: User's Notice
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER. THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE 845GVFC MOTHER-BOARD AND WE DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME WITHOUT NOTICE. -
Page 4: Chapter 1 Introduction Of 845Gvfc Motherboard
845GVFC Motherboard 1-1 Feature of motherboard The 845GVFC motherboard is design for use Intel Pentium 4 Processor in 478 Pin Package/Northwood Processor with the Intel 845GV Chipset delivers a high performance and professional desktop platform solution. Which utilize the Socket 478 design (Support Hyper Threading CPU) and the memory size expandable to 2.0GB. -
Page 5: Specification
Spec Description ∗ ATX form factor 6 layers PCB size: 17.5x24.0cm Design ∗ Intel 845GV Graphics Memory Controller Hub for 845GVFC Chipset ∗ Intel 82801DB I/O Controller Hub (ICH4) Chipset ∗ Support Intel Pentium 4 478 Pin package utilizes Flip-Chip... -
Page 6: Performance List
1-3 Performance List The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) Performance Test Report CPU:... -
Page 7: Layout Diagram & Jumper Setting
1-4 Layout Diagram & Jumper Setting PRINT 6-Channel Speaker Center/Base PS/2 Mouse REAR Speaker PS/2 Keyboard Front Speaker SPDIF-OUT ATX 12V Power Conn. K/B Power ON Jumper ATX Power Conn. (JP1) PS2 KB/Mouse Port DIMM Socket X2 USB Port/LAN Connector CPU FAN CPU Socket Intel 82845GV Chip... - Page 8 Jumpers Jumper Name Description Page Keyboard Power On Enable/Disabled 3-pin Block CPU Frequency Select 3-pin Block CMOS RAM Clear 3-pin Block Connectors Connector Name Description Page ATXPWR ATX Power Connector 20-pin Block P.11 ATX12V ATX 12V Power Connector 4-pin Block P.12 KB/MOUSE PS/2 Mouse &...
-
Page 9: Chapter 2 Hardware Installation
Chapter 2 Hardware installation 2-1 Hardware installation Steps Before using your computer, you had better complete the following steps: 1. Check motherboard jumper setting 2. Install CPU and Fan 3. Install System Memory (DIMM) 4. Install Expansion cards 5. Connect IDE and Floppy cables, Front Panel /Back Panel cable 6. -
Page 10: Install Cpu
(3) CMOS RAM Clear (3-pin): JP3 A battery must be used to retain the motherboard configuration in CMOS RAM short 1- 2 pins of JP3 to store the CMOS data. To clear the CMOS, follow the procedure below: Turn off the system and unplug the AC power Remove ATX power cable from ATX power connector Locate JP3 and short pins 2-3 for a few seconds Return JP3 to its normal setting by shorting pins 1-2... -
Page 11: About Intel Pentium 4 478-Pin Cpu
BIOS (Basic Input/Output System) - the program logic used to boot up a computer and establish the relationship between the various components. Driver - software, which defines the characteristics of a device for use by another device or other software. Processor - the "central processing unit"... -
Page 12: Install Memory
2-4 Install Memory This motherboard provides 184-pin DUAL INLINE MEMORY MODULES (DIMM) sites for memory expansion available from minimum memory size of 64MB to maximum memory size of 2.0GB DDR SDRAM. Valid Memory Configurations Bank 184-Pin DIMM Total Memory Bank 0, 1 (DDR1) DDR200/DDR266 64MB∼1.0GB DDR SDRAM Module... -
Page 13: Procedure For Expansion Card Installation
2-5-1 Procedure For Expansion Card Installation 1. Read the documentation for your expansion card and make any necessary hardware or software setting for your expansion card such as jumpers. 2. Remove your computer’s cover and the bracket plate on the slot you intend to use. 3. -
Page 14: Agp Slot
2-5-4 AGP Slot This motherboard provides an AGP Slot, only support the TV-out/DVI card. Do not use AGP 2X card in this motherboard. It will burn and damage the motherboard due to Intel® 845GV chipset can not support AGP VGA card. The AGP Slot only supports AGP Digital Display Card for digital display and TV-out. - Page 15 ATX 12V Power Connector (4-pin block) : ATX12V This is a new defined 4-pins connector that usually comes with ATX Power Supply. The ATX Power Supply which fully support Pentium 4 processor must including this connector for support extra 12V voltage to maintain system power consumption. Without this connector might cause system unstable because the power supply can not provide sufficient current for system.
- Page 16 (11) Floppy drive Connector (34-pin block): FDD This connector supports the provided floppy drive ribbon cable. After connecting the single plug end to motherboard, connect the two plugs at other end to the floppy drives. F D D Pin 1 Floppy Drive Connector (12) Primary IDE Connector (40-pin block): IDE1 This connector supports the provided IDE hard disk ribbon cable.
-
Page 17: Headers
2-6-2 Headers Serial Port COM1/COM2 Header (9-pin) : COM1/COM2 COM2 Note: Orient the read marking on the Pin 1 COM1/COM2 ribbon cable to COM1 pin 1 Pin 1 Serial Port COM1/COM2 Header Speaker/MIC Header for Front Panel (5-pin): FPAUDIO This header connect to Front Panel Speaker, MIC connector with cable. Pin 1 Speaker, MIC Headers USB Port Headers (9-pin) : USB1, USB2... - Page 18 External Remote Control Connect Cable Header: JP5 JP5 is for connect External Remote Control, when plug out the connect cable you have to insert the jumpers in 3-5, 7-9, 4-6, 8-10 otherwise the On board Keyboard and Mouse will not work. Pin 1 Speaker connector: SPEAK This 4-pin connector connects to the case-mounted speaker.
- Page 19 (11) FAN Speed Headers (3-pin) : SFAN1, SFAN2, CPUFAN These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the fan manufacturer, the wire and plug may be different. The red wire should be positive, while the black should be ground.
-
Page 20: Starting Up Your Computer
2-7 Starting Up Your Computer 1. After all connection are made, close your computer case cover. 2. Be sure all the switch are off, and check that the power supply input voltage is set to proper position, usually in-put voltage is 220V∼240V or 110V∼120V depending on your country’s voltage used. -
Page 21: Chapter 3 Introducing Bios
Chapter 3 Introducing BIOS The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. -
Page 22: The Main Menu
3-3 The Main Menu Once you enter Award ® BIOS CMOS Setup Utility, the Main Menu (Figure 3-1) will appear on the screen. The Main Menu allows you to select from fourteen setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu. -
Page 23: Standard Cmos Features
Use this menu to load the BIOS default values that are settings for optimal performances system operations. Load Standard Defaults Use this menu to load the BIOS default values that are factory settings for the s table performance system operation. Set Supervisor/User Password Use this menu to set User and Supervisor Passwords. -
Page 24: Advanced Bios Features
Year The year depends on the year of the BIOS. Time The time format is <hour><minute><second>. Primary Master/Primary Slave Secondary Master/Secondary Slave Press PgUp/<+> or PgDn/< – > to select Manual, None, Auto type. Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category. - Page 25 ↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults F7:Standard Defaults Anti-Virus Protection Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep.
-
Page 26: Advanced Chipset Features
Gate A20 Option Normal The A20 signal is controlled by keyboard controller or chipset hardware. Fast (default) The A20 signal is controlled by port 92 or chipset specific method. Typematic Rate Setting Keystrokes repeat at a rate determined by the keyboard controller. When enabled, the typematic rate and typematic delay can be selected. -
Page 27: Dram Timing Settings
System BIOS Cacheable Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled. Video RAM Cacheable Select Enabled allows caching of the video BIOS, resulting in better system performance. -
Page 28: Integrated Peripherals
If an insufficient number of cycles is allowed for the RAS to accumulate its charge before DRAM refresh, the refresh may be incomplete and the DRAM may fail to retain date. Fast gives faster performance; and Slow gives more stable performance. This field applies only when synchronous DRAM is installed in the system. -
Page 29: Onboard Device Function
Primary Master Auto Primary Slave Auto Menu Level >> Secondary Master PIO Auto Secondary Slave Auto Primary Master UDMA Auto Primary Slave UDMA Auto Secondary Master UDMA Auto Secondary Slave UDMA Auto IDE 32-bit Transfer Mode Enabled IDE HDD Block Mode Enabled Delay For HDD (Secs) ↑... -
Page 30: Onboard Super Io Function
↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults F7:Standard Defaults USB Controller Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB peripherals. The settings are: Enabled, Disabled. USB Keyboard Legacy Support Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard. -
Page 31: Power Management Setup
: Extended Capability Port SPP/EPP/ECP/ECP+EPP To operate the onboard parallel port as Standard Parallel Port only, choose “SPP.” To operate the onboard parallel port in the EPP modes simultaneously, choose “EPP.” By choosing “ECP”, the onboard parallel port will operate in ECP mode only. Choosing “ECP+EPP” will allow the onboard parallel port to support both the ECP and EPP modes simultaneously. -
Page 32: Pm Timer Reload Events
Blank Screen This option only writes blanks to the video buffer. V/H SYNC+Blank This selection will cause the system to turn off the vertical and horizontal synchronization ports and write blanks to the video buffer. Modem Use IRQ This determines the IRQ in which the MODEM can use. The settings are: 3, 4, 5, 7, 9, 10, 11, NA. -
Page 33: Irq Resources
CMOS Setup Utility – Copyright(C) 1984-2003 Award Software PnP/PCI Configurations Reset Configuration Data Disabled Item Help Resources Controlled By Manual x IRQ Resources Press Enter Menu Level > PCI/VGA Palette Snoop Disabled Assign IRQ For VGA Enabled ↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values... -
Page 34: Pc Health Status
IRQ-5 assigned to PCI Device IRQ-7 assigned to PCI Device Menu Level >> IRQ-9 assigned to PCI Device IRQ-10 assigned to PCI Device IRQ-11 assigned to PCI Device IRQ-12 assigned to PCI Device IRQ-14 assigned to PCI Device IRQ-15 assigned to PCI Device ↑... -
Page 35: Miscellaneous Control
Shutdown Temperature This item can let users setting the Shutdown temperature, when CPU temperature over this setting the system will auto shutdown to protect CPU. 3-11 Miscellaneous Control This section is for setting CPU Frequency/Voltage Control. CMOS Setup Utility – Copyright(C) 1984-2003 Award Software Miscellaneous Control CPU Clock Ratio Item Help... -
Page 36: Load Standard/Optimized Defaults
DRAM Clock at Next Boot is This item allows you select the DRAM Clock same as Host clock, or can add 33MHz when 100MHz/133MHz. The setting are 100MHz, 133MHz, 166MHz. PCI Clock Ratio This item allows you to set PCI Clock Ratio. The choice are: Host/3, Host/4, Host/5, Host/6. CPU Vcore Select This item allows you select CPU Vcore Voltage by increase 0.025V step by step from 1.6V to 1.850V the Default setting is Default (CPU manufacturer Default setting). -
Page 37: Chapter 4 Driver & Free Program Installation
also press <Esc> to abort the selection and not enter a password. To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm that the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely. -
Page 38: Inf Install Intel 845 Chipset System Driver
From MAGIC INSTALL MENU you may make 12 selections: 1. INF install Intel 845 chipset system driver 2. VGA install Intel 845G VGA driver 3. SOUND install ALC Audio Codec driver 4. LAN install RT810X LAN Controller driver 5. USB2.0 install USB 2.0 driver 6. -
Page 39: Vga Install Intel 845G Vga Driver
3. This chart shows motherboards supported by 4. Select if you want computer re-started click the driver click Yes Finish NOTE: MAGIC INSTALL will auto detect file path X:\INTEL845\INF\SETUP.EXE This driver supports WINDOWS 98SE/ME/2000/XP (NT4.0 do not require) 4-2 VGA install Intel 845G VGA Driver 1. - Page 40 4. If You Want Re-start Computer , Click Click YES, This is Announce CopyRight FINISH 4-3 SOUND Install ALC Audio Codec Driver 1. Click SOUND when MAGIC INSTALL 2. Then auto detect operation system language MENU appears edition, click OK, start to install DRIVER 3.
-
Page 41: Lan Install Rtl810X Lan Controller Driver
5. Sound Effect select and KaraOK Mode 6. Manual Sound Effect Setting Function Note: The path of the file For WIN98/NT4.0/WIN2K/XP is X:\CODEC\ALC\SETUP.EXE 4-4 LAN Install RTL810X LAN Controller Driver The path of the file: for WINDOWS 98SE is X:\RTLLAN\WIN98 for WINDOWS 98ME is X:\RTLLAN\WINME for WINDOWS NT4.0 is X:\RTLLAN\WINNT4 for WINDOWS 2000 is X:\RTLLAN\WIN2000... -
Page 42: Pc-Health Intel 845 Pc-Health Monitor
file path, change the directory to X:\RTLLAN\WIN98 (If OS is win9X) 4-5 PC-HEALTH Intel 845 PC-Health Monitor The path of the file is X:\INTEL845\HW30\SETUP.EXE (Only support WINDOWS 98SE/ME) In Windows 98 Winbond Hardware Doctor Monitoring Software needs some system files to copy in Utility that’s why it needs install PC-HEALTH twice to complete setup. -
Page 43: Magic Bios Install Bios Live Update Utility
1. Click Program → Winbond Hardware 2. After executing Winbond Hardware Doctor it Doctor → Hardware Doctor the Winbond supports system voltage, Fan speed and Hardware Doctor will appears CPU/SYSTEM Temperature. Because this is You can remove the Utility in Control Panel a On-time Monitoring program therefore the →... -
Page 44: Iaa Install Intel Application Accelerator Software
5. When On-line update BIOS the program will 6. Click Next if you need update BIOS, after auto-check your BIOS version upgrade BIOS, the system will clear CMOS and automatically restart Click Yes if you want to update the BIOS When System programming BIOS don’t turn otherwise choose No to exit off power, after finish update BIOS, the... -
Page 45: Pc-Cillin Install Pc-Cillin2002 Anti-Virus Program
The Intel Application Accelerator is designed to improve performance of the storage sub-system and overall system performance. This software delivers improved performance through several ingredient technologies (components). Certain components will be available only on Pentium ® 4 processor-based systems running Microsoft* windows* 2000 Professional. -
Page 46: How To Install Usb 2.0 Driver
5. Click INSTALL, Start to install the software 6. Setup Complete and click FINISH 7. After PC-CILLIN 2002 complete, Please 8. finish register process, we recommend register your information and get LICENSE select update item to download newest engine KEY from TREND MICRO web site, enter code and virus code your license key and click FINISH Note :... -
Page 47: How To Disable On-Board Sound
Copy utility program to your boot disc. You may copy from DRIVER CD X:\FLASH\AWDFLASH.EXE or download from our web site. STEP 3. Copy latest BIOS for 845GVFC from our web site to your boot disc. STEP 4. Insert your boot disc into A:, start the computer, type “Awdflash A:\845GVFCAxxx.BIN /SN/PY/CC/R”...
