Cartridge Specifications; Filter Cartridge Replacement - GE SmartWater GXWH35F Installation Instructions Manual

Performance Data
This system has been tested according to NSF/ANSI 42
for the reduction of the substances listed at right. The
concentration of the indicated substances in water
entering the system was reduced to a concentration
less than or equal to the permissible limit for water
leaving the system, as specified in NSF/ANSI 42.

Filter Cartridge Replacement

You should change your filter when the water flow is noticeably reduced or at least every 3 months.
Turn off water to filter. Water must be shut off from
1
an upstream valve.
Press the red pressure-release button to release
2
pressure.
Unscrew the filter canister and discard used filter.
3
Wash the filter canister with mild soap and water.
Do not use harsh cleaners or hot water.
Inspect the filter canister O-ring. Make sure it is
4
lightly lubricated with clean food-grade silicone
grease (silicone grease is available through GE
Parts and Service: 1.800.626.2002, part number
WS60S10005). Be sure the O-ring is seated in the
groove. It is recommended that you replace the
O-ring if it is damaged.
Place a new filter cartridge into the canister,
5
making sure it is centered and completely seated
on the bottom seal.
Reinstall the filter canister to the unit. Use the
6
canister wrench to tighten the canister. DO NOT
OVERTIGHTEN.
Installation Overview
NOTE: Be sure to allow a minimum space
"–2" under the filter for removing
of 1 1 ⁄
2
the sump to change the cartridge.

CARTRIDGE SPECIFICATIONS

FXHTC Cartridge
Substance
Standard 42
Chlorine
Test Conditions
Flow Rate: 4 gpm (15.1 Lpm)
pH: 7.5± 1
Inlet Pressure: 60 PSI (4.1 bar)
Temperature: 68°F ± 5°F (19.8°C ± 2.5°C)
Testing was performed under standard laboratory conditions; actual performance may vary.
Slowly turn on water to the filter by using the
7
upstream shut-off valve.
Press the red pressure-release button to remove
8
trapped air.
After installation, flush the cartridge for
9
15 minutes.
Red pressure-
release button
Filter
cartridge
Turn
clockwise
to remove
canister

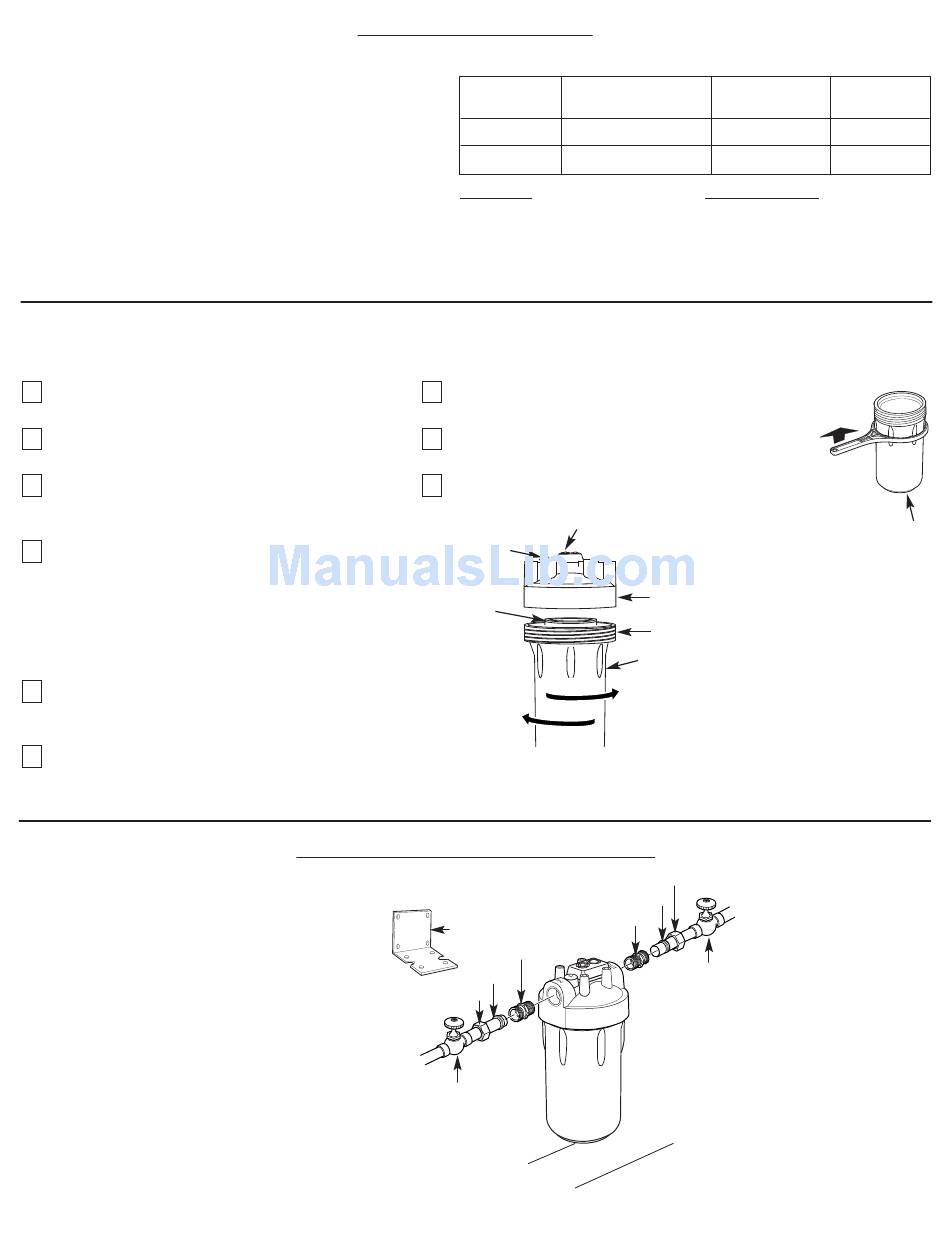

STEP-BY-STEP INSTALLATION INSTRUCTIONS
Mounting
bracket
Ferrule
Hex nut
Recommended
shut-off valve
2
Influent Challenge
Concentration
2.0 mg/L ± 10%
Remote timer
Head
O-ring seal
Filter canister
Turn
counterclockwise
to tighten
Hex nut
Ferrule
Fitting
Fitting
"–2"
1 1 ⁄
2
Reduction Average
Requirements Reduction
≥ 50%
93.1%
Operating Requirements
Pressure: 30–125 PSI (2.1–6.9 bar)
Turbidity: 5 NTU Max.
Temperature: 40°F–100°F (4.4°C–37.7°C)
Capacity: 30,000 gallons (113,562L) or 3 months
Turn canister wrench
clockwise to remove
Recommended
shut-off valve
Typical installation
Canister
