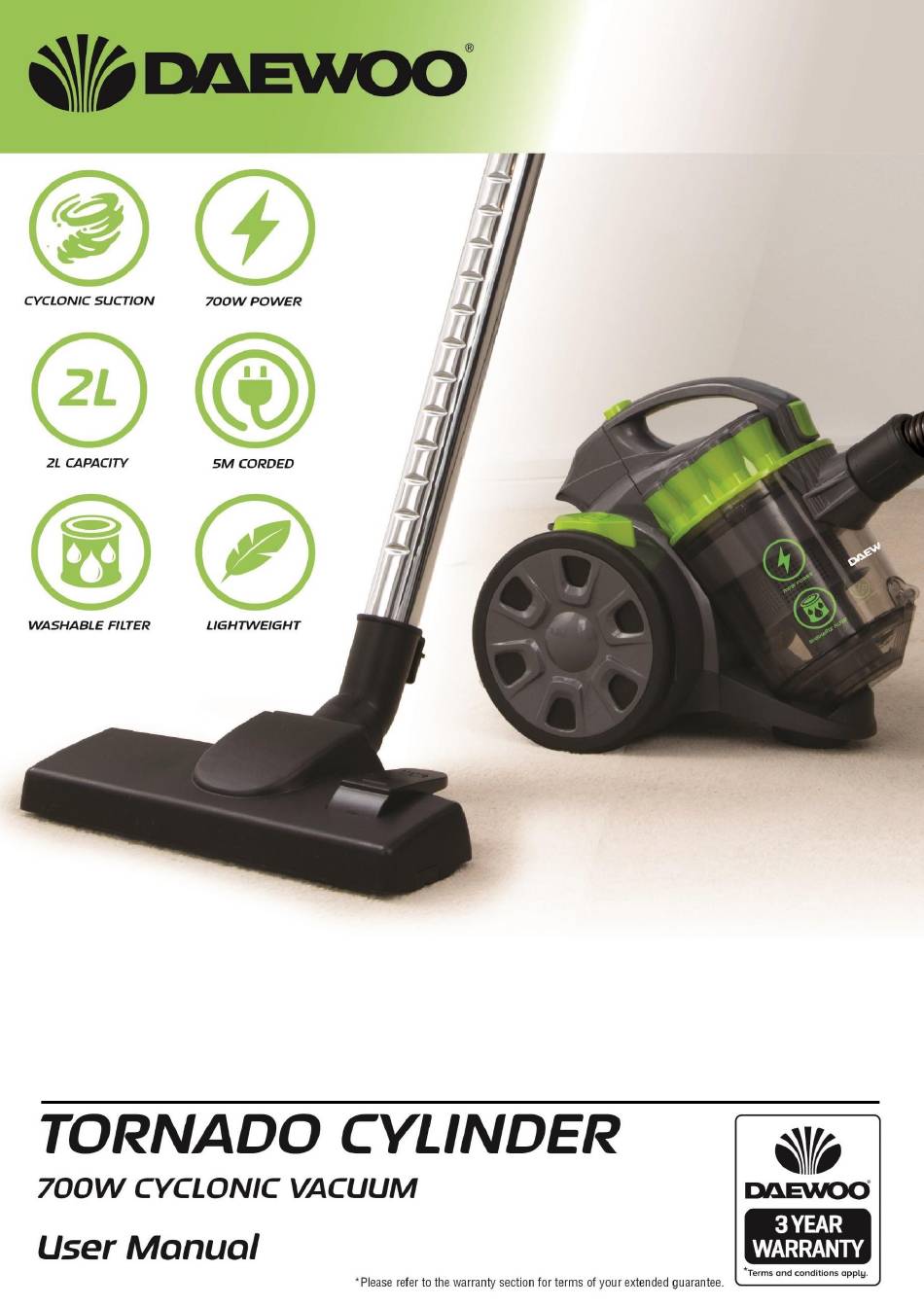

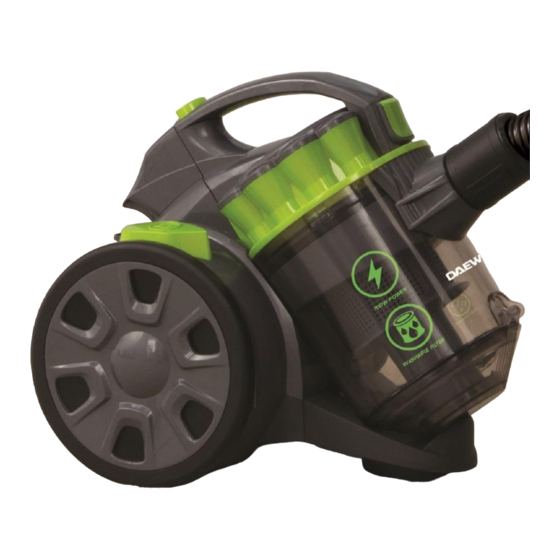

- Page 1 Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual Contents Page No. Contents Reading and Storing the User Manual Important Safety Instructions for Proper Use Explanation of Symbols Description of Parts – Overview Description of Parts – Accessories Description of Parts – Cylinder Detail... -
Page 3: Reading And Storing The User Manual
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product. - Page 4 Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual Repairs to electrical appliances should only be performed • by a qualified electrician. Improper repairs may place user at serious risk. DO NOT operate this appliance with a damaged plug or •...
- Page 5 Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual anything else that may reduce airflow. Avoid directing the appliance towards naked flames as the • air discharged may extinguish gas fires or pilot lights and may disturb ashes in open fires.
-
Page 6: Explanation Of Symbols
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements. Products labelled with this symbol conform to applicable provisions of the European Economic Area. -
Page 7: Description Of Parts - Overview
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual Description of Parts – Overview 1. Cyclonic Filter 2. Cylinder 3. On/off button 4. Rear Hepa Filter Cover 5. Power/speed controller 6. Mains cable & plug 7. Cylinder release button 8. -
Page 8: Assembling Your Vacuum Cleaner
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual Assembling Your Vacuum Cleaner CAUTION Ensure that the vacuum cleaner is not connected to the mains supply before using the attachments. Attaching the Flexible Hose (14) to the Vacuum Cleaner... -
Page 9: Using Your Vacuum Cleaner
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual Using Your Vacuum Cleaner 1. Fully reel out the Mains Cable and Plug (6) from the vacuum cleaner, being careful not the pull the cable out beyond the red mark but after the yellow mark. -
Page 10: Using The Power/Speed Controller
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual Using the Power/Speed Controller (5) This control is useful for varying the suction power. Push the control downwards to reduce power whilst cleaning Laminate, Vinyl floor, etc. and push the control upwards to increase suction power for carpets, rugs, etc. -
Page 11: Removing The Dust Compartment Filters
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual 3. Hold the Dust Compartment (10) over a dust bin and prise the Dust Release Catch (21) outwards slightly to open the door and allow the dust to fall out into the bin. - Page 12 Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual 2b. Above: Remove the Foam filter by 2a. Above: Remove the Hepa filter by pulling it upwards. pulling it upwards. Wash the filter in running water Wash the filter in running water until until the water runs clear.
-
Page 13: Removing The Outlet Hepa Filter
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual Removing the Outlet Hepa Filter 4. Above: Remove the Outlet Hepa filter Cover (4) by pushing the catch down on the cover and removing. 5. Left: Remove the Outlet Hepa Filter and wash the filter clean ensuring it is thoroughly dry before reuse. -
Page 14: Replacing The Dust Compartment Filters
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual Replacing the Dust Compartment Filters 1. Left: Lower the Cyclonic Filter (1) into the Dust Compartment (10). Note the position of the Cyclonic Filter (1) in relation to the Dust Compartment (10). - Page 15 Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual 2. Left: Replace the Foam filter smooth side up on top of the Cyclonic Filter (1) as shown left. 3.Below: Replace the Hepa filter on top of the Cyclonic Filter (1) as shown.
- Page 16 Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual 4. Right: Replace the Filter Cover (19) onto the Dust Compartment (10). Hold the Dust Compartment (10) and rotate the cover a short turn in the direction of the arrow as shown right to lock the cover in place.
-
Page 17: Replacing The Outlet Hepa Filter
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual Replacing the Outlet Hepa Filter 6. Right: Place the Outlet Hepa Filter into position…… 7. Left: …..ensure the two lugs (circled) at the top of the filter are locate on the pins inside the filter compartment. -
Page 18: Care And Maintenance Of Your Vacuum Cleaner
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual Care and Maintenance of your Vacuum Cleaner WARNING! Always disconnect the cleaner from the mains power supply before cleaning. • Clean outside of the cleaner with a clean damp cloth. Never clean with harsh or abrasive cleaners. -
Page 19: Technical Specification
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual WARNING! Ensure the filters are cleaned periodically according to the table above, failure to clean the filters regularly will severely impair the performance and permanent damage may occur to the appliance and may invalidate your warranty. -
Page 20: Troubleshooting Guide
Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual Troubleshooting Guide Problem Possible Cause Possible Solution Unit fails to turn on. The unit may not be Ensure the plug is fully properly plugged in. inserted into the socket The fuse may have and the socket is switched tripped. - Page 21 Tornado Cylinder 700W Cyclonic Vacuum Model No.: FLR00046 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 22 As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty vacuum should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
