Summary of Contents for Garmin Rino 750t

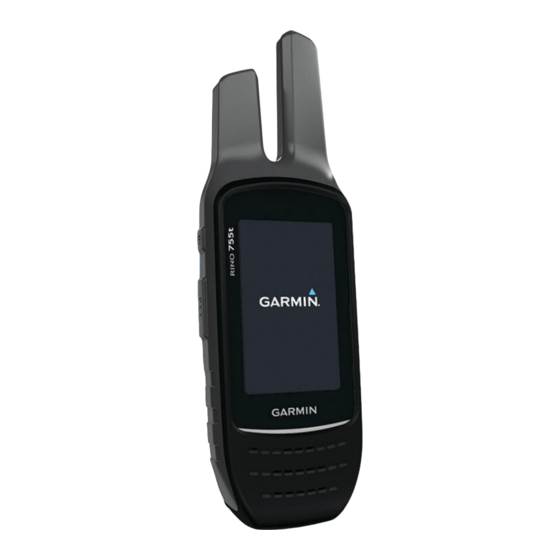

- Page 1 Rino 750/750t/755t ® Owner’s Manual...
- Page 2 © 2016 Garmin Ltd. or its subsidiaries All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com...
-
Page 3: Table Of Contents
Table of Contents Downloading Connect IQ Features.. 13 Weather..........13 Introduction........1 Monitoring SAME Weather Alerts..13 Device Overview........1 Opening the Weather App..... 13 Battery Information......2 Viewing Weather Conditions and Installing the Lithium-ion Battery..2 Forecasts........... 14 Installing AA Batteries......4 Viewing SAME Weather Alerts on the Turning On the Device...... - Page 4 Viewing an Activity History....29 Calibrating the Barometric Deleting an Activity from Your Altimeter..........23 History..........29 Using Garmin Connect...... 29 Waypoints........23 Optional Fitness Accessories... 29 Marking Your Current Location as a About Heart Rate Zones....... 30 Waypoint..........23 Fitness Goals........
- Page 5 Configuring the Maps......33 Viewing Device Information....52 Map Settings........33 Troubleshooting......52 Advanced Map Settings....33 System Settings........34 My handheld device is not Satellite Settings....... 34 responding..........52 GPS and GLONASS......34 My device does not turn on....52 Appearance Settings......
-
Page 7: Introduction
Introduction WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. Device Overview GMRS antenna GPS antenna Camera lens and flash (not available on all models) Mini-USB port (under weather cap) 2.5 mm headset jack (under weather cap) Battery cover D-ring microSD... -
Page 8: Battery Information
Battery Information WARNING The temperature rating for the device may exceed the usable range of some batteries. Alkaline batteries can rupture at high temperatures. Do not use a sharp object to remove batteries. CAUTION Contact your local waste disposal department to properly recycle the batteries. NOTICE Alkaline batteries lose a significant amount of their capacity as the temperature decreases. - Page 9 To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer. Do not attempt to use the device to charge a battery that was not provided by Garmin . Attempting to charge a ®...
-
Page 10: Installing Aa Batteries
Installing AA Batteries Instead of the Lithium-Ion battery pack (Installing the Lithium-ion Battery, page 2), you can use four alkaline, NiMH, or lithium AA batteries with an optional AA battery pack (not included). This is useful when you are on the trail and cannot charge the Lithium-Ion battery pack. -
Page 11: Turning On The Device
6 Press and hold the battery pack in place. 7 Turn the D-ring clockwise to secure the battery pack onto the device. Turning On the Device Hold Device Operation You can operate this device using a combination of hardware key and touchscreen actions. Introduction... -
Page 12: Opening The App Drawer
Swipe down to view widgets (Viewing Widgets, page 6) and the battery gauge. Widgets Select to transmit an attention tone on the current channel. Hold to send an emergency alert (Emergency Alerts, page 11). You can customize the function of this key (Customizing the Keys, page 31). -
Page 13: Turning On Battery Save Mode
Turning On Battery Save Mode You can use battery save mode to prolong the battery life. From the app drawer, select Setup > Display > Battery Save > On. In battery save mode, the screen shuts off when the backlight times out. You can select to turn on the screen. -
Page 14: Opening The Radio App
Opening the Radio App You can manage your channel, code, and other radio settings in the radio app. From the app drawer, select Radio. TIP: You can also select the radio dashboard at the top of the main menu to open the radio app. Adjusting the Radio Volume 1 From any screen, select the volume keys to change the radio volume. -
Page 15: Selecting A Channel
Squelch codes allow you to filter calls from other users on the same channel, so you hear only the radios you want to hear. Calls on the channel that are not using the same squelch code in the same squelch tone mode are ignored. -
Page 16: Repeater Channels
Repeater Channels This device can use GMRS repeater channels in the United States, and CBRS/PRS repeater channels in Australia and New Zealand. GMRS repeater channels are not available in Canada. Repeater channels use repeaters, when available, to enable communication around obstacles or increase transmission distance. -
Page 17: Navigating To A Contact
Navigating to a Contact 1 From the app drawer, select Contacts. TIP: To open the contacts app from the radio app, select 2 Select a contact. 3 Select View Map > Go. 4 Follow to the contact's location. Notes You can send short notes to other Rino users on your current channel and code. You can review previously received notes from your contacts. -
Page 18: Radio App Settings
Phone notifications: Displays phone notifications and messages on your Rino 750/750t/755t device. Activity uploads to Garmin Connect: Automatically sends your activity to your Garmin Connect account as soon as you finish recording the activity. Connect IQ: Allows you to extend your device features with widgets, data fields, and apps. -
Page 19: Pairing Your Smartphone
Connect IQ Features You can add Connect IQ features to your device from Garmin and other providers using the Connect IQ app. You can customize your device with data fields, widgets, and apps. Data Fields: Allow you to download new data fields that present sensor, activity, and history data in new ways. -
Page 20: Viewing Weather Conditions And Forecasts
1 From the app drawer, select Setup > Geocaching > Register Device. An activation code appears. 2 Follow the on-screen instructions. 3 Select Confirm Registration. Connecting to Geocaching.com After you register, you can view geocaches from www.geocaching.com on your device while connected wirelessly. • Connect to the Garmin Connect app. Geocaches... -
Page 21: Searching For A Geocache
Searching for a Geocache You can search the geocaches loaded on your device. If you are connected to geocaching.com, you can search live geocache data and download geocaches. NOTE: You can download detailed information for more than three geocaches per day with a premium membership. -
Page 22: Logging The Attempt
Logging the Attempt After you attempt to find a geocache, you can log your results. 1 While navigating to a geocache, from the app drawer, select Geocaching > Log. 2 Select Found, Did Not Find, Needs Repair, or Unattempted. 3 Select an option: •... -
Page 23: Downloading Geocaches Using A Computer
A chirp is a small Garmin accessory that is programmed and left in a geocache. You can use your device to find a chirp in a geocache. For more information about the chirp, see the chirp Owner's Manual at www.garmin.com. -
Page 24: Recording An Activity
Recording an Activity By default, the device begins a recreational activity automatically when you turn it on. 1 Select an option: • To record the default recreational activity that began automatically when you turned on the device, proceed to step 4. •... -
Page 25: Customizing Your Activity Log
Customizing Your Activity Log You can customize how your device displays and records activities. 1 From the app drawer, select Activity History > Current Activity > 2 Select an option: • To change the color of the activity line on the map, select Color. •... -
Page 26: Viewing The Elevation Plot Of An Activity
Viewing the Elevation Plot of an Activity 1 From the app drawer, select Activity History. 2 Select an activity. 3 Select Saving a Location on an Activity 1 From the app drawer, select Activity History. 2 Select an activity. 3 Select 4 Select a location on the activity. -
Page 27: Navigating With The Map
Detailed maps may contain additional points of interest, such as restaurants or ® marine services. For more information, go to http://buy.garmin.com or contact your Garmin dealer. Finding an Address You can use optional City Navigator maps to search for addresses (Optional Maps, page 21). -
Page 28: Calibrating The Compass
Calibrating the Compass NOTICE Calibrate the electronic compass outdoors. To improve heading accuracy, do not stand near objects that influence magnetic fields, such as vehicles, buildings, and overhead power lines. Your device was already calibrated at the factory, and the device uses automatic calibration by default. If you experience irregular compass behavior, for example, after moving long distances or after extreme temperature changes, you can manually calibrate the compass. -
Page 29: Elevation Plot
Elevation Plot By default, the elevation plot displays the elevation over the distance traveled. The top chart displays the full track, and the bottom chart can display a portion of the track. You can touch any point on either chart to view details about that point. -
Page 30: Finding A Waypoint
Finding a Waypoint 1 From the app drawer, select Waypoint Manager. 2 If necessary, select to narrow the search. 3 If necessary, select an option: • Select Spell Search to search using the name of the waypoint. • Select Select Symbol to search using the symbol of the waypoint. •... -
Page 31: Routes
Routes A route is a sequence of waypoints or locations that leads you to your final destination. Creating a Route Using Route Planner A route can include many waypoints, and it should include at least a starting point and one destination. 1 From the app drawer, select Route Planner >... -
Page 32: Deleting A Route
Deleting a Route 1 From the app drawer, select Route Planner. 2 Select a route. 3 Select Delete Route. Viewing the Active Route 1 While navigating a route, from the app drawer, select Active Route. 2 Select a point in the route to view additional details. Reversing a Route You can switch the start and end points of your route to navigate the route in reverse. -
Page 33: Applications
Applications Sending and Receiving Data Wirelessly Before you can share data wirelessly, you must be within 3 m (10 ft.) of a compatible device. Your device can send and receive data when paired with another compatible device using Bluetooth or ANT+ ® wireless technology. -
Page 34: Starting The Countdown Timer
Starting the Countdown Timer 1 From the app drawer, select Alarm Clock > > Timer. 2 Select to set the time. 3 Select Start Timer. Opening the Stopwatch From the app drawer, select Stopwatch. Satellite Page The satellite page shows your current location, GPS accuracy, satellite locations, and signal strength. Changing the Satellite View 1 From the app drawer, select Satellite. -
Page 35: Hiding Notifications
NOTE: History is not recorded while the timer is stopped or paused. When the device memory is full, a message appears. The device does not automatically delete or overwrite your history. You can upload your history to Garmin Connect (Using Garmin Connect, page 29) periodically to keep... -
Page 36: About Heart Rate Zones
Tips for Pairing ANT+ Accessories with Your Garmin Device • Verify that the ANT+ accessory is compatible with your Garmin device. • Before you pair the ANT+ accessory with your Garmin device, move 10 m (32.9 ft.) away from other ANT+ accessories. -
Page 37: Customizing The Keys
Customizing the Keys You can customize some device key actions to provide quick access to menus, settings, apps, or other device functions. 1 From the app drawer, select Setup > System > Configure Keys. 2 Select Power Key or Call Key. 3 Select Single Tap, Double Tap, or Hold. -
Page 38: Adding A Shortcut To The Main Menu
Adding a Shortcut to the Main Menu You can add shortcuts to the application drawer, or to the main menu or favorites dashboard when the device is in classic mode. You can create shortcuts to enable the device to perform multiple actions simultaneously. If the shortcut does not appear in the list, you can create it (Creating a Shortcut, page 32). -
Page 39: Display Settings
Display Settings From the app drawer, select Setup > Display. Backlight Timeout: Sets the length of time before the backlight turns off. Orientation Lock: Locks the screen orientation in portrait or landscape mode, or allows the screen to change orientation automatically based on the device orientation. Screen Capture: Allows you to save the image on the device screen. -
Page 40: System Settings
Text Language: Sets the text language on the device. NOTE: Changing the text language does not change the language of user-entered data or map data. Interface: Sets the communication interface mode to Garmin Spanner, Garmin Serial, NMEA In/Out, Text Out, RTCM, or MTP. -
Page 41: Routing Settings
Routing Settings The available routing settings vary based on the activity selected. From the app drawer, select Setup > Routing. Activity: Sets an activity used for transportation while routing. The device calculates routes optimized for the type of activity you are doing. Calculation Method: Sets the method used to calculate your route. -
Page 42: Changing The Units Of Measure
Searching: Allows the device to search for a geocache containing a chirp accessory (Enabling chirp Searching, page 17). Program chirp: Programs the chirp accessory. See the chirp Owner's Manual at www.garmin.com. Filter Setup: Allows you to create and save custom filters for geocaches (Saving a Custom Geocache Filter, page 16). -
Page 43: Marking Laps By Distance
Marking Laps by Distance You can use the Auto Lap feature to automatically mark the lap at a specific distance. This feature is helpful for ® comparing your performance over different parts of an activity. 1 From the app drawer, select Setup > Fitness > Auto Lap. 2 Enter a value, and select Marine Settings From the app drawer, select Setup >... -
Page 44: Device Information
On your computer, install Garmin Express (www.garmin.com/express). On your smartphone, install the Garmin ™ Connect app. This provides easy access to these services for Garmin devices: • Software updates • Map updates • Data uploads to Garmin Connect • Product registration Maximizing Battery Life You can do several things to extend the life of the batteries. -
Page 45: Device Care
• GPX route, track, and waypoint files. • GPX geocache files (Downloading Geocaches Using a Computer, page 17). • JPEG photo files. • GPI custom POI files from the Garmin POI Loader. Go to www.garmin.com/products/poiloader. • FIT files for exporting to Garmin Connect. Device Information... -
Page 46: Installing A Memory Card
Installing a Memory Card You can install a microSD memory card for additional storage or pre-loaded maps. 1 Turn the D-ring counter-clockwise, and pull up to remove the battery pack. 2 In the battery compartment, slide the card holder toward the top of the device, and lift up. 3 Place the memory card with the contacts facing down. -
Page 47: Deleting Files
GMRS: 0.5, 2.0, or 5.0 W (5.0 W is available only in the United States, and only when using the lithium-ion battery pack. ) Radio output power FRS: 0.5 W (available only in Canada) The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating. Device Information... -
Page 48: Radio Frequency Charts
Radio Frequency Charts GMRS Radio Frequencies Rino models sold in the United States and Canada use these frequencies. NOTE: If you plan to use this device in countries outside of the United States or Canada, you should check with the government of that country for any restrictions on GMRS use. Device Information... - Page 49 Channel Number Transmit Frequency (MHz) Receive Frequency (MHz) Channel Description 462.5625 462.5625 GMRS Interstitial 1 462.5875 462.5875 GMRS Interstitial 2 462.6125 462.6125 GMRS Interstitial 3 462.6375 462.6375 GMRS Interstitial 4 462.6625 462.6625 GMRS Interstitial 5 462.6875 462.6875 GMRS Interstitial 6 462.7125 462.7125 GMRS Interstitial 7...
- Page 50 CBRS/PRS Radio Frequencies Rino models sold in Australia and New Zealand use these frequencies. NOTE: If you plan to use this device in countries outside of Australia or New Zealand, you should check with the government of that country for any restrictions on CBRS or PRS use. Device Information...
- Page 51 Channel Number Frequency (MHz) Channel Description 476.4250 Repeater channel 476.4500 Repeater channel 476.4750 Repeater channel 476.5000 Repeater channel 476.5250 Emergency repeater channel: reserved 476.5500 Repeater channel 476.5750 Repeater channel 476.6000 Repeater channel 476.6250 General chat channel 476.6500 4WD clubs or convoys and national parks 476.6750 Call channel 476.7000...
- Page 52 Channel Number Frequency (MHz) Channel Description 477.2000 Repeater input 477.2250 Repeater input 477.2500 Repeater input 477.2750 Emergency repeater input: reserved 477.3000 Repeater input 477.3250 Repeater input 477.3500 Repeater input 477.3750 General chat channel 477.4000 Road safety channel Australia wide 476.4375 Repeater channel 476.4625 Repeater channel...
- Page 53 Channel Number Frequency (MHz) Channel Description 477.0125 General chat channel 477.0375 General chat channel 477.0625 General chat channel 477.0875 General chat channel 477.1125 General chat channel 477.1375 General chat channel 477.1625 General chat channel 477.1875 Repeater input 477.2125 Repeater input 477.2375 Repeater input 477.2625...
- Page 54 CTCSS Frequencies CTCSS frequencies and squelch codes may differ in some radios from third-party manufacturers. For the best results, you should compare CTCSS frequency information from your third-party radio with the information in this table. Device Information...
- Page 55 Channel Number Frequency (MHz) 199.5 67.0 71.9 74.4 77.0 79.7 82.5 85.4 88.5 91.5 94.8 97.4 100.0 103.5 107.2 110.9 114.8 118.8 123.0 127.3 131.8 136.5 141.3 146.2 151.4 156.7 162.2 167.9 173.8 179.9 186.2 192.8 Device Information...
- Page 56 Channel Number Frequency (MHz) 203.5 210.7 218.1 225.7 233.6 241.8 250.3 DCS Codes DCS uses a digital signature and is not frequency-based. DCS squelch codes may differ in some radios from third-party manufacturers. For the best results, you should compare the DCS-code information for your third- party radio with the information in this table.
-
Page 57: Fcc Licensing Information
DCS Code DCS Code DCS Code FCC Licensing Information The Rino two-way radio operates on General Mobile Radio Service (GMRS) frequencies regulated by the Federal Communications Commission (FCC) in the United States. Operation on the GMRS frequencies is subject to rules as specified in 47 C.F.R. -
Page 58: Viewing Device Information
The Bluetooth option must be enabled. • Enable Bluetooth wireless technology on your phone and bring your phone within 10 m (33 ft.) of the device. • Go to www.garmin.com/bluetooth for more help. My device is not acquiring satellite signals • Verify the GPS simulator is turned off (Simulating a Location, page 28). -
Page 59: Appendix
Appendix tempe ™ The tempe is an ANT+ wireless temperature sensor. You can attach the sensor to a secure strap or loop where it is exposed to ambient air, and therefore, provides a consistent source of accurate temperature data. You must pair the tempe with your device to display temperature data from the tempe. - Page 60 Elev Abv Ground: The altitude of your current location above ground level (if maps contain sufficient elevation information). Elevation: The altitude of your current location above or below sea level. Elevation - Maximum: The highest elevation reached since the last reset. Elevation - Minimum: The lowest elevation reached since the last reset.
- Page 61 Speed: The current rate of travel. Speed Limit: The reported speed limit for the road. Not available in all maps and in all areas. Always rely on posted road signs for actual speed limits. Speed - Maximum: The highest speed reached since the last reset. Speed - Moving Avg.: The average speed while moving since the last reset.
-
Page 62: Heart Rate Zone Calculations
Heart Rate Zone Calculations % of Maximum Heart Zone Perceived Exertion Benefits Rate Beginning-level aerobic training, 50–60% Relaxed, easy pace, rhythmic breathing reduces stress Comfortable pace, slightly deeper Basic cardiovascular training, good 60–70% breathing, conversation possible recovery pace Moderate pace, more difficult to hold Improved aerobic capacity, optimal 70–80% conversation... - Page 64 April 2023 GUID-35474A49-ADDB-451D-A6DA-AA003B2A4ACC v7...
