Protech Systems MH-5102 Quick Reference Manual

MH-5102
Quick
Reference
Guide
Specifications
System
®
CPU Type Intel Atom x5-Z8550 Processor
Memory Support 1 x 2GB LPDDR3 / 2x 2GB LPDDR3
O.S. WIN10 IoT Enterprise LTSB 2016 OS (64 bits) / WIN10 professional (64-bits)
Audio 1 x 1W Speaker, 1 x Audio Jack (headset microphone)
Battery Pack Main battery (7900mAh) & RTC battery
Wi-Fi + Bluetooth module 802.11 ac/a/b/g/n 2T2R wireless LAN and Bluetooth 4.1 M.2 module
G-Sensor Accelerator sensor
Ambient Light Sensor Yes
IP Rating IP54 (front panel only)
Dimensions & Weight 259.9 x 175.9 x 17.7mm (WxHxD) / 770g (without any optional devices attached)
Power Supply DC 12V/2A/24W or 24V/1A/24W
Certification CE/FCC/TELEC
Display
LCD Panel 10.1" IPS display with 1920 x 1200 FHD resolution (Brightness: 500 cd/m
Touch Panel Multi-touch projected capacitive / OCA direct bonding of touch + panel for Sunlight
readability and with Anti-Fingerprint coating
Integrated Devices (Optional)
Barcode Scanner Honeywell 2D Barcode scanner
4G/GPS Module 4G+GNSS mPCIe full-sized card (band: B1/B3/B5/B7/B8/B20)
NFC Module NXP NPC300 main chip module
Front & Rear Camera USB 5M pixels camera module with autofocus function
MSR Module Meet ISO 7811, support AAMVA / JIS II format, support single / dual / triple tracks
Smart Card Reader Module USB port co-layout with 3G (Meet ISO 7816 & EMV Level 1 & 2 Certification)
Storage (SDIO Interface)
Storage 1 x 32GB / 64GB eMMC
External I/O Ports
DC-IN Jack 1 x DC-IN Jack
Cradle Connector 1 x POGO pins (1x10 pins)
USB Standard USB 3.0 (Type A) x1 for external expansion
SD (Secure Digital) MicroSD Slot for internal memory expansion
SIM Card Slot For 4G LTE network services
Audio Jack Audio Jack x 1
Environment
Operating Temp. 0°C~ 40°C (32°F ~ 104°F)
Storage Temp. -20°C~ 60°C (-4°F~ 140°F)
Operating Humidity 0%~ 90% (no condensation)
Ver. Q1
All Rights Reserved. Copyright 2019
MH-5102
2
)
Packing Checklist
If you discover any item below are damaged or
lost, please contact your vendor immediately.
MH-5102 Integrated Pad
This Quick Reference Guide
AC Power Adaptor
Hand Strap (Optional)
Neck Strap (Optional)
MH-5102 Driver Utilities and User Manual file have been
stored in the Integrated Pad system:
File Path: C:\MH-5102_v1.0
System View

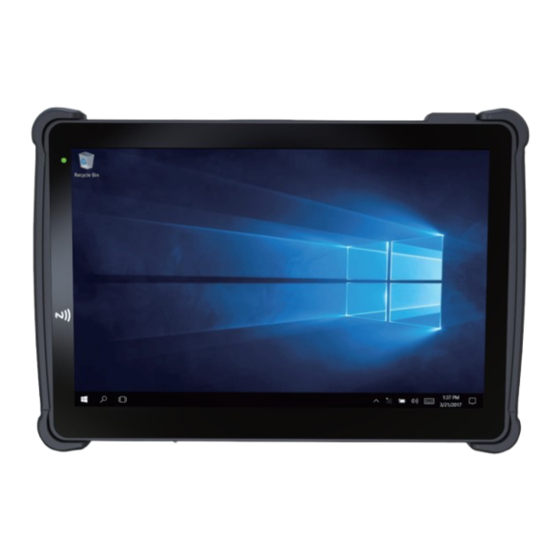

Front View
Power LED
267.84
NFC
Side View
Scan Button
Bottom View
POGO Pins
MH-5102
x1
x1
x1
x1
x1
MH-5102
Unit: mm
Rear View
MSR
Camera
Smart Card Reader
Battery Pack
25.2
Scan Button
Power Button
USB 3.0 Port
DC-IN
Top View
MSR Barcode Scanner
Earphone
Jack
17.7
