HCD/HMD/HCF/HMF1000R _ _
HCD/HMD/HCF/HMF1400R _ _
HCD/HMD/HCF/HMF1650R _ _
(See model number confi gurator on page 2 for details.)
Order parts online
www.follettice.com
Stock Module Identification Plate
Module No.
Product
Service No.
Drop-in Remote Condensing
RIDE™ remote ice delivery
equipment
Stock Module Identification Plate
Module No.
Module No.
Stock Module Identification Plate
208264
208264
Product
Product
Service No.
Service No.
Vision™ Remote Condensing
RIDE remote ice delivery equipment
™
Horizon
208264
Harmony Remote Condensing
Harmony™ Remote Condensing
RIDE remote ice delivery equipment
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Ice Machine Installation Instructions
for Remote Condensing Unit
Stock Module Identification Plate
208264
Product
Module No.
Service No.

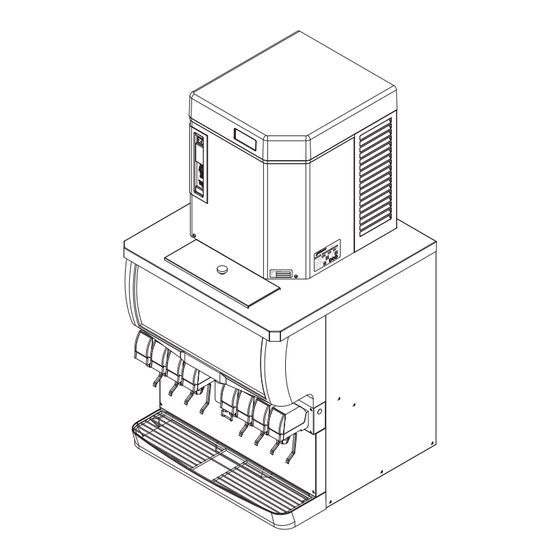

Top Mount
Module No.
Stock Module Identification Plate
208264
Product
Service No.
remote
condensing unit
Stock Module Identification Plate
208264
Module No.
Product
Service No.
Bin Remote Condensing
Top Mount
Bin Remote Condensing
RIDE remote ice delivery equipment
00160002R09
Module No.
Stock Module Identification Plate
208264
Product
Service No.
Advertisement
Table of Contents
Related Manuals for Follett Horizon HCD1000R Series
Summary of Contents for Follett Horizon HCD1000R Series

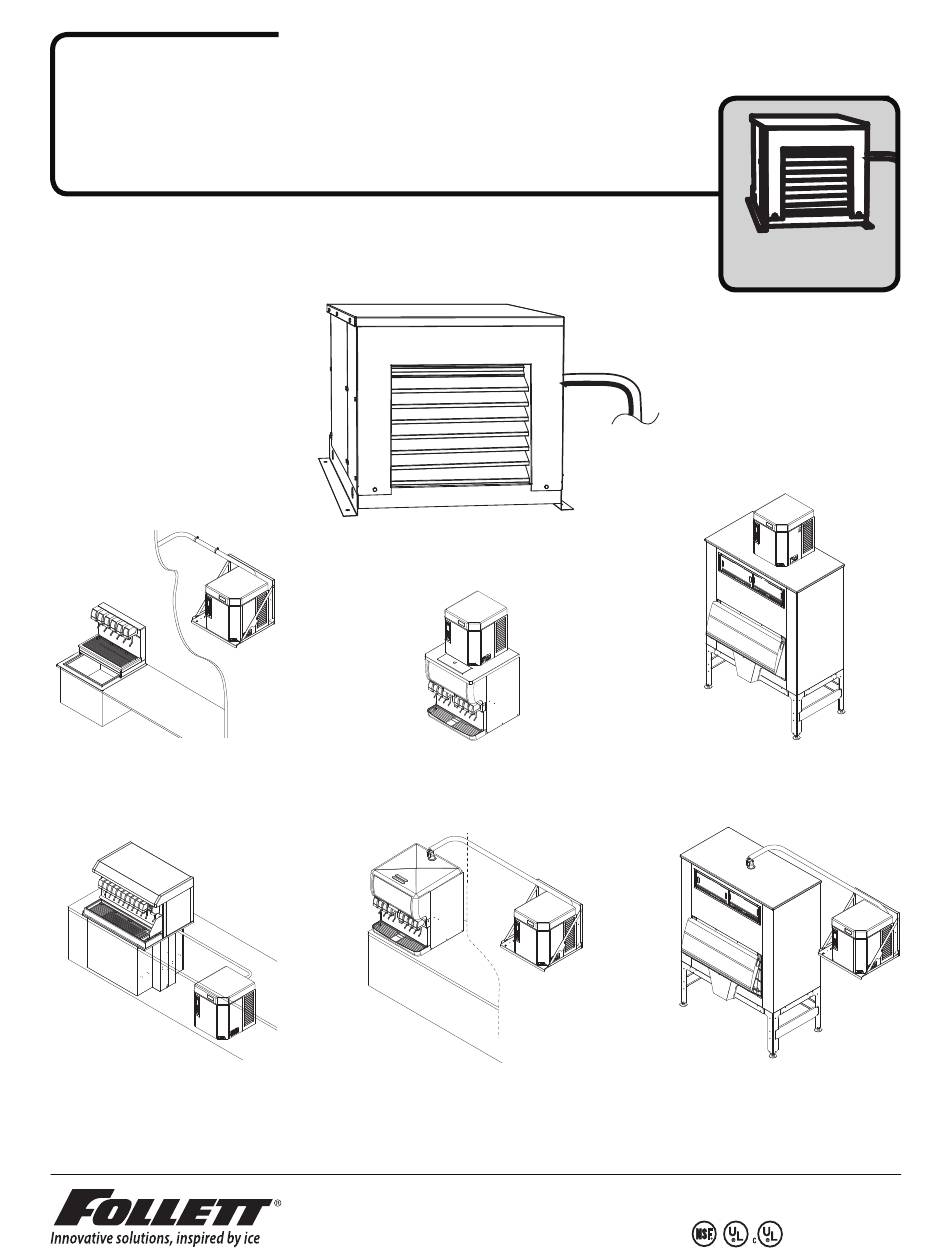

- Page 1 ™ Horizon Ice Machine Installation Instructions for Remote Condensing Unit HCD/HMD/HCF/HMF1000R _ _ HCD/HMD/HCF/HMF1400R _ _ HCD/HMD/HCF/HMF1650R _ _ (See model number confi gurator on page 2 for details.) Order parts online remote www.follettice.com condensing unit Stock Module Identification Plate 208264 Module No.
- Page 2 Read and complete the following 8 installation steps Unpack Site preparation Condenser installation Refrigeration line assembly Pressure adjustment Startup and test Chewblet ® Ice Machine Model Number Configurations 1400 Icemaker Voltage Series Condenser Application Configuration MC Maestro™ C 208-230/60/1 (icemaking head) 400 up to A Air-cooled, self-contained V Vision™...
-
Page 3: Site Preparation
Unpack Carefully unpack and inspect the contents of your condensing unit Site preparation To ensure proper performance, ease of service and warranty coverage, it is critical that you follow the requirements detailed in this manual. If you cannot meet these requirements or have questions, call our technical service group at 877.612.5086 for installation support. - Page 4 Condenser installation specifi cations CONDENSER UNIT ➍ 100' max. (30,5m) maximum line rise ➋ S-trap required ➊ +35' (+10,7m) CONDENSER UNIT +20' P-trap (+6,1m) required (+0,9m) MODEL CORPORATION SERIAL NO Easton Pennsylvania PART NO FULL LOAD AMPS VOLTS PHASE SINGLE MOTOR COMPRESSOR THERMALLY PROTECTED REFRIGERANT CHARGE...
-
Page 5: Condenser Installation
Condenser installation Install condensing unit Electrical connections Horizon Remote Single-Phase • 208-230/60/1 1000 - 15 amp circuit 1400 - 30 amp circuit 1650 - 50 amp circuit Horizon Remote 3-Phase • 208-230/60/3 1000 - 15 amp circuit 1400 - 25 amp circuit 1650 - 35 amp circuit •... -
Page 6: Refrigeration Line Installation
Refrigeration line installation Refrigeration line installation: 7/8" suction / 3/8" liquid line (1650) 5/8" suction / 3/8" liquid line (1000, 1400) CAUTION • The installer of the refrigeration line set must be USA Government Environmental Protection Agency (EPA) certifi ed in proper refrigeration handling and service procedures •... -
Page 7: Pressure Adjustment
Pressure adjustment Check pressure adjustment 1. The pressure control is located in the electrical box near the refrigeration line set connection point. 2. Verify the control is set for system operation of 10 psi cut out and 30 psi cut in 3. - Page 8 Harmony, Horizon, Ice Manager, RIDE, and Vision are trademarks of Follett Corporation. Chewblet and Follett are registered trademarks of Follett Corporation, registered in US. 801 Church Lane • Easton, PA 18040, USA 00160002R09 Toll free (877) 612-5086 • +1 (610) 252-7301 4/12 www.follettice.com...
