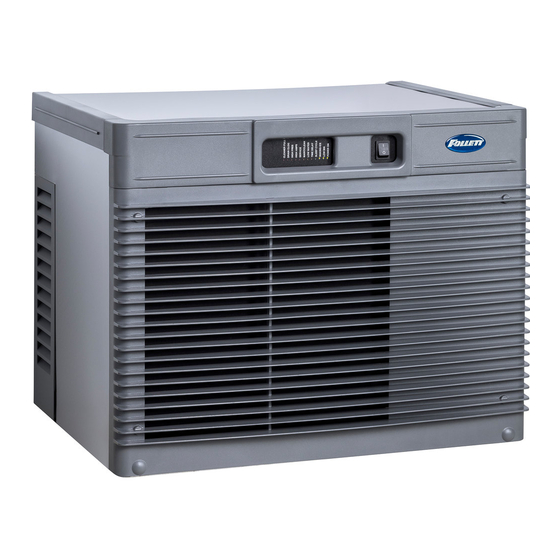

Follett Horizon Elite 1010 Series Installation Instructions Manual

HCD/HMD/HCF/HMF1010R _ _
HCD/HMD/HCF/HMF1410R _ _
1010/1410 single phase (Tecumseh)
1010 three phase (Tecumseh)
D1
W1 Width
D1 Depth
H1 Height
Electrical
Operating power
Minimum circuit ampacity
Maximum overcurrent protection
Outdoor condensing unit operating limits
(air temperature)
Maximum refrigerant line run length
Maximum line rise above evaporator
Evaporator mounting above condenser
Maximum refrigeration line drop without oil trap 15' (4.6 m)
Refrigerant charge
Approximate ship weight
Approximate net weight
Horizon Elite
™
W1
H1
Horizon Elite 1010 series
36.25" (91.4 cm) – all models
25.50" (64.8 cm) – all models
26.10" (66.3 cm) – all models
single phase – 208-230/60/1
three phase – 208-230/60/3
single phase – 2.4 kW
three phase – 2.2 kW
single phase – 10.7 A
three phase – 9.9 A
single phase – 15 A
three phase – 15 A
min -20 F (-29 C)
max 120 F (49 C)
100' (30.5 m)
35' (10.7 m)
15' (4.6 m)
12.5 lb required at installation
260 lb (118 kg)
250 lb (114 kg)
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com

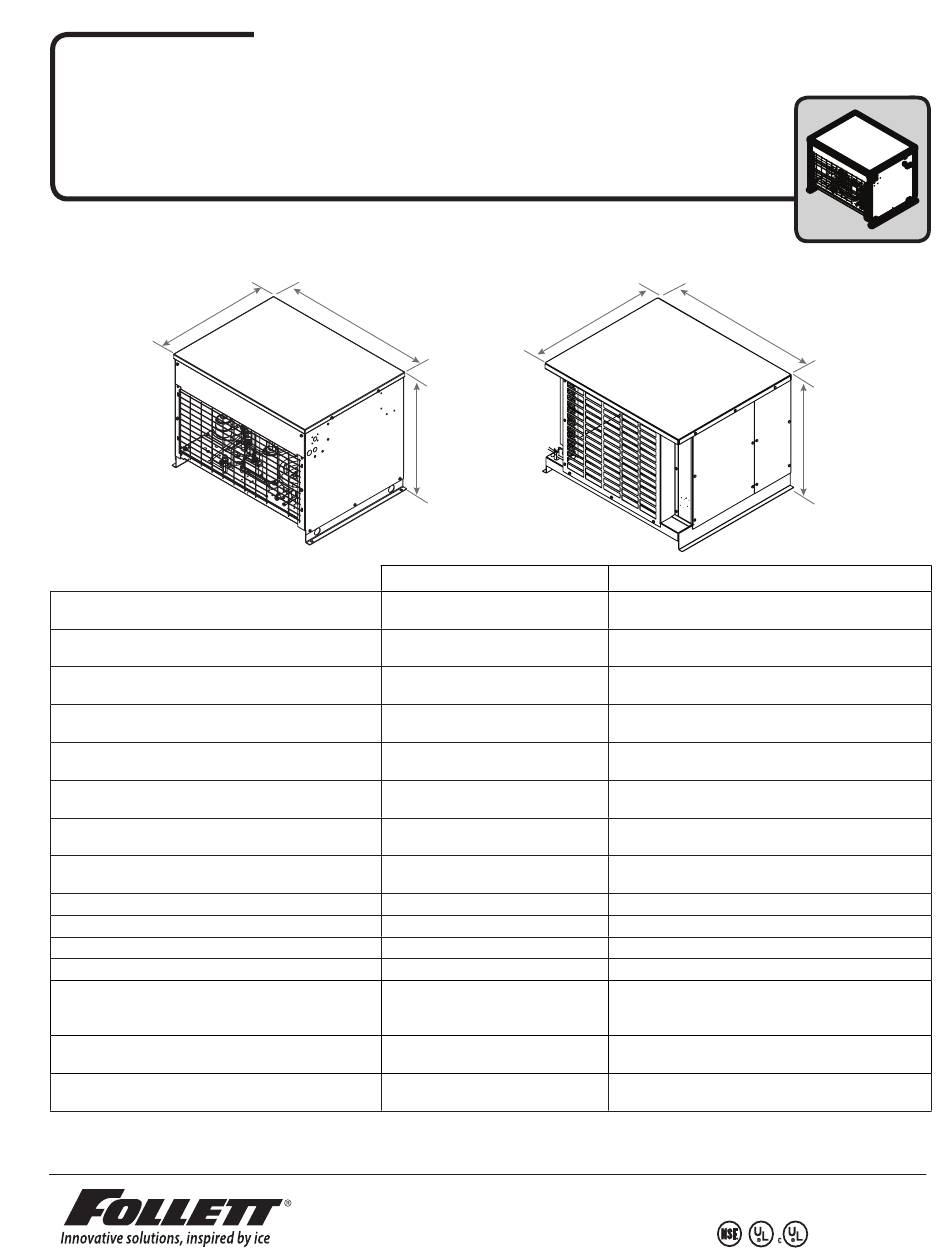

Ice Machine Installation Instructions
for Remote Condensing Unit
1410 three phase (Larkin)
D1
36.25" (90.1 cm) – single phase (Tecumseh)
37.75" (95.9 cm) – three phase (Larkin)
25.50" (64.8 cm) – single phase (Tecumseh)
28.25" (71.6 cm) – three phase (Larkin)
26.10" (66.3 cm) – single phase
19.75" (50.2 cm) – three phase (Larkin)
single phase – 208-230/60/1 (Tecumseh)
three phase – 208-230/60/3 (Larkin)
single phase – 4.2 kW (Tecumseh)
three phase – 3.0 kW (Larkin)
single phase – 19.3 A (Tecumseh)
three phase – 15 A (Larkin)
single phase – 30 A (Tecumseh)
three phase – 15 A (Larkin)
min -20 F (-29 C)
max 120 F (49 C)
100' (30.5 m)
35' (10.7 m)
15' (4.6 m)
15' (4.6 m)
12.5 lb – single phase (Tecumseh)
8.5 lb – three phase (Larkin)
required at installation
270 lb (122 kg) – single phase (Tecumseh)
230 lb (104 kg) – three phase (Larkin)
260 lb (118 kg) – single phase (Tecumseh)
210 lb (95 kg) – three phase (Larkin)
W1
H1
Horizon Elite 1410 series
01113356R02
