HSLG OPERATOR INSTALLATION GUIDE
HSLG
MODEL
REF
NO.
PART NO.
DESCRIPTION
1
2100-1865
Control Box Wrapper
2
2100-1866
Control Box Cover
3
2100-1864
Terminal Strip Bracket
4
2100-1762
Terminal Strip Bracket
5
2510-293
Control Box Motor Harness Assembly
(Leeson motors)
2510-355
Control Box Motor Harness Assembly
(AO Smith motors)
7
2300-735
Heyco Bushing, 1.09 diameter
8
2500-1948
Control Board Standoff
9
2510-295
Control Board with 3 Phase Motor Board
2510-268
Control Board only
10
2500-1980
3 Phase Motor Board
11
2500-1966
2 Amp Fuse for Control Board
12
2500-1975
3 Amp Fuse for Control Board
13
2510-253
Limit Switch Harness

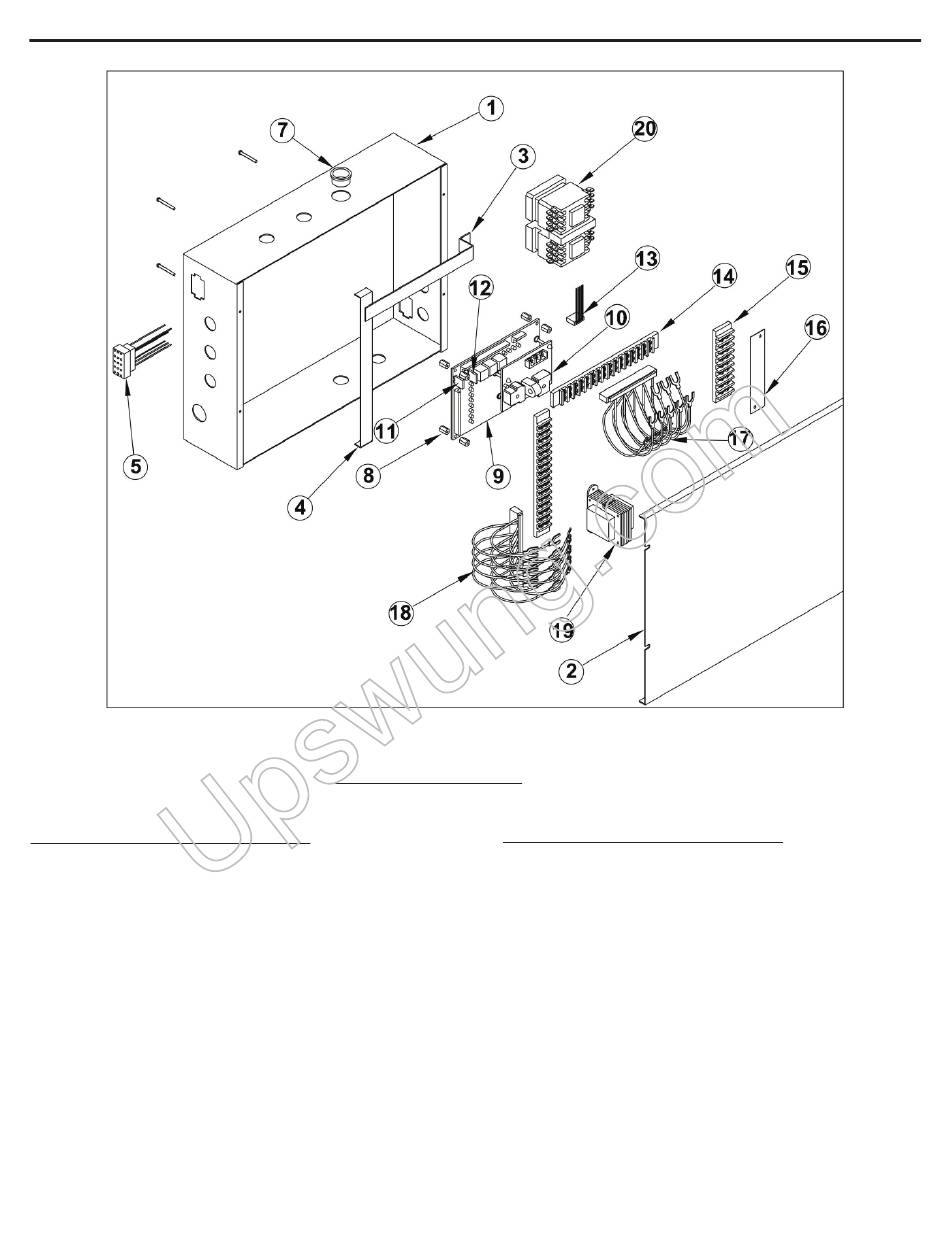

THREE PHASE CONTROL BOX PARTS LIST
REF
NO.
14
15
16
17
18
19
20
- 28 -
PART NO.
DESCRIPTION
2500-071
Terminal Strip, 16-141
2500-270
Terminal Strip, 9-142 OR
2500-185
Terminal Strip, 13-142
2300-488
Terminal Strip Barrier for 9-142 OR
2300-585
Terminal Strip Barrier for 13-142
2510-250
Output Wire Harness Assembly
2510-249
Input Wire Harness Assembly
2500-767
230/24VAC, 75VA, Transformer
2500-768
460/24VAC, 75VA, Transformer
2500-2084
24VAC Contactor
2520-400
Controller, 208/230, 3 Phase
2520-401
Controller, 460, 3 Phase
(order limit harness and mounting
hardware separately)
