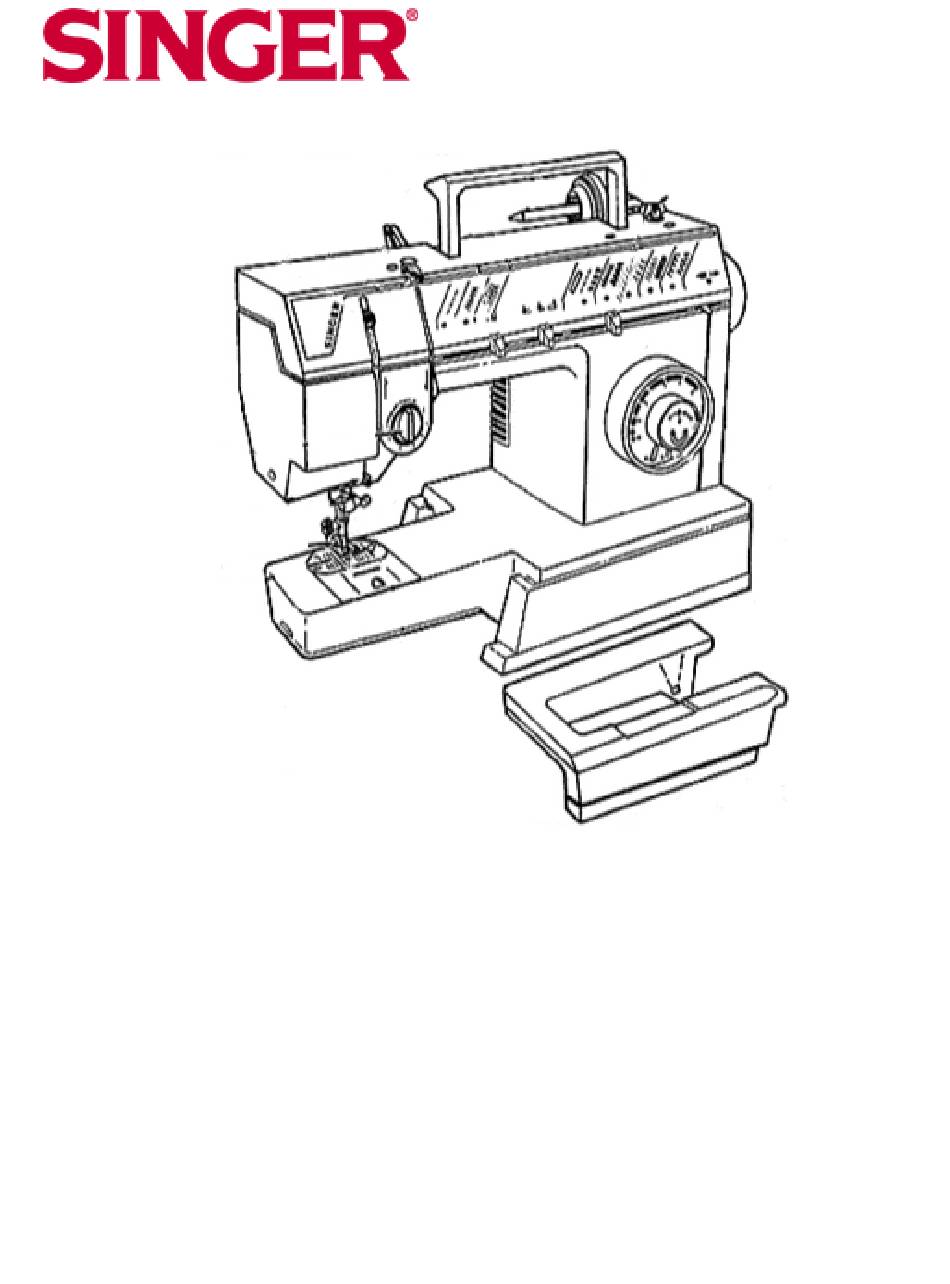

  • Page 1 5, 6, 8, 10 Stitch Sewing Machine Instruction Manual...

  • Page 2: Table Of Contents

    5, 6, 8, 10 Stitch Sewing Machine Table of Contents 1. Getting To Know Your Machine Zig-Zag Zag Stitch Principal Parts Blindstitch Accessories Ladder Seams Important Safety Instructions Multi Stitch Zig-Zag "M" Stitch 2. Getting Ready To Sew Operating the Machine Four Step Buttonhole Choosing and Changing Needles Changing Presser Feet...
  • Page 3 5, 6, 8, 10 Stitch Sewing Machine Congratulations * Simple stitch length dial and push button As the owner of a new Singer sewing reverse stitching. machine, you are about to begin an exciting adventure in creativity. From the moment you...
  • Page 4 Refer to illustration at right for location of Serial Number on your machine. Serial No. Serial No. For European Territories: This Singer Sewing Machine was tested according to European norms and meets the requirements regarding electrical safety radio, interference and electromagnetic immunity. The conformity is documented with the...

  • Page 5: Getting To Know Your Machine

    5, 6, 8, 10 Stitch Sewing Machine Getting to know your machine Principal parts 1. Hand wheel 2. Bobbin winder 3. Pattern selector lever (only for machines with 5, 6, 8 and 10 stitches) 4. Horizontal spool pin and holder 5.

  • Page 6: Accessories

    5, 6, 8, 10 Stitch Sewing Machine Accessories The following accessories furnished with your sewing machine are designed to simplify your sewing projects and increase the versatility of your machine. The letter in a circle adjacent to the illustrated part is reproduced on the part itself to help you select the correct attachment for the type of work you are doing.
  • Page 7 When using twin-needle for decorative stitching, set stitch width lever to zig-zag mid range. (Optional for some markets). 12. Felt for twin needle spool pin. (Optional for some markets). Optional accessories are available for your machine from your local Singer retailer.

  • Page 8: Important Safety Instructions

    5, 6, 8, 10 Stitch Sewing Machine IMPORTANT SAFETY INSTRUCTIONS * Always unplug the machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the Operator's Guide. When using this machine, basic safety precautions should always be followed including the following: * Do not attempt to adjust the motor belt.
  • Page 9 5, 6, 8, 10 Stitch Sewing Machines IMPORTANT SAFETY INSTRUCTIONS continued... * Never operate the machine with any air openings blocked. Keep ventilation openings of the machine and foot controller free from the accumulation of lint, dust, and loose cloth. * Never drop or insert any object into any opening.

  • Page 10: Getting Ready To Sew

    Choosing and changing needles Important: For best results from your sewing machine, use only SINGER * needles. Check the needle package, and the Fabric, Thread and Needle Table on page 16 for the correct needle and fabric combination.

  • Page 11: Changing Presser Feet

    (4) down, firmly until foot snaps into place. Changing screw-on presser feet (H) Some special presser feet with built-in shanks can be purchased at your SINGER dealer and can be replaced as follows: * Raise needle and presser foot. * Loosen presser hot screw (1) and remove presser foot with shank (2), guiding it toward you and to the right.

  • Page 12: Changing The Needle Plate

    5, 6, 8, 10 Stitch Sewing Machine Changing the needle plate (A), (C) To replace the extension table, slide it to the right keeping it even with the free arm, until the tabs on the right lock into place. Your machine comes with the General Purpose Needle Plate (A) attached.

  • Page 13: Fabric Thread And Needle Table

    5, 6, 8, 10 Stitch Sewing Machine Fabric, thread and needle table The needle and thread you choose will depend upon the fabric being sewn. The table below is a practical guide to needle and thread selection. Always refer to it before beginning a sewing project. Be sure to use the same size and type of thread in both needle and bobbin.

  • Page 14: Winding A Bobbin

    5, 6, 8, 10 Stitch Sewing Machines Winding a bobbin * Pass thread end, from inside, through small hole in Winding a bobbin is quick and easy when you follow rim of bobbin. the directions below. Always wind the bobbin before threading the machine and needle.

  • Page 15: Inserting A Bobbin

    5, 6, 8, 10 Stitch Sewing Machines Inserting a bobbin To insert a bobbin, follow the instructions below: * Raise presser foot * Turn hand wheel toward you until needle is in its highest position. * Open slide plate and remove empty bobbin. 1.

  • Page 16: Threading The Machine

    5, 6, 8, 10 Stitch Sewing Machines Threading the machine and with only one hand pass the thread under the To thread your machine correctly, follow the steps guide and through the slot, as illustrated (4). below: * Thread the tension discs by leading the thread down * Raise take-up lever (6) to highest position by turning and around the tension (5).

  • Page 17: Raising The Bobbin Thread

    5, 6, 8, 10 Stitch Sewing Machines Raising the bobbin thread Once the needle has been threaded and the bobbin placed in the bobbin case, the bobbin thread must be brought up through the hole in the needle plate. 1. Hold needle thread loosely with left hand. * Turn hand wheel slowly toward you, lowering needle into hole in plate.

  • Page 18: Straight Stitching

    5, 6, 8, 10 Stitch Sewing Machines Straight stitching Stitch width selector Before you move the selectors to set your machine for straight stitching, turn the hand wheel toward you until needle is at its highest point. Straight stitching can be performed with pattern selector in any position;...

  • Page 19: Adjusting Thread Tension

    5, 6, 8, 10 Stitch Sewing Machines Adjusting thread tension When an even amount of tension is exerted on both threads, a smooth even stitch, known as a balanced stitch, is produced. Correct tension is important because too much or too little will weaken your seams or cause your fabric to pucker.

  • Page 20: Sewing A Seam

    5, 6, 8, 10 Stitch Sewing Machines Sewing a seam You can sew seams easily and accurately when you follow the suggestions below. Placing fabric under foot Most fabrics can be placed under the foot by raising the presser foot lifter (1) to its normal "Up" position (2), where it locks in place.

  • Page 21: Starting A Seam

    5, 6, 8, 10 Stitch Sewing Machines Starting a seam Place fabric under presser foot 1/2 inch (12 mm) from rear of fabric. Align the right edge with one of the seam guidelines on the throat plate. Lower the presser foot Backstitch to the edge of the fabric for reinforcement by pushing in the reverse button located in center of the stitch length dial.

  • Page 22: Darning

    When greater control is needed, an embroidery hoop and a special darning and embroidery foot, which may be purchased at your SINGER dealer should be used. Recommended settings Stitch Selection: Straight Stitch...

  • Page 23: Quilting

    5, 6, 8, 10 Stitch Sewing Machines Quilting Quilting is the art of stitching two or more thicknesses of fabric together in a planned design. A padding is used to produce a soft, puffed effect. Recommended settings Stitch Selection: Straight Stitch Needle Position: Stitch Width: Stitch Length: 2-5...

  • Page 24: Inserting A Zipper

    5, 6, 8, 10 Stitch Sewing Machines Inserting a zipper We recommend using the Zipper Foot to form an even line of stitching close to the zipper. Recommended settings Stitch Selection: Straight Stitch Needle Position: Stitch Width: Stitch Length: 2-5 Foot: Zipper (E) Needle Plate: General Purpose (A) When the zipper teeth are to the left of the needle:...

  • Page 25: Zigzag Stitching

    5, 6, 8, 10 Stitch Sewing Machines * To produce any of the zig-zag stitches, the stitch width selector is moved from its straight position to Zigzag stitching any of its other positions. The further you move the Stitch pattern selector selector lever toward the right, the wider your stitch (only for machines with 5, 6, 8 and will be...

  • Page 26: Adjusting Stitch Length

    5, 6, 8, 10 Stitch Sewing Machines Adjusting stitch length Any stitch length setting from 1 to 5 will give you an open zig-zag stitch. The higher the number, the more open, or further apart your stitches will be. The area between O and 1 on the dial is used for satin stitching a series of closely spaced plain zig-zag stitches that form a smooth satin-like surface.

  • Page 27: Zig-Zag Zag Stitch

    5, 6, 8, 10 Stitch Sewing Machines Zig-zag stitch The Zig-Zag Stitch can be used when sewing seams, appliqueing, monogramming or for decorative sewing. Recommended settings Stitch Selection: Zig-zag Stitch Needle Position: Stitch Width: Stitch Length: 2-5 Foot: General Purpose B) Needle Plate: General Purpose A) Seam finishing Use a zig-zag stitch to finish seam edges of fabrics...
  • Page 28 5, 6, 8, 10 Stitch Sewing Machines Satin stitching Recommended settings Stitch Selection: Zig-zag Stitch Needle Position: Stitch Width: Stitch Length: 0-2 Foot: Special Purpose (J) Needle Plate: General Purpose (A) Satin stitching is a series of closely spaced zig-zag stitches.
  • Page 29 5, 6, 8, 10 Stitch Sewing Machines Blindstitching Blindstitching provides a durable hem finish that can be used on a variety of different weight fabrics. Blindstitching takes a little practice, however, so make a test sample first. Recommended settings Stitch Selection: Blindstitch Needle Position: Stitch Width: Stitch Length: 1-1/2 to 2-1/2...

  • Page 30: Ladder Seams

    5, 6, 8, 10 Stitch Sewing Machines Ladder seams A ladder seam, made with blindstitching is functional and decorative at the same time. Appropriate for stretch and knitted fabrics, it provides stretchable, decoratively constructed seams and edge finishes for collars, pockets and necklines in sportwear and swimwear.

  • Page 31: Multi Stitch Zig-Zag

    5, 6, 8, 10 Stitch Sewing Machine Multi-stitch zig-zag Mending, overcasting, joining or reinforcing can all be done using the Multi-Stitch Zig-Zag. Recommended settings Needle Position: Stitch Width: Stitch Width: Stitch Length: l-2 Foot: Special Purpose (J) Needle Plate: General Purpose (A) Mending a tear * Trim ragged edges of tear.
  • Page 32 5, 6, 8, 10 Stitch Sewing Machines Bar tacks Strong multi-stitch bar tacks are effective for tacking belt loops on heavy fabrics such as denim. Recommended settings Stitch Selection: Multi-Stitch Zig-Zag Needle Position: Stitch Width: Stitch Length: 1-2 Foot: Special Purpose (J) Needle Plate: General Purpose (A) * Mark start and finish lines of belt loop on fabric.

  • Page 33: M" Stitch

    5, 6, 8, 10 Stitch Sewing Machines "M" Stitch This stitch can be used for stretch seams and decorative stitching. Elastic insertion Recommended Settings Stitch Selection: "M" Stitch Needle Position: Stitch Width: Stitch Length: 1-2 Foot: Special Purpose (J) Needle Plate: General Purpose (A) * Fit elastic for snugness and allow 1 inch (25mm) for joining.
  • Page 34 5, 6, 8, 10 Stitch Sewing Machines Lace insertion Lace is inserted after fabric is cut, but before it is sewn together. Recommended Settings Stitch Selection "M" Stitch Needle Position: Stitch Width: Stitch Length: 1/2-2 Foot: Special Purpose (J) Needle Plate: General Purpose (A) * Cut lace to desired size.

  • Page 35: Four Step Buttonhole

    5, 6, 8, 10 Stitch Sewing Machine Four-step buttonhole (only for machines with 5, 6, 8 and 10 stitches) Your machine makes buttonholes to any size you choose in only four, easy steps. * You never need to move the fabric or reposition the needle.
  • Page 36 5, 6, 8, 10 Stitch Sewing Machine Step B * Raise needle out of fabric. * Turn buttonhole dial to the buttonhole symbol (B) for the second step. * Make at least four stitches, ending at point (4). Step C * Raise needle out of fabric.
  • Page 37 5, 6, 8, 10 Stitch Sewing Machine Balancing the buttonhole On some kinds of fabrics, there may be a difference in the density of the stitches on the right or the left side of the buttonhole. This is easily adjusted by turning the balance knob (1) in the center of the stitch length dial to balance the density of the stitching.

  • Page 38: Free-Arm Sewing

    5, 6, 8, 10 Stitch Sewing Machine Free-arm sewing Fabric handling, when sewing tubular and hard to reach garment areas, is simplified and made easier when you use the free-arm sewing capability of your sewing machine. Sleeves * Free-arm sewing takes the difficulty out of topstitching, sleeves, finishing waistbands and trouser legs rotate smoothly under the needle, around the arm, allowing you to place your stitching accurately.

  • Page 39: Twin Needle Sewing

    5, 6, 8, 10 Stitch Sewing Machine Twin needle sewing Twin needle sewing produces two parallel lines of closely-spaced decorative stitching. You can sew with either one or two thread colors. Your machine is not supplied with the twin needle or spool pin.
  • Page 40 5, 6, 8, 10 Stitch Sewing Machine * Turn the machine off. * Insert the twin needle with the flat side of the shank toward the rear of the machine. * Thread the machine as you normally would for single needle stitching, and pass the thread through the left eye of the twin needle.

  • Page 41: Caring For Your Machine

    5, 6, 8, 10 Stitch Sewing Machine Caring for your machine Removing and replacing bobbin case Caution: Before cleaning or adjusting the machine, remove plug from the socket outlet. * Raise presser foot and needle. * Open slide plate, remove bobbin and remove needle plate.
  • Page 42 5, 6, 8, 10 Stitch Sewing Machine Changing the light bulb Caution: Before changing light bulb, make sure you have removed plug from socket outlet and remove face plate which covers the light bulb. Be sure to replace the face plate which covers the light bulb beforeoperating the machine.
  • Page 43 Remove lint and fluff from exposed parts and, with a lint brush clean these parts: * Take-up lever and thread guides. * Presser and needle bars. * Bobbin case and needle plate areas. Your machine should be periodically checked by your local SINGER stockist for wear.
  • Page 44 To determine which connectors move and need lubrication, turn the handwheel slowly, by hand, while face plate is removed. When lubricating, apply only SINGER* oil at the points shown. SlNGER*oil is specially prepared and does not contain harmful deposits that can interfere with the...
  • Page 45 5, 6, 8, 10 Stitch Sewing Machine Additional accessories Additional Accessories for your sewing machine are available for purchase at your SINGER dealer. 1. Straight stitch presser foot (D) and needle plate (C) are used together when straight stitching lightweight fabrics or when your fabric or sewing procedure requires close control.
  • Page 46 5, 6, 8, 10 Stitch Sewing Machine Attaching a button Flat buttons can be sewn on quickly and easily using the plain zig-zag stitch. A special button sewing foot (H), may be purchased at your sewing center. Recommended settings Stitch Selection: Zig-Zag Stitch Needle Position: Stitch Width: Foot: Button Sewing (H)
  • Page 47 5, 6, 8, 10 Stitch Sewing Machine Performance checklist Upper Thread Breaks When sewing difficulties occur, look back through this manual to make sure you are correctly the Is machine properly threaded? instructions. If you still have a problem, the reminders below may help you to correct it.
