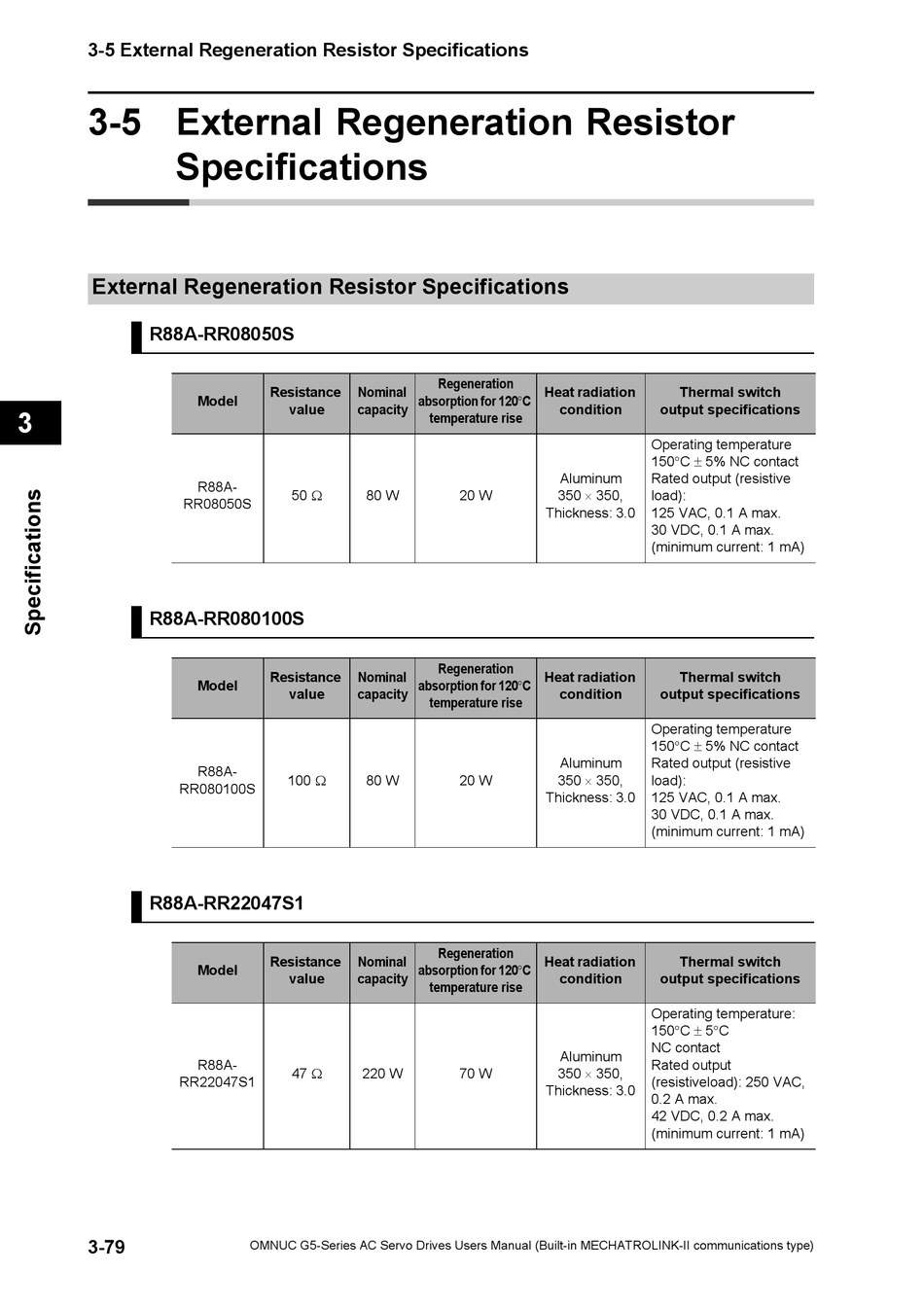

3-5 External Regeneration Resistor Specifications

3-5 External Regeneration Resistor
Specifications

External Regeneration Resistor Specifications

R88A-RR08050S
3
RR08050S
R88A-RR080100S
RR080100S
R88A-RR22047S1
RR22047S1
3-79
Resistance Nominal
Model
value capacity
R88A-
50 
80 W
Resistance Nominal
Model
value capacity
R88A-
100 
80 W
Resistance Nominal
Model
value capacity
R88A-
47 
220 W
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
Regeneration
Heat radiation
absorption for 120C
condition
temperature rise
Aluminum
20 W 350 350,
Thickness: 3.0
Regeneration
Heat radiation
absorption for 120C
condition
temperature rise
Aluminum
20 W 350 350,
Thickness: 3.0
Regeneration
Heat radiation
absorption for 120C
condition
temperature rise
Aluminum
70 W 350 350,
Thickness: 3.0
Thermal switch
output specifications
Operating temperature
150C  5% NC contact
Rated output (resistive
load):
125 VAC, 0.1 A max.
30 VDC, 0.1 A max.
(minimum current: 1 mA)
Thermal switch
output specifications
Operating temperature
150C  5% NC contact
Rated output (resistive
load):
125 VAC, 0.1 A max.
30 VDC, 0.1 A max.
(minimum current: 1 mA)
Thermal switch
output specifications
Operating temperature:
150C  5C
NC contact
Rated output
(resistiveload): 250 VAC,
0.2 A max.
42 VDC, 0.2 A max.
(minimum current: 1 mA)
