TABLE OF CONTENTS SAFETY ....................5 Important safety instructions...................... 5 Light Intensity Hazard Distance ....................6 Laser radiation safety information ..................... 6 Product safety labels ......................... 7 Light beam related safety labels ................... 7 Copyright ........................... 8 Disclaimer ..........................8 Trademark recognition .......................
Page 3
Brightness ........................... 49 Contrast ..........................49 Sharpness ........................... 49 Gamma ..........................49 Dynamic Contrast ........................ 50 Color Settings ........................50 Wall Color ..........................51 3D Setup ..........................51 Save to User ........................53 Apply to User ........................53 Reset ........................... 53 Display menu ..........................
Page 4
Image size and projection distance ..................91 Ceiling mount installation......................94 Projector dimensions ......................94 Ceiling mount information ....................94 IR remote codes ........................95 Troubleshooting ........................97 LED status indicators........................ 98 Specifications ........................... 99 Optoma global offices ......................100 English...
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. See projector enclosure for safety related markings.
Disconnect the power plug from the AC outlet if the product will not be used for a long period of time. Do not setup the projector in places where it might be subjected to vibration or shock. Do not touch the lens with bare hands.
Additional warning against eye exposure for close exposures less than 1 m. FDA laser variance (US projectors only) Optoma Technology Inc. 47697 Westinghouse Drive, Fremont, CA 94539, USA This product complies with performance standards for laser products under 21 CFR Part 1040 except with respect to those...
Declaration of conformity for EU countries EMC Directive 2014/30/EU (including amendments) Low Voltage Directive 2014/35/EU Radio Equipment Directive 2014/53/EU (if product has RF function) RoHS Directive 2011/65/EU WEEE Disposal instructions Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
(*)The remote control requires two AAA batteries. See Installing/replacing the batteries on page 27 for more information. (**) For European warranty Information, please visit www.optoma.com. Please scan the OPAM warranty QR code or visit the following URL: https://www.optoma.com/us/support/warranty-and-return-policy/ Please scan the QR code or visit the following URL: https://www.optoma.com/support/download English...

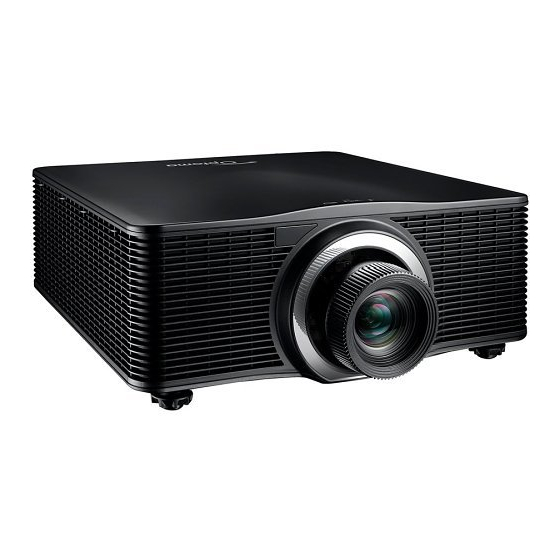

INTRODUCTION Product overview Item Item Lens Input / Output Front IR Receiver Power Switch Top IR Receiver 10. Power Socket LED Status Indicators 11. Security Bar Tilt-Adjustment Feet 12. Kensington Lock Port Ventilation (inlet) 13. Keypad Ventilation (outlet) Note: Do not block projector inlet or outlet air vents. English...
INTRODUCTION Connections Rear I/O panel Type Cable Device Example 12V OUT IO port 12V Cable Device HDBaseT Input signal Cable HDBaseT set-top box HDMI OUT Output HDMI Cable Screen, Projector, Display device HDMI 2 IN Input signal HDMI Cable Device HDMI 1 IN Input signal HDMI Cable...
INTRODUCTION Remote control Button location Button Function Power On Turn the projector on. Input numbers (0-9) Number Keys Display information on the Info source image. Automatically synchronize the Auto projector to an input source. Enter Confirm an selection. Use arrow keys to navigate Arrow Keys through the menu or select the appropriate settings.
SETUP AND INSTALLATION Installing the projection lens Before setting up the projector, install the projection lens in to the projector. IMPORTANT! Before installing or replacing the lens, make sure the projector’s power switch is turned off. During lens installation, do not adjust the lens shift, zoom, or focus either using the remote control or the projector keypad.
Page 17
SETUP AND INSTALLATION Rotate the lens clockwise to lock the lens in place. Firmly install the lens ring onto the lens. Note: Remove the lens in the reverse order. English...
SETUP AND INSTALLATION Adjusting the projector position When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines: ...
Page 19
SETUP AND INSTALLATION Allowing proper space around the projector is critical for air circulation and cooling. For 360° installations and multiple projectors, make sure to leave at least 1000mm (39.4’’) space around the air intakes and outlet of the projector. 1000mm (39.4'') MINIMUM SIDE CLEARANCE Air Outlet...
SETUP AND INSTALLATION Boresight adjustment Only apply a boresight adjustment in case the overall focus of the projected image is not equally sharp. The boresight adjustment helps to balance the tilt of the lens mount to sharpen the unfocused sections of the image. It tilts the lens holder to parallel the lens plane and the DMD plane.
Page 21
SETUP AND INSTALLATION Use the boresight tool to adjust the three boresight screws. Zoom the lens to its widest opening. Adjust the focus control to search for the best sharpness of the projected image. Zone A/C boresight adjustment. If zone C is in focus on the screen, please check the focal plane of zone A. ...
Page 22
SETUP AND INSTALLATION Zone D/E boresight adjustment. If zone D is in focus on the screen, please check the focal plane of zone E. If clear position is just on the screen then no need to adjust. If clear position is out of the screen (close to the projector), rotate screw CCW and then screw &...
SETUP AND INSTALLATION After the above adjustment of the viewing axis, the projected image from zone A to zone I still cannot achieve a clear focus on the screen. Please remove the PJ-lens then turn the boresight screws counterclockwise to the end (STOP), and then turn clockwise 2 circles to the design value position. Repeat steps 2 to 6 above to adjust.
Page 24
SETUP AND INSTALLATION Boresight adjustment Boresight adjustment is needed if the image is still unsharp after the focus adjustment. The boresight adjustment tilts the lens holder to parallel the lens plane and the DMD plane to fully focus the image on the screen. L shape socket tool (black) or U shape socket tool (black)
SETUP AND INSTALLATION RS232 Pin assignments Pin No. Signal Pin No. Signal Adjusting the projector image Image height The projector is equipped with adjustable feet to change the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
SETUP AND INSTALLATION Remote setup Installing / replacing the batteries Two AAA size batteries are supplied for the remote control. Remove the battery cover on the back of the remote control. Insert AAA batteries in the battery compartment as illustrated. Replace back cover on remote control.
Page 28
SETUP AND INSTALLATION Effective range The Infra-Red (IR) remote control sensors are located on the front and top sides of the projector. To have the remote control function correctly, be sure to hold the remote control at an angle of ±30° horizontally or vertically within the distance of 10m (32.8 ft) to the projector’s IR remote control sensor.
Page 29
SETUP AND INSTALLATION Wired remote Remote In connector is designed to work with Wired Remote or IR Keypad with longer range and provides fast, easy set-up and reliable individual control of a specific projector. Remote Out connector sends the IR control signal to the next projector when using multiple projectors.
USING THE PROJECTOR Powering on / off the projector Powering on Securely connect the AC power cord and signal/source cable to the projector. Set the power switch to the “I“ (ON) position and wait until the power button “ ” on the projector keypad is solid orange.
USING THE PROJECTOR Powering off Turn off the projector by pressing the power button “ ” on the projector keypad or the OFF button “ ” on the remote control. A message will pop up to confirm that you want to turn off the projector. Press the power button or the OFF button again to confirm, otherwise the warning message disappears after 10 seconds and the projector remains on.
USING THE PROJECTOR Menu navigation and features The projector has multilingual on-screen display (OSD) menus that allow you to make image adjustments and change a variety of settings. To open the OSD menu, press the Menu key on the remote control or projector keypad. To select a main menu or submenu, use the p and q buttons to highlight it.
USING THE PROJECTOR OSD menu tree Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Image Picture Mode Presentation Bright Cinema sRGB DICOM SIM. Blending 2D High Speed User Dynamic Range HDR Auto HDR Picture Mode Bright...
Page 34
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Image Color Settings Color 0~100 Tint 0~100 Color Temperature Warm Standard Cool White Balance Red Gain 0-100 Green Gain 0-100 Blue Gain 0-100...
Page 35
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Image Wall Color Blackboard Light Yellow Light Green Light Blue Pink Gray 3D Setup 3D Mode Active 3D 3D Format Auto Frame Packing Side by Side...
Page 36
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Display Aspect Ratio Auto 16:9 16:10 Native Digital Zoom Proportional Horizontal 50%~400% Vertical 50%~400% Horizontal Shift 0~100 Vertical Shift 0~100 Reset Yes / Cancel (Dialog box)
Page 37
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Display Geometric Advanced Warp Black Level Area Bottom Correction Enable Edit Area Brightness Brightness 0~255 Green 0~255 Blue 0~255 Exit 0~255 Green...
Page 38
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Display PIP/PBP Screen Main Source HDMI1 HDMI2 DVI-D 3G-SDI HDBaseT Sub Source HDMI1 HDMI2 DVI-D 3G-SDI HDBaseT Swap Size Small Medium Large...
Page 39
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Input Backup Input Auto Switch Settings Current Signal (read only) First Input HDMI1 HDMI2 HDBaseT DisplayPort Second Input HDMI1 HDMI2 HDBaseT DisplayPort...
Page 40
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Device Language English Setup Deutsch Français Italiano Español Português Polski Nederlands Norsk 繁體中文 簡体中文 日本語 한국어 Русский Magyar ไทย Projection Ceiling Auto...
Page 41
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Device Schedule Monday / Tuesday Schedule Enable Setup / Wednesday / Thursday / Friday / Event 01-16 Time 00:00 ~ 23:59 Saturday / Sunday Function Off / Power Settings / Input...
Page 42
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Device Date and Time Time Zone UTC+06:30 Setup UTC+06:00 UTC+05:45 UTC+05:30 UTC+05:00 UTC+04:30 UTC+04:00 UTC+03:30 UTC+03:00 UTC+02:00 UTC+01:00 UTC+00:00 UTC-01:00 UTC-02:00 UTC-03:00...
Page 43
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Device Shutter Fade-In 0.5~5s Setup Fade-Out 0.5~5s Startup Shutter Off Shutter On Security Security Security Timer Month 0-35 0-29 Hour 0-23 Change Password...
Page 44
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Device Reset Reset OSD Yes / Cancel (Dialog box) Setup Reset to default Yes / Cancel (Dialog box) Reset Selective Image Yes / Cancel (Dialog box) Display...
Page 45
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Communi- Email Email 1 Email 1 Address (read only) cation Notification Email 2 Email 1 Address (read only) Event Fan Error Off/Email Power On/Off...
Page 46
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Information Device Regulatory Serial Number Projection Hours System Status Standby Mode Light Source Mode Light Source Hours Total Hours Normal Eco Mode Custom Power...
Page 47
USING THE PROJECTOR Main Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Sub Menu 5 Sub Menu 6 Values Information Backup Input Current Signal Backup Input Status Backup Input Change First Input Resolution Horz Refresh Color Space Second Input Resolution Horz Refresh Color Space...
USING THE PROJECTOR Image menu Learn how to configure image settings. Submenus Picture Mode Dynamic Range Brightness Contrast Sharpness Gamma Dynamic Contrast Color Settings Wall Color 3D Setup Picture Mode Picture Mode menu provides various functions to optimize the projected image to achieve the best image quality in all kinds of surroundings, in consideration of factors such as input source, screen color, and ambient lighting.
USING THE PROJECTOR User Image settings saved by the user. Dynamic Range Configure the HDR setting and its effect when displaying video from 4K Blu-ray players and streaming devices. Enable or disable HDR processing. HDR Picture Mode Bright: Select this mode for more saturated colors. ...
USING THE PROJECTOR Dynamic Contrast Set up Dynamic Contrast to maximize the contrast for dark content. Dynamic Black Enable this function to automatically adjust the contrast ratio for video sources. It improves the black level in dark scenes by reducing the light output. ...
USING THE PROJECTOR White Balance Adjust the white balance of the projected image via gain and offset. Gain and offset are individual controls for each RGB channels used to set greyscale. The Gains calibrate the color of the dark parts and Bias calibrate the white parts.
Page 52
USING THE PROJECTOR 3D Tech Select a proper 3D technology according to how the 3D sync signal is processed. DLP-Link: Select DLP-Link when the 3D sync signal is generated by the DLP Link technology built into the projector. DLP Link works only with the glasses that are compatible with DLP 3D technology and the 3D function is enabled ...
USING THE PROJECTOR If neither of the two methods described above solved the problem, please use another 3D IR emitter/3D RF emitter or try any of the following two methods. Use a wired remote-in cable for the IR control. ...
USING THE PROJECTOR Display menu Learn how to configure the settings to properly project images according to your installation circumstances. Submenus Aspect Ratio Digital Zoom Geometric Correction Edge Mask Freeze Screen Test Pattern PIP/PBP Aspect Ratio Set the aspect ratio of the projected image.
USING THE PROJECTOR Geometric Correction Configure the geometric settings to reshape the image for different projection surfaces. Warp Control Configure warp settings. Select between Basic, Advanced, and AP. Basic: Configure keystone, pincushion, 4-corner settings. Advanced: Set the grid color and grid background, as well as configure warp and blend settings. ...
Page 56
For install flexibility we have not applied a FW limitation to the blending menu of this device. Distortion may occur if you attempt to warp to an extreme level. For more complex, installs, at a cost, Optoma can supply external dedicated devices for warping. Width...
USING THE PROJECTOR Black Level: Manually adjust the black level of the projected image. ± Area: Support two layers black level adjustment, top and bottom. Please avoid overlapping areas of the two layers, only top black level value displayed in overlapping area. ±...
USING THE PROJECTOR PIP/PBP PIP/PBP (picture in picture/picture by picture) allows simultaneously displaying two images from two input sources. Screen Select the appropriate PIP/PBP mode or disable the function. Off: Disable PIP/PBP mode. PIP: Display one input source on the main screen and the other input source in an inset window. ...
USING THE PROJECTOR PIP Size PIP Layout Small Medium Large PIP, Top Right Note: Refer to the table below for PIP/PBP compatibility. PIP/PBP Compatibility PIP/PBP Matrix DVI-D HDMI-1 HDMI-2 3G-SDI HDBaseT DVI-D — HDMI-1 — HDMI-2 — 3G-SDI — HDBaseT —...
USING THE PROJECTOR Input Settings menu Learn how to configure the projector input settings. Submenus Auto Source Quick Resync Active Inputs Latency Adjustment Backup Input HDMI HDBaseT Auto Source When Auto Source is enabled, the projector automatically detects and selects the input signal. Once an input source is selected, press the Input button on the remote control or keypad to switch to other available sources.
USING THE PROJECTOR Backup Input Status Display the function status. The Backup Input Status is active when meeting the following conditions: Auto Switch is checked. The two sources are with the same timing specification. The two sources are active. ...
USING THE PROJECTOR Device Setup menu Learn how to configure the system settings for the projector. Submenus Language Projection Lens Settings Active Image Setup Schedule Date and Time Power Settings Light Source Settings ...
Page 63
USING THE PROJECTOR Note: BX-CTA17 floating ring For better optical performance, manually adjust the floating ring before adjusting Zoom & Focus. Floating ring’s label scale shows the projection distance. The projection distance is from the projector lens to the screen. For example, if the distance between the screen and the projector lens is 1.4 m, adjust the floating ring scale to “1.40”...
The functions in the Active Image Setup menu are available for the projections from 100” to 300” and imaging range needs to cover the entire projection screen. It is recommended to use the Optoma Visual Suite software for seamless setups and calibration. Schedule Schedule the projector functions to operate automatically at the set time.
Page 65
USING THE PROJECTOR View Today View the event list scheduled for today. Note: After the schedule is set up, make sure to save all the settings. Monday to Sunday Set up the schedule for days of a week. On the Schedule menu page, select a day and configure the schedule settings.
USING THE PROJECTOR Copy Events To: Copy the events setup for the day to another day. Monday Tuesday Schedule Enable Schedule Enable 08:00 Power On 08:00 Power On 08:01 HDMI 1 08:01 HDMI 1 08:01 Normal Mode 08:01 Normal Mode - - : - - - - - - - - - - - - - - - : - -...
USING THE PROJECTOR Power Settings Configure the projector’s power settings. Power Mode (Standby) Setup the projector’s standby mode. Eco: Minimum power consumption (< 0.5 Watt) which does not allow network control. Active: Low power consumption (< 2 Watt) which allows the LAN module to enter sleep mode and supports to be woken by Wake on LAN (WoL).
USING THE PROJECTOR Shutter Set up the shutter behavior. Fade-In This function allows the fading-in effect when turning off the shutter. The length of the fading effect can be adjusted from 0s to 5s. Fade-Out This function allows the fading-out effect when turning on the shutter. The length of the fading effect can be adjusted from 0s to 5s.
USING THE PROJECTOR Logo Setup Set up the logo for the startup screen. Change Logo Change the logo for the startup screen. Apart from the Default logo, user can select from Neutral, User Logo, and Captured Logo. Default: The projector default logo. ...
USING THE PROJECTOR Communication menu Communication menu is used to configure the settings that allow the projector to communicate with other projectors or control devices. Submenus Projector ID Remote Setup Network Setup Email Notification Control ...
USING THE PROJECTOR Network Setup Configure the projector’s network settings. LAN Interface To avoid clash, specify the LAN interface to RJ-45 or HDBaseT. MAC Address Display the MAC address. (Read only) Network Status Display the network connection status. (Read only) DHCP Turn on DHCP to automatically acquire IP address, subnet mask, gateway, and DNS.
Control the projector with web browser. (Port: 80) For more information, refer to “Using the web control panel” on page 73. Optoma Management Suite (OMS) Control the projector with OMS. For more information, please visit https://www.optoma.com. Reset Reset the control functions to default factory values. Projector...
USING THE PROJECTOR Using the web control panel The Web control panel allows the user to configure various projector settings using a web browser from any personal computer or mobile devices. System Requirements To use the web control panel, make sure your devices and software meet the minimum system requirements. ...
Page 74
You can obtain the serial number from one of the following methods: a. The label on the projector as shown below: / DLP Projector UK Rep.: Regulatory No. : DAZUGGZZ Optoma Europe Ltd Input :AC 100-120V~, 50/60 Hz, 9A 1 Bourne End Mills Hemel Hempstead, / Model name : Herts, UK Serial No.: N7KB212AAAAVA0001...
Page 75
USING THE PROJECTOR Directly connect the projector to a computer When network is not available, connect the projector to the computer directly using a RJ-45 cable, and configure the network settings manually. RJ-45 Cable Assign IP address to the projector ...
USING THE PROJECTOR Using RS232 command by Telnet This projector supports using RS232 commands through Telnet connection. Set up a direct connection between the projector and computer. Refer to Directly connect the projector to a computer on page 75. Disable the firewall on the computer. Open the command dialogue on the computer.
ADDITIONAL INFORMATION Compatible resolutions Timing table HDMI 1/HDMI 2 Signal Aspect V Sync YCbCr Signal Type Resolution YCbCr 4:4:4 Format Ratio (Hz) 4:2:2 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit 640 x 350 16:10 640 x 400 1.33...
Page 78
ADDITIONAL INFORMATION HDMI 1/HDMI 2 Signal Aspect V Sync YCbCr Signal Type Resolution YCbCr 4:4:4 Format Ratio (Hz) 4:2:2 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit WSXGA+ 1680 x 1050 16:10 WUXGA RB 1920 x 1200RB 16:10 2560 x 1440RB...
Page 79
ADDITIONAL INFORMATION HDMI 1/HDMI 2 Signal Aspect V Sync YCbCr Signal Type Resolution YCbCr 4:4:4 Format Ratio (Hz) 4:2:2 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit HDTV 1920x1080 with 3GB-SDI 1.78 16:9 59.94 (1080p) 352M Payload ID Frame...
Page 80
ADDITIONAL INFORMATION Signal Aspect V Sync YCbCr Signal Type Resolution YCbCr 4:4:4 Format Ratio (Hz) 4:2:2 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit 640 x 350 16:10 640 x 400 1.33 640 x 480 720 x 400 800 x 600 1.33...
Page 81
ADDITIONAL INFORMATION Signal Aspect V Sync YCbCr Signal Type Resolution YCbCr 4:4:4 Format Ratio (Hz) 4:2:2 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit 2560 x 1440RB 1.78 16:9 SDTV (480i) 720 x 480 59.94 SDTV (480i) 720 x 480...
Page 82
ADDITIONAL INFORMATION Signal Aspect V Sync YCbCr Signal Type Resolution YCbCr 4:4:4 Format Ratio (Hz) 4:2:2 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit Frame Packing 1280 x 720 1.78 16:9 59.94 (720p) Side by Side 1920 x 1080 1.78 16:9...
Page 83
ADDITIONAL INFORMATION 3G-SDI Signal Type Signal Format Resolution Aspect Ratio V Sync (Hz) YCbCr 4:2:2 10 bit 640 x 350 16:10 640 x 400 1.33 640 x 480 720 x 400 800 x 600 1.33 SVGA 832 x 624 1.33 848 x 480 1024 x 768 1.33...
Page 84
ADDITIONAL INFORMATION 3G-SDI Signal Type Signal Format Resolution Aspect Ratio V Sync (Hz) YCbCr 4:2:2 10 bit SDTV (480i) 720 x 480 59.94 SDTV (480i) 720 x 480 SDTV (576i) 720 x 576 1.25 EDTV (480p) 720 x 480 59.94 EDTV (480p) 720 x 480 EDTV (576p)
Page 85
ADDITIONAL INFORMATION 3G-SDI Signal Type Signal Format Resolution Aspect Ratio V Sync (Hz) YCbCr 4:2:2 10 bit Frame Packing 1280 x 720 1.78 16:9 59.94 (720p) Side by Side 1920 x 1080 1.78 16:9 59.94 (1080i) Side by Side 1920 x 1080 1.78 16:9 (1080p)
Page 86
ADDITIONAL INFORMATION HDBaseT Signal Aspect YCbCr Signal Type Resolution Sync YCbCr 4:4:4 Format Ratio 4:2:2 (Hz) 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit 640 x 350 16:10 640 x 400 1.33 640 x 480 720 x 400 800 x 600 1.33...
Page 87
ADDITIONAL INFORMATION HDBaseT Signal Aspect YCbCr Signal Type Resolution Sync YCbCr 4:4:4 Format Ratio 4:2:2 (Hz) 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit 2560 x 1440RB 1.78 16:9 SDTV (480i) 720 x 480 59.94 SDTV (480i) 720 x 480...
Page 88
ADDITIONAL INFORMATION HDBaseT Signal Aspect YCbCr Signal Type Resolution Sync YCbCr 4:4:4 Format Ratio 4:2:2 (Hz) 8 bit 10 bit 12 bit 8 bit 10 bit 12 bit 8 bit Frame Packing 1280 x 720 1.78 16:9 59.94 (720p) Side by Side 1920 x 1080 1.78 16:9...
Page 92
ADDITIONAL INFORMATION Projection distance The distance between the projector and its screen determines the approximate size of the image. The farther the projector is from the screen, the larger the projected image will be. The image size also varies depending on the aspect ratio, zoom and other settings.
Page 93
ADDITIONAL INFORMATION Optical Lens Shift Range Mechanical Shift Range Projection Lens ∆Ho ∆Vo Max. of ∆Hm Max. of ∆Vm BX-CAA01, BX-CAA03, 100% 120% BX-CTA13 V: Height of the projected image lmage circle H: Width of the projected image ∆Vm Projected image When the lens is shifted beyond the described range of operation, screen edges may become darker or images may become out of focus.
ADDITIONAL INFORMATION Ceiling mount installation Projector dimensions All dimensions given in mm 1 Mounting holes for ceiling mount X Distance between projector and end of lens Lens type Distance X (in mm) BX-CAA01 61.6 BX-CAA03 81.4 BX-CAA06 80.9 BX-CTA13 109.1 BX-CTA15 68.9 BX-CTA16...
ADDITIONAL INFORMATION IR remote codes Address Data Repeat Key Legend Description Format Position Byte 1 Byte 2 Byte 3 Byte 4 Press to turn on the projector. ON ( Press to turn off the projector. OFF ( Use as numeric keypad number “1”. Use as numeric keypad number “2”.
Page 96
ADDITIONAL INFORMATION Address Data Repeat Key Legend Description Format Position Byte 1 Byte 2 Byte 3 Byte 4 Use as numeric keypad number “7”. Use as numeric keypad number “8”. Use as numeric keypad number “9”. Press to display source image information. Info ( Use as numeric keypad number “0”.
ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen Ensure all the cables and power connections are correctly and securely connected as described in the Setup and Installation section.
ADDITIONAL INFORMATION LED status indicators Overview Light LED AV Mute LED Status LED Explanation Light LED Status LED AV Mute LED Message Green Orange Green Orange Green Orange Standby State Power on (Warm Flashing Power on & Laser Steady Steady Steady diode on Power off (Cooling...
ADDITIONAL INFORMATION Specifications Optical Description Resolution WUXGA (1920 x 1200) Lens Power Zoom/Focus and full lens shift Image size (diagonal) 50”~500” Please refer to “Throw Distance” spec. in “Image size and projection distance” on Projection distance page 91. Electrical Description 2 x HDMI In (version 2.0) (with locking screw) 1 x DVI-D Inputs...
