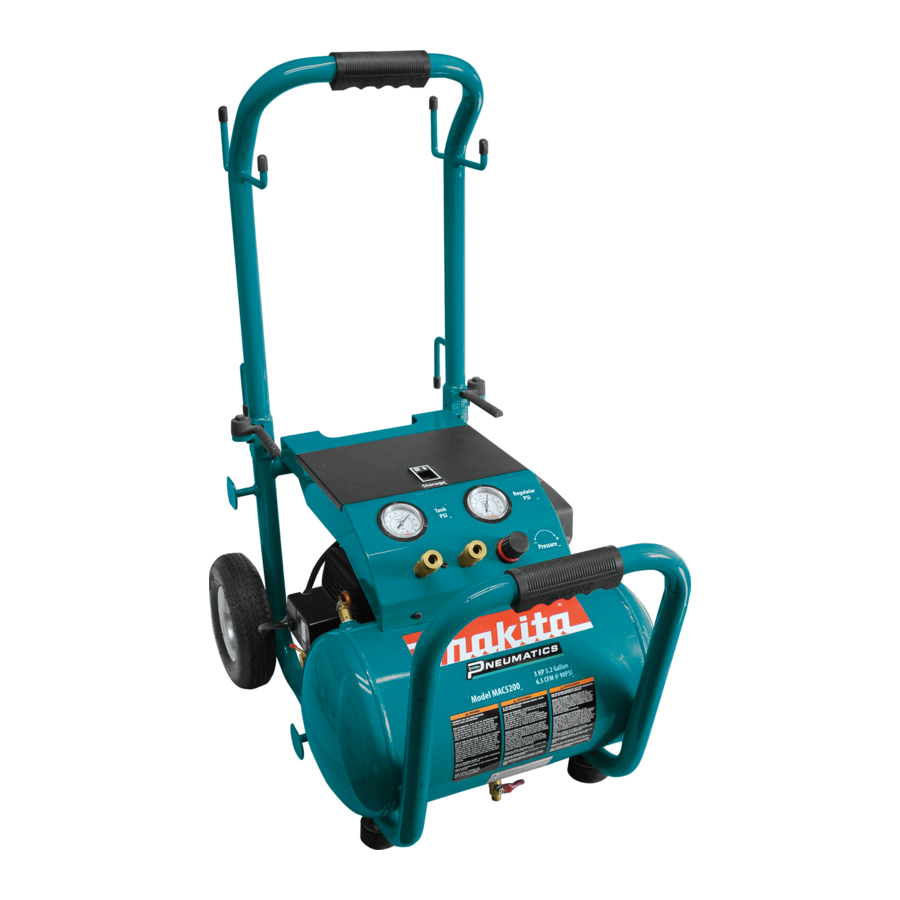

OWNERS MANUAL FOR
Oil Lubricated Air Compressor
Model #
Horsepower
SCFM @ 40 PSIG
SCFM @ 90 PSIG
Cut-In Pressure
Cut-Out Pressure
Bore
Stroke
Voltage -Single Phase
Motor RPM
Amperage @ max pressure
Tank Size
CSA/US Listed
Minimum Circuit Requirement: 15 AMPS
*A circuit breaker is preferred. Use only a fuse or circuit
breaker that is the same rating as the branch circuit the air
compressor is operated on. If the air compressor is connected
to a circuit protected by fuses, use time delay fuses.
IMPORTANT — Read the Safety Guidelines and ALL
instructions carefully before operating.
www.makitatools.com
MODEL No
MAC5200
SPECIFICATION CHART
MAC5200
3
6.9
6.5
110 PSI
140 PSI
47 mm
44 mm
120
3420
13.8
5.2 Gallon
Yes
Advertisement
Table of Contents
Related Manuals for Makita MAC5200
Summary of Contents for Makita MAC5200
- Page 1 OWNERS MANUAL FOR Oil Lubricated Air Compressor MODEL No MAC5200 SPECIFICATION CHART Model # MAC5200 Horsepower SCFM @ 40 PSIG SCFM @ 90 PSIG Cut-In Pressure 110 PSI Cut-Out Pressure 140 PSI Bore 47 mm Stroke 44 mm Voltage -Single Phase...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS ....... . 3 Warning Chart ........3 GLOSSARY . -
Page 3: Warning Chart
IMPORTANT SAFETY INSTRUCTIONS *SAVE THESE INSTRUCTIONS* WARNING IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT. HAZARD WHAT CAN HAPPEN HOW TO PREVENT IT Unsafe operation of •... - Page 4 HAZARD WHAT CAN HAPPEN HOW TO PREVENT IT The following conditions could lead to Risk of Air a weakening of the • Follow the equipment Tank tank, and RESULT IN A manufacturers Bursting VIOLENT TANK recommendation and EXPLOSION never exceed the RESULTING IN maximum allowable SERIOUS INJURY TO...
-
Page 5: Safety Instructions
HAZARD WHAT CAN HAPPEN HOW TO PREVENT IT • Your air compressor • Any electrical wiring or is powered by repairs required to this Risk of electricity. Like any product should be Electric other electrically performed by qualified Shock powered device, if it service personnel or a is not used properly, licensed electrician, in... - Page 6 HAZARD WHAT CAN HAPPEN HOW TO PREVENT IT solvents, paint remover, Use an approved insecticides, weed killers, respirator designed for Risk to etc., contain harmful use with your specific Breathing vapors and poisons. application. (continued) • Breathing compressor or sprayed materials vapor can result in serious injury.
-
Page 7: Glossary
With improper handling, damage may DUTY CYCLE result in transit and cause problems with compressor All Makita manufactured air operation. compressors are recommended to be operated on not more than Immediately upon arrival, check a 50% duty cycle. This means an... -
Page 8: Storage
product was shipped directly to switch and to “off” to remove you, report any damages to the power when finished using the carrier and arrange for inspection compressor or when compressor of goods immediately. will be left unattended. AIR INTAKE FILTER: This filter is designed to clean air coming into STORAGE the compressor pump. -
Page 9: Installation And Break-In Procedures
reaches “cut-out” pressure. accessory, the outlet regulated PRESSURE SWITCH: The air pressure may have to be pressure switch automatically adjusted while you are operating starts the motor when the air the accessory. tank pressure drops to the factory set “cut-in” pressure. It stops the motor when the air INSTALLATION AND tank pressure reaches the... -
Page 10: Initial Start Up Procedure
amount of oil may be present in Please see the chart below as the pump upon receipt of the air the MINIMUM requirements: compressor. This is due to factory testing and does not Length of mean the pump contains oil. Rating Cord in Feet (120 Volts) -
Page 11: Operating Procedures
grounding plug. The plug must 4. Open the regulator by turning be used with an outlet that has it clockwise. Adjust the been installed and grounded in regulator to the correct accordance with all local codes pressure setting. Your and ordinances. The outlet must compressor is ready for use. -
Page 12: Maintenance
MAINTENANCE ROUTINE MAINTENANCE WARNING: UNIT CYCLES SCHEDULE AUTOMATICALLY WHEN POWER IS ON. WHEN 1. Drain water from the air tank, DOING MAINTENANCE, any moisture separators or transformers. YOU MAY BE EXPOSED 2. Check for any unusual noise TO VOLTAGE SOURCES, and/or vibration. -
Page 13: Service Instructions
Allow oil to drain completely. Units with External Brass 2.Replace the oil drain plug (The Check Valve Replacement 1. Release all air pressure from use of a sealing compound or Teflon tape to avoid leakage is air tank and unplug outfit. recommended.) 2. -
Page 14: Troubleshooting Guide
TROUBLESHOOTING GUIDE PERFORMING REPAIRS MAY EXPOSE VOLTAGE SOURCES, MOVING PARTS OR COMPRESSED AIR SOURCES. PERSONAL INJURY MAY OCCUR. PRIOR TO ATTEMPTING ANY REPAIRS, UNPLUG THE COMPRESSOR AND BLEED OFF TANK AIR PRESSURE. PROBLEM CAUSE CORRECTION Excessive Defective • Move the pressure switch lever to the tank pressure "OFF"... - Page 15 PROBLEM CAUSE CORRECTION Pressure It is normal for If there is an excessive amount of reading on "some" pressure drop when the accessory is pressure drop used, adjust the regulator following the regulated to occur. instructions. pressure gauge Note:Adjust the regulated pressure drops when under flow conditions (while accessory is accessory...
- Page 16 PROBLEM CAUSE CORRECTION Motor will • Check valve is • Remove and clean, or replace. not run. stuck open. (con’t) • Loose electrical • Check wiring connection inside connections. pressure switch and terminal box area. • Possible • Return to an Authorized Warranty defective Service Center for inspection or capacitor.
-
Page 17: Factory Service Centers
Customer Record Date Purchased When you need service: Send complete tool (prepaid) Dealer’s Name and Address to one of the Makita Factory Service Centers listed, or to an Authorized Makita Service Center. Be sure to attach a Model No. letter to the outside of the carton detailing the problem Serial No. -
Page 18: Warranty
ONE YEAR from the date of original purchase. Should any trouble develop during this one year period, return the COMPLETE tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers. If inspection shows the trouble is caused by defective workmanship or material, Makita will repair, (or at our option, replace), without charge. - Page 19 Design Repair Service Industrial Maintenance Features Durability Home Maintenance Size Power Hobby Price Other ( Other ( Makita Brand 5. Any comments: DATE PURCHASED MODEL NO. MONTH YEAR SERIAL NO. STATUS INTL. LAST NAME/COMPANY NAME Married Single STREET ADDRESS CITY...
- Page 20 First Class Postage Required Makita U.S.A., Inc. Post Office will not deliver without proper 14930 Northam Street postage La Mirada, CA 90638-5753...
