Toro 79392 Operator's Manual

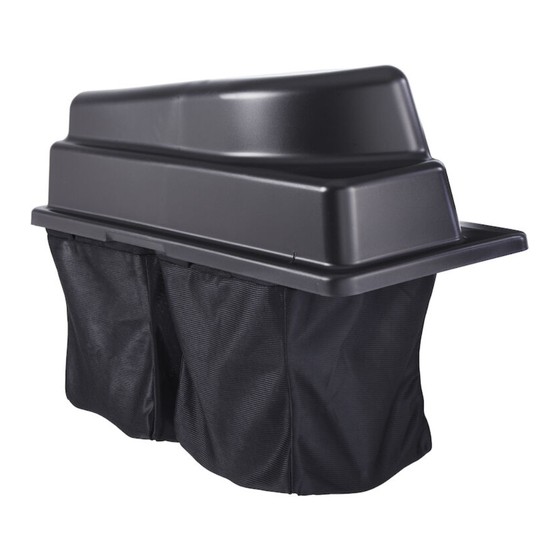

50in and 54in bagger zero-turn-radius riding mower

Advertisement

Quick Links

50in and 54in Bagger
Zero-Turn-Radius Riding Mower
Model No. 79392-Serial No. 316000001 and Up

Introduction

Read this information carefully to learn how to operate and
maintain your product properly and to avoid injury and
product damage. You are responsible for operating the
product properly and safely.
Whenever you need service, genuine parts, or additional
information, contact an Authorized Service Dealer or
Customer Service and have the model and serial numbers of
your product ready.
Figure 1
model and serial numbers on the product. Write the numbers
in the space provided.
1. Model and serial number location
Model No.
Serial No.
This manual identifies potential hazards and has safety
messages identified by the safety alert symbol
which signals a hazard that may cause serious injury or death
if you do not follow the recommended precautions.
1. Safety-alert symbol
Original Instructions (EN)
identifies the location of the
Figure 1
(Figure
Figure 2
This manual uses 2 words to highlight information.
Important calls attention to special mechanical information
and Note emphasizes general information worthy of special
attention.
This product contains a chemical or chemicals
known to the State of California to cause cancer,
birth defects, or reproductive harm.
Contents
Introduction .................................................................. 1
Safety ........................................................................... 2
Towing Safety ......................................................... 2
Safety and Instructional Decals ................................. 3
Setup ............................................................................ 4
1 Installing the Weight.............................................. 5
2 Installing the Attachment Mount............................. 7
3 Assembling the Bagger Top ...................................10
4 Installing the Bagger Top ......................................11
5 Installing the Cutoff Baffle ....................................12
6 Installing the Blowout Baffle..................................13
7 Installing the Chute ..............................................13
8 Connecting with the Discharge Tube ......................15
Operation ....................................................................15
Emptying the Grass Bags.........................................15
Removing the Bagger..............................................16
Using the Draw Bar ................................................16
Operating Tips ......................................................17
Maintenance .................................................................18
2),
Recommended Maintenance Schedule(s) ......................18
Inspecting the Bagger Attachment ............................18
Inspecting the Mower Blades ...................................18
Caring for the Grass Bags ........................................19
Cleaning the Bagger Attachment ..............................19
Storage ........................................................................19
Storing the Bagger Attachment.................................19
Form No. 3399-560 Rev A
Operator's Manual
WARNING
CALIFORNIA
Proposition 65 Warning
Printed in the USA
*3399-560* A
All Rights Reserved

Advertisement

Table of Contents
loading

Summary of Contents for Toro 79392

  • Page 1: Table Of Contents

    Form No. 3399-560 Rev A 50in and 54in Bagger Zero-Turn-Radius Riding Mower Model No. 79392—Serial No. 316000001 and Up Operator's Manual Introduction This manual uses 2 words to highlight information. Important calls attention to special mechanical information Read this information carefully to learn how to operate and...
  • Page 2: Safety

    Safety • If you remove the grass catcher, be sure to install any discharge deflector or guard that might have been removed to install the grass catcher. Do not operate the mower without either the entire grass catcher or the grass DANGER deflector in place.
  • Page 3: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. 109-6809 1. Crushing hazard of hand—do not remove the whole bagger from the machine; open the bagger top and then remove the bag(s) from the bagger.
  • Page 4: Setup

    Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Bolt (3/8 x 1-1/4 inches) Locknut (3/8 inch) Weight mounting bracket, left Weight mounting bracket, right Washers Install the weight. Weight bracket Bolt (3/8 x 1 inch) Flat weight Suitcase weight...
  • Page 5: Installing The Weight

    Installing the Weight Parts needed for this procedure: Bolt (3/8 x 1-1/4 inches) Locknut (3/8 inch) Weight mounting bracket, left G014875 Weight mounting bracket, right Figure 3 Washers Weight bracket 1. Front-right caster (castor 3. Bolt (3/8 x 1 inch) fork and wheel not shown Bolt (3/8 x 1 inch) for clarity)
  • Page 6 Note: For machines with a foot assist lift pedal, the washers are not used. • For machines with a foot assist lift pedal, Remove the forward fasteners in the foot assist lift pedal bracket and secure the bracket using 2 bolts and 2 lock nuts (Figure Note: One locknut is from loose parts and the...
  • Page 7: Installing The Attachment Mount

    10. Secure the weights to the weight bracket with a G014879 keyed-cross bar (Figure 9). Install the bar and rotate it 90 degrees downward to lock it in place. 11. Once all the weights and brackets have been installed, check that all the fasteners are tight. Tighten as necessary.
  • Page 8 g030494 Figure 10 2015 model shown Figure 12 1. Stabilizer bracket 3. Locknut (5/16 inch) 1. Self-tapping screw (5/16 x 2. Pivot frame 2. Carriage bolt (5/16 x 3/4 3/4 inch) inch) 4. Attach the draw bar decal 1.3 cm (1/2 inch) to the left 2.
  • Page 9 For 2011 through 2014 Models Only Note: The stabilizer bracket is not used on 2011 through 2014 models. Note: For 2011 through 2014 models, the rear-engine guard is optional for this bagger. 1. Install the pivot frame to the machine frame as shown Figure 15.
  • Page 10: Assembling The Bagger Top

    g030499 Figure 18 Left side shown 1. Pivot-frame hole 4. Support rod g030497 2. Washer 5. Keyed slot (existing) 3. Hairpin cotter 6. Bent, flared end of support Figure 16 1. Self-tapping screw (5/16 x 2. Pivot frame 3/4 inch) 5.
  • Page 11: Installing The Bagger Top

    3. Slide the brackets over the posts and rotate the bagger top down to the operating position. Note: The bagger top is easier to install if 2 people work together. G014888 Figure 20 G005666 1. Bagger top 4. Bracket, bagger top 2.
  • Page 12: Installing The Cutoff Baffle

    4. Lift the bagger top and install the bags by sliding the bag frame hooks onto the retaining brackets (Figure 21). Installing the Cutoff Baffle No Parts Required Procedure Note: Certain models will have the cutoff baffle installed (Figure 23). Proceed to the next procedure if a cutoff baffle is installed.
  • Page 13: Installing The Blowout Baffle

    Installing the Blowout Baffle Installing the Chute No Parts Required Parts needed for this procedure: Chute Procedure Note: This procedure is only for machines with 54 inch Procedure mower decks. 1. Angle the metal tab at the front of the chute into the Secure the blowout baffle to the mower deck using 2 carriage slot in the bracket welded to the mower deck (Figure...
  • Page 14 G015204 Figure 26 G005756 Figure 28 Note: As the chute mates with the deck, make sure the edge of the chute is under the lip of the clip assembly 1. Chute 3. Retaining clasp installed previously. 2. Flexible latch 3. On the top of the chute, engage the hook shaped latch around pivot rod of the deflector assembly as shown (Figure 27).
  • Page 15: Connecting With The Discharge Tube

    Operation Note: Determine the left and right sides of the machine from the normal operating position. Connecting with the Discharge WARNING Tube To avoid personal injury, follow these procedures: Parts needed for this procedure: • Become familiar with all operating and safety instructions in the Operator's Manual for the Discharge tube mower before using this attachment.
  • Page 16: Clearing Obstructions From The Bagger

    Removing the Bagger CAUTION Failing to remove the front bagger weights and operating the machine without the bagger attachment may cause an unstable condition which could result in a loss of control. • Always remove the front weights when removing the bagger attachment.
  • Page 17: Operating Tips

    Operating Tips CAUTION As the bagger fills, extra weight is added to the back Tips for Bagging of the machine. If you stop and start suddenly on hills, you may lose steering control or the machine may tip. Remembering the Size •...
  • Page 18: Maintenance

    Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Inspect the bagger After the first 10 hours • Clean the bagger Before each use or daily •...
  • Page 19: Caring For The Grass Bags

    Caring for the Grass Bags Storage Do not wash the grass bags. Storing the Bagger Attachment To prevent rapid deterioration of the bag material, store the bags where they will dry completely after each use. 1. Clean the bagger attachment; refer to Cleaning the Bagger Attachment.
  • Page 20 Notes:...
