To replace the front port panel:
1.
2.
3.
4.
5.
6.
9.9
Installing the motherboard
Motherboard problems will be handled by trained support people only.
9.10
Installing a graphics card
To install a graphics card:
1.
2.
3.
1
Notice!
i
Use only graphics cards specified by the manufacturer. Other graphics cards are not
supported.
9.11
Installing a sound card
To install a sound card:
1.
2.
3.
Bosch Security Systems B.V.
Turn off and unplug the unit.
Remove the chassis cover.
Disconnect the power and data cables from the front port panel to other chassis
components including the motherboard and backplane.
Remove the old port panel by depressing the release tab, then pulling the unit out of the
chassis.
Insert the new front port panel unit in the slot until the tab locks into place.
Connect the data and power cables to the backplane and motherboard.
Turn off the system, lay the chassis on a flat surface, then remove the chassis cover.
Install the graphics card in the dedicated PCI slot.
Put back and secure the chassis cover.

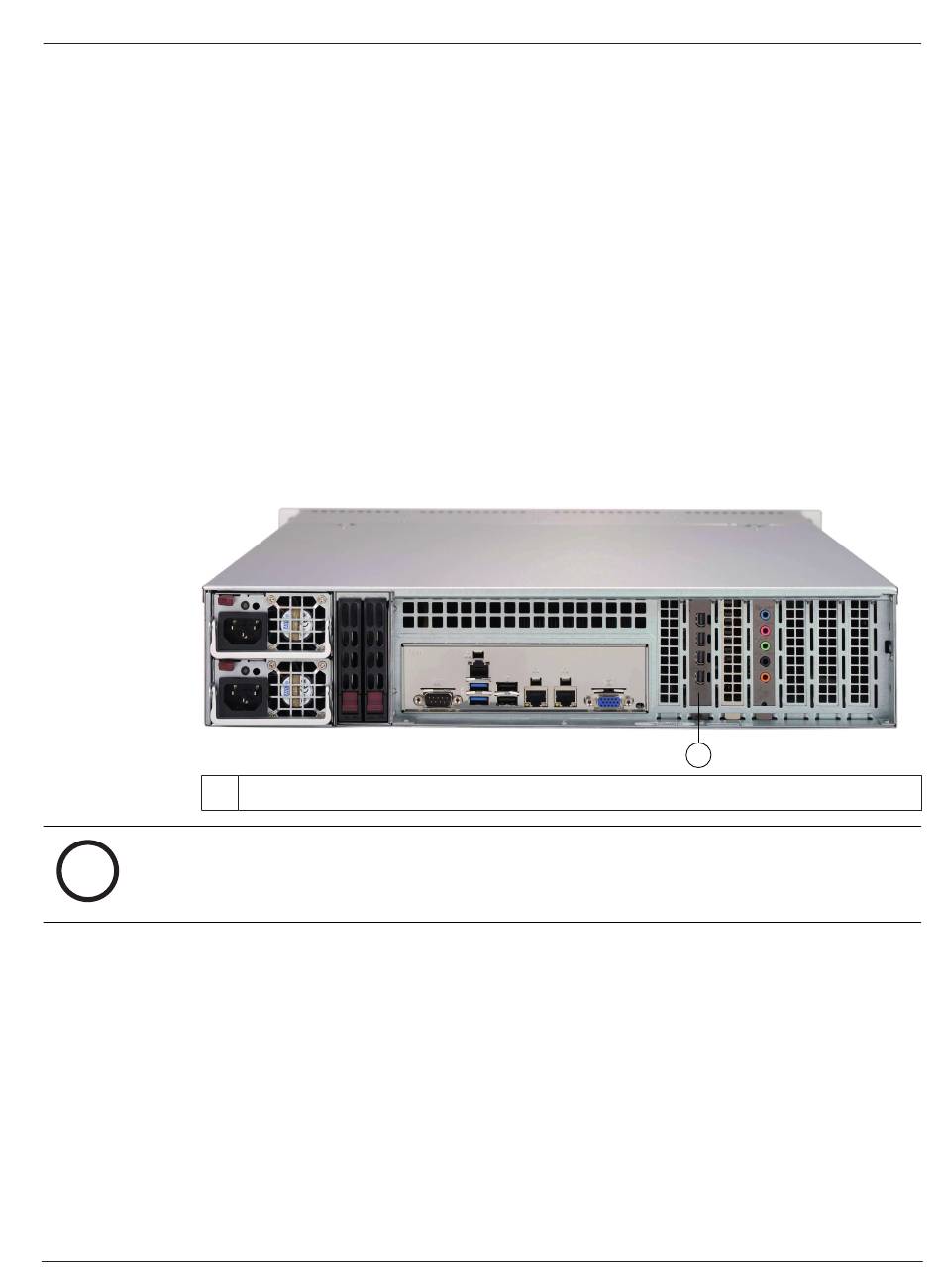

Dedicated PCI slot for a graphics card
Turn off the system, lay the chassis on a flat surface, then remove the chassis cover.
Install the sound card in the dedicated PCI slot.
Put back and secure the chassis cover.
