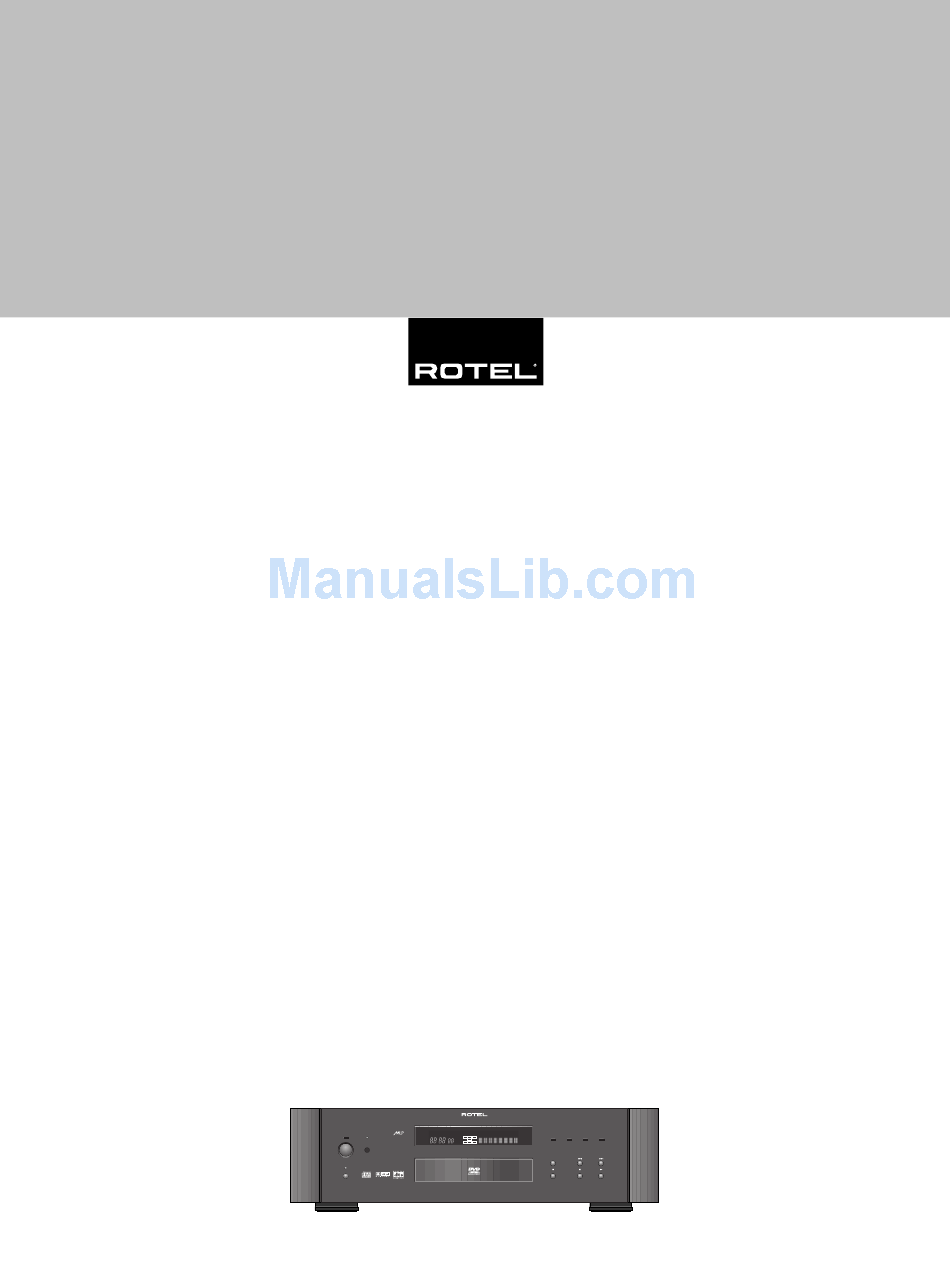

  • Page 1 Owner’s Manual RDV-1080 DVD Audio/Video Player DVD AUDIO/VIDEO PLAYER RDV-1080 TITLE CHAP . LPCM B.S.P. STANDBY VCDVD V.OFF PROGRESSIVE REPEAT REMAIN AUDIO GROUP TRACK STEP MPEG BONUS DIGITAL DIRECT 44.1kHz/ 88.2kHz/ RANDOM RROGRAM ALL 1A-B EACH INDEX DOLBY PROGRESSIVE 48kHz...
  • Page 2 RDV-1080 DVD Audio/Video Player RDV-1080 Surround Sound Receiver Cautions DANGER: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel.

  • Page 3: 1: Controls And Connections

    BONUS RANDOM RROGRAM INDEX DOLBY DIGITAL PRODUCT COMPLIES WITH DHHS RULES 21CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE. DVD PLAYER MODEL NO. RDV-1080 POWER CONSUMPTION: 20W RDV-1080 CLASS 1 LASER PRODUCT COMPOSITE S-VIDEO COMPOSITE NTSC COMPONENT VIDEO OUT AVIS: RISQUE DE CHOC ELECTRIQUE–NE PAS OUVRIR...

  • Page 4: 2: Rr-Dv3 Remote Control

    RDV-1080 DVD Audio/Video Player 2: RR-DV3 Remote Control OPN/ PROG SCAN ANGLE SUBTTLE TOP MENU VOL + CH - ONSCREEN CLEAR RR-DV93 POWER POWER TV/VIDEO CANCEL RESUME RETURN MUTE PAGE AUDIO TH POS MENU CH + ZOOM DIGEST STROBE SELECT...

  • Page 5: 4: Connections

    CENTER ANALOG RIGHT WOOFER OPTICAL COAXIAL DIGITAL OPTICAL COAXIAL FRONT DIGITAL INPUT 5: Digital Output Formats DVD PLAYER MODEL NO. RDV-1080 POWER CONSUMPTION: 20W RDV-1080 COMPOSITE S-VIDEO COMPOSITE NTSC COMPONENT VIDEO OUT REAR CENTER WOOFER COMPOSITE ANALOG AUDIO INPUT EXT REM...

  • Page 6: 6: Parental Lock Country Codes

    RDV-1080 DVD Audio/Video Player 6: Parental Lock Country Codes Andorra United Arab Emirates Afghanistan Antigua and Barbuda Anguilla Albania Armenia Netherlands Antilles Angola Antarctica Argentina American Samoa Austria Australia Aruba Azerbaijan Bosnia and Herzegovina Barbados Bangladesh Belgium Burkina Faso Bulgaria...
  • Page 7 Liechtenstein Sri Lanka Liberia Lesotho Lithuania Luxembourg Latvia Libyan Arab Jamahiriya Morocco Monaco Moldova, Republic of Madagascar Marshall Islands Mali Myanmar Mongolia Macau Northern Mariana Islands Martinique Mauritania Montserrat Malta Mauritius Maldives Malawi Mexico Malaysia Mozambique Namibia New Caledonia Niger Norfolk Island Nigeria Nicaragua...

  • Page 8: 7: Language Codes

    RDV-1080 DVD Audio/Video Player 7: Language Codes Afar Abkhazian Afrikaans Ameharic Arabic Assamese Aymara Azerbaijani Bashkir Byelorussian Bulgarian Bihari Bislama Bengali, Bangla Tibetan Breton Catalan Corsican Czech Welsh Danish Bhutani Greek Esperanto Estonian Basque Persian Finnish Fiji Faroese Frisian Irish...

  • Page 9: Table Of Contents

    4: Connections ... 5 5: Digital Output Formats ... 5 6: Parental Lock Country Codes ... 6 7: Language Codes ... 8 About Rotel ... 10 Getting Started ... 10 Audio Features ... 10 Video Features ... 10 Other Features ... 10 Supplied Accessories ...

  • Page 10: About Rotel

    Their comments keep the company true to its goal - the pursuit of equipment that is musi- cal, reliable and affordable. All of us at Rotel, thank you for buying this product and hope it will bring you many years of enjoyment.

  • Page 11: Dvd Region Codes

    CD-ROM, PHOTO CD, CD-R, or CD-RW. The unit can only play the audio content on CD-EXTRA, CD-G, and CD-TEXT discs. When a disc is inserted in the RDV-1080, an Opening Screen appears on the TV indicat- ing the type of disc. The disc type also appears in the front-panel display.

  • Page 12: Setting The Tv Code

    On-Screen Displays can be changed. See the Setting Preferences section of this manual. Opening Screens When the RDV-1080 is turned on, an Open- ing Screen display generally appears on your TV. For example, if no disc is inserted in the...

  • Page 13: On-Screen Icons

    Connect the appropriate cable (optical or 75 ohm coaxial) from the DIGITAL OUT connec- tors of RDV-1080 to a digital input on the sur- round processor. : See the DIGITAL AUDIO OUTPUT Set-...

  • Page 14: Ac Power Input

    RDV-1080 DVD Audio/Video Player AC Power Input It is best to plug the RDV-1080 directly into a 2-pin polarized wall outlet. Avoid the use of extension cords. Your RDV-1080 will automatically configure itself for the proper AC line voltage ranging from 110 volts to 240 volts at 50/60Hz.

  • Page 15: Pausing Play/Still Frame

    The RDV-1080 provides this Progressive Scan option. To enjoy progressive scanned video, your TV monitor must have Progres- sive Video inputs.

  • Page 16: Zoom In/Out Zoom Button

    RDV-1080 DVD Audio/Video Player Zoom In/Out ZOOM Button When playing a video disc, the RDV-1080 can zoom in to enlarge a section of the picture up to 1024 times its original size or zoom out to reduce a picture to 1/8 of its original size.

  • Page 17: Selecting Subtitles

    ENTER button. The window will automati- cally close following 10 seconds of inactivity. Playing Specific Selections The RDV-1080 provides a several methods for locating specific selections from a disc. The simplest method, using the TRACK buttons, is covered in the Basic Operations topic.

  • Page 18: Find A Scene From A Dvd Menu

    RDV-1080 DVD Audio/Video Player ered is the use of NUMERIC buttons to specify selections along with advanced features like random, program, and repeat play functions. Please review the About Discs section of this manual to learn how various types of discs are divided into Titles, Chapters, and Tracks .

  • Page 19: Find A Scene From A Dvd Digest

    Find a Scene from a DVD Digest DIGEST Button With a video disc inserted, the RDV-1080 can display thumbnail images of the opening scenes from each Title or Chapter on a DVD Video disc or each Track on a Video CD/SVCD disc.

  • Page 20: Play The Bonus Group On A Dvd Audio Disc

    RDV-1080 DVD Audio/Video Player Play the Bonus Group on a DVD Audio Disc Some DVD Audio discs contain a Bonus Group of tracks available only to users with a key number password. When a disc with such a Bonus Group is loaded, the word BONUS appears in the front-panel display.

  • Page 21: Repeat Tracks Repeat Play

    • Use the CURSOR buttons to move the over the PROGRAM field. • Use the NUMERIC buttons to enter Tracks in the desired order. Each number appears in the display of 24 available “slots”. For DVD Audio discs, you must enter the Group number, followed by the Track .

  • Page 22: Setting Preferences

    Audio CD or a DVD Audio disc with audio only during playback. All other disc types must be stopped first. Setting Preferences The RDV-1080 provides a number of default operating preferences that can be set by the user. These include language preferences, display options, hardware configuration set- tings, and speaker settings to match the unit to your system.

  • Page 23: Tv Monitor Type

    The RDV-1080 must know which type of TV you are using. With the standard aspect ratio TV, you also need to tell the RDV-1080 how to adjust wide-screen video images to fit. Use this preference item to configure the video...

  • Page 24: Down Mix Mode

    OFF: No compression. Full dynamic range. DTS BASS MANAGEMENT Setting Settings described later in this section enable you to match the RDV-1080’s 5.1 channel audio over output to the specific capabilities of your speak- ers (i.e. for large or small speakers.) This set- ting gives you the option to override these settings and treat all speakers as “large”...

  • Page 25: Expert Speaker Settings

    To configure the SPEAKER setting: • On the SPK. SETTING screen, the top field will be automatically highlighted. • Press the CURSOR buttons to choose the desired setting. 2 CHANNEL: Use this setting when con- necting to a 2-channel stereo system or a TV set with only two speakers.

  • Page 26: Test Tone

    DELAY, however it serves no useful purpose for this adjustment. Parental Lock The RDV-1080 has a Parental Lock feature to prevent children from watching inappropriate DVD Video discs. The feature relies on ratings systems (specific to each country) that set a...

  • Page 27: Troubleshooting

    TV/VIDEO-CANCEL, CURSOR, or NU- MERIC buttons do not work: TV-DVD switch must be set to TV to operate the TV functions and DVD to operate the RDV-1080. No picture: check the video cable connec- tion and input setting on TV, turn off Progres- sive scan feature.
  • Page 28 082 OM-RDV-1080 English 110100 The Rotel Co. Ltd. 10-10 Shinsen-Cho Shibuya-Ku Tokyo 150-0045 Japan Phone: +81 3-5458-5325 Fax: +81 3-5458-5310 Rotel of America 54 Concord Street North Reading, MA 01864-2699 Phone: +1 978-664-3820 Fax: +1 978-664-4109 Rotel Europe Meadow Road...
