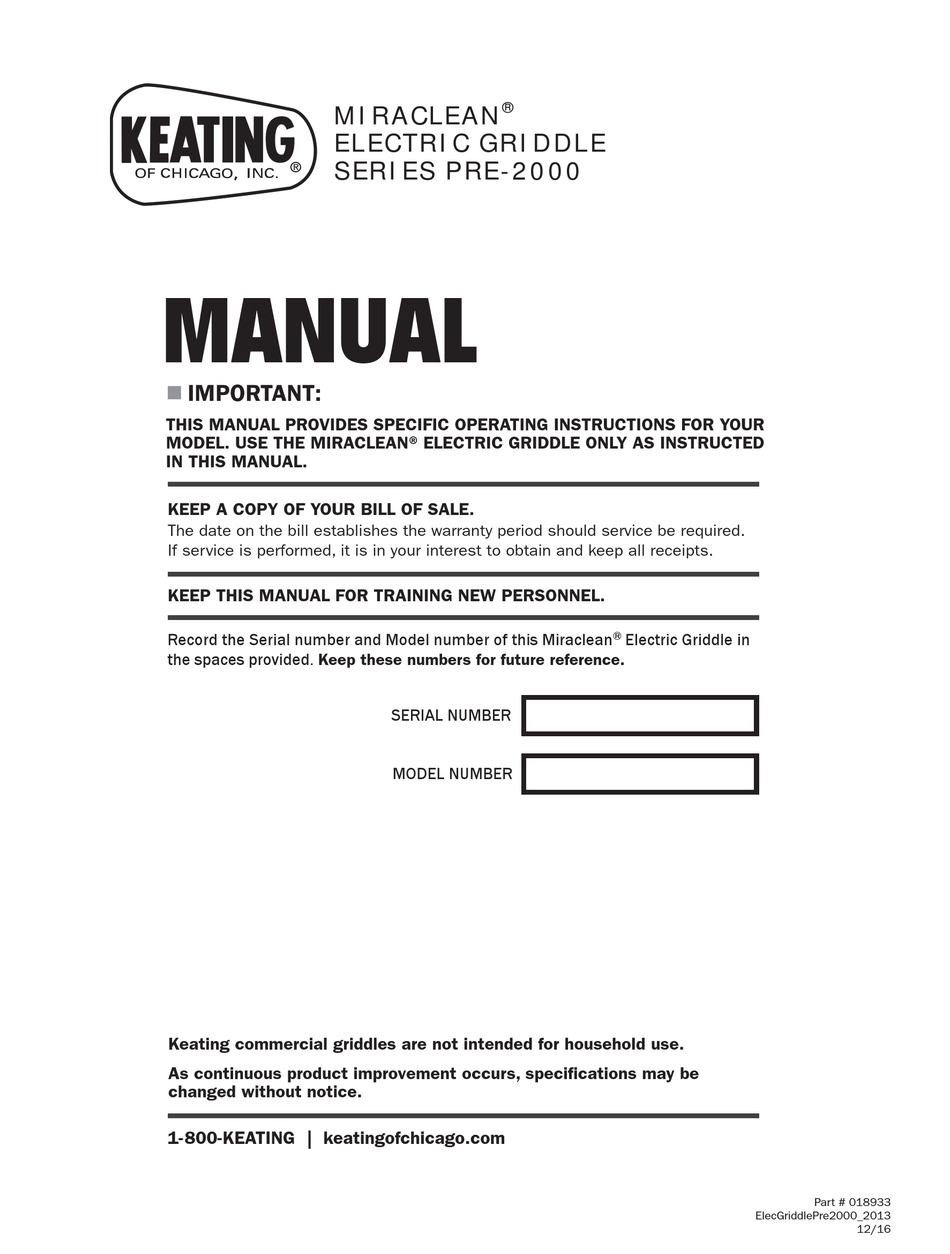

MIRACLEAN
ELECTRIC GRIDDLE
SERIES PRE-2000
MANUAL
IMPORTANT:
THIS MANUAL PROVIDES SPECIFIC OPERATING INSTRUCTIONS FOR YOUR
MODEL. USE THE MIRACLEAN® ELECTRIC GRIDDLE ONLY AS INSTRUCTED
IN THIS MANUAL.
KEEP A COPY OF YOUR BILL OF SALE.
The date on the bill establishes the warranty period should service be required.
If service is performed, it is in your interest to obtain and keep all receipts.
KEEP THIS MANUAL FOR TRAINING NEW PERSONNEL.
Record the Serial number and Model number of this Miraclean
the spaces provided. Keep these numbers for future reference.
Keating commercial griddles are not intended for household use.
As continuous product improvement occurs, specifi cations may be
changed without notice.
1-800-KEATING | keatingofchicago.com
®
SERIAL NUMBER
MODEL NUMBER
®
Electric Griddle in
ElecGriddlePre2000_2013
Part # 018933
12/16
