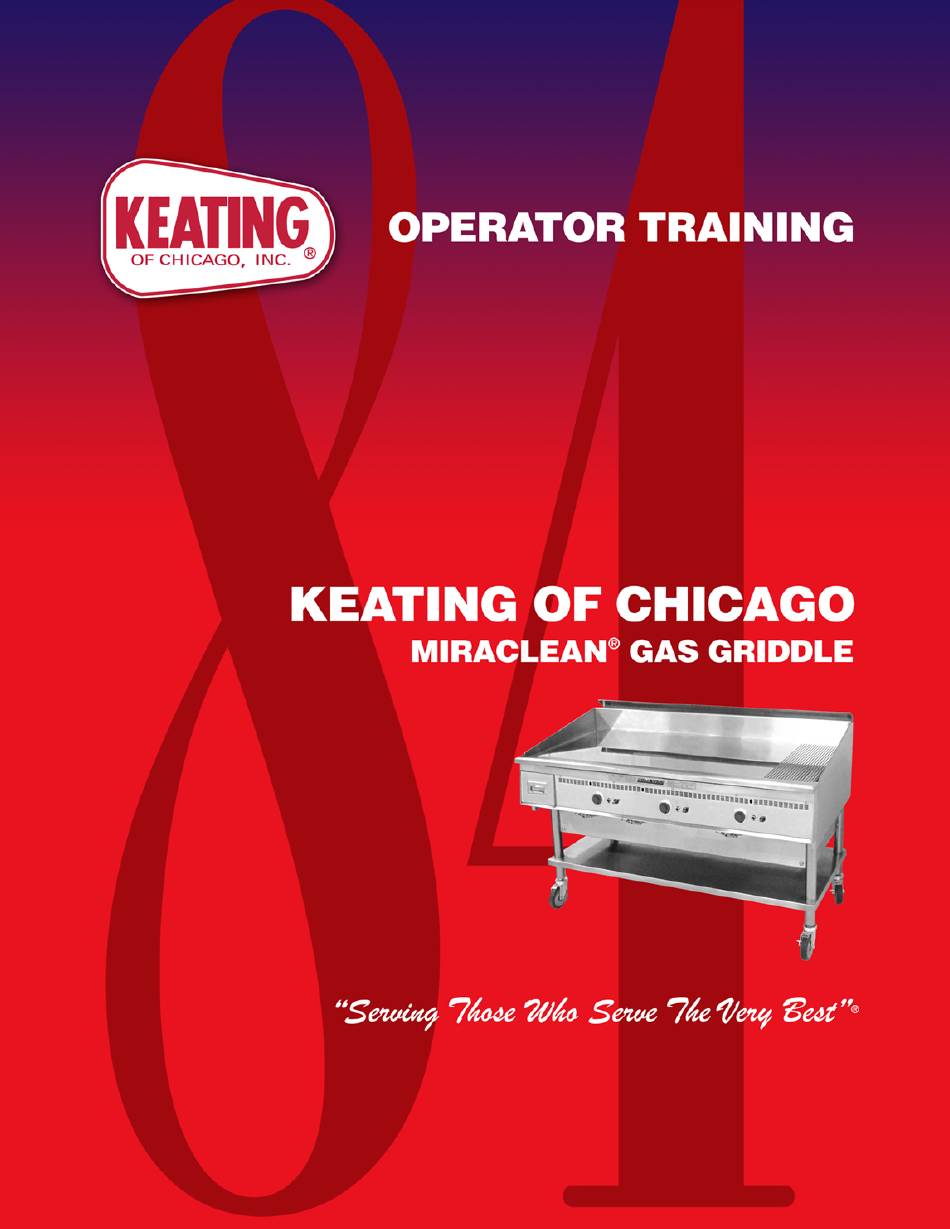

Keating Of Chicago Miraclean Operator's Training Manual

Gas griddle
Hide thumbs Also See for Miraclean:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual

Advertisement

Table of Contents
loading

Related Manuals for Keating Of Chicago Miraclean

Summary of Contents for Keating Of Chicago Miraclean

  • Page 2: Table Of Contents

    Gas Pressure ....................4 Lighting ....................5 - 10 Cooking ....................11 - 13 Cooking Load Placement ................14 Care of the Miraclean®Surface ..............15 - 16 Cleaning ....................17 - 19 Shut Down ..................20 - 23 Daily Maintenance ..................24...

  • Page 3: Warranty Registration

    Warranty Registration NOTE: Be sure to return your warranty registration card attached to the griddle, or fi ll out the form on the warranty page of our website, keatingofchicago.com. Have your installer sign the bottom of the card.

  • Page 4: Calibration Not Required

    Calibration Not Required CALIBRATION NOT REQUIRED - All equipment has been tested at the factory before shipping: - Thermostat was calibrated at our factory - The test charts are packed in your accessory box with the manual Example of test chart...

  • Page 5: Quick Disconnect

    Quick Disconnect NOT! This griddle installation is incorrect - the quick disconnect should connect directly to the griddle. This griddle installation is correct.

  • Page 6: Gas Pressure

    NOTE: Be sure your installer has verifi ed: 1. The incoming gas pressure. 2. The manifold pressure. 3. Signed the Warranty Registration Card (return to Keating of Chicago). NATURAL GAS PRESSURE REQUIREMENTS: Incoming Service Maximum: 7" Water Column Gas Valve Outlet Pressure (Burner Manifold) : 4.0" Water Column NOTE: Supply pressure must not be above 13.84"...

  • Page 7: Lighting

    Lighting the Miraclean® Griddle (See lighting instructions plate attached to front of Miraclean® Griddle) Make sure that the main gas valve on the gas supply line to the Miraclean® Griddle is in the “ON” position. Make sure your fl exible connector is connected.
  • Page 8 Lighting the Miraclean® Griddle “Pilot” Position Pilot Gas Valve Knob Note: We recommend lighting the burner on the side farthest from the incoming gas fi rst (left side when facing griddle). When the farthest burner receives gas, gas is available for other burners.
  • Page 9 Lighting the Miraclean® Griddle Push knob inwards Pilot Gas Valve Knob 2. Push in and hold the pilot gas valve knob, and while holding, push the red spark ignition button to light the pilot. (When griddle is fi rst installed, it may take longer than 90 seconds to bleed the air from the gas line.)
  • Page 10 Lighting the Miraclean® Griddle “On” Position Pilot Gas Valve Knob 3. When the spark ignites the pilot, continue to hold in for 60 seconds. Then release the pilot gas valve knob; the pilot should remain burning. Turn the knob to the...
  • Page 11 Lighting the Miraclean® Griddle Thermostat Knob “On” Position “On/Off” Switch 4. Turn On/Off switch to “ON” position.
  • Page 12 – we recommend 350ºF. You may be able to gradually work the temperature up as you become accustomed to the more rapid cooking of the Miraclean® Griddle. 5. Set thermostat knob to desired temperature. The Miraclean® Griddle has been...

  • Page 13: Cooking

    Cooking on the Miraclean® Griddle Thermostat Knob “On/Off” Switch 1. Wait ten minutes for preheat.
  • Page 14 Cooking on the Miraclean® Griddle 2. The Miraclean Griddle surface is NOT A NON-STICK SURFACE. 3. Use cooking oil in the area where you are cooking. 4. Cook as usual, but after each batch scrape the griddle in the work area completely clean, using...
  • Page 15 Cooking on the Miraclean® Griddle “V” on front side of griddle plate To use the best cooking areas, locate the inverted “V’s” on the front side of the griddle cooking plate. The “V’s” indicate where the thermostat sensing bulbs are located below...

  • Page 16: Cooking Load Placement

    Cooking Load Placement RECOMMENDED COOKING LOAD PLACEMENT: COOK AROUND THE THERMOSTAT Load #1 Load #2 L L oad #2 Load #3 L L oad #3 Load #4 L L oad #4 Load #5 L L oad #5 Load #6 Load #6 Thermostat “V”...

  • Page 17: Care Of The Miraclean®Surface

    Care of the Miraclean® Griddle Surface USE ONLY KEATING SUPPLIED CLEANING TOOLS AND KLENZER. USE ONLY A KEATING STEEL SPATULA. DO NOT WASH STEEL SPATULA WITH CHLORINE, BLEACH OR CHEMICALS AS IT NOT! WILL RUST. RUBBING IT WITH VEGETABLE OIL WILL SLOW DISCOLORATION.
  • Page 18 Care of the Miraclean® Griddle Surface NOTE: Damage done to the Miraclean® surface is irreparable. DO NOT HACK, CHOP, HIT OR CUT ON THE MIRACLEAN® SURFACE. YOU WILL DENT THE STEEL PLATE UNDER THE TRIVALENT CHROME. PROPER USE OF THE UTENSILS NOT! SUPPLIED WITH YOUR MIRACLEAN®...

  • Page 19: Cleaning

    Cleaning the Miraclean® Griddle Surface The surface of the MIRACLEAN® Griddle is very durable and with proper care, following the procedures below, will last many years. STEP 1. Scrape Miraclean® surface using the Keating scraper. DO NOT use bricks, stones, screens or chemicals to clean the griddle surface.
  • Page 20 Cleaning the Miraclean® Griddle Surface STEP 2. Clean your Miraclean® Griddle while warm at approximately 300°F. Using a pitcher, pour water on the surface while brushing with the Keating Palmetto brush. Scrub the griddle clean with the brush, sweeping the water into the drain trough.

  • Page 21: Cleaning

    Cleaning the Miraclean® Griddle Surface STEP 3. Once the griddle has been cleaned, sprinkle Keating Klenzer on the surface. Add water, and using the Palmetto brush, work the Klenzer and water into a paste. Allow to dry, and then polish with a soft cloth (towel). It will sparkle like new in just a few minutes.

  • Page 22: Shut Down

    Shut Down the Miraclean® Griddle Thermostat Knob “On/Off” Switch “Off” Position 1. To shut down the griddle, turn the On/Off switch to “OFF” position.
  • Page 23 Shut Down the Miraclean® Griddle Thermostat Knob “On/Off” Switch “Off” Position 2. Rotate thermostat knob fully counter-clockwise until it stops. NOTE: DO NOT SKIP THIS STEP - Rotating the thermostat knob manually cleans the internal contacts and is a required...
  • Page 24 Shut Down the Miraclean® Griddle “Off” Position Pilot Gas Valve Knob 3. Turn the pilot gas valve knob to the “OFF” position. 4. Check to determine that all burners and pilots are extinguished.

  • Page 25: Shut Down

    Shut Down the Miraclean® Griddle 5. Make sure that the main gas valve on the gas supply line to the Miraclean® Griddle is in the “OFF” position.

  • Page 26: Daily Maintenance

    Daily Maintenance 1. Clean the Miraclean Griddle surface. 2. Empty and clean the grease drawer. 3. Completely wipe down the cabinet. Note: Follow the Preventative Maintenance Chart in the manual to keep your griddle working effi ciently.
  • Page 27 Note: Please have the person calling be familiar with the equipment to explain the problem. You must have your equipment Model Number and Serial Number when reporting a warranty problem. We must have this information to authorize service. KEATING OF CHICAGO, INC., 8901 W. 50TH STREET, MCCOOK, IL 60525...
