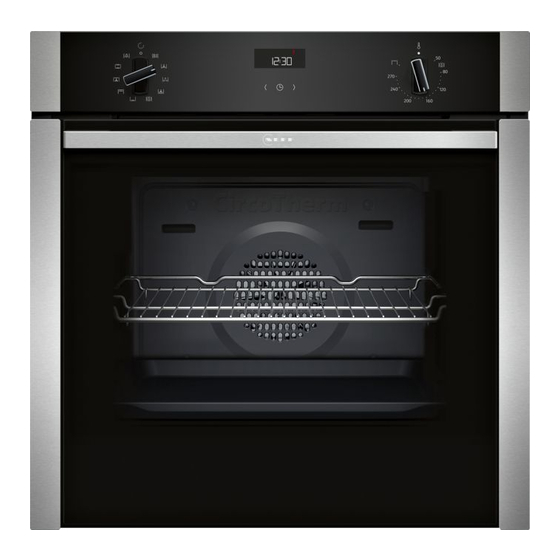

- Page 1 Oven [en] User manual and installation in- structions B3ACE4A.0...
-
Page 2: Table Of Contents
en Safety 1.2 Intended use Table of contents This appliance is designed only to be built into kitchen units. Read the special installation instructions. USER MANUAL Only a licensed professional may connect ap- Safety .............. 2 pliances without plugs. Damage caused by in- correct connection is not covered under the Preventing material damage ....... -
Page 3: Safety
Safety en Opening the appliance door creates a The appliance and its parts that can be draught. Greaseproof paper may come into touched may have sharp edges. contact with the heating element and catch ▶ Take care when handling and cleaning fire. -
Page 4: Preventing Material Damage
en Preventing material damage Children may breathe in or swallow small WARNING ‒ Risk of electric shock! parts, causing them to suffocate. When changing the bulb, the bulb socket con- ▶ Keep small parts away from children. tacts are live. ▶ Do not let children play with small parts. ▶... -
Page 5: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 3.2 Saving energy If the cooking time is relatively long, you can switch the appliance off 10 minutes before the cooking time If you follow these instructions, your appliance will use ends. less power. ¡ There will be enough residual heat to finish cooking Only preheat the appliance if the recipe or the recom- the dish. - Page 6 en Familiarising yourself with your appliance 4.3 Display The display shows the current settings, options or relevant information. The red bar above or below a symbol indicates which value is active or can be changed. Symbol Name Childproof lock activ- The childproof lock is activated ated → "Childproof lock", Page 11 Heating-up indicator ...
- Page 7 Accessories en 4.6 Temperature and setting levels There are different settings for the types of heating and functions. Note: For temperature settings above 250 °C, the appliance reduces the temperature to approx. 240 °C after ap- prox. 10 minutes. If your appliance has the top/bottom heating or bottom heating types, this temperature reduction does not take place there.
-
Page 8: Accessories
You will find a comprehensive range of products for your appliance in our brochures and online: www.neff-international.com Accessories vary from one appliance to another. When Baking tray Slide the tray, e.g. the universal pan, purchasing accessories, always quote the exact E.g. -
Page 9: Basic Operation
Before using for the first time en 6 Before using for the first time Configure the settings for initial start-up. Clean the ap- 6.2 Cleaning the appliance before using it pliance and accessories. for the first time Clean the cooking compartment and accessories be- 6.1 Initial use fore using the appliance to prepare food for the first You need to make settings for initial use before you... - Page 10 en Time-setting options 8 Time-setting options Your appliance has different time-setting options, with Use the button to reset the timer duration to zero. ▶ which you can control its operation. a After a few seconds, the appliance applies the change and ...
-
Page 11: Childproof Lock
Childproof lock en Cancelling the end time Requirements ¡ The type of heating and temperature or setting are You can delete the set end at any time. set. is highlighted on the display. Requirement: ¡ A cooking time is set. Reset the end time to the current time plus the set ▶... - Page 12 en Basic settings Use the function selector to set a suitable type of a When the rapid heating process ends, an audible heating. signal sounds and the heating indicator goes out. Place the food in the cooking compartment. 11 Basic settings You can configure the basic settings for your appliance to meet your needs.
- Page 13 Cleaning and servicing en 12 Cleaning and servicing To keep your appliance working efficiently for a long ATTENTION! time, it is important to clean and maintain it carefully. Unsuitable cleaning products may damage the sur- faces of the appliance. 12.1 Cleaning products Do not use harsh or abrasive cleaning products.
- Page 14 en Cleaning and servicing Cooking compartment Area Suitable cleaning agents Information Enamel surfaces ¡ Hot soapy water Soak any heavily soiled areas and use a brush or steel wool. ¡ Vinegar water Leave the appliance door open to dry the cooking compartment after cleaning it.
- Page 15 Cleaning function en faces no longer clean themselves adequately during – From the inside of the appliance door operation, heat up the cooking compartment specific- – From the glass cover for the oven light ally to the right temperature. This prevents stains that cannot be removed. Remove any objects from the cooking compartment.
- Page 16 en Shelf supports 14 Shelf supports To clean the rails and the cooking compartment, or to 14.2 Attaching the shelf supports replace the rails, you can remove these. Notes ¡ The rails only fit on the right or left. 14.1 Detaching the shelf supports ¡...
-
Page 17: Appliance Door
Appliance door en Hold the screwdriver horizontally and use it to Insert the coin in the gap in the lock and rotate as push the door lock (black component) on each side far as it will go ... - Page 18 en Appliance door Use a coin to release both locks on the appliance WARNING ‒ Risk of injury! door. Insert the coin in the gap in the lock and ro- The appliance door has a weight of 7–10 kg and tate as far as it will go ...
- Page 19 Appliance door en Carefully lift the inner pane upwards at an angle and Tip: When fitting the door panes, make sure that remove it in the direction of the arrow . they are in the original order. Insert the intermediate pane in the direction of the arrow and push it in in the direction of the arrow un- til it is fitted in the frame.
-
Page 20: Troubleshooting
en Troubleshooting Insert the retaining bracket for the inner pane into Screw both screws back in on the left and right of the opening . the appliance door. 16 Troubleshooting You can rectify minor faults on your appliance yourself. WARNING ‒ Risk of electric shock! Read the troubleshooting information before contacting Incorrect repairs are dangerous. -
Page 21: Disposal
Disposal en Fault Cause and troubleshooting Electronics fault A message with appears in the dis- Press the button. play, e.g. - . If required, reset the time. ‒... -
Page 22: Baking Tray
en Customer Service 18 Customer Service If you have any queries on use, are unable to rectify 18.1 Product number (E-Nr.) and production faults on the appliance yourself or if your appliance number (FD) needs to be repaired, contact Customer Service. You can find the product number (E-Nr.) and the pro- Detailed information on the warranty period and terms duction number (FD) on the appliance's rating plate. -
Page 23: How It Works
How it works en ¡ Place the food to be grilled on the wire rack. In ad- Cookware with lid dition, slide the universal pan in at least one shelf ¡ Place the cookware onto the wire rack. position lower, with the slanted edge facing the ap- ¡... - Page 24 en How it works Food Accessories/cookware Shelf pos- Type of Temperature Cooking ition heating in °C/grill time in mins setting Fillet of beef, medium, 1 kg Wire rack 210-220 40-50 Universal pan Pot-roasted beef, 1.5 kg Cookware with lid 200-220 140-160 Sirloin, medium, 1.5 kg...
-
Page 25: Baking Tray Universal Pan
Installation instructions en Position baking tins/dishes either next to one another or offset on different shelves so that they are not dir- ectly one above the other in the cooking compartment. Recommended settings for baking Food Accessories/cookware Shelf pos- Type of Temperature in Cook- ition... -
Page 26: 20.1 General Installation Instructions
en Installation instructions 20.1 General installation instructions Follow these instructions before you start with the installation of the appliance. ¡ The safe operation of this appliance can only be guaranteed if it has been installed ¡ Wear protective gloves so that you do not to a professional standard in accordance cut yourself. - Page 27 Installation instructions en ¡ To ventilate the appliance, the intermediate floor 20.3 Installation below a worktop must have a ventilation cut-out. Observe the installation dimensions and the installation ¡ In combination with induction hobs, the gap instructions when installing below a worktop. between the worktop and appliance must not be sealed using additional strips.
- Page 28 en Installation instructions ¡ To ensure that the appliance door can be opened, 20.6 Installing two appliances on top of you must take the minimum dimensions into consid- each other eration when installing in a corner. The dimension Your appliance can also be installed above or below is dependent on the thickness of the unit front and another appliance.
- Page 29 Installation instructions en If required, you can adjust the height of the appli- 20.9 Installing the appliance ance door using the adjustment screws on the left Note: Do not use a cordless screwdriver to secure the and right. panels. This may damage the panels. If required, you can adjust the gap between the ap- pliance door and the panels using the adjustment screws on the left and right.
- Page 30 en Installation instructions Open the appliance door slightly, then refit the pan- els and screw them in place, first at the top and then at the bottom. Note: The gap between the worktop and the appliance must not be closed by additional battens. Thermal insulation strips must not be fitted to the side panels of the surround unit.
- Page 32 Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom *9001738294* 9001738294 BSH Hausgeräte GmbH Carl-Wery-Straße 34 020329 81739 München, GERMANY...
