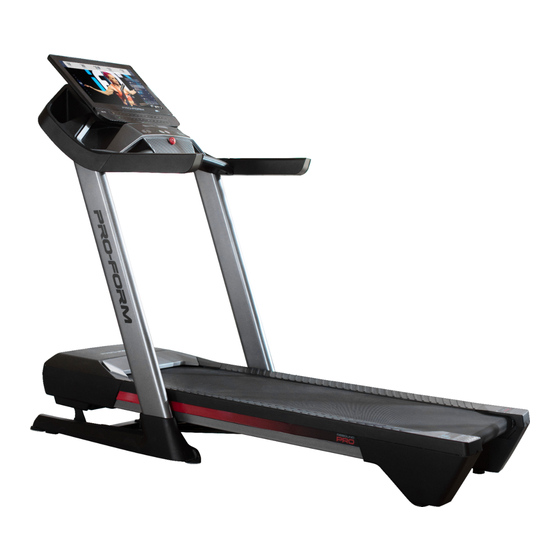

Pro-Form PRO 9000 User Manual

Hide thumbs Also See for PRO 9000:
Table of Contents

Advertisement

Quick Links

proform.com
Model No. PFTL15820.4
Serial No.
Write the serial number in the space
above for reference.
Serial
Number
Decal
REGISTER YOUR
PRODUCT
To register your product and
activate your warranty today,
go to my.proform.com.
MEMBER CARE
For service at any time, go to
my.iFIT.com.
Or call 1-833-680-IFIT
(1-833-680-4348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
USER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Pro-Form PRO 9000

Summary of Contents for Pro-Form PRO 9000

  • Page 1 proform.com USER’S MANUAL Model No. PFTL15820.4 Serial No. Write the serial number in the space above for reference. Serial Number Decal REGISTER YOUR PRODUCT To register your product and activate your warranty today, go to my.proform.com. MEMBER CARE For service at any time, go to my.iFIT.com.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. . .2 IMPORTANT PRECAUTIONS .

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. iFIT assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 19. Read, understand, and test the emergency 26. When folding or moving the treadmill, make stop procedure before using the treadmill sure that the storage latch is holding the (see HOW TO TURN ON THE POWER on frame securely in the storage position. Do page 19).
  • Page 5 STANDARD SERVICE PLANS...

  • Page 6: Before You Begin

    Thank you for selecting the revolutionary PROFORM reading this manual, please see the front cover of this ® PRO 9000 treadmill. The PRO 9000 treadmill offers an manual. To help us assist you, please note the product impressive selection of features designed to make your model number and serial number before contacting us.

  • Page 7: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

  • Page 8: Assembly

    ASSEMBLY 1. To use the assembly steps in this manual, first see the helpful tips below. • To hire an authorized service technician to • To identify small parts, see page 7. assemble the treadmill, call 1-800-445-2480. • Left parts are marked “L” or “Left” and right parts •...
  • Page 9 2. Make sure that the power cord is unplugged. Locate the Upright Wire (90) attached to the Base (96) with a tie. Remove the tie. Next, identify the Right Upright (92). Have a second person hold the Right Upright near the Base (96).
  • Page 10 4. Identify the Left and Right Base Covers (97, 98). Slide the Left Base Cover onto the Left Upright (91), and slide the Right Base Cover onto the Right Upright (92). Then, slide the Base Covers down to the floor. 5.
  • Page 11 6. Set the console assembly (C) facedown on a soft surface to avoid scratching the console assembly. Remove and save the four 1/4" x 1/2" Screws (20). Next, identify the Left and Right Trays (104, 105). Attach the Trays to the console assembly (C) with eight #8 x 3/8"...
  • Page 12 8. With the help of a second person, hold the con- sole assembly (C) near the Right Handrail (84). Connect the Upright Wire (90) to the con- sole wire (D). The connectors should slide together easily and snap into place with an audible click.
  • Page 13 10. Start two #8 x 1/2" Screws (2) into the Crossbar (89), and then tighten them; do not overtighten the Screws. 11. Align the Right Top Handrail Cover (82) with the Crossbar (89) and with the holes (F) in the Right Handrail (84).
  • Page 14 12. Note: If the treadmill is assembled on a smooth surface, it may roll forward as you do this step. Remove the two 5/16" x 3/4" Screws (21) from the Latch Crossbar (59). Note: The Latch Crossbar is not preattached to the treadmill. Next, raise the Frame (64) to the upright posi- tion.
  • Page 15 14. Remove the 5/16" Nut (39) and the 5/16" x 2 1/4" Bolt (28) from the bracket on the Latch Crossbar (59). Align the upper end of the Storage Latch (63) with the bracket on the Latch Crossbar (59), and insert the 5/16"...
  • Page 16 16. Firmly tighten the four 3/8" x 2 3/8" Screws (3) and the two 3/8" x 1 1/4" Screws (1). Next, tighten the two 3/8" x 1 3/4" Screws (4); make sure that the Wheels (93) turn freely. Next, set the Right Inner Base Cover (100) onto the lower end of the Right Upright (92) and onto the Base (96).

  • Page 17: How To Use The Treadmill

    HOW TO USE THE TREADMILL HOW TO CONNECT THE POWER CORD capable of carrying 15 or more amps. To avoid overloading the circuit, do not plug other electrical Use a Surge Suppressor devices, except for low-power devices such as cell phone chargers, into the surge suppressor or into Your treadmill, like other electronic equipment, can be an outlet on the same circuit.
  • Page 18 CONSOLE DIAGRAM FEATURES OF THE CONSOLE workouts, record your workout results, set and track fitness goals, and access many other features. The advanced treadmill console offers a selection of features designed to make your workouts more effec- When you use the manual mode of the console, you tive and enjoyable.
  • Page 19 HOW TO TURN ON THE POWER HOW TO USE THE TOUCH SCREEN IMPORTANT: If the treadmill has been exposed to The console features a tablet with a full-color touch cold temperatures, allow it to warm to room tem- screen. The following information will help you become perature before you turn on the power.
  • Page 20 HOW TO SET UP THE CONSOLE The console is now ready for you to begin working out. The following pages explain the various workouts and Before using the treadmill for the first time, set up the other features that the console offers. console.
  • Page 21 3. Start the walking belt and adjust the speed. Additional information is also available. To view or browse additional statistics and charts, swipe down Touch Manual Start on the screen or press the from the top of the screen. You can also touch the + button on the screen to view stats or charts.
  • Page 22 HOW TO USE A FEATURED WORKOUT 4. Start the workout. Note: To use a featured workout, the console must Touch Start Workout to start the workout. be connected to a wireless network (see HOW TO CONNECT TO A WIRELESS NETWORK on page 27). During some workouts, an iFIT coach will guide you through a video workout.
  • Page 23 5. Use headphones if desired. 3. Draw your map. To connect your wireless headphones to the Navigate to the area on the map where you want console, first turn on your headphones, place them to draw your workout by sliding your fingers on the in pairing mode, and place them near the console.
  • Page 24 HOW TO USE AN IFIT WORKOUT The featured iFIT workouts shown on the home screen will change periodically. To use an iFIT workout, you must be logged into your iFIT account (see step 3 below) and the console must The workout library contains all of the iFIT work- be connected to a wireless network (see HOW TO outs available for the treadmill, organized into CONNECT TO A WIRELESS NETWORK on page 27).
  • Page 25 8. Use headphones if desired. HOW TO CHANGE CONSOLE SETTINGS To connect your headphones to the console, first IMPORTANT: Some of the settings and features described may not be enabled. Occasionally, a turn on your headphones, place them in pairing mode, and place them near the console.
  • Page 26 3. Customize the time zone and other settings. Note: Occasionally, a firmware update may cause the console to function slightly differently. These To customize the time zone or other settings, touch updates are always designed to improve your Equipment Settings and then touch the desired exercise experience.
  • Page 27 HOW TO CONNECT TO A WIRELESS NETWORK An information box will ask if you want to connect to the wireless network. Touch Join to connect to The console is Wi-Fi enabled, allowing you to set up a the network or touch Cancel to return to the list of ®...

  • Page 28: Fcc Information

    THE OPTIONAL HEART RATE MONITOR To connect a heart rate monitor to the console, first put it on as directed in its included instructions. The Whether your console will search for the heart rate monitor and goal is to connect automatically. burn fat or to strengthen your cardiovascular...

  • Page 29: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to zero before you fold the treadmill. Then, remove left.

  • Page 30: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE c. Check the power switch located on the treadmill frame near the power cord. If the switch protrudes Regular maintenance is important for optimal as shown (A), the switch has tripped. To reset the performance and to reduce wear. Inspect and properly power switch, wait for five minutes and then press tighten all parts each time the treadmill is used.
  • Page 31 SYMPTOM: The treadmill will not connect to the c. Your treadmill features a walking belt coated with wireless network high-performance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform unless a. Make sure that the wireless settings on the console instructed to do so by an authorized service are correct (see page 27).
  • Page 32 b. If the walking belt slips when walked on, first SYMPTOM: The displays of the console do not remove the key and UNPLUG THE POWER function properly CORD. Using the hex key, turn both idler roller screws clockwise, 1/4 of a turn. When the walking a.

  • Page 33: Exercise Guidelines

    EXERCISE GUIDELINES Aerobic Exercise—If your goal is to strengthen your WARNING: cardiovascular system, you must perform aerobic Before beginning this exercise, which is activity that requires large amounts or any exercise program, consult your physi- of oxygen for prolonged periods of time. For aerobic cian.

  • Page 34: Part List

    PART LIST Model No. PFTL15820.4 R0222A Key No. Qty. Description Key No. Qty. Description 3/8" x 1 1/4" Screw Belt Guide #8 x 1/2" Screw Left Frame Cover 3/8" x 2 3/8" Screw Right Frame Cover 3/8" x 1 3/4" Screw Drive Roller/Pulley #8 x 3/4"...
  • Page 35 Key No. Qty. Description Key No. Qty. Description Grommet 5/16" x 3 1/4" Bolt Console 5/16" Jam Nut Console Base Large Metal Bushing Left Tray Large Plastic Bushing Right Tray Console Pivot Plate Fan Screw Wire Cover Quick Control Console Console Frame Cap Console Frame Plate Console Frame...

  • Page 36: Exploded Drawing

    EXPLODED DRAWING A Model No. PFTL15820.4 R0222A...
  • Page 37 EXPLODED DRAWING B Model No. PFTL15820.4 R0222A 18 18...
  • Page 38 EXPLODED DRAWING C Model No. PFTL15820.4 R0222A...
  • Page 39 EXPLODED DRAWING D Model No. PFTL15820.4 R0222A...

  • Page 40: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
